Garland ED-36G Designer Electric Griddles
Description
Designer Series 36″ Electric Countertop Griddle
Model ED-36G | 3-Zone Thermostatic Control • 10.1 kW • NSF & CSABring the proven reliability of Garland’s Designer Series into your production line with a powerful, easy-to-clean 36 inch electric griddle that delivers even heat from corner to corner. Three independent thermostats (one every foot) give you precise command over a generous 35 5⁄8″ × 18″ cooking surface—perfect for everything from breakfast classics to high-volume lunch service.
Why you’ll love it
- Triple-zone precision – individual thermostats with 100 – 450 °F (38 – 232 °C) range let you cook, finish and hold on the same plate.
- Rapid recovery – 10.1 kW of electric power keeps up with peak-time demands without hot & cold spots.
- Built for the rush – ½″ (13 mm) polished steel plate stores heat and resists warping for consistent searing.
- Cleaner work station – concealed, front-mounted grease drawer and 2 5⁄8″ welded splash guards tame mess and splatter.

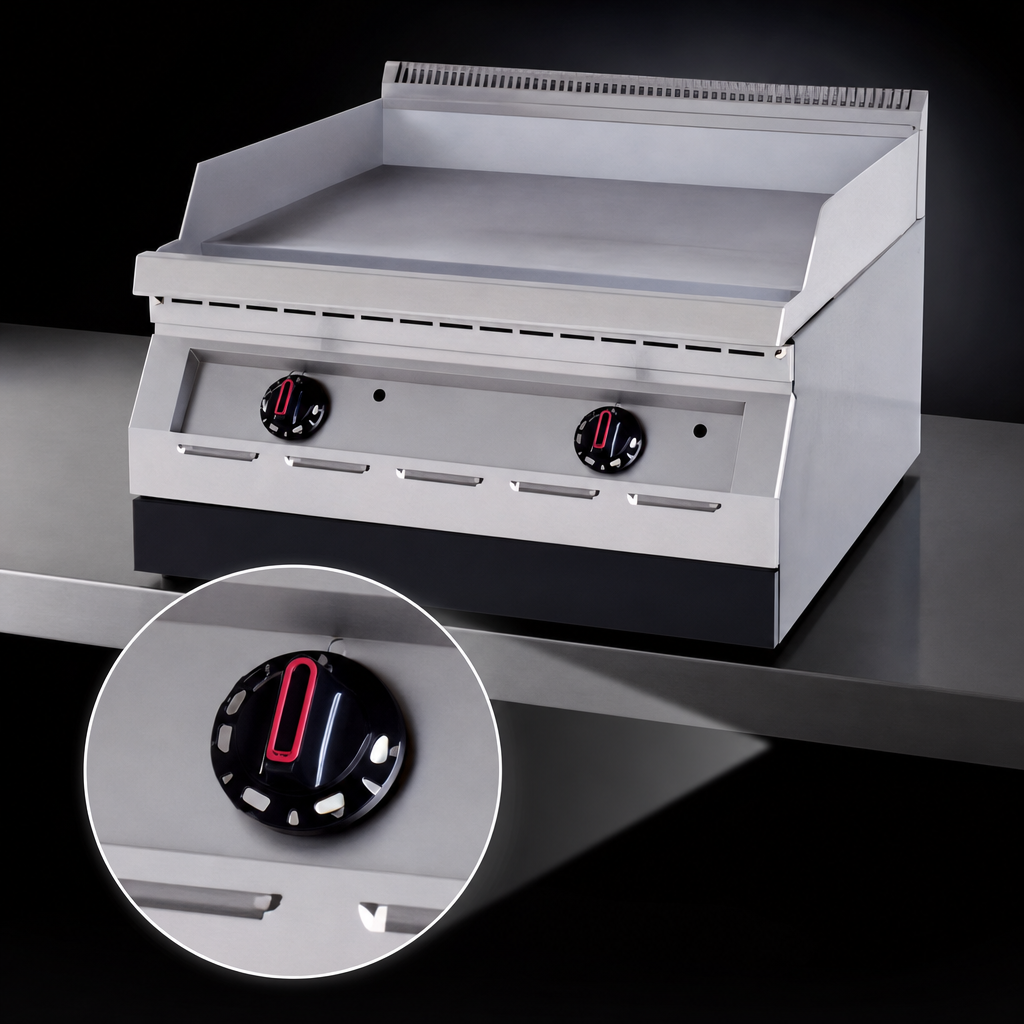

- Operator friendly – recessed, protected controls with heat-on indicator lamps safeguard settings and speed training.
- All-stainless exterior – brushed front & sides wipe down fast and match other Designer Series equipment when banked.
- Ready to install – supplied on 4″ (102 mm) adjustable stainless steel legs for countertop use.
At-a-glance specs
| Usable cooking surface | 35 5⁄8″ W × 18″ D (876 × 457 mm) |
|---|---|
| Overall dimensions | 36″ W × 24″ D × 13 3⁄4″ H (914 × 610 × 349 mm) |
| Griddle plate | ½″ (13 mm) polished steel, smooth |
| Thermostat zones | 3 (one per 12″ of width) |
| Temperature range | 100 – 450 °F (38 – 232 °C) |
| Grease management | Front, concealed drawer behind hinged panel |
| Splash guards | 2 5⁄8″ (67 mm) welded, rear & sides |
| Legs | 4″ (102 mm) stainless steel, adjustable |
| Electrical load | 10.1 kW @ 208/240 V; field-wiring for single- or 3-phase (see power table) |
| Certifications | NSF, CSA (commercial use) |
| Warranty | 1-year limited parts & labor (USA & Canada) |
Power requirements
| Voltage | Single-phase | Hi-line 3-phase |
|---|---|---|
| 208 V | 49 A | 28 A / line |
| 240 V | 42 A | 25 A / line |
Side clearance 1″ (25 mm) • Rear clearance 1½″ (38 mm) • Hard-wire connection required.
Popular options & accessories
- Stainless steel back & bottom panels
- Fully grooved plate or partial grooved left-side sections
- Countertop equipment stand (various heights)
Garland equipment is engineered for commercial kitchens and is not intended for residential installation.
