Garland ECG-48R Master Electric Griddles
Garland ECG-48R Master Electric Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland ECG-48R Master Electric Griddles
Description

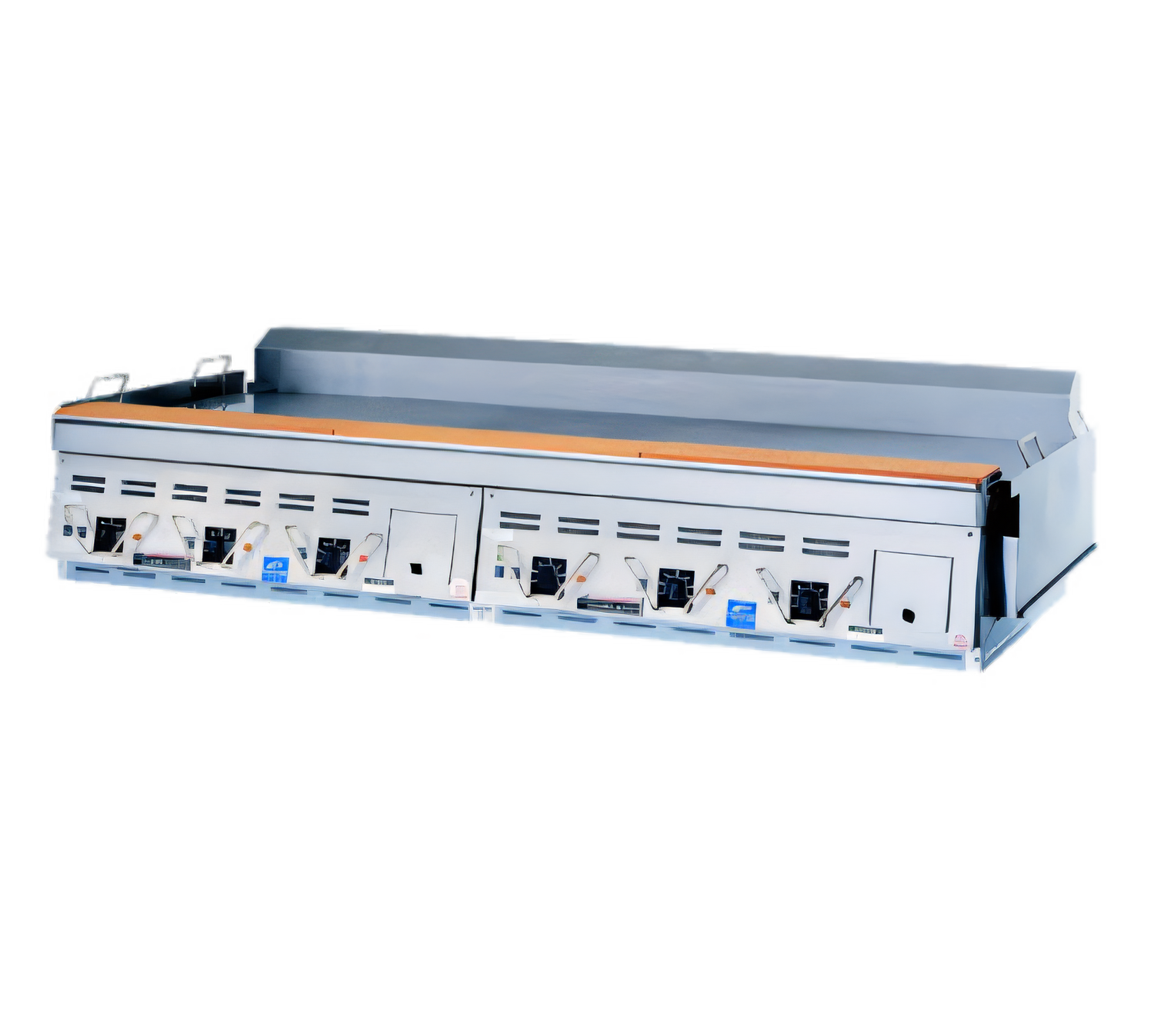

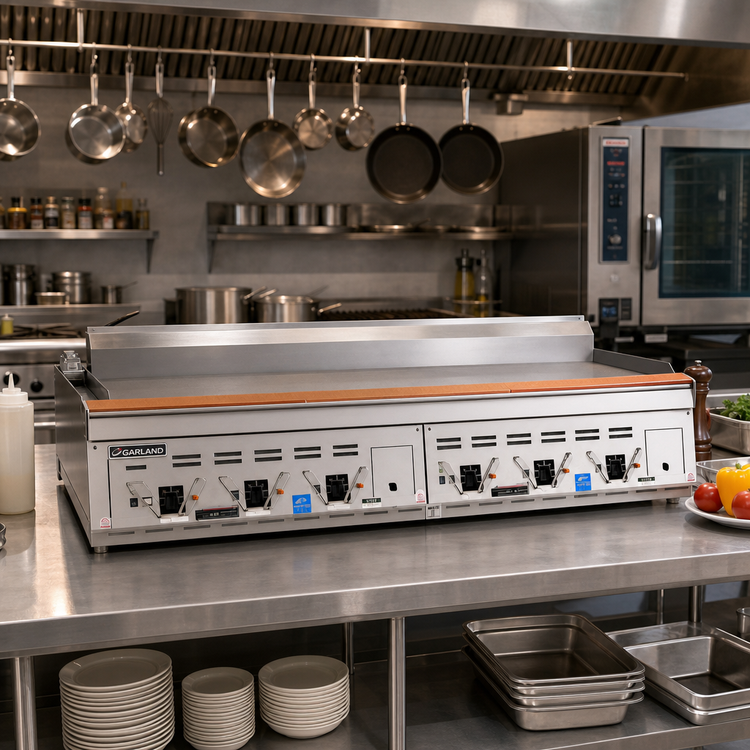

Garland Master 48″ Electric Countertop Griddle
Model ECG-48R | 17.2 kW | 208/240 V, 3-PhaseEngineered for high-volume, round-the-clock service, the Garland Master ECG-48R couples a 1-inch thick polished steel plate with precision electronic controls to deliver relentless, edge-to-edge heat. Perfect for diners, hotels and institutional kitchens that can’t afford downtime.
Key Features

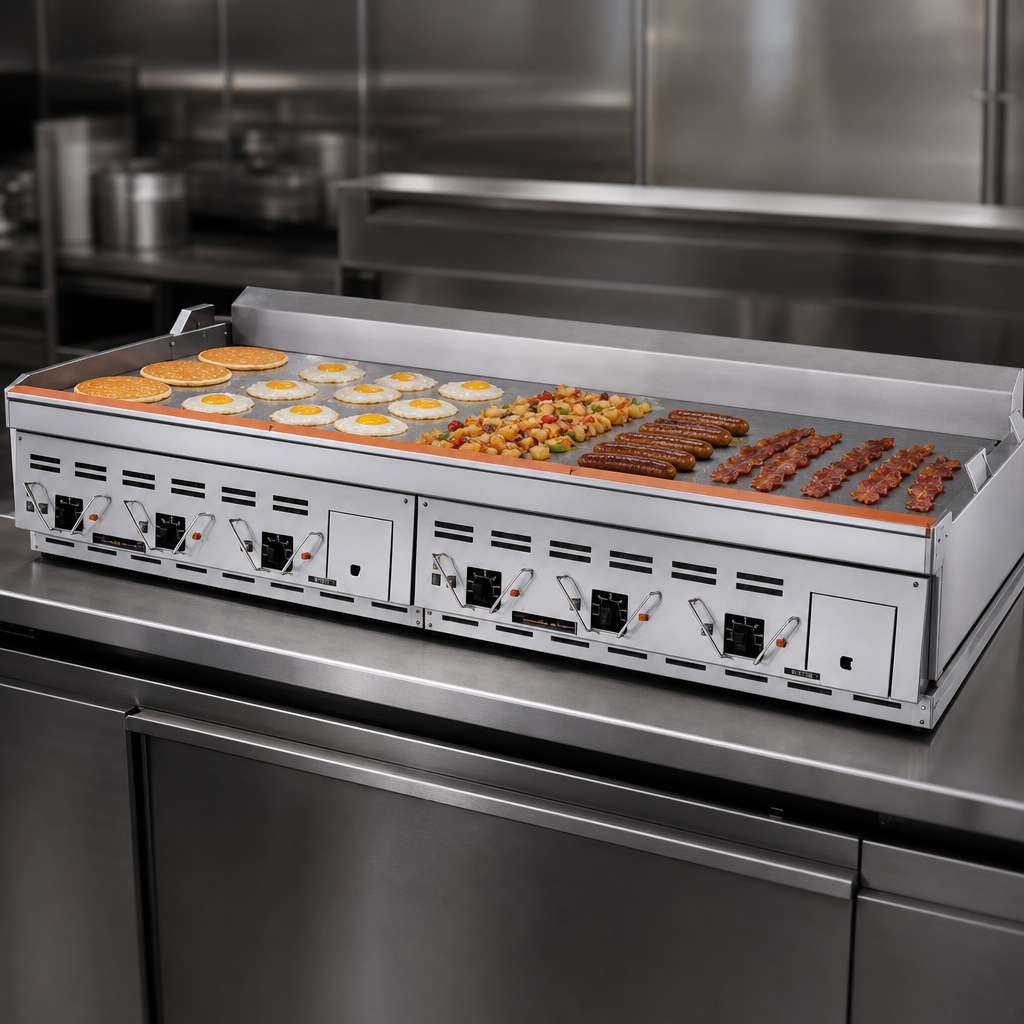

- 48" W × 24" D cooking surface (1,152 in²) handles breakfast rushes and dinner service with ease.

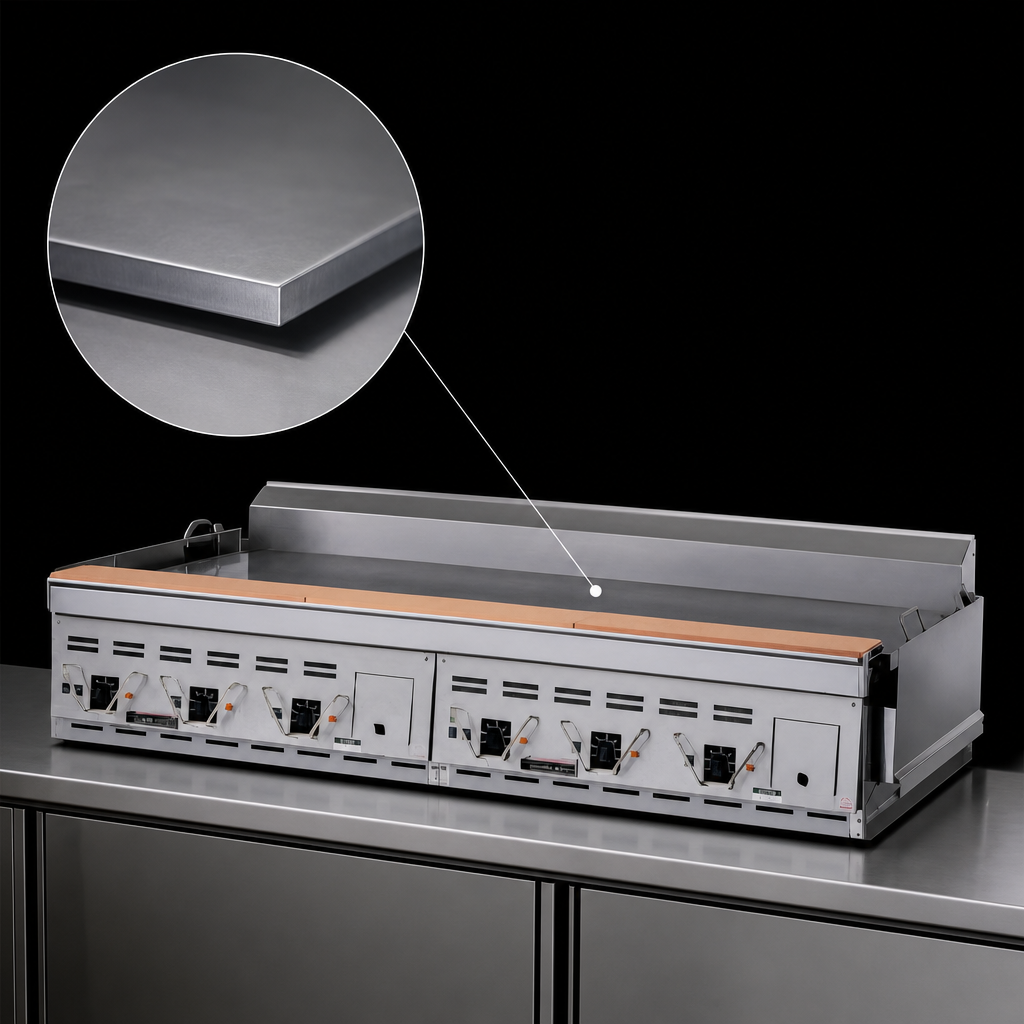

- 1" (25 mm) polished steel plate stores heat for rapid recovery and superior searing.
- Four independent 12" zones, each with an embedded electronic thermostat (150 – 450 °F).
- Three flat-bar heating elements per zone (total 17.2 kW) ensure uniform temperature.
- Separate green Main Power and amber Heat-On indicators keep staff informed at a glance.
- Rear grease trough with 6 L stainless drawer plus contoured front chute for clean operation.
- 8" backsplash and 3" side splashguards—all stainless steel—for a cleaner line and safer staff.
- Full-width front rail and 6" adjustable stainless legs for easy setup and leveling.
- Factory-installed 6' cord & plug (48" 3-phase models) for fast, plug-and-play installation.
Ideal For
- Diners, cafés & ghost kitchens
- Hotel breakfast or banquet lines
- School, corporate & hospital cafeterias
- Concessions & food-truck commissaries (fixed electric hookup required)
Specifications
| Model | ECG-48R |
|---|---|
| Cooking Surface | 48" W × 24" D (1,152 in² / 0.74 m²) |
| Plate Thickness | 1" (25 mm) polished steel |
| Heat Zones | 4 independent zones — electronic thermostats 150 – 450 °F (66 – 232 °C) |
| Total Power | 17.2 kW (4.3 kW per 12" section) |
| Electrical | 208/240 V, 3-Phase — 48.3 A (208 V) / 41.9 A (240 V) per phase |
| Grease Drawer | 1.6 gal (6 L) stainless drawer, rear grease trough |
| Exterior | All stainless steel with 8" rear & 3" side splashguards |
| Overall Dimensions | 48" W × 24" D × 40-5/8" H† (1219 × 610 × 1032 mm) |
| Adjustable Legs | 6" (152 mm) stainless steel |
| Shipping Weight | 500 lb (227 kg) |
| Certifications | CSA, NSF |
†Height measured to top of backsplash.
What’s in the Box
- Garland Master ECG-48R griddle with 6' (1.8 m) power cord & NEMA plug
- Nickel-plated thermostat guards
- Installation & operation manual
Popular Options & Accessories
- Stainless open stand (adjustable legs or casters)
- Protective control shield
- 10-½" deep grease drawers (stand models)
- 220/240 V-50 Hz hard-wire configuration
*Pancake capacity estimate based on 4" diameter pancakes cooked in two batches per zone every 4 minutes. Actual output varies with recipe, temperature setting and operator technique.
