Garland E24-72G E24 Series Electric Griddles
Garland E24-72G E24 Series Electric Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland E24-72G E24 Series Electric Griddles
Description

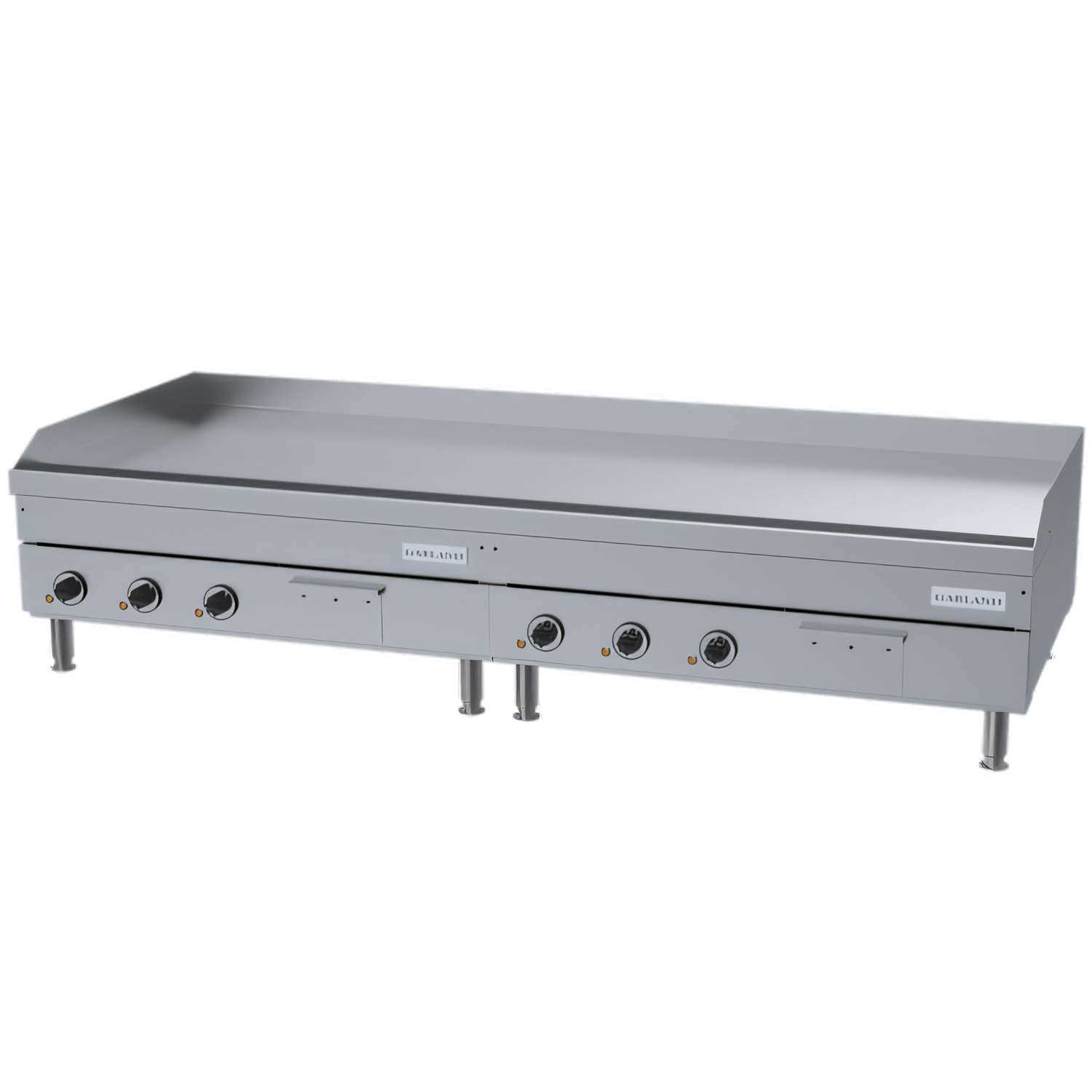

Garland E24 Series 72" Electric Countertop Griddle
Model E24-72G | 24 kW | 6-Zone Thermostatic ControlBuilt for the busiest kitchens, Garland’s 72 inch E24 Series griddle delivers high-volume production, fast recovery and rock-solid temperature consistency in a space-saving countertop design. A 3⁄4" polished steel plate teams up with six independent hydraulic thermostats to give you pinpoint control from 100 °F to 450 °F across the entire 71-5/8" × 24" cooking surface.
Key advantages

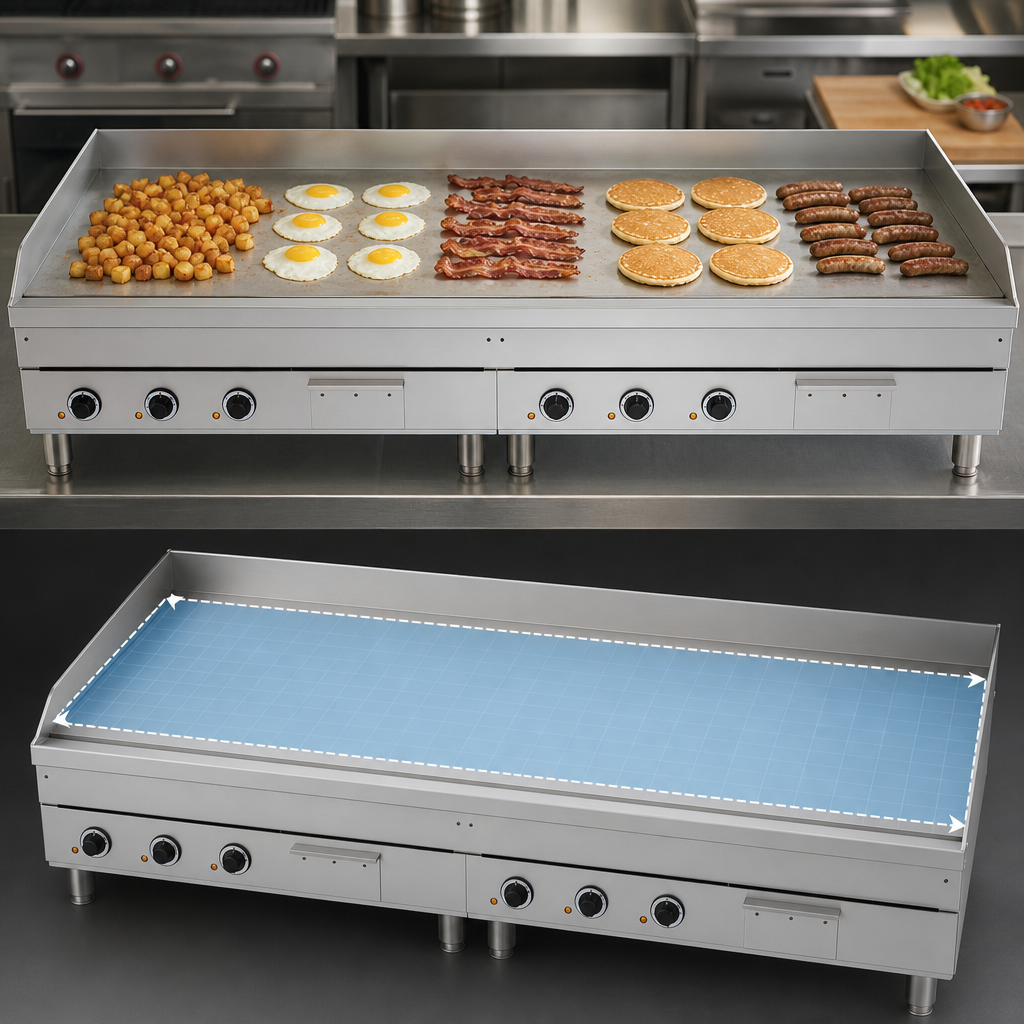

- Extra-wide 72" (1829 mm) cooking platform - perfect for breakfast rushes and bulk prep.

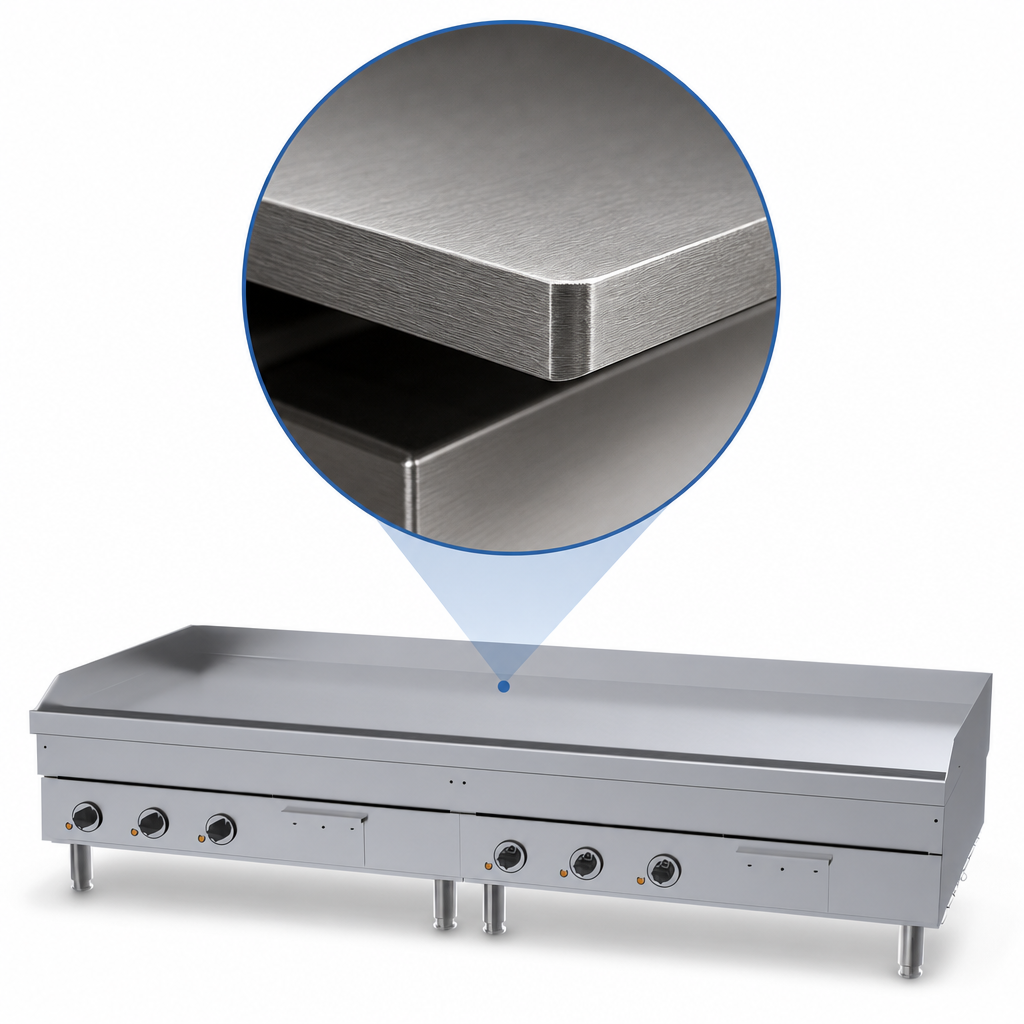

- 3⁄4" (19 mm) smooth, polished steel plate locks in heat for rapid recovery and even browning.
- Six 12" (305 mm) heating zones, each with its own 100-450 °F hydraulic thermostat & indicator light.
- Recovery signal light lets operators know exactly when the plate is back to temperature.
- One-piece grease trough & 4-sided splashguard keep work areas clean and safe.
- Durable stainless-steel front and sides withstand daily commercial abuse and wipe clean fast.
- 4" (102 mm) adjustable stainless sanitary legs provide clearance for under-counter cleaning.
- Heavy-duty pressure-clamped tubular elements for even heat distribution.
- NSF & cULus listed; ships with a one-year limited parts & labor warranty (USA/Canada).
Production capacity*
| Menu Item | Load (pieces) | Hourly Output |
|---|---|---|
| 3½ oz Hamburger Patties (350 °F) | 100 | 900 |
| 4 oz Minute Steaks (350 °F) | 80 | 1,840 |
| 4" Pancakes (400 °F) | 80 | 800 |
| Fried Eggs (300 °F) | 92 | 1,380 |
*Approximate values supplied by Garland under controlled test conditions.
Technical specifications
| Overall width | 72" / 1829 mm |
|---|---|
| Overall depth | 29-1/4" / 743 mm |
| Cooking surface (W × D) | 71-5/8" × 24" (1820 × 610 mm) |
| Plate thickness | 3⁄4" (19 mm) polished steel |
| Heat zones / controls | 6 × hydraulic thermostats, each 12" wide (100-450 °F) |
| Total power | 24.0 kW |
| Standard voltages | 208 V or 240 V, single- or three-phase (specify) Optional 460 V – contact factory |
| Amperage (240 V) | 3-phase: 58 A/line | 1-phase: 100 A |
| Amperage (208 V) | 3-phase: 66 A/line | 1-phase: 116 A |
| Construction | Stainless steel front & sides, welded splashguards, 4" stainless legs |
| Certifications | NSF, cULus |
| Warranty | 1-year limited parts & labor (USA & Canada) |
Popular options & accessories
- Grooved griddle plates (order in 12" sections)
- Stainless steel rear splash/back panel
- Countertop equipment stands & refrigerated bases
- 460 V wiring or custom export voltages
