Garland E24-60G E24 Series Electric Griddles
Garland E24-60G E24 Series Electric Griddles is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland E24-60G E24 Series Electric Griddles
Description
Garland E24-60G Heavy-Duty Electric Griddle – 60" Countertop
E24 Series | 20 kW | Five-zone thermostatic controlEngineered for demanding, high-volume kitchens, the Garland E24-60G delivers a generous 59 5⁄8" × 24" cooking surface, rapid heat recovery and rock-solid temperature accuracy. From breakfast rush to late-night service, this heavy-duty electric griddle keeps your line moving.
Key Features

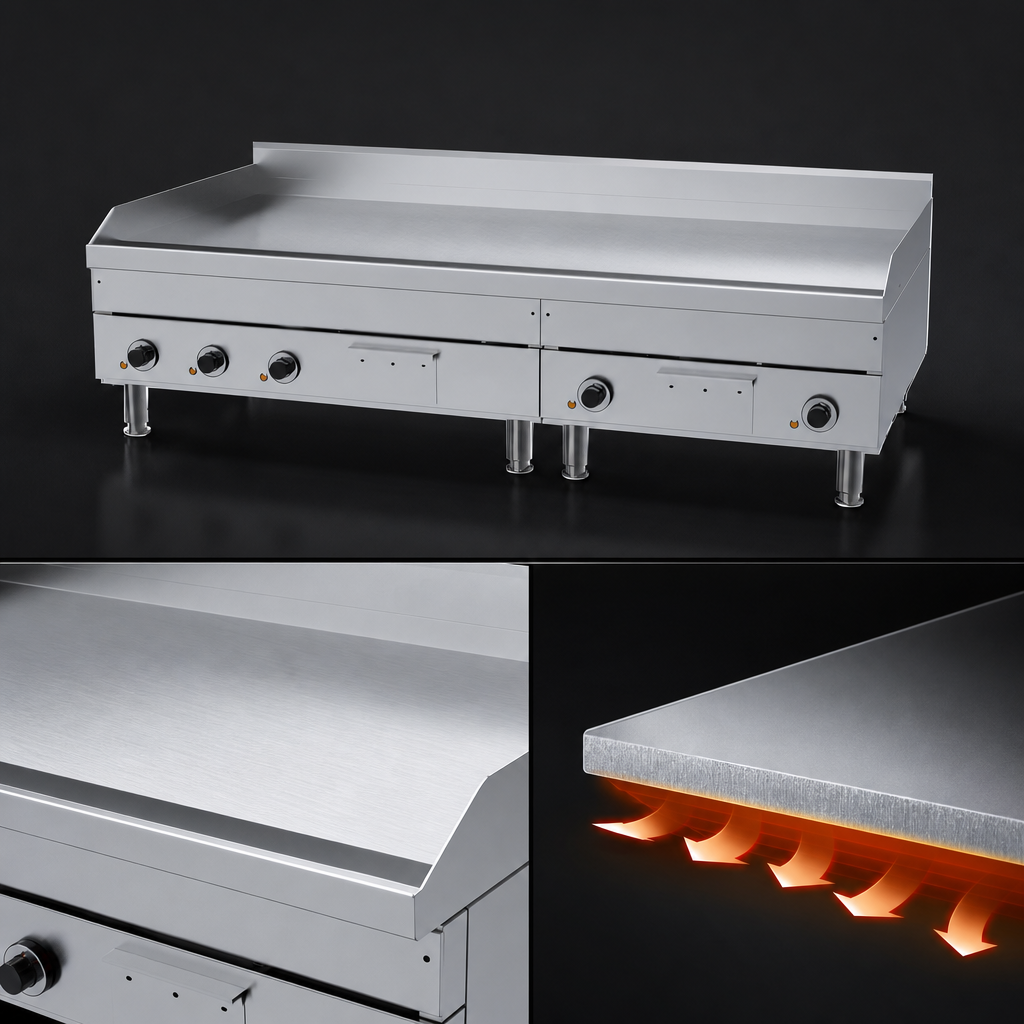

- 3/4" (19 mm) smooth, polished steel plate for superior heat retention and even browning.

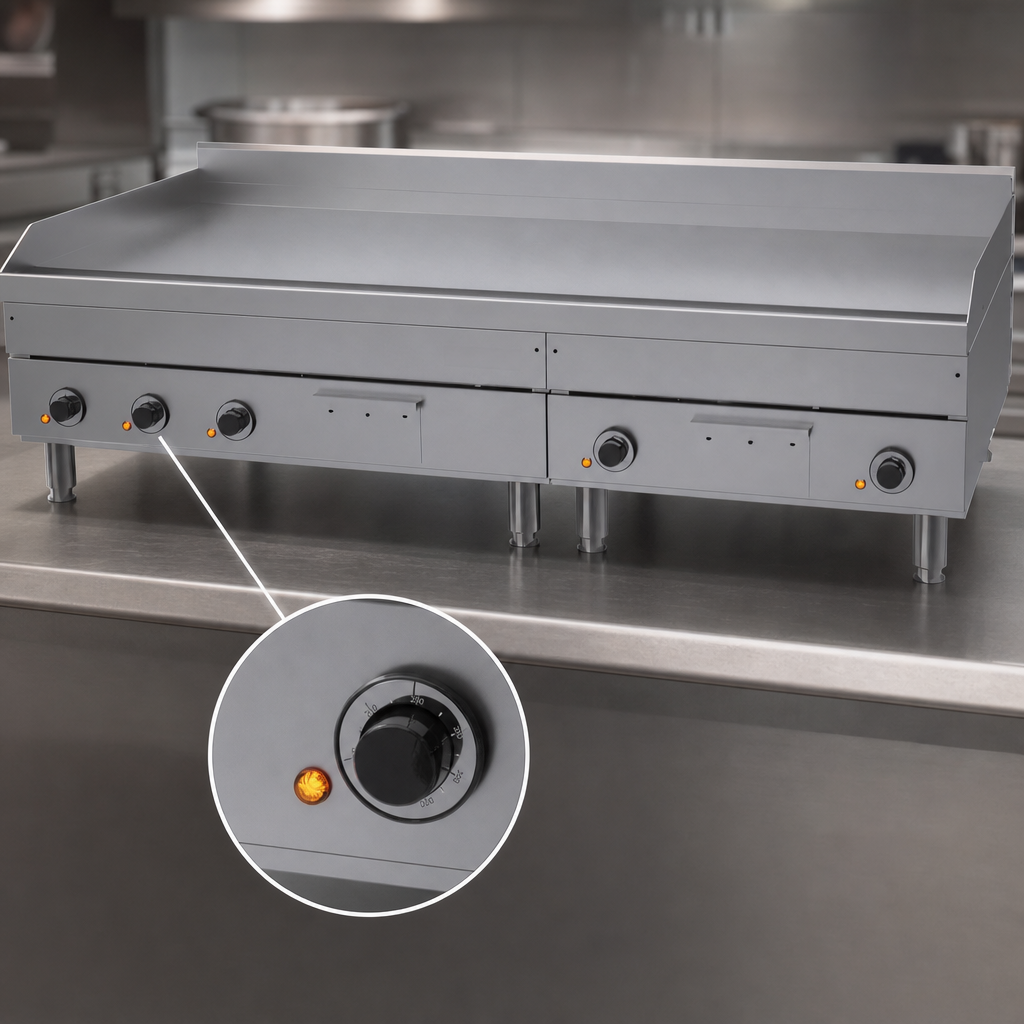

- Five independent hydraulic thermostats (100 °F – 450 °F) with ready lights—one every 12" of plate.
- Pressure-clamped tubular elements deliver 20 kW of responsive, edge-to-edge heat.
- Stainless steel front & sides resist corrosion and wipe clean in seconds.
- Full-width grease trough, deep drawer and 3-1/2" welded splashguards keep the workspace clean and safe.
- 4" (102 mm) sanitary adjustable legs for easy leveling and floor wash-down clearance.
- Recovery signal light lets staff know exactly when the plate is back to temperature.
- Ships configured for 208 V or 240 V, single or 3-phase. Optional 460 V elements available.
- NSF & cULus listed; one-year limited parts & labor warranty (USA & Canada).
Real-World Production*
| Usable cooking area | 59 5⁄8" W × 24" D (1,430 in²) |
|---|---|
| Simultaneous 3½ oz burger load | 83 patties |
| Hourly burger output | ≈ 750 patties |
| Hourly 4" pancakes | ≈ 667 cakes |
| Hourly fried eggs | ≈ 1,150 eggs |
* Capacities based on Garland test data. Results may vary with product, temperature and operator technique.
Technical Specifications
| Model | E24-60G |
|---|---|
| Overall width | 60" (1,524 mm) |
| Overall depth | 29-1/4" (743 mm) |
| Overall height | 23-1/4" (591 mm) body + 4" (102 mm) legs |
| Plate thickness | 3/4" (19 mm) polished steel |
| Heat zones | 5 × 12" thermostatically controlled sections |
| Electrical load | 20.0 kW |
| Amperage (240 V / 3 Ø) | Line X: 44 A | Line Y: 44 A | Line Z: 58 A |
| Amperage (240 V / 1 Ø) | 83.5 A |
| Minimum clearances | 1" (25 mm) sides & rear |
Consult the spec sheet for complete electrical data and alternative voltages.
Perfect For
- Diners, cafés & family restaurants handling all-day breakfast.
- Hotel banquets and large institutional kitchens.
- High-volume catering or ghost-kitchen operations.
- Any commercial lineup where consistency and recovery time are critical.
