Garland E24-48G E24 Series Electric Griddles
Description

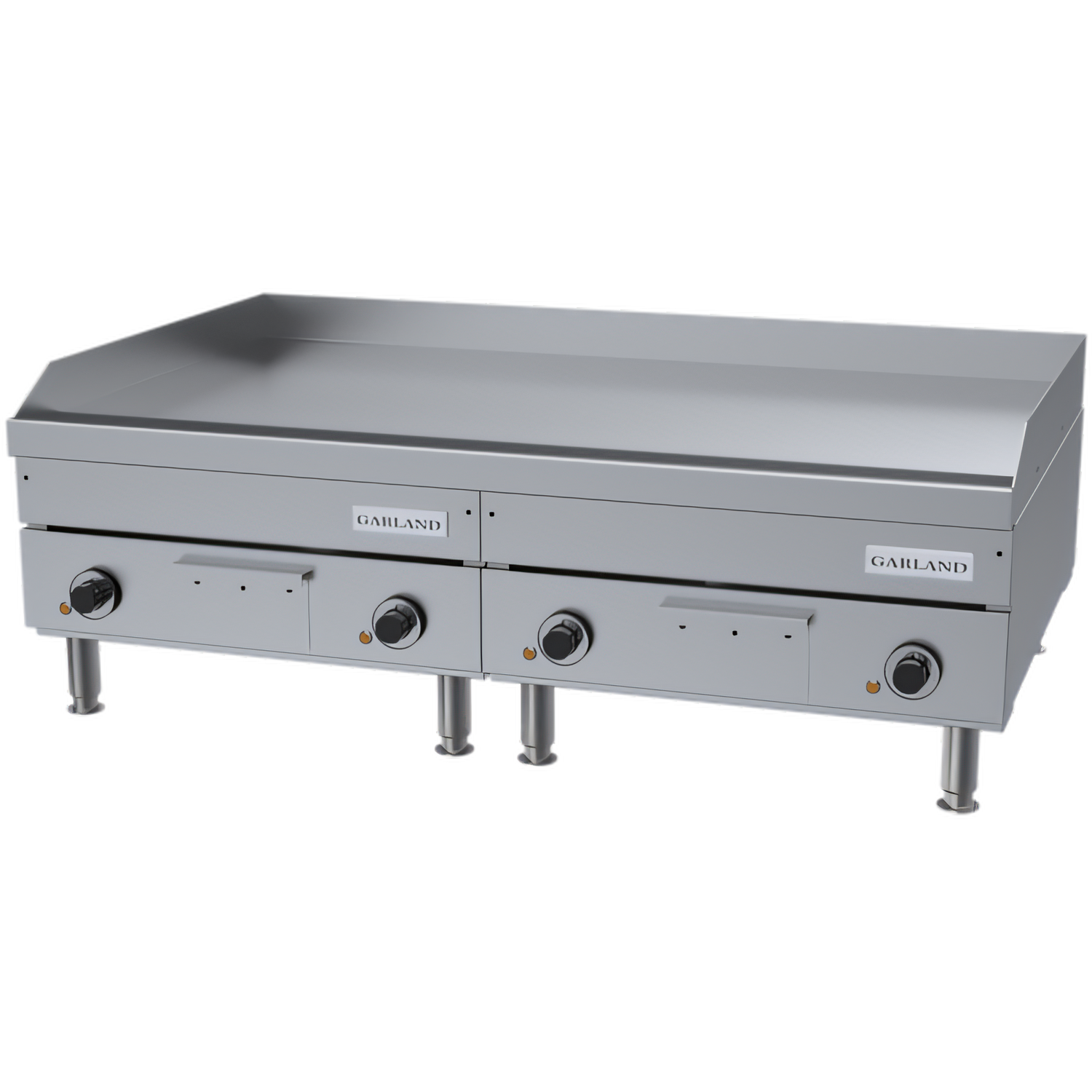

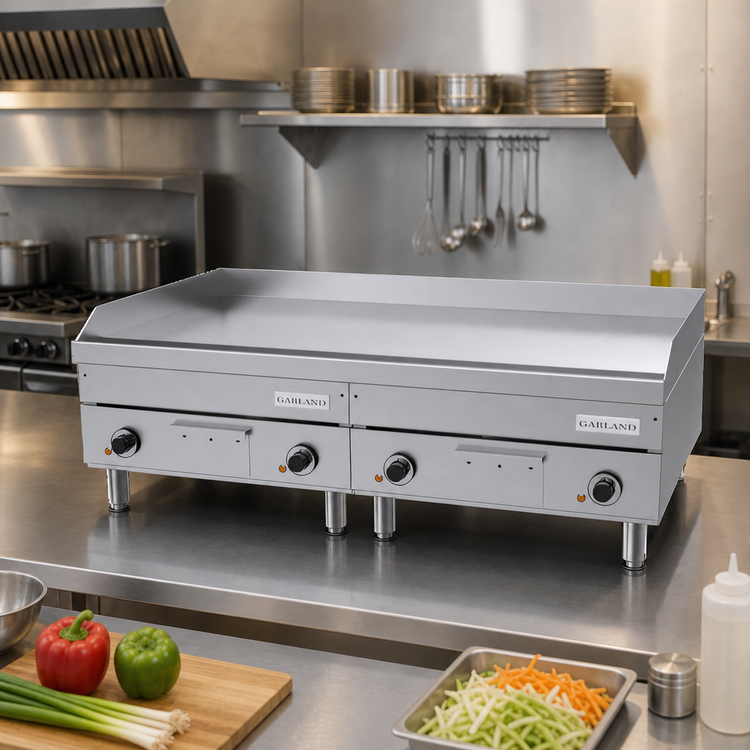

Garland E24-48G Heavy-Duty Electric Griddle
48" countertop model • 16 kW • 4 independent heat zonesBuilt for high-volume, all-day production, the Garland E24-48G delivers rock-solid temperature control, rapid recovery and the rugged construction you expect in a true heavy-duty griddle. Its 3/4" thick polished steel plate spreads heat evenly from corner to corner, while four hydraulic thermostats give you precise command over every 12" of cooking surface.
Key performance features

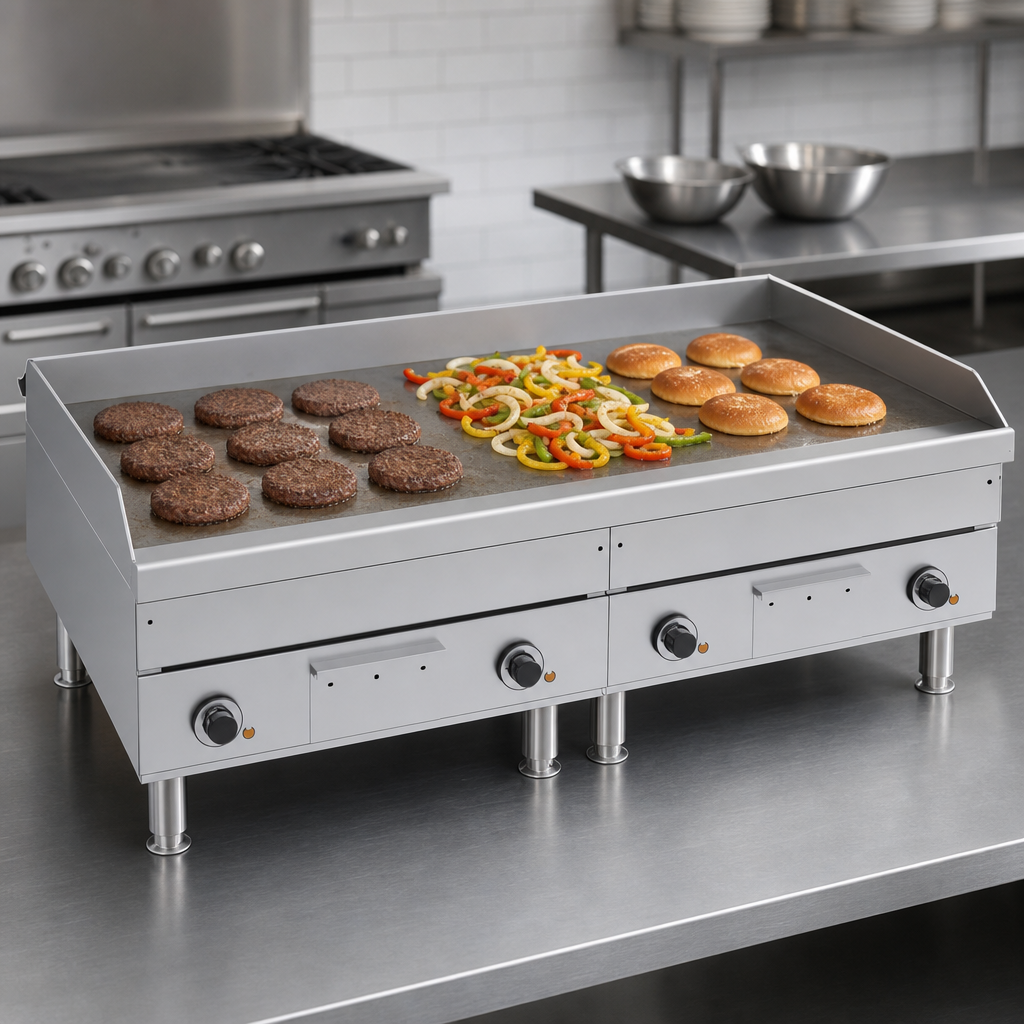

- 47-5/8" W × 24" D cooking surface handles breakfast rush to late-night service.

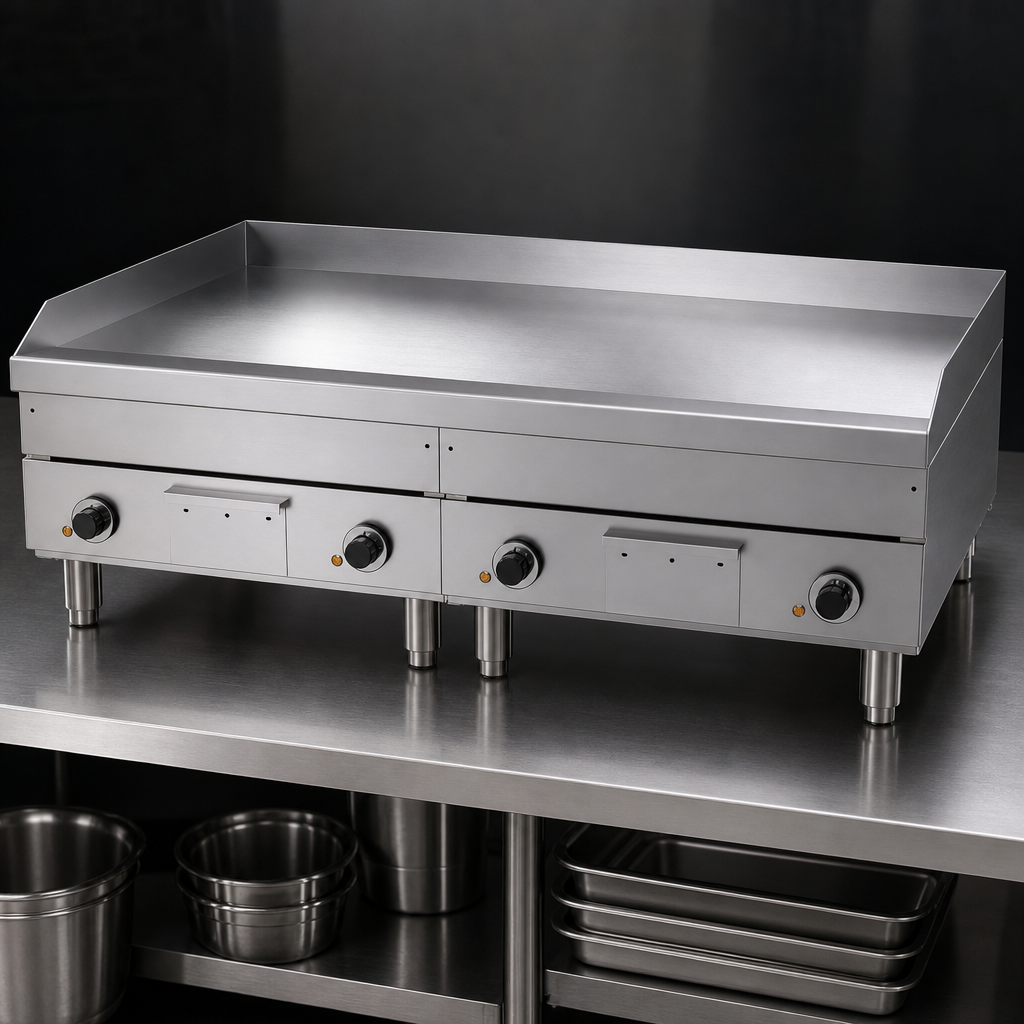

- 3/4" (19 mm) smooth, polished steel plate stores heat for consistent sears and lightning-fast recovery.
- Four independent hydraulic thermostats (100-450 °F / 35-235 °C) with indicator lights—set separate zones for pancakes, eggs, burgers and more.
- Pressure-clamped tubular elements maximize surface contact for even heat distribution.
- Recovery signal light lets staff know instantly when the plate is back to temp.
- Integrated splashguard and extra-wide front trough speed cleanup and keep grease where it belongs.
- Stainless steel front & sides plus 4" adjustable sanitary legs stand up to the toughest kitchen environments.
High-volume capacities*
- Up to 67 standard 3.5 oz (98 g) burger patties per load / ≈ 600 patties per hour
- Up to 53 fried eggs per load / ≈ 533 per hour
- Up to 53 pancakes (4" dia.) per load / ≈ 533 per hour
*Based on Garland in-house testing at recommended temperatures.
Technical specifications
| Model | E24-48G |
|---|---|
| Cooking surface (W × D) | 47-5/8" × 24" (1210 × 610 mm) |
| Total heat output | 16.0 kW |
| Heat zones | 4 × 12" (305 mm) sections, individually controlled |
| Temperature range | 100 °F – 450 °F (35 °C – 235 °C) |
| Plate thickness | 3/4" (19 mm) polished steel |
| Voltage / phase | 208 V or 240 V, single or three-phase (460 V optional) |
| Amps (3-ph 240 V) | 44 / 29 / 44 A per line |
| Amps (1-ph 240 V) | 67 A |
| Overall dimensions (W × D × H) | 48" × 28-29/32" × 33-1/4"* (1219 × 734 × 845 mm) |
| Construction | Stainless steel front & sides, splashguard, removable grease drawer, 4" adjustable legs |
| Certifications | NSF, cULus |
| Warranty | 1-year limited parts & labor (USA & Canada) |
*Height includes 4" sanitary legs.
Included with every unit
- Recovery signal & temperature indicator lights
- Grease trough and large-capacity drawer
- Rear power-cable entrance for clean installations
Popular options & accessories
- Stainless steel rear panel
- Grooved griddle sections (ordered in 12" increments)
- Matching equipment stands & refrigerated bases
- 460-480 V elements (contact us for amperage details)
