Garland E24-24G E24 Series Electric Griddles
Description

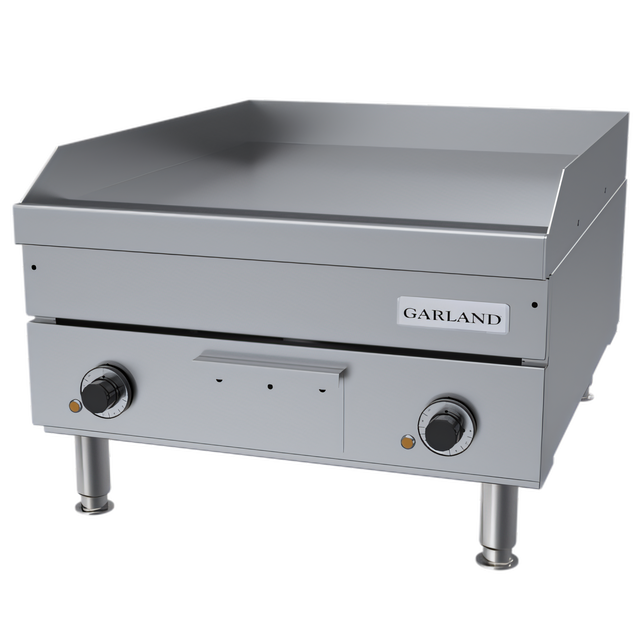

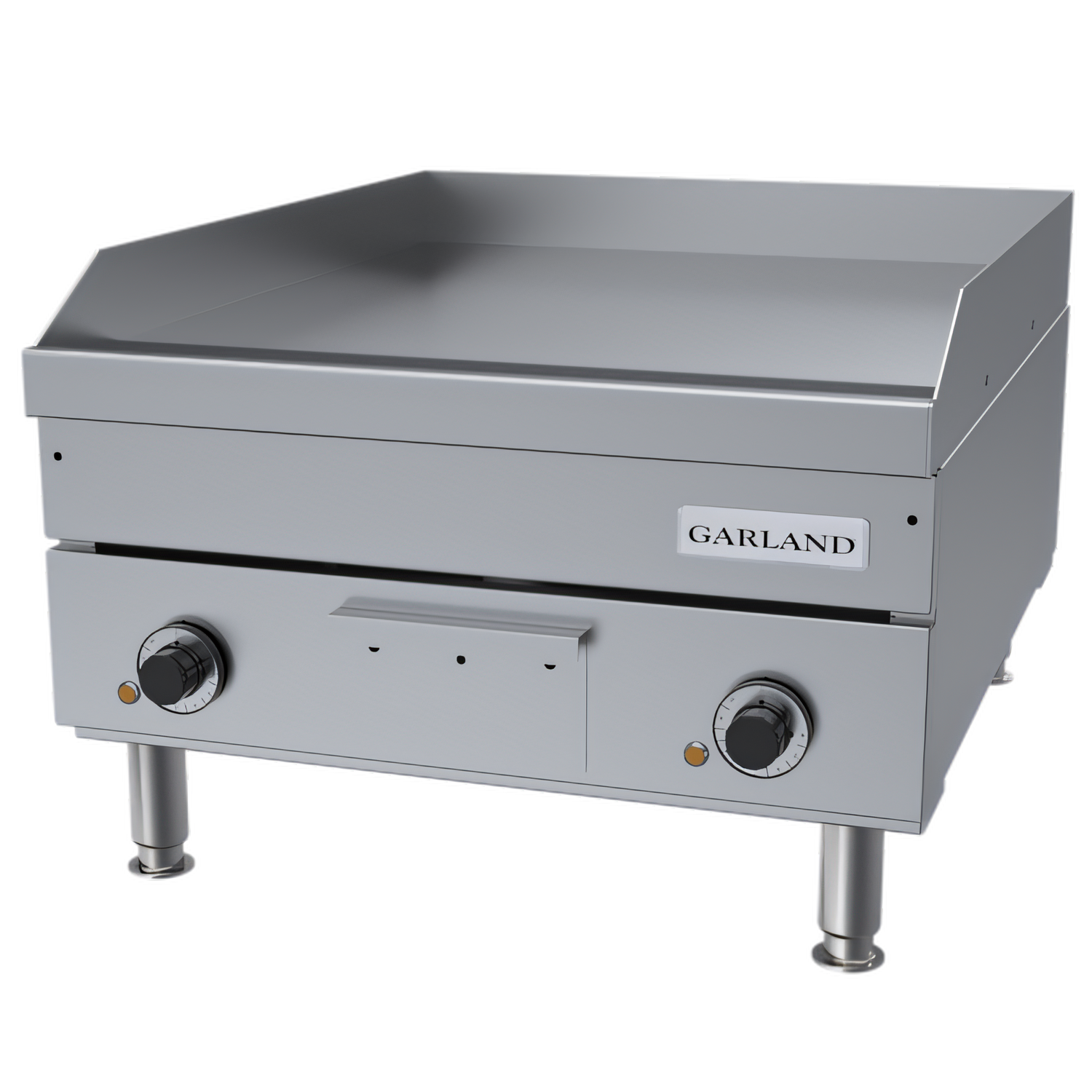

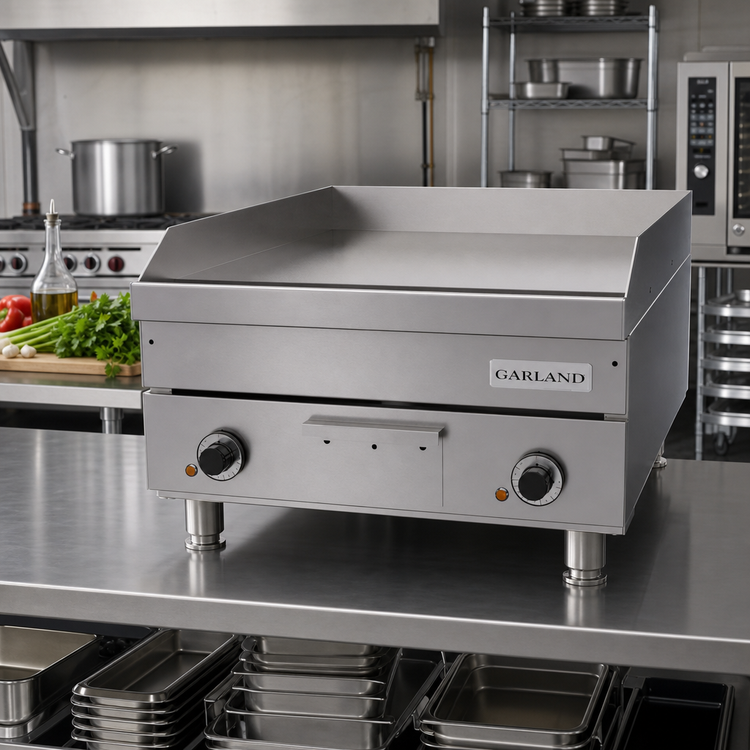

Garland E24 Series 24" Electric Countertop Griddle
Model E24-24G • 8 kW • 100°F – 450°FBring heavy-duty, high-volume performance to your line with the Garland E24-24G. Its 23-5/8″ wide cooking surface, ¾″ thick polished steel plate and dual thermostatic zones deliver rapid recovery, rock-solid temperature control and the durability demanded by busy commercial kitchens—all in a compact countertop footprint.
Key benefits

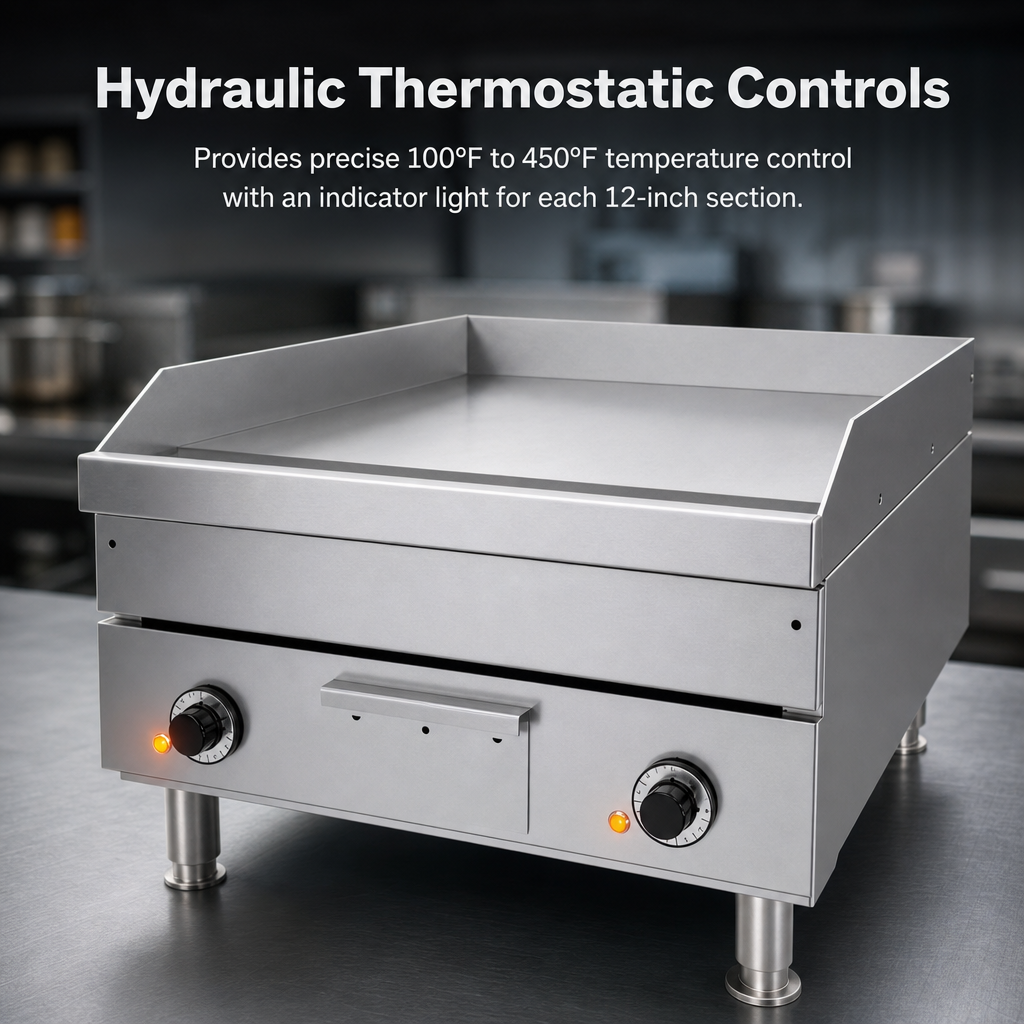

- Dual hydraulic thermostats (one every 12″) maintain even heat across the plate.
- Wide 100°F – 450°F (35°C – 235°C) range tackles everything from delicate eggs to searing steaks.
- 8.0 kW of pressure-clamped tubular elements for fast heat-up & recovery.

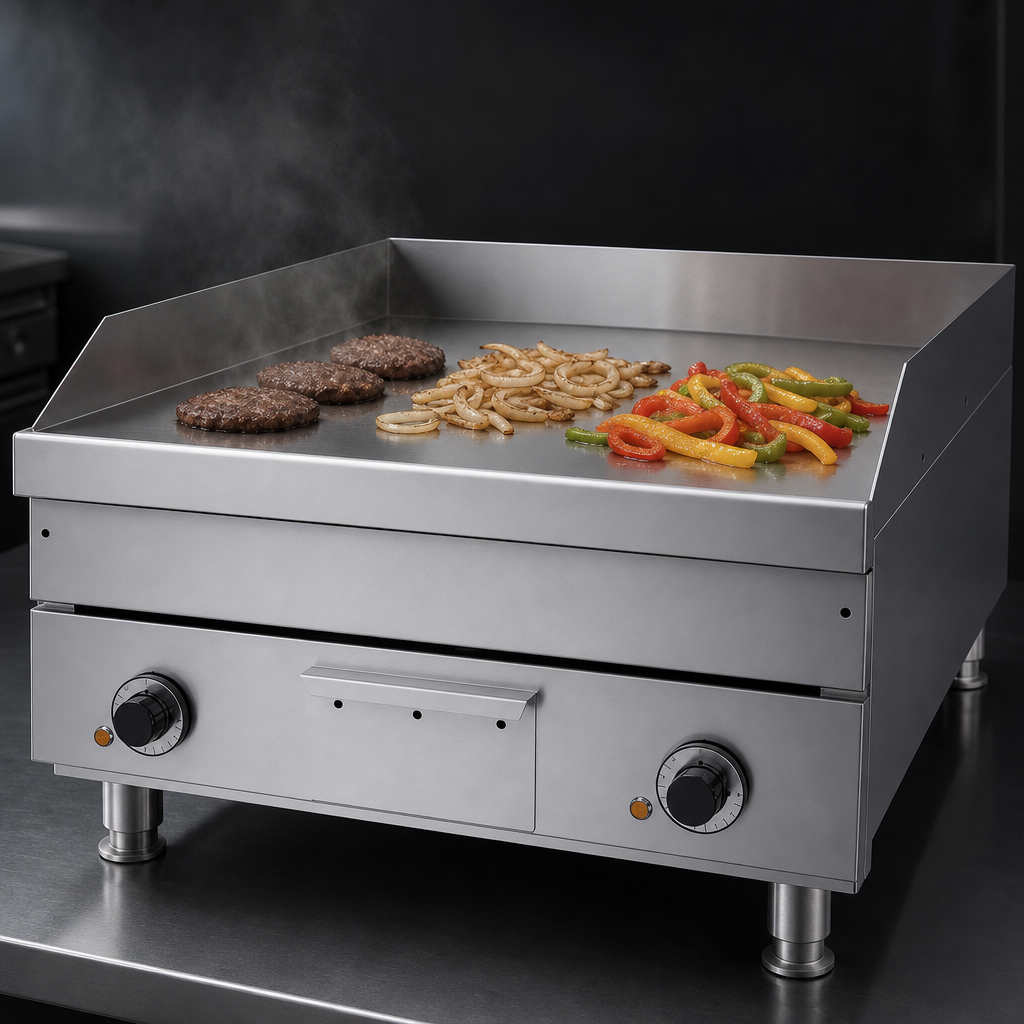

- Robust ¾″ (19 mm) smooth polished steel plate minimizes temperature drop when loading.
- Stainless steel front & sides plus 4″ (102 mm) sanitary legs for easy cleaning and stable setup.
- Bright recovery signal light shows staff when the surface is back to set temperature.
- NSF & CSA-us listed for commercial safety and sanitation compliance.
Serious production capacity*
- Up to 300 × 3½ oz (98 g) burger patties per hour
- Approx. 613 fried eggs per hour
- About 460 × 4″ pancakes per hour
*Factory test data at suggested temperatures. Actual results vary with product, load and workflow.
Technical specifications
| Cooking surface | 23-5/8″ W × 24″ D (600 mm × 610 mm) |
|---|---|
| Plate thickness | ¾″ (19 mm) polished steel, smooth |
| Heat zones | 2 independent zones (1 thermostat per 12″) |
| Temperature range | 100°F – 450°F (35°C – 235°C) |
| Total power | 8.0 kW |
| Electrical |
208 / 240 V, single or 3-phase, field-convertible 240 V 3-ph: 16.5 A per line | 240 V 1-ph: 33.5 A See spec sheet for full amperage data and alternate voltages. |
| Exterior construction | Stainless steel front & sides |
| Grease management | Front trough with integral splashguard |
| Included legs | 4″ (102 mm) adjustable sanitary legs |
| Warranty | 1-year limited parts & labor (USA & Canada) |
Options & accessories
- Stainless steel rear splash/back
- Grooved plate sections (12″ wide)
- 460 V element package (consult factory)
- Matching countertop stands
