Garland CG-72F Master Gas Griddles
Description
Garland Master CG-72F Countertop Gas Griddle

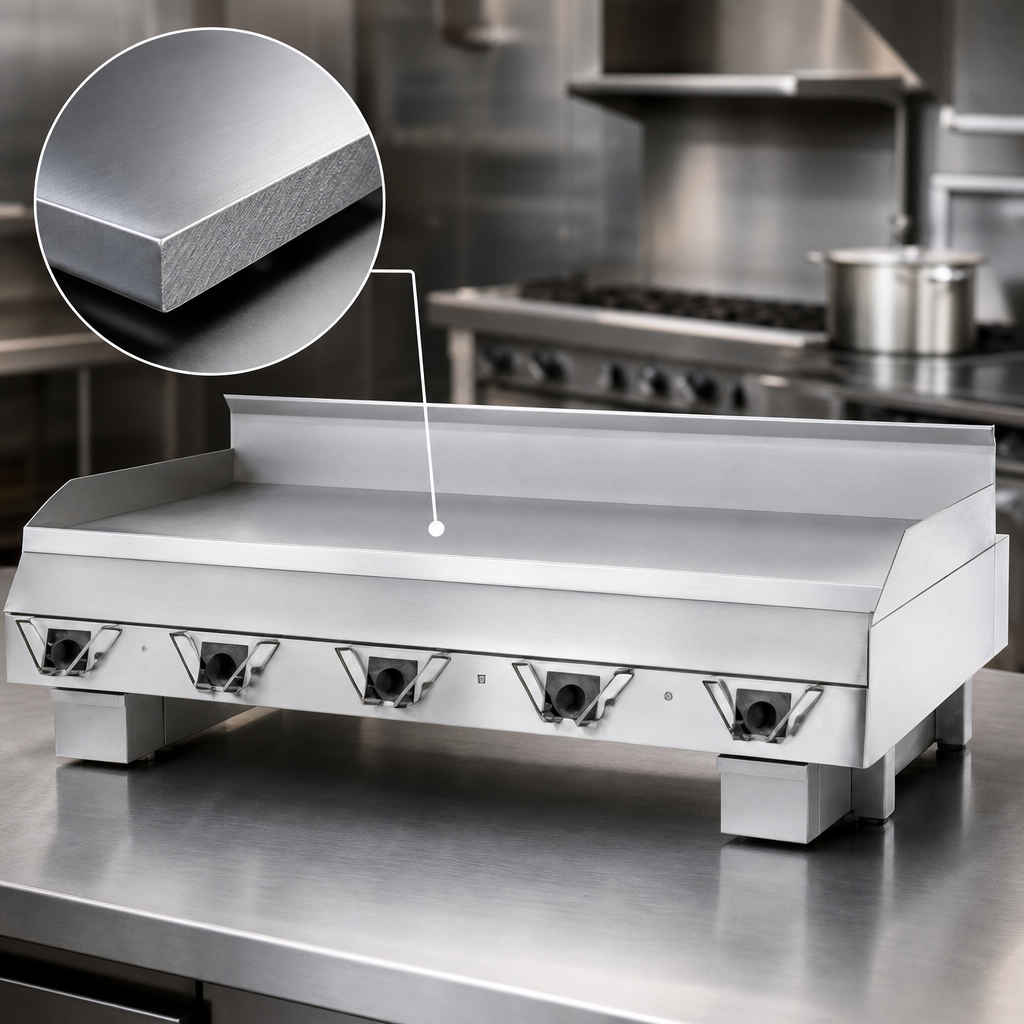

72" W x 24" D • 180,000 BTU • EnerLogic™ TechnologyEngineered for chain-level production and bullet-proof consistency, the Garland Master CG-72F delivers six independently-controlled cooking zones across a massive 72 × 24-inch, 1-inch thick polished steel plate. EnerLogic™ burner management, electronic thermostats and a full front-drain system keep service moving fast while trimming energy and cleanup time.
Why chefs choose the CG-72F- Six U-shaped 30,000 BTU burners (one every 12") for even heat and lightning-quick recovery.
- Electronic thermostats (150 °F – 450 °F) embedded in the plate maintain rock-solid set temps.
- Instant electronic ignition with individual pilot status lights for safer, easier start-ups.
- EnerLogic™ Technology reduces idle energy use without impacting peak performance.

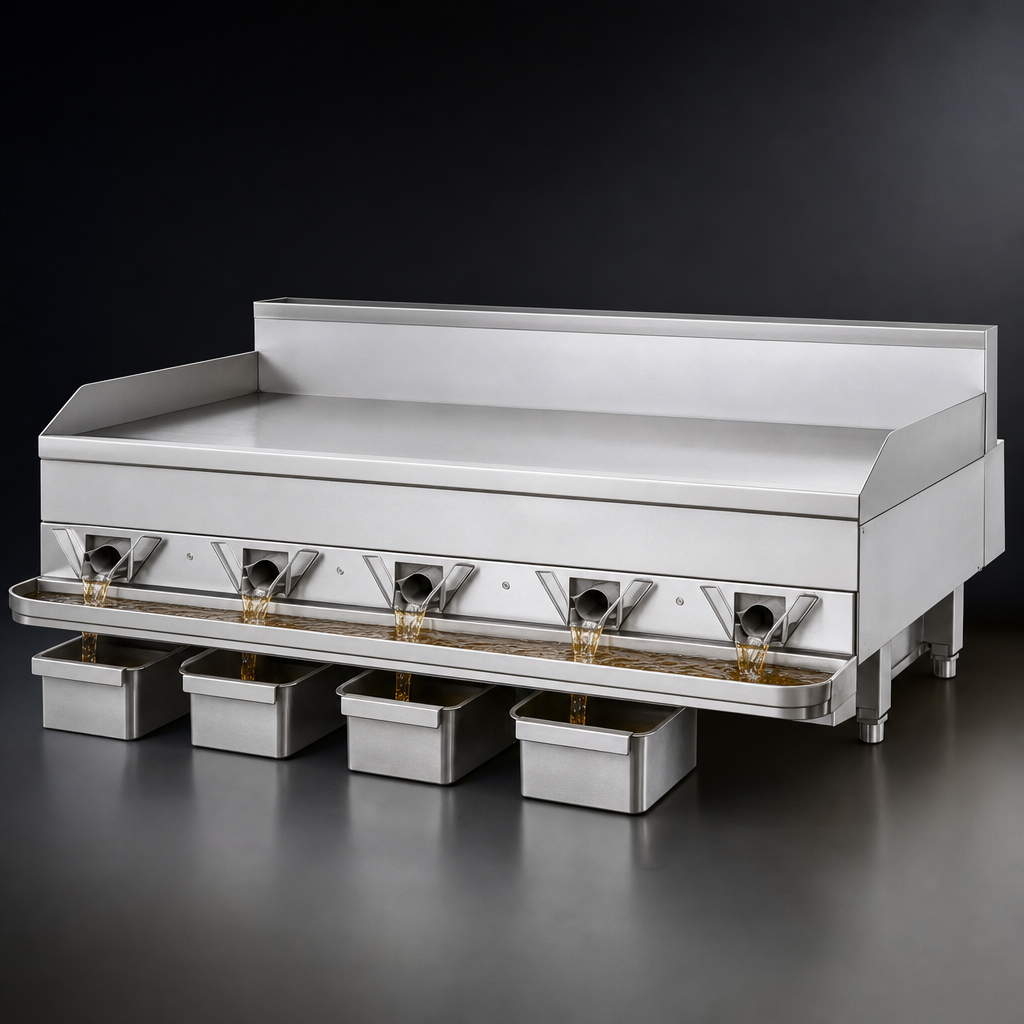

- Front, full-width 3-3/4" grease trough and 1.6 gal stainless drawer speed daily cleaning.
- 7.6" rear backsplash and 3" side splashes—all stainless—keep neighboring equipment spotless.
- 6" adjustable stainless legs and all-stainless exterior stand up to rigorous commercial abuse.
| Manufacturer / Model | Garland Master CG-72F |
|---|---|
| Cooking surface (W × D) | 72" × 24" (1829 mm × 610 mm) |
| Plate material & thickness | 1" (25 mm) polished steel |
| Total input | 180,000 BTU/hr • 52.70 kW |
| Burners | 6 × 30,000 BTU U-shaped, one every 12" |
| Temperature range | 150 °F – 450 °F (66 °C – 232 °C) |
| Controls | Electronic thermostatic, electronic spark ignition |
| Gas connection | 1" NPT rear; 3.5" W.C. natural / 10" W.C. LP manifold pressure |
| Electrical | 120 V, 60 Hz, 1 Φ, 1 A (6' cord & plug) Optional 208-240 V, 0.4 A (hard-wire) |
| Overall dimensions (W × D × H) | 72" × 24" × 23.4" (1829 mm × 610 mm × 594 mm) plus 7.6" backsplash |
| Grease drawer capacity | 1.6 gal / 6 L (standard) |
| Shipping weight | 905 lb (411 kg) |
| Certifications | CSA, NSF |
- High-volume diners & breakfast houses
- Full-service restaurant lines
- Institutional kitchens—hotels, hospitals, universities
- Central commissaries & catering operations
Optional accessories: 4" low-profile legs with 2.36 gal drawer, protective control shield, stainless equipment stand and 208-240 V power kit. Contact us for details.
