Garland CG-60R Master Gas Griddles
$12,150.00
Unit price
/
Unavailable
Description

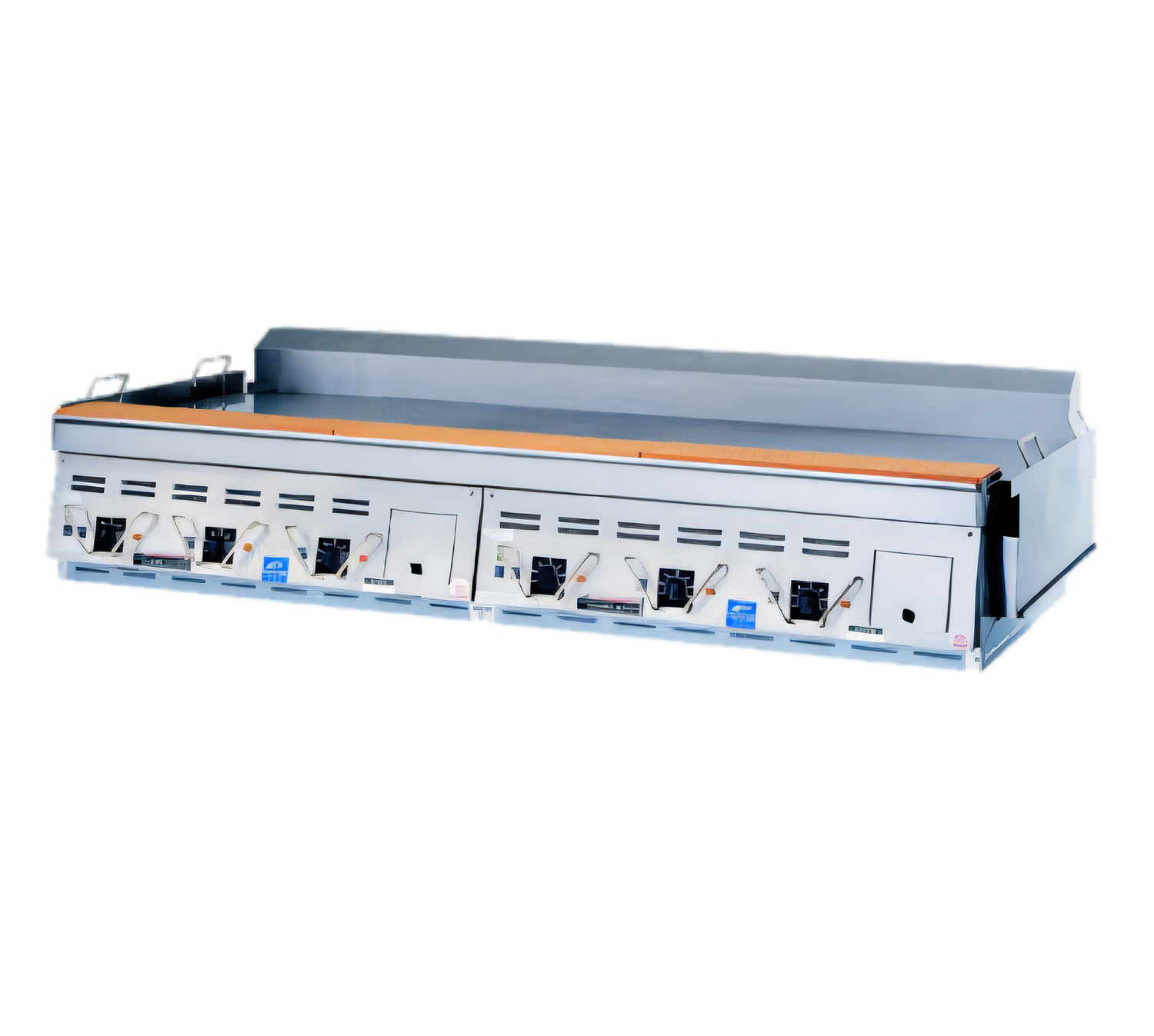

Garland Master CG-60R 60" EnerLogic™ Gas Countertop Griddle
Rear-Drain | 5 Independent Electronic Zones | 150,000 BTUBuilt for high-volume kitchens that refuse to compromise on consistency, the Garland Master CG-60R pairs a massive 60 × 24 inch polished steel plate with precision electronic thermostats and energy-saving EnerLogic™ technology. Five powerful, yet efficient, 30,000 BTU “U”-shaped burners deliver even heat across the entire surface—so every pancake, steak or smash burger cooks exactly the way you want it, every time.
Key Features & Benefits

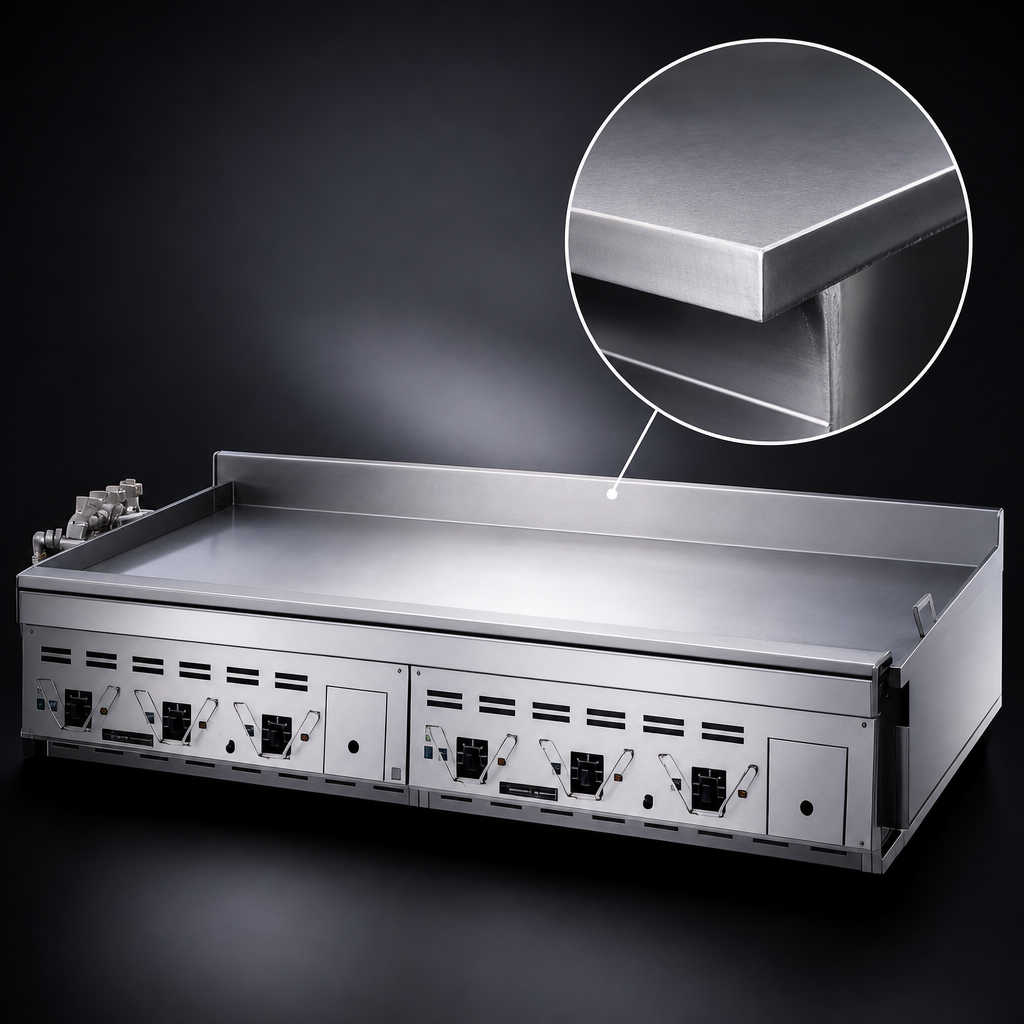

- 1" (25 mm) polished steel plate stores and distributes heat for fast recovery & perfect sears
- EnerLogic™ Technology trims energy consumption while maintaining plate temperature

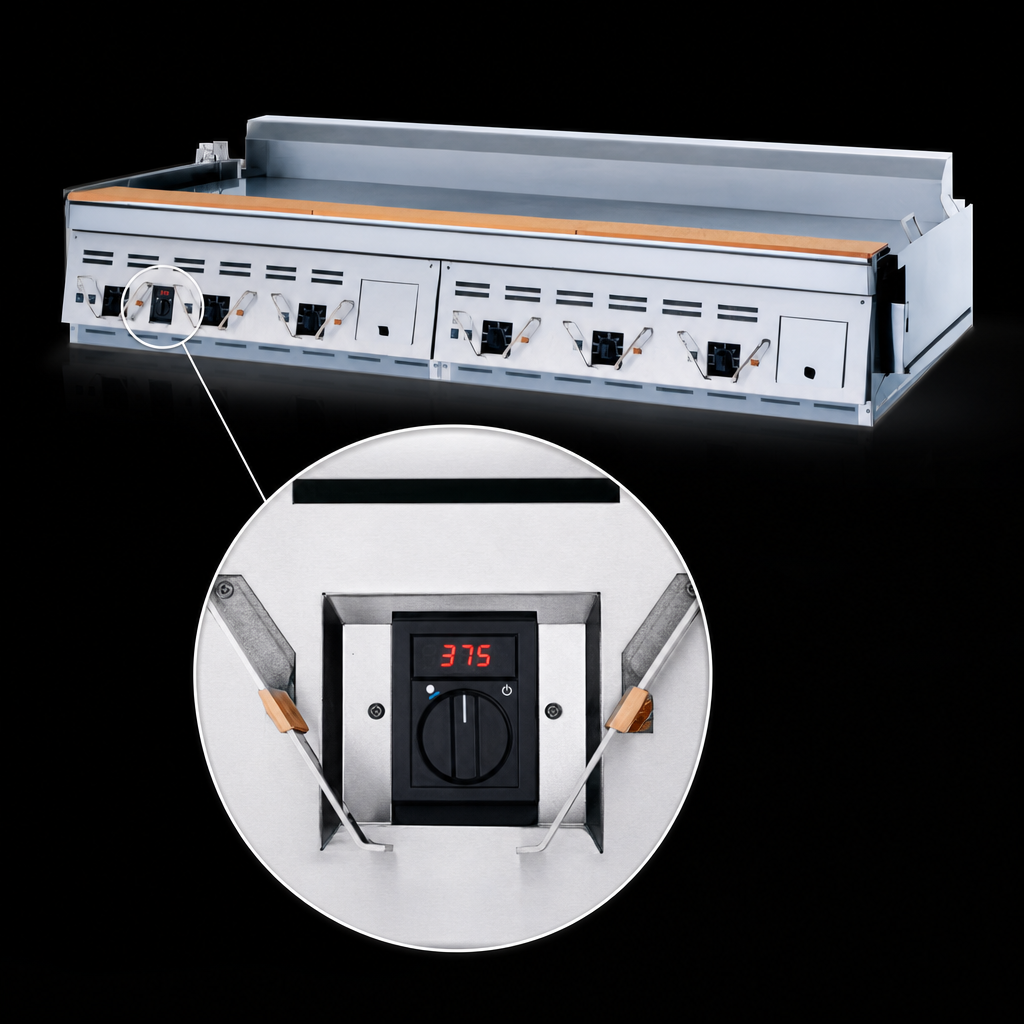

- Five electronic thermostats (one every 12") with 150 – 450 °F range for zone cooking
- Electronic ignition with pilot indicator light—no manual lighting required
- Rear 3 1⁄2" grease trough feeds two 6"-deep drawers (1.6 gal / 6 L each) for quick, drip-free clean-ups
- All-stainless exterior, 8" back-splash & side splash guards contain splatter and simplify wipe-downs
- Full-width front rail protects controls and gives cooks a comfortable working edge
- 6" adjustable stainless legs keep the unit level and allow vital airflow underneath
- Field-convertible for natural gas or LP; factory-installed ¾" rear gas regulator included
- Certified CSA & NSF for worry-free code compliance
Technical Specifications
| Cooking surface | 60" W × 24" D (1,440 in² / 0.93 m²) |
|---|---|
| Plate thickness | 1" (25 mm) polished carbon steel |
| Heat zones / burners | 5 “U”-shaped, 30,000 BTU each |
| Total input | 150,000 BTU/hr (44 kW) |
| Thermostat range | 150 °F – 450 °F (65 °C – 232 °C) |
| Controls | Main power switch plus individual on/off & temperature control per zone |
| Electrical | 120 V, 60 Hz, 1 A, 6' (1829 mm) cord & plug |
| Gas connection | ¾" NPT rear, centered |
| Manifold pressure (post-regulator) | Natural 3.5" W.C. • LP 10" W.C. |
| Minimum supply pressure | Natural 7" W.C. • LP 11" W.C. |
| Grease drawers | 2 × 1.6 gal (6 L) capacity, 6" deep, stainless steel |
| Clearances (combustible) | 6" sides • 6" rear |
| Certifications | CSA, NSF |
Popular Options & Accessories
- 208-240 V control circuit (no-charge substitution)
- Protective shield for thermostat knobs
- ¾" × 36" quick-disconnect hose with restraining device
- Stainless open stand with shelf (adjustable legs or casters)
- 4" low-profile legs & 3¼" grease drawer for refrigerated base mounting
Installation note: This griddle must be installed on legs or an approved stand for proper ventilation and, if equipped with casters, secured with a restraining device. Commercial cooking equipment requires a professionally designed exhaust system in accordance with NFPA 96 and all local codes.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Master
Certifications
NSF, CSA
Height
21.0in
Width
60.0in
Depth
38.75in
Shipping Weight
765.0lbs
Cooking Surface Width (side - side)
55" - 60"
Griddle Plate Finish
smooth steel
Plate Thickness
1"
Controls
thermostat / solid state controls
Cooking Surface Depth (front - back)
24" - 29"
Exterior Finish
all stainless steel exterior
Specifications
Master Griddle, countertop, gas, rear drain, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, electronic ignition, stainless steel side & rear splash, stainless steel exterior, EnerLogic™ Technology, 150,000 BTU (Garland), CSA, NSF
