Description

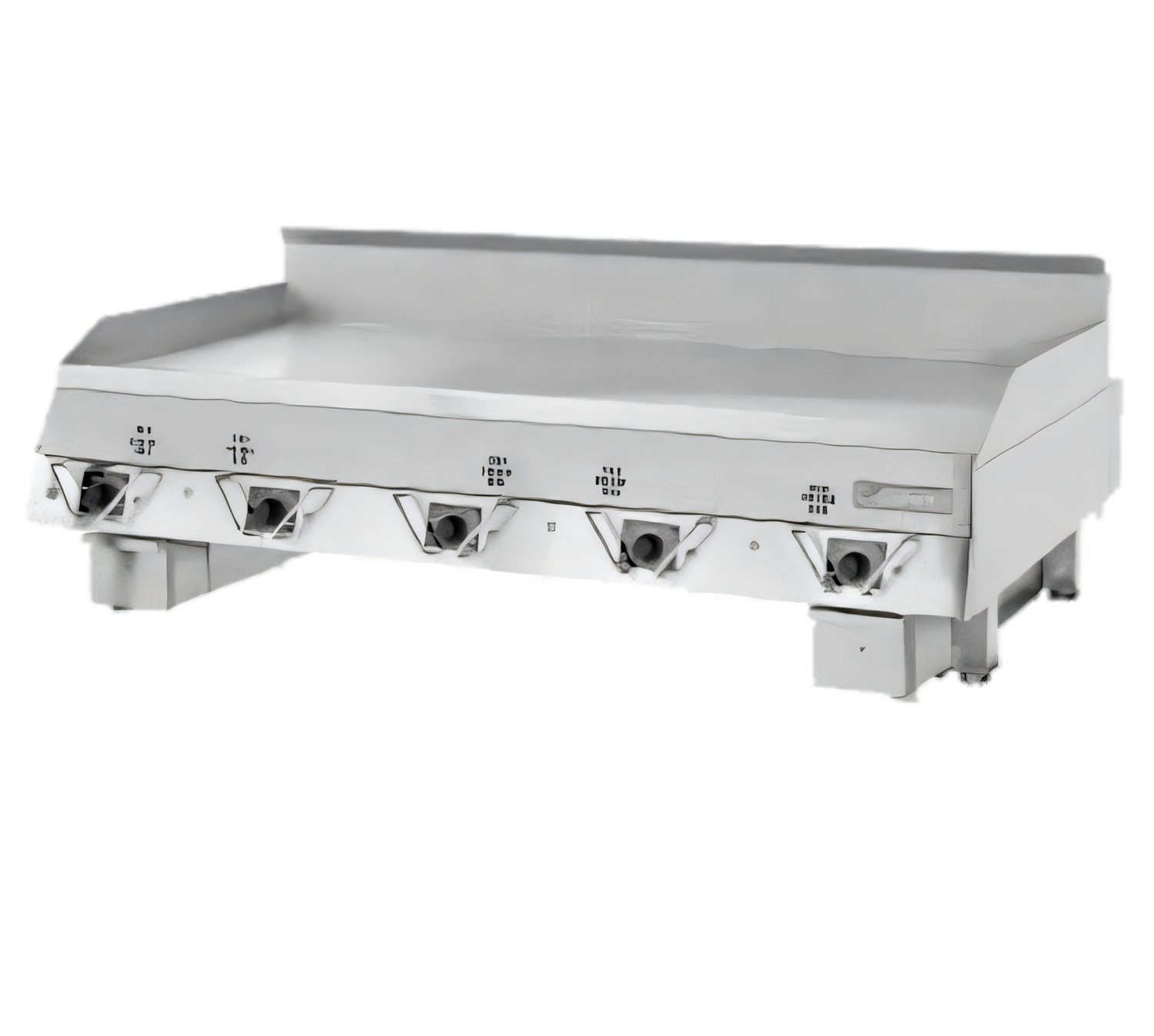

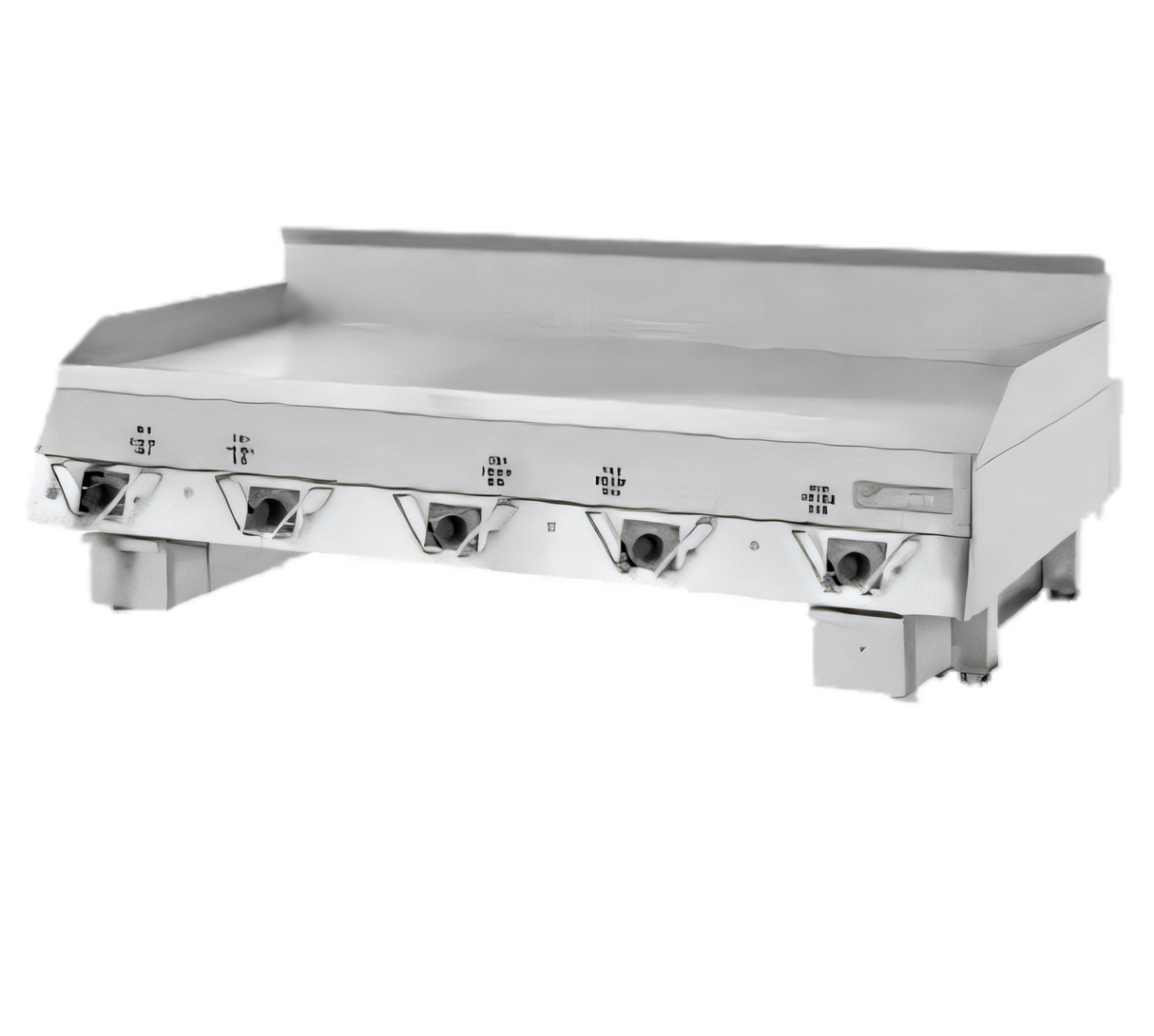

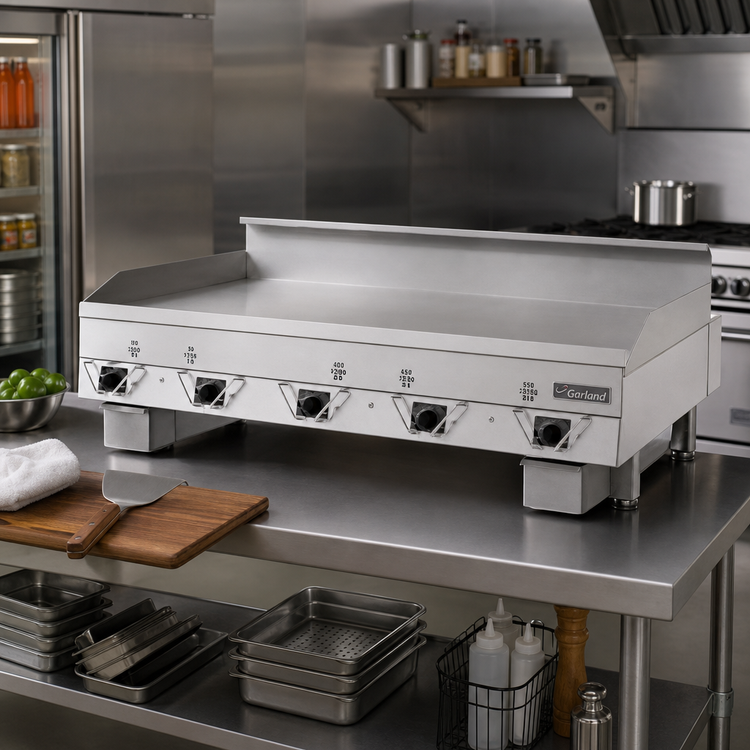

Garland Master CG-60F 60" Gas Front-Drain Countertop Griddle

EnerLogic™ Technology | 150,000 BTU | Electronic Thermostatic Controls

Engineered for high-volume kitchens that refuse to compromise on consistency, the Master CG-60F couples Garland’s EnerLogic™ efficiency with pinpoint electronic temperature control. Five powerful U-shaped burners blanket a heavy 1" polished steel plate, delivering rapid recovery and even heat across the entire 60" × 24" cooking surface while a full-width front drain system keeps the work-zone clean and productive.

Key Features

  • 60" W × 24" D cooking surface – ideal for large batch production.

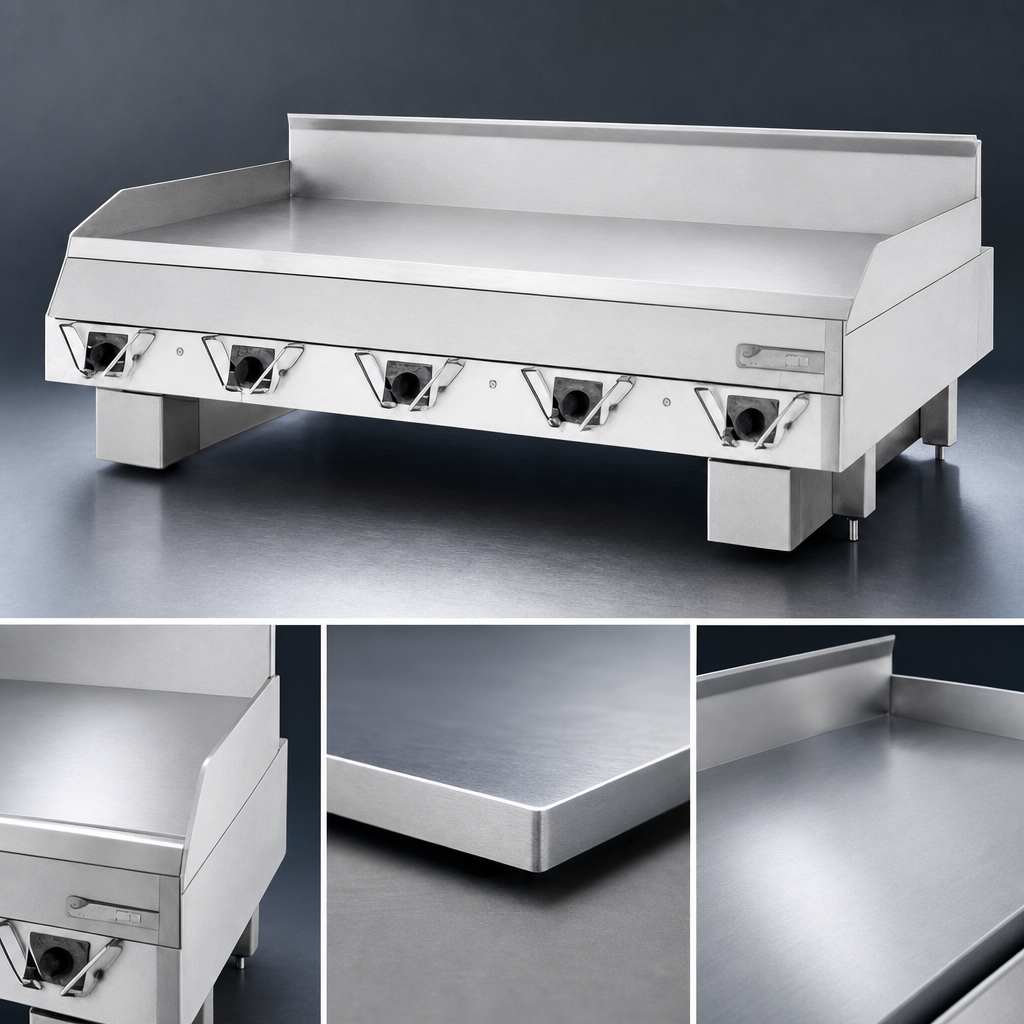

  • 1" (25 mm) polished steel plate for superior heat retention and easy clean-up.

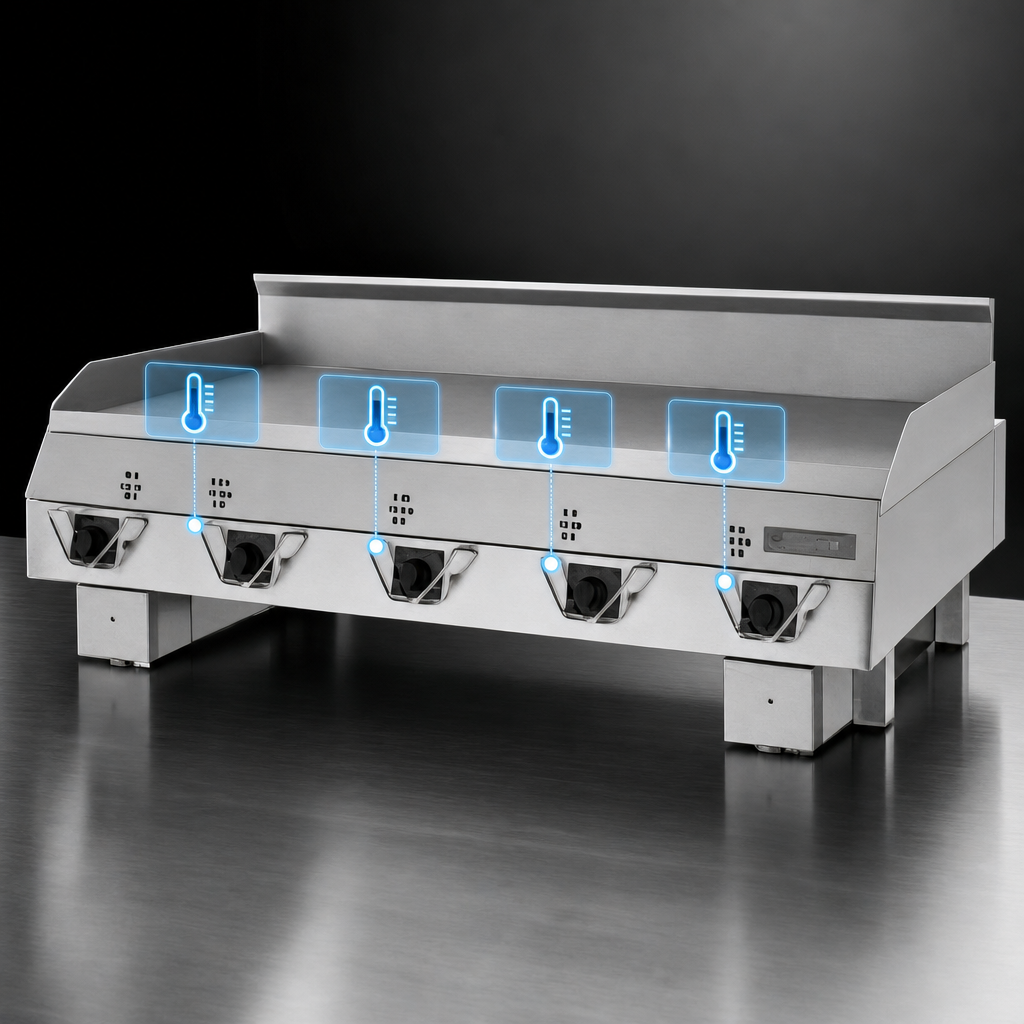

  • Five independent 30,000 BTU burners (one every 12") with embedded electronic thermostats (150 – 450 °F) for true zone cooking.
  • Electronic ignition and main power switch with indicator light – no standing pilots to waste energy.
  • EnerLogic™ Technology lowers idle energy use without sacrificing performance.
  • Front, full-width grease trough and 1.6 gal stainless steel drawer with integral baffle.
  • Stainless steel side (3") and rear (7.6") splash guards contain splatter.
  • All-stainless exterior with 6" adjustable legs for quick leveling and under-unit airflow.
  • CSA & NSF listed for gas-fired commercial foodservice equipment.

Specifications

Cooking Surface (W × D) 60" × 24" (1524 mm × 610 mm)
Plate Thickness 1" (25 mm) polished steel
Heat Zones / Burners 5 zones  |  5 × 30,000 BTU “U” burners
Total Input 150,000 BTU/hr (44 kW)
Gas Connection 3/4" NPT (left-rear); Natural 3.5" W.C. / Propane 10" W.C. manifold pressure
Electrical 120 V, 1 ph, 60 Hz, 1 A  |  6' cord & plug included (208-240 V option, 0.4 A)
Overall Dimensions (W × D × H) 60" × 24" × 35.63" (1524 × 610 × 905 mm) with 6" legs
Shipping Weight 765 lb (348 kg)
Certifications CSA, NSF

Included & Optional Accessories

  • Nickel-plated thermostat guards (included).
  • Stainless steel grease chute extension (included) for remote drainage.
  • Protective control shield (optional).
  • Stainless steel open stand with shelf, adjustable legs or casters (optional).
  • 4" low-profile legs with 2.36 gal high-capacity grease drawer – perfect for mounting on refrigerated bases (optional).
Important: Garland equipment is intended for commercial applications only and must be installed, set-up, and serviced by qualified professionals in accordance with local codes. Maintain at least 4" (101 mm) clearance beneath the unit for proper burner airflow.

Garland reserves the right to make product improvements without prior notice. All specifications are nominal and subject to variation.

Features & Specs

Manufacturer

Garland

Brand_name

Master

Certifications

NSF, CSA

Height

21.0in

Width

60.0in

Depth

38.75in

Shipping Weight

765.0lbs

Exterior Finish

all stainless steel exterior

Cooking Surface Width (side - side)

55" - 60"

Griddle Plate Finish

smooth steel

Cooking Surface Depth (front - back)

24" - 29"

Controls

thermostat / solid state controls

Plate Thickness

1"

Specifications

Master Griddle, countertop, gas, front drain, 60" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, electronic ignition, stainless steel side & rear splash, stainless steel exterior, EnerLogic™ Technology, 150,000 BTU (Garland), 44kW, CSA, NSF
