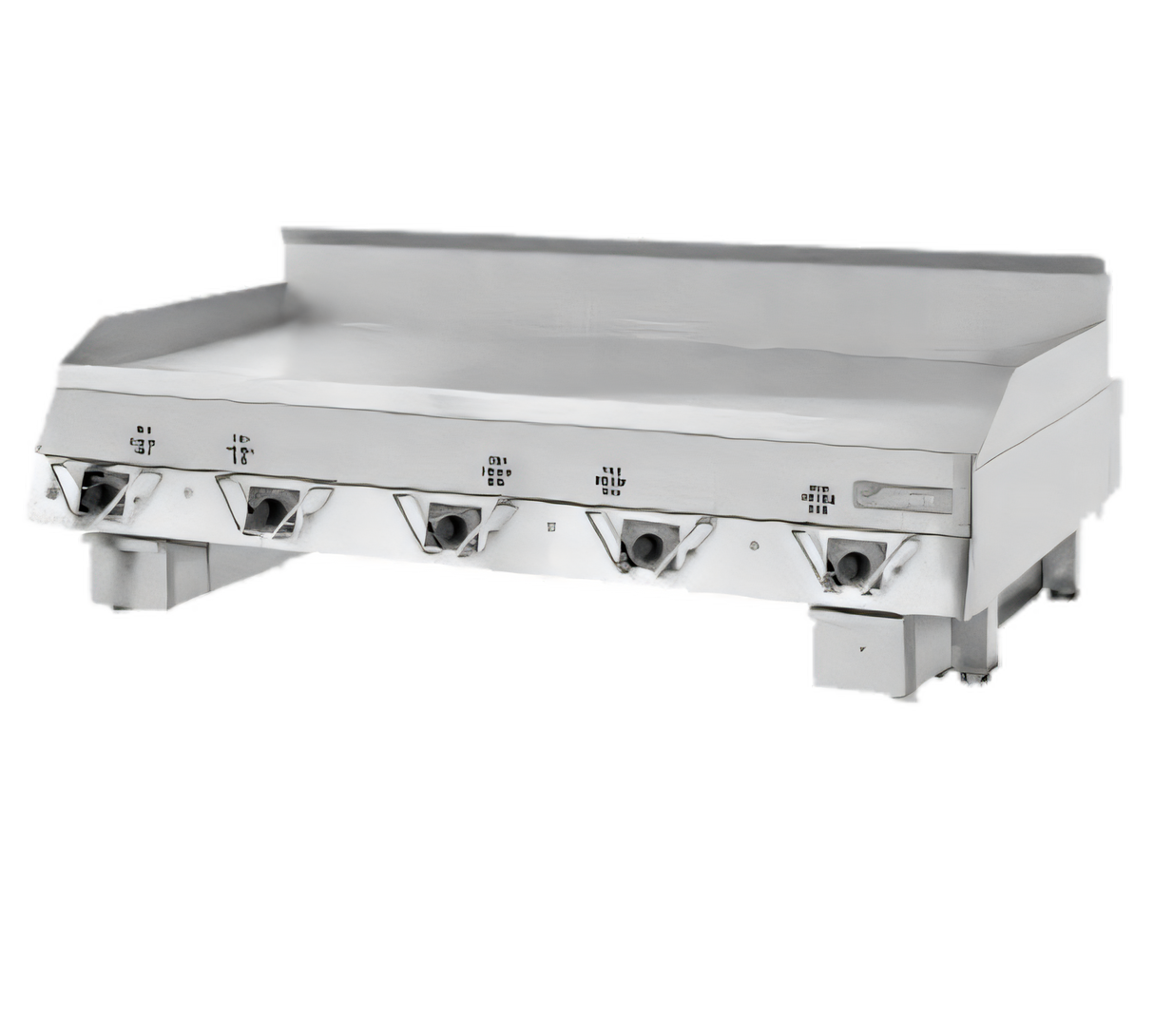

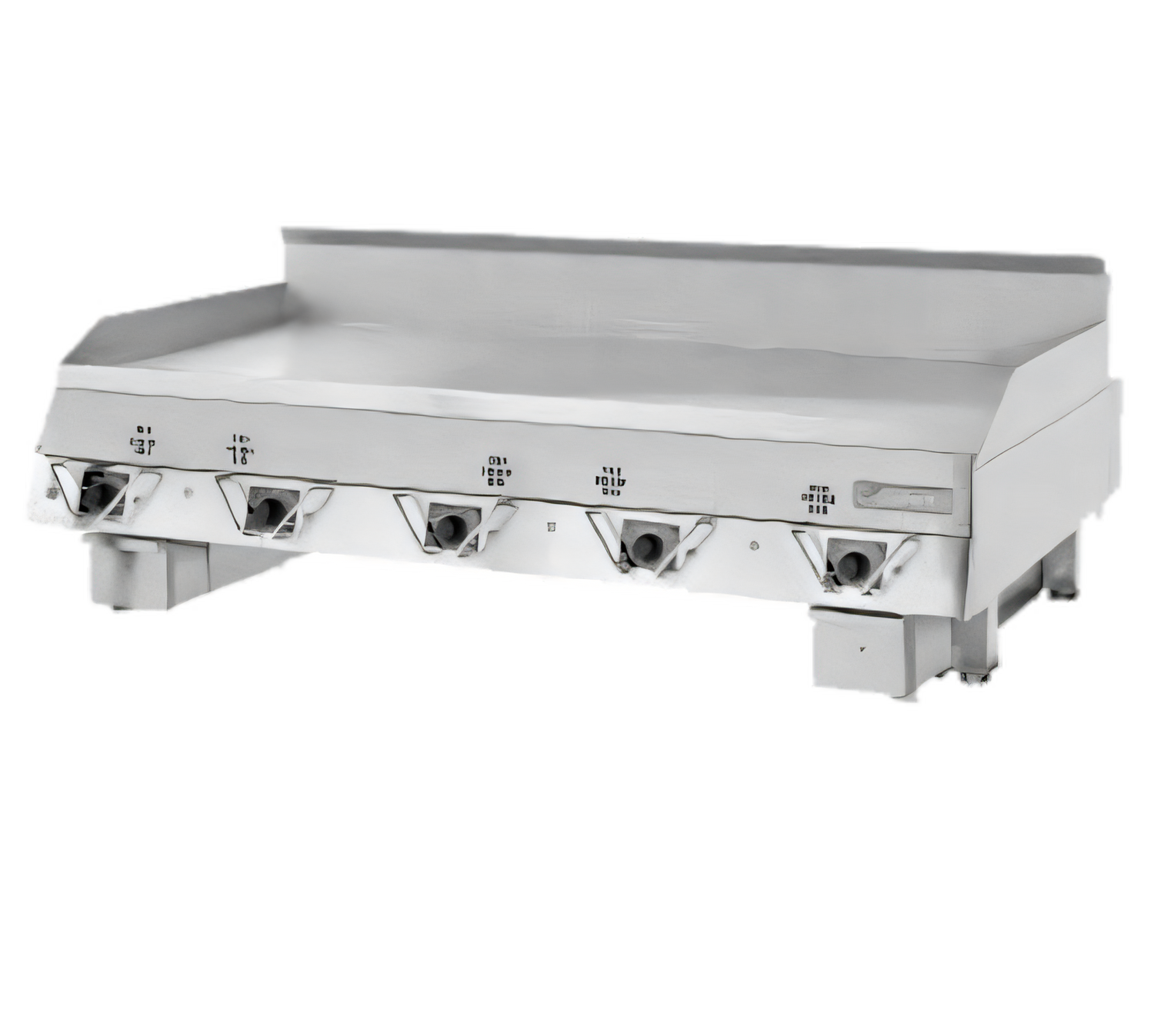

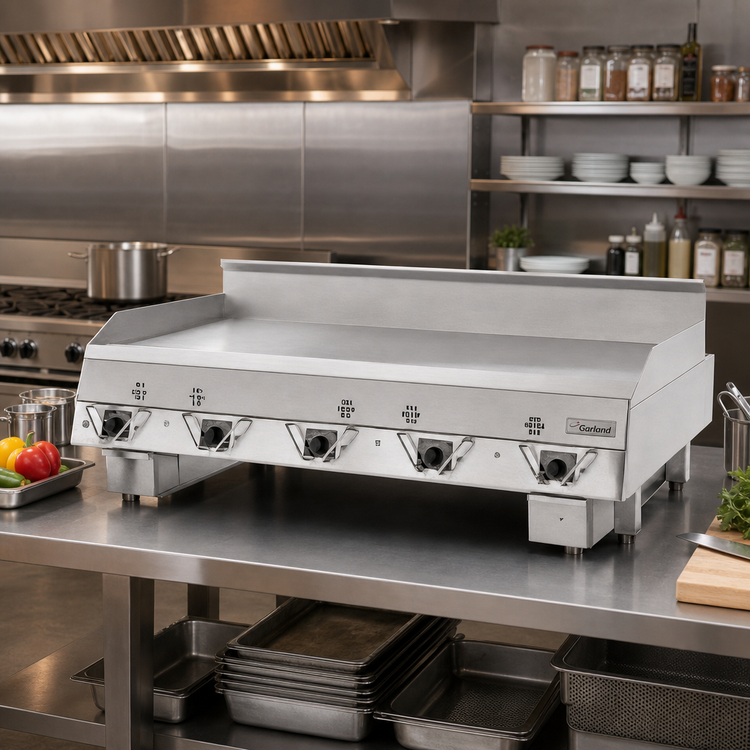

Garland Master CG-48F Countertop Gas Griddle – 48" Front-Drain
EnerLogic™ Technology • 120,000 BTU • CSA & NSF CertifiedBuilt for high-volume, all-day production, the Garland Master CG-48F delivers the power of four 30,000 BTU “U”-shaped burners, precision electronic thermostats, and a seamless front-drain system—all in a compact 48" countertop footprint. Whether you’re searing steaks, browning breakfast favorites, or finishing delicate seafood, its 1" thick polished steel plate and EnerLogic™ heat-management technology ensure fast recovery, even temperatures, and lower energy costs shift after shift.
Why You’ll Love It

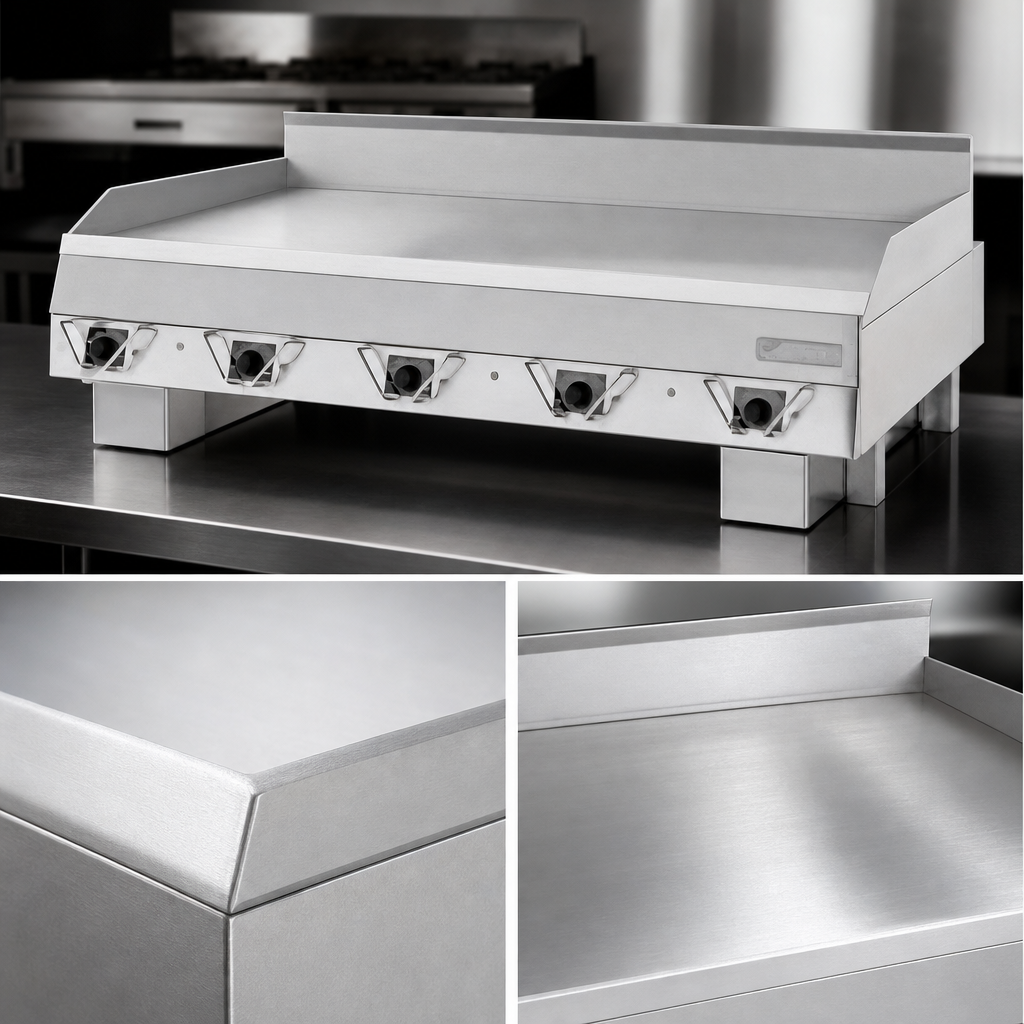

- 1" (25 mm) polished steel griddle plate for superior heat retention and easy cleaning.
- Four 30,000 BTU “U”-shaped burners (one every 12") provide even coverage across the entire 48" cooking zone.
- Electronic thermostats (150 – 450 °F / 65 – 232 °C) with embedded sensors for ±10 °F accuracy.
- Instant-on electronic ignition plus amber & green status lamps for at-a-glance monitoring.

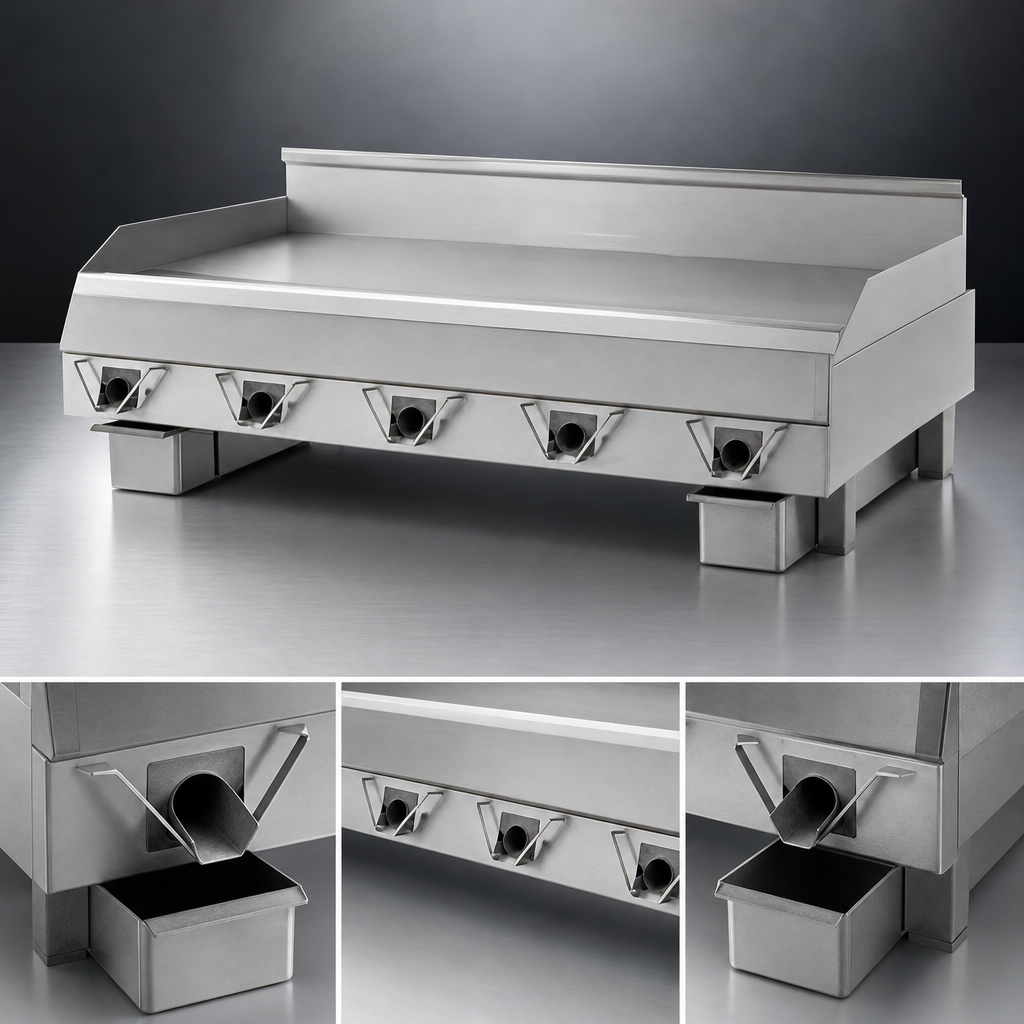

- Full-width 3 1⁄2" front trough with integrated rail and 1.6 gal (6 L) stainless grease drawer.
- 3" side splashes & 7.6" rear backsplash—all heavy-gauge stainless steel.
- 6" adjustable stainless legs standard; optional 4" low-profile legs/stand kits available.
- Combination gas regulator/solenoid valves for safe, reliable flow to burners and pilots.
- Factory-installed 6 ft (1.8 m) power cord—120 V, 60 Hz, 1 A; 208-240 V option at no extra charge.
At-a-Glance Specifications
| Model | Master CG-48F |
|---|---|
| Cooking surface | 48" W × 24" D (1,152 in² / 0.74 m²) |
| Total input | 120,000 BTU /hr (35 kW) |
| Burners | 4 × 30,000 BTU “U”-shaped (one every 12") |
| Temperature range | 150 – 450 °F (65 – 232 °C) |
| Gas connection | 3⁄4" NPT rear inlet • Natural 3.5" W.C. / Propane 10" W.C. |
| Electrical | 120 V, 1 ph, 60 Hz, 1 A (6 ft cord supplied) • Optional 208-240 V, 0.4 A |
| Overall dimensions | 48" W × 35.6" D × 23.4" H (with 6" legs) |
| Shipping weight | 625 lb (284 kg) |
| Certifications | CSA, NSF |
Popular Options & Accessories
- 208-240 V field-change power kit (no charge)
- Protective control-panel shield
- Stainless open stand (30.3" H) with shelf & adjustable legs or casters
- Low-profile 4" legs plus 2.36 gal (8.9 L) deep grease drawer
Important: Garland commercial griddles are designed for professional
installations only. A minimum 4" air gap beneath the unit is required for proper burner
airflow. Gas and electrical connections must be made by a licensed technician and the griddle
must be secured with an approved restraining device when mounted on casters.
Garland reserves the right to modify specifications without prior notice.
$10,515.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Garland CG-48F 48" gas master griddle — heavy-duty 1" steel plate, 120,000 BTU, electronic thermostatic controls, stainless exterior, front drain.
Manufacturer
Garland
Brand name
Master
Certifications
NSF, CSA
Height
21.0in
Width
48.0in
Depth
38.75in
Shipping Weight
625.0lbs
Exterior Finish
all stainless steel exterior
Cooking Surface Width (side - side)
43" - 48"
Controls
thermostat / solid state controls
Cooking Surface Depth (front - back)
24" - 29"
Griddle Plate Finish
smooth steel
Plate Thickness
1"
Specifications
Master Griddle, countertop, gas, front drain, 48" W x 24" D cooking surface, 1" thick polished steel griddle plate, electronic thermostatic controls, electronic ignition, stainless steel side & rear splash, stainless steel exterior, EnerLogic™ Technology, 120,000 BTU (Garland), 35kW, CSA, NSF
