Garland Master CG-24R 24-Inch Countertop Gas Rear Drain Production Griddle

SKU: CG-24R
$7,037.55
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Griddles Commercial Grills Garland Gas Griddles Griddles & Flat Tops New Arrivals Restaurant Equipment

Garland Master CG-24R 24-Inch Countertop Gas Rear Drain Production Griddle

24" x 24" Cooking Surface, 1" Polished Steel Plate, Electronic Thermostatic Controls

Built for high-volume production cooking, this compact rear-drain griddle combines precise electronic temperature control with a heavy-duty steel plate and stainless steel construction.

  • 24" x 24" cooking surface with a 1" polished steel plate for even, consistent heat.
  • Rear grease trough and bottom drawer help manage grease and simplify cleanup.
  • Electronic thermostatic controls and electronic ignition support precise cooking performance.
  • Stainless steel exterior, sides, backguard, and splashguards are built for commercial durability.
  • 60,000 BTU output delivers dependable production capacity in a countertop footprint.
  • 6" stainless steel legs are standard, with optional stand and accessories available.

Overall Dimensions:

24.0"W x 38.75"D x 21.0"H

Product Weight:

355.0 lb

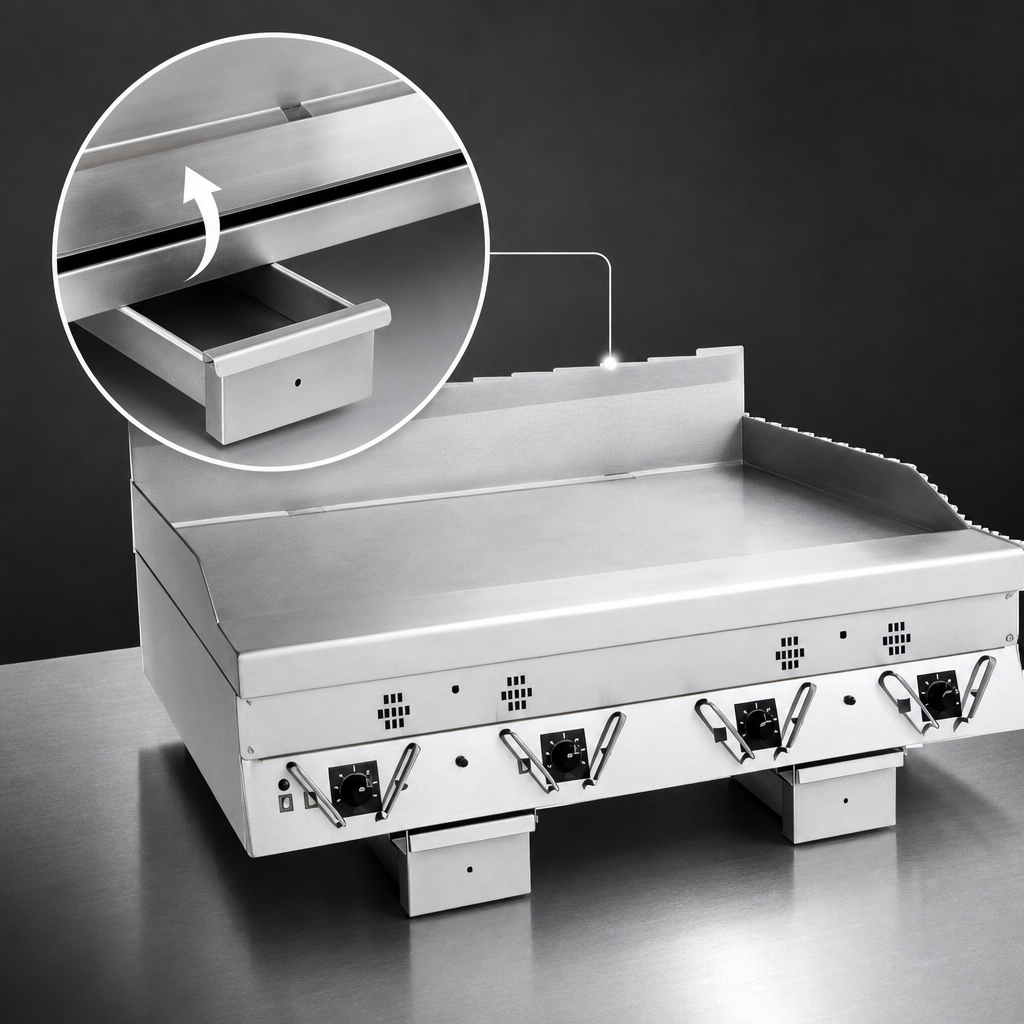

Rear Drain Grease Management

Rear grease trough with bottom drawer helps move grease away from the cooking area for easier cleanup.

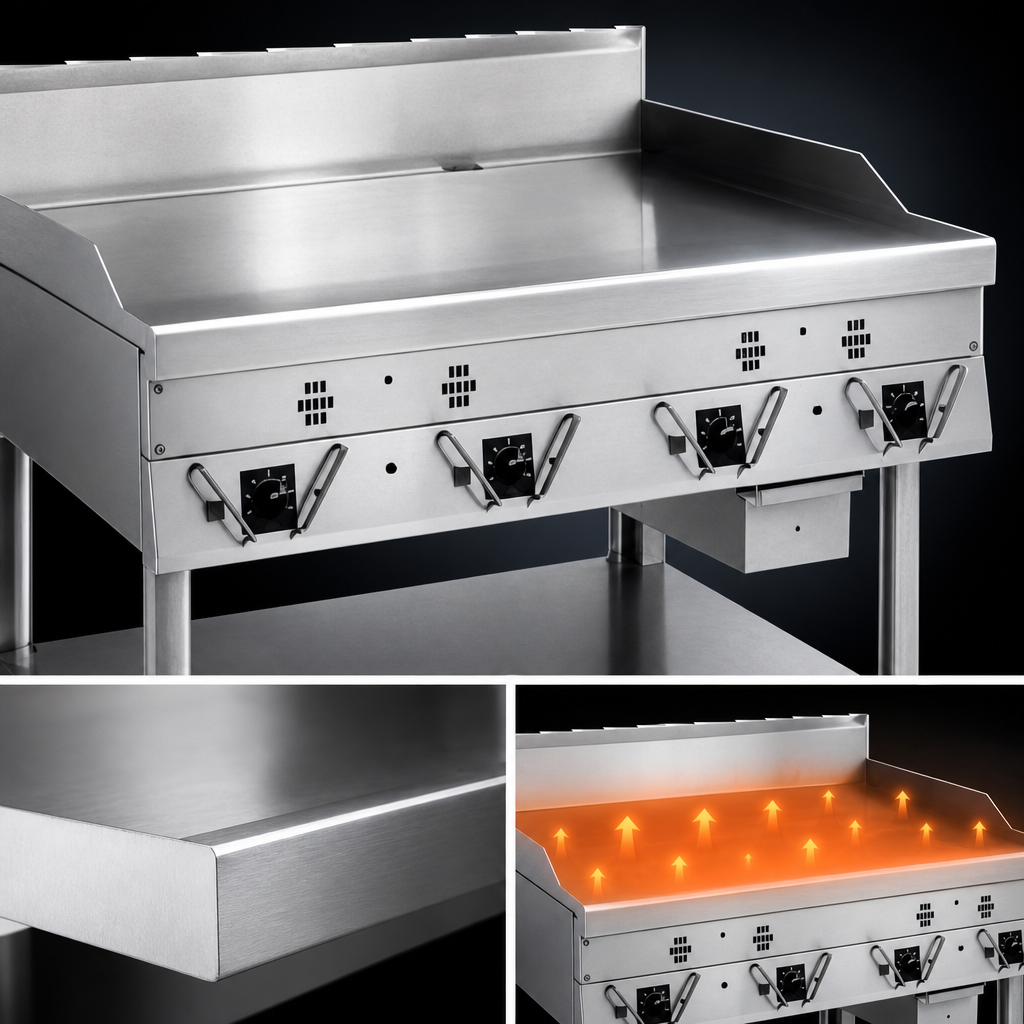

1-Inch Polished Steel Griddle Plate

Heavy polished steel plate is designed for even heat distribution and consistent cooking performance.

Electronic Thermostatic Controls

Electronic thermostat controls help maintain precise temperatures from 150°F to 450°F for each burner section.

Electronic Ignition

Electronic ignition is included for startup and operation.

Stainless Steel Construction

Stainless steel sides, valve panel, backguard, grease trough, and side splashguards improve durability.

Full-Width Front Rail

A full-width front rail provides a durable working edge across the front of the unit.

EnerLogic™ Technology

Listed in Garland documentation as part of the griddle design for efficient operation.

Standard Adjustable Legs

Supplied with 6" stainless steel adjustable legs; unit must be installed on legs for proper air circulation.

Type Production Griddle
Style Rear Drain
Installation Type Countertop
Material Stainless Steel
Finish Stainless Steel
Cooking Surface Width 24 Inches
Cooking Surface Depth 24 Inches
Plate Thickness 1 Inch
Controls Electronic Thermostatic
BTU 60,000 BTU
Gas Type Natural Gas / Propane
Gas Connection Size 3/4 Inch
Voltage 120 Volts
Amps 1 Amp
Hertz 60 Hz
Phase 1-Phase
Cord Length 6 Feet
Shipping Width 24 Inches
Shipping Depth 39 Inches
Shipping Height 21 Inches
Shipping Weight 355 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download

Frequently Asked Questions

The cooking surface is 24" W x 24" D.
Standard electrical requirements are 120 V, single phase, 60 Hz, 1 amp. An optional 208-240 V, 60 Hz, single-phase configuration is also listed.
The unit uses a 3/4" gas inlet. Listed manifold pressure after the built-in regulator is 3.5" W.C. for natural gas and 10" W.C. for propane.
Yes. It includes a rear grease trough with a bottom drawer and a contoured grease chute opening.
Combustible wall clearances are 6" on the sides and 6" at the back.
The unit is supplied with 6" adjustable legs. An optional stainless steel open stand is also listed.
