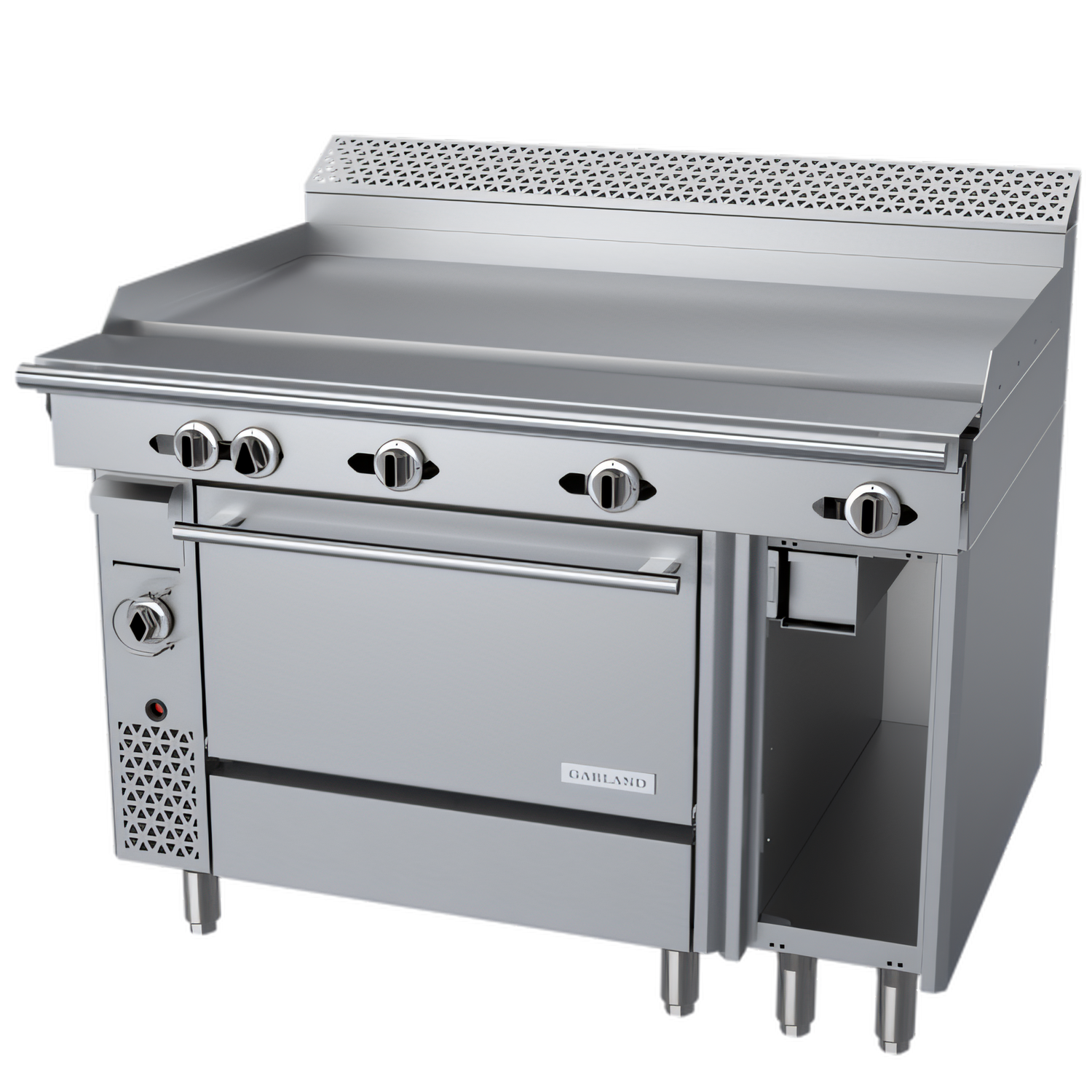

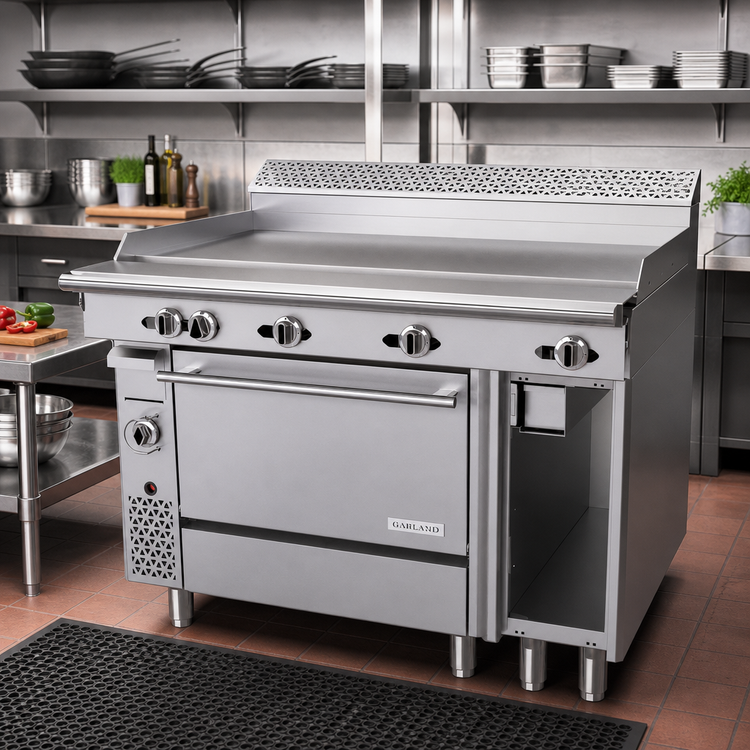

Garland Cuisine Series 48" Heavy Duty Gas Griddle Top Range with Standard Oven and Right-Side Open Storage Base

1" Steel Plate Griddle, Hi-Lo Valve Controls, Natural Gas

Built for demanding commercial kitchens, this 48-inch gas range combines a 1-inch steel griddle, a standard oven, and right-side open storage in a durable stainless steel body.

  • 48" griddle top with a 1" thick steel plate for even heat distribution
  • Standard oven with 150° F to 500° F thermostat control and porcelain interior
  • Stainless steel front, sides, front rail, burner box, and plate rail
  • Right-side open storage base provides convenient under-range storage
  • 7" stainless steel stub backguard and 1-1/4" NPT front gas manifold
  • 6" adjustable legs and battery-connection capability for flexible installation

Overall Dimensions:

48.0"W x 32.69"D x 42.0"H

Product Weight:

1140.0 lb

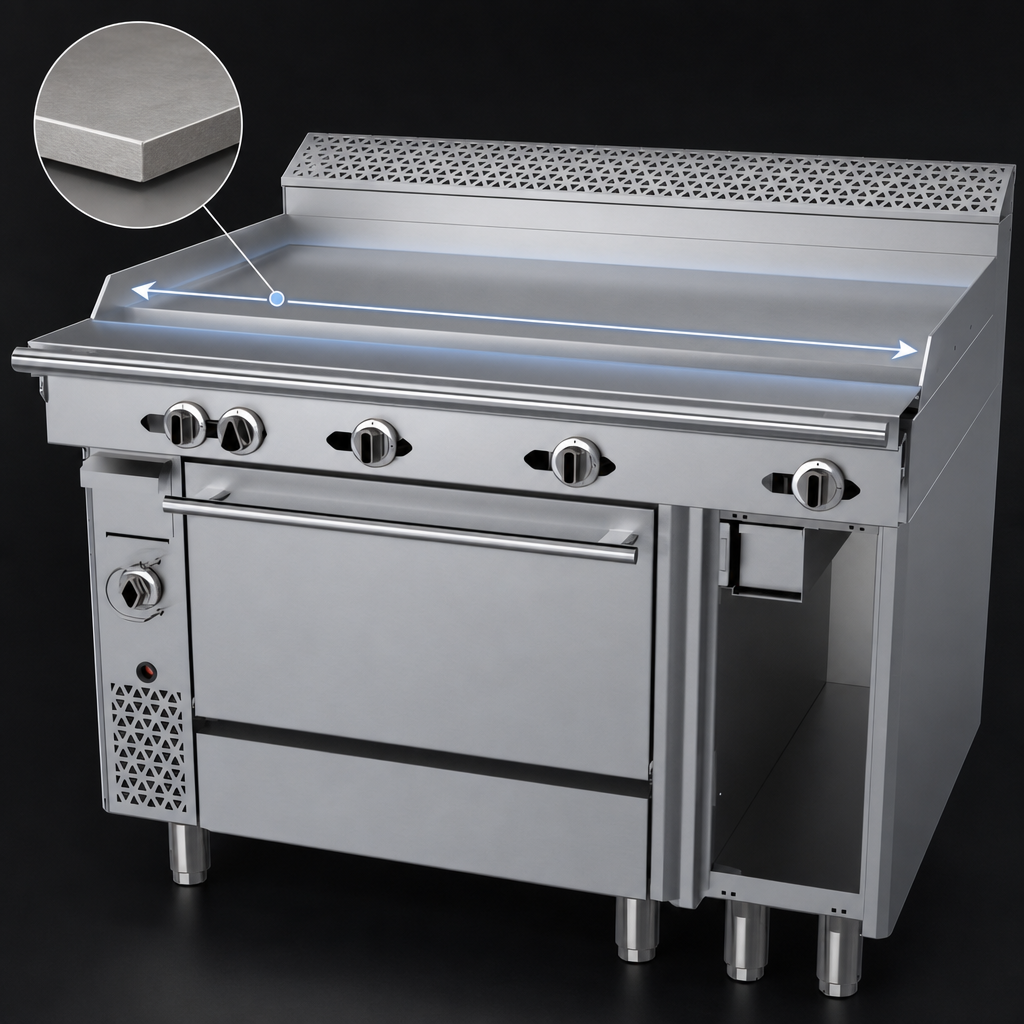

48-Inch Griddle Top

Full-width griddle with a 1-inch thick steel plate.

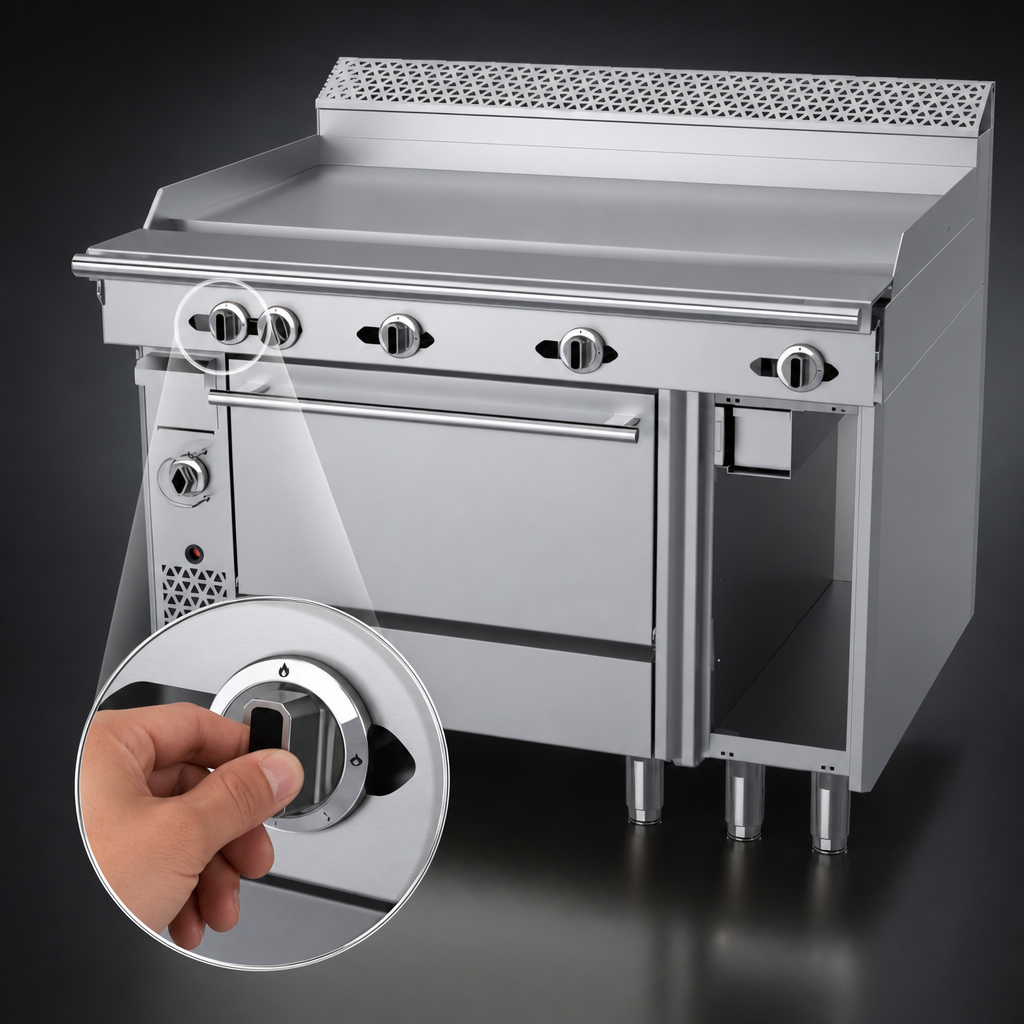

Hi-Lo Valve Controls

Manual valve control lets the operator adjust griddle heat.

Standard Oven

One standard oven with 150° F to 500° F thermostat control.

Oven Rack Setup

R model includes 4 rack positions and 1 chrome-plated rack.

Porcelain Oven Interior

Durable porcelain-lined oven cavity.

One-Piece Oven Door

Heavy-duty oven door with a keep-cool handle.

Stainless Steel Construction

Stainless steel front, sides, front rail, burner box, and plate rail.

7-Inch Stub Backguard

Adds splash protection behind the cooking surface.

1-1/4-Inch NPT Front Gas Manifold

Can be connected individually or in a battery.

Right-Side Open Storage Base

Open base provides accessible under-range storage.

6-Inch Adjustable Legs

Helps level the unit on uneven floors.

Safety Oven Pilot

Supports safer oven operation.

Type Range
Style Heavy Duty Griddle Top
Installation Type Floor Model
Capacity 1 Standard Oven
Controls Hi-Lo Valve
BTU 160,000 BTU
Gas Type Natural Gas
Gas Connection Size 1 1/4 Inches NPT
Gas Inlet Pressure 7 Inches W.C.
Material Stainless Steel
Interior Finish Porcelain
Finish Stainless Steel
Temperature Range 150° F to 500° F
Shipping Width 48 Inches
Shipping Depth 33 Inches
Shipping Height 42 Inches
Shipping Weight 1140 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Garland cuisine models guide PDF Download PDF Brochure PDF Download PDF Check list PDF Download PDF Owner's manual PDF Download

Frequently Asked Questions

C48-1R includes a standard oven. The convection-oven version is a different model.
The griddle uses a 1-inch thick steel plate.
This model is natural gas and is rated at 160,000 BTU.
The standard oven thermostat ranges from 150° F to 500° F.
The document lists a 7" W.C. minimum natural gas supply and 6" W.C. manifold operating pressure, and notes that the unit can be connected individually or in a battery.
