Garland C36-ARR Garland Cuisine Gas Ranges
Description

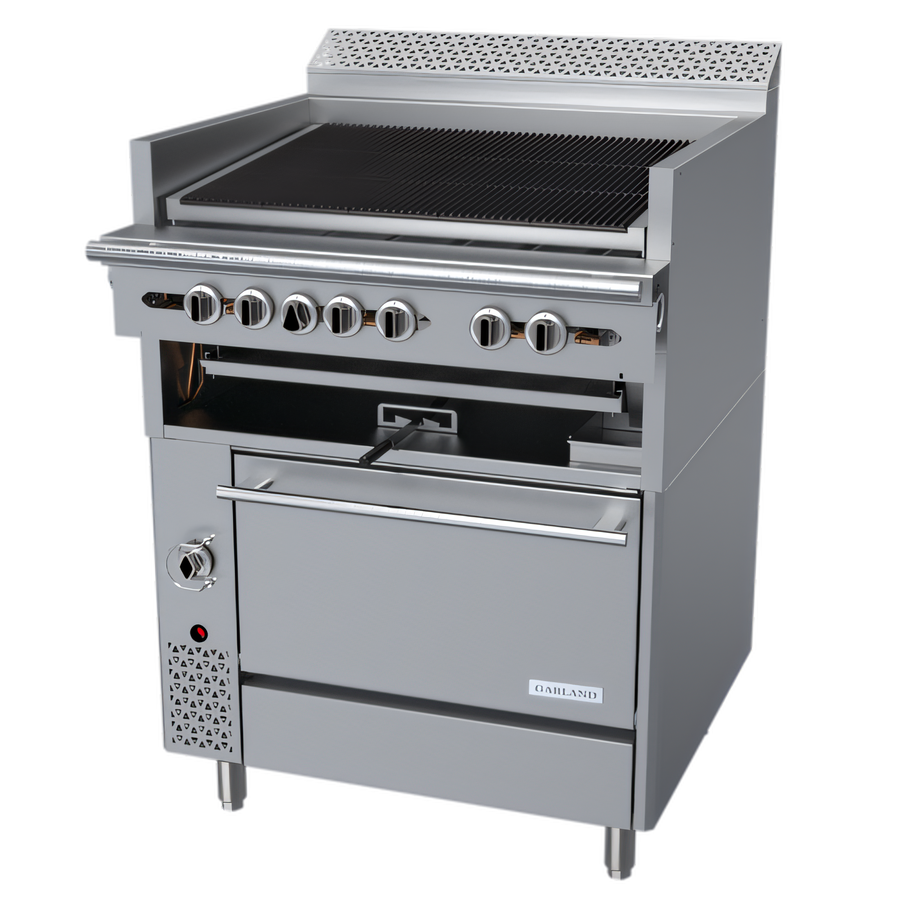

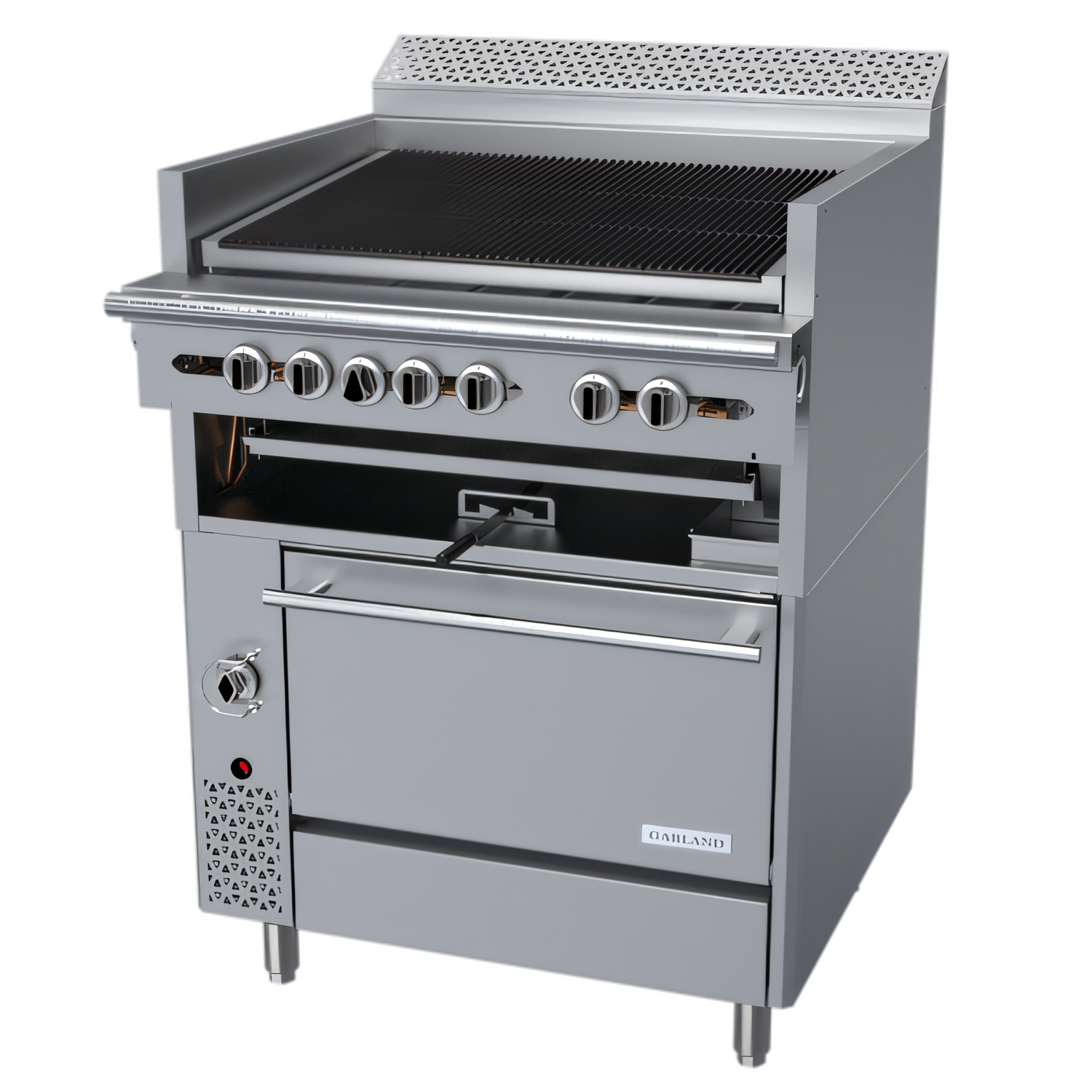

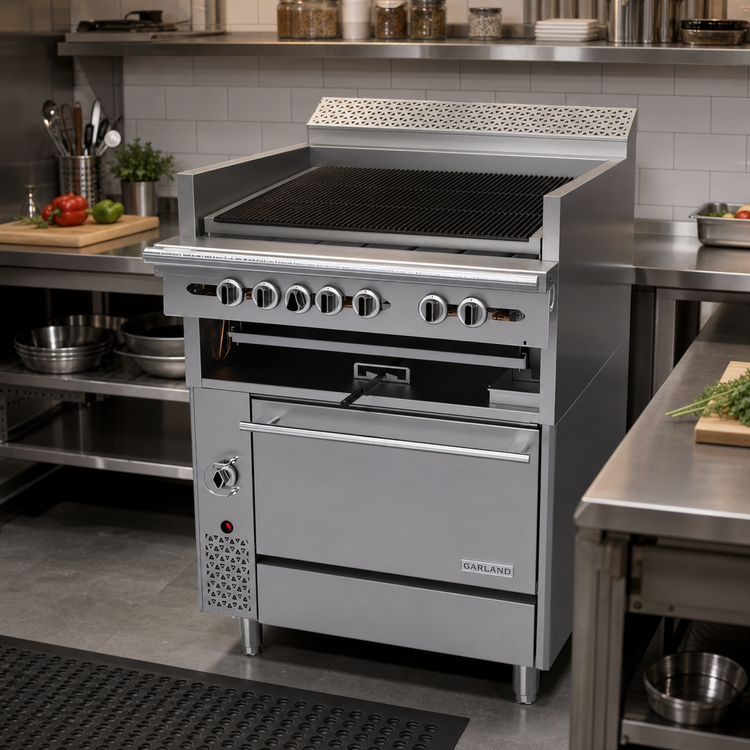

Garland Cuisine Series C36-ARR 36" Heavy-Duty Radiant Charbroiler Range
148,000 BTU Natural Gas • Standard Oven • Adjustable Cast-Iron RadiantsBuilt for high-volume kitchens that refuse to compromise on flavor, the Garland C36-ARR marries a powerful 36" under-fired charbroiler with a full-size range oven. Six 18,000 BTU cast-iron radiant burners give steaks, chops and vegetables the unmistakable char you crave while a 40,000 BTU standard oven turns out perfectly baked, roasted and finished dishes—all from one space-saving footprint.
Key performance advantages

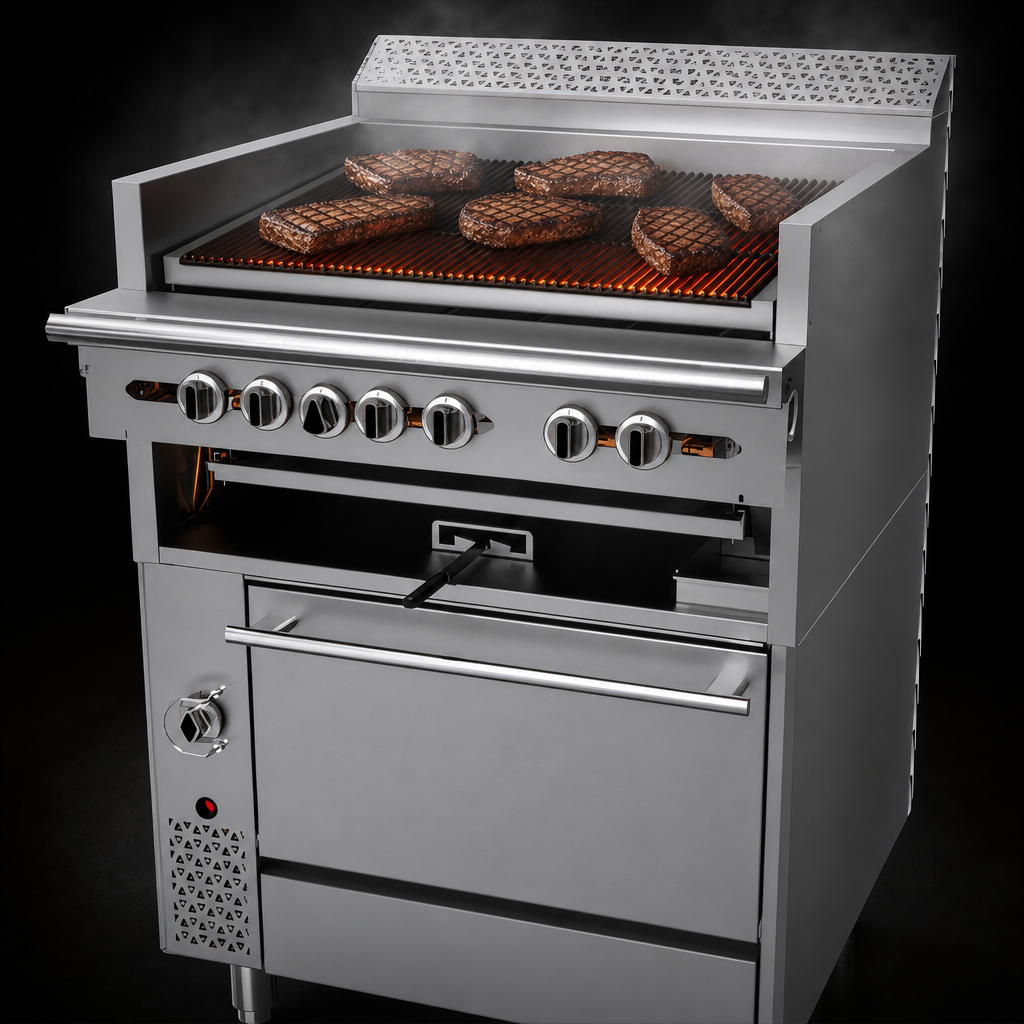

- Intense, even heat – six cast-iron radiants (18 kBTU each) concentrate heat directly under the grates for authentic grill marks and rapid recovery.

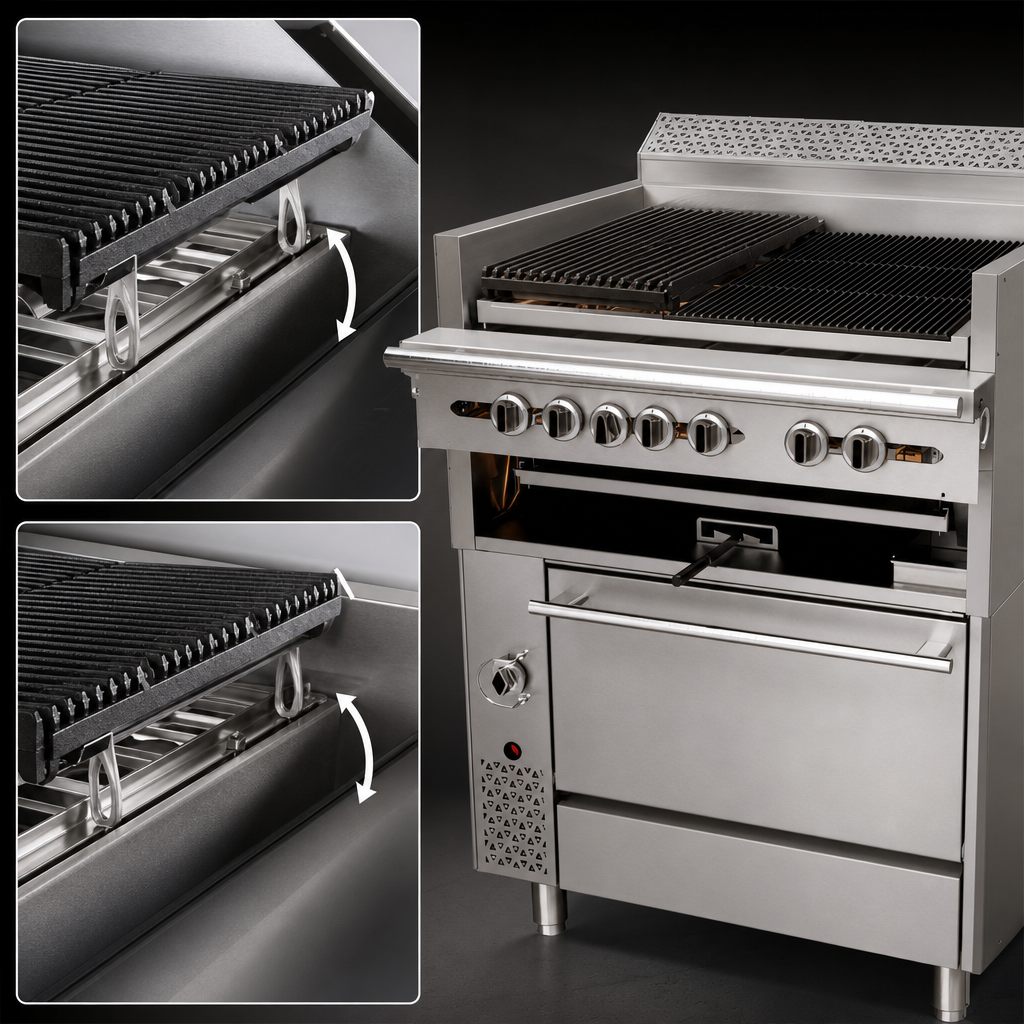

- Tilting, adjustable grates let you fine-tune distance from the flame or channel excess fat for healthier, flare-free cooking.
- 40,000 BTU porcelain-lined oven with 150-500 °F thermostat, four rack positions and one chrome rack included.
- All-stainless exterior (front, sides, stub-back, rail & burner box) stands up to daily abuse and wipes clean fast.
- Grease management made easy – extra-large, removable front grease pan plus split grease trays under the broiler.
- Field-proven reliability – CSA Flame, CSA Star and NSF certifications for peace-of-mind performance and sanitation.
- Installation flexibility – 6" (152 mm) adjustable stainless legs and a 1-1/4" NPT front gas manifold; optional rear gas, casters and backguards available.
Technical specifications
| Model | C36-ARR |
|---|---|
| Overall width | 36" / 914 mm |
| Overall depth | 39-1/2" / 1,004 mm |
| Overall height (to stub-back) | 54-1/4" / 1,377 mm |
| Working height | 35-1/8" / 893 mm |
| Oven interior (H × W × D) | 13-1/2" × 26-1/4" × 29" (343 × 667 × 737 mm) |
| Total input (Natural gas) | 148,000 BTU/h |
| Total input (Propane) | 143,000 BTU/h |
| Gas pressures | Min supply – 7" WC (NAT) / 11" WC (LP) | Manifold – 6" WC (NAT) / 10" WC (LP) |
| Gas connection | 1-1/4" NPT front manifold (rear connection optional) |
| Shipping weight | ≈ 635 lb / 288 kg |
| Clearances (combustible) | 10" / 254 mm sides | 6" / 152 mm back |
| Certifications | CSA Flame, CSA Star, NSF |
Factory-installed options & accessories
- Rear gas connection kit
- Single or double-deck back riser with or without hi-shelf
- Extra chrome oven racks
- 5" non-marking or 6" swivel casters (front brakes)
- Flanged feet for curb mounting
- Gas flex hose with quick-disconnect
Need help configuring a battery line‐up or selecting accessories? Contact our product specialists—Garland’s Cuisine Series is engineered to bank seamlessly with other Garland equipment for a perfectly matched cookline.
