Garland C36-ABC Garland Cuisine Gas Ranges
Description

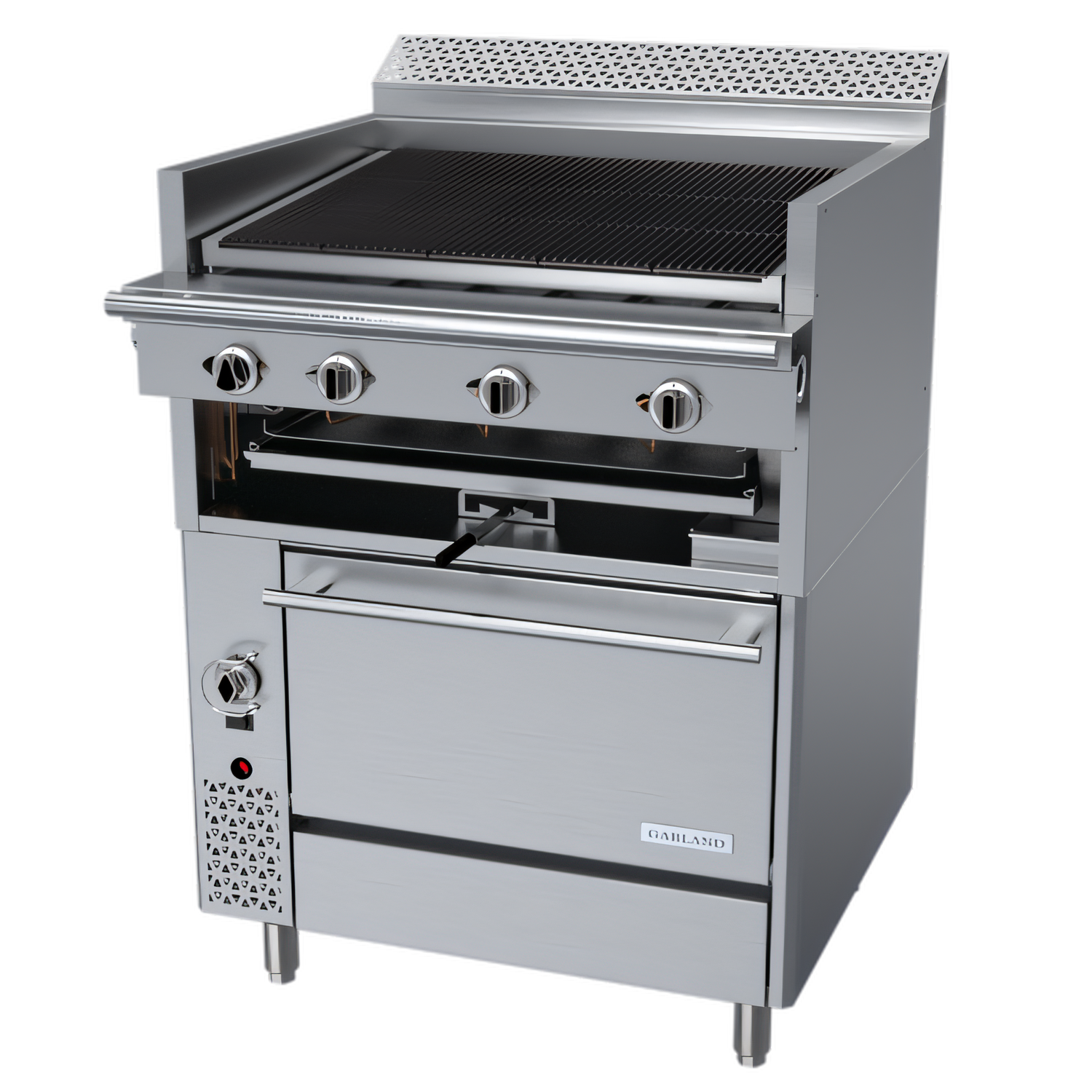

Garland Cuisine C36-ABC 36" Heavy-Duty Charbroiler Range w/ Convection Oven
172,000 BTU Natural Gas | Adjustable Briquette Broiler | 120 V Fan-Cooled Convection BaseBuild bigger flavors in less space. Garland’s Cuisine Series C36-ABC combines a high-output 36-inch briquette charbroiler, an under-fired broiler, and a self-cooling convection oven in one rock-solid, stainless-steel chassis. Perfect for kitchens that demand steakhouse sear marks, reliable baking, and years of trouble-free service from a single footprint.
Top Reasons Chefs Choose the C36-ABC

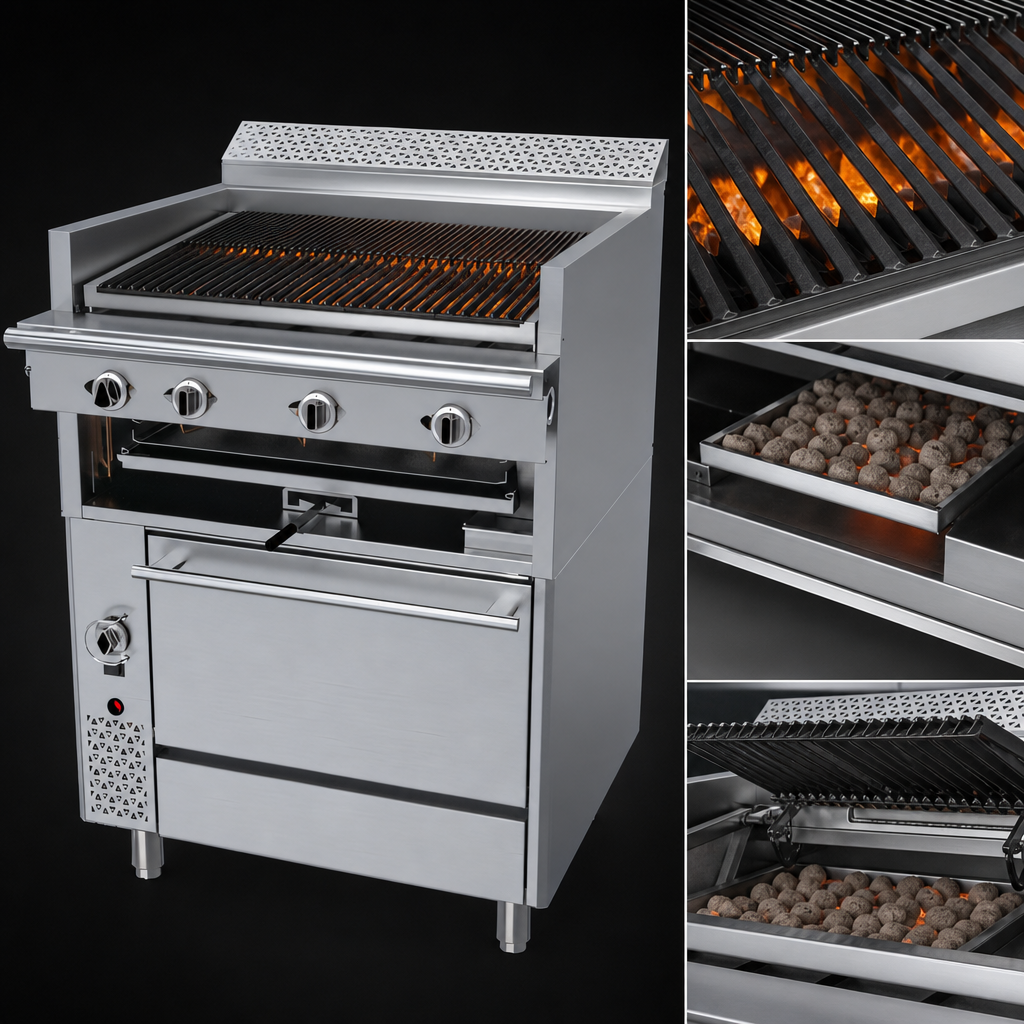

- Briquette charbroiler delivers authentic flame-kissed flavor with three 45,000 BTU burners (tilting, adjustable grates).
- Under-fired broiler section handles finishing or rapid re-thermalizing without sacrificing grill space.

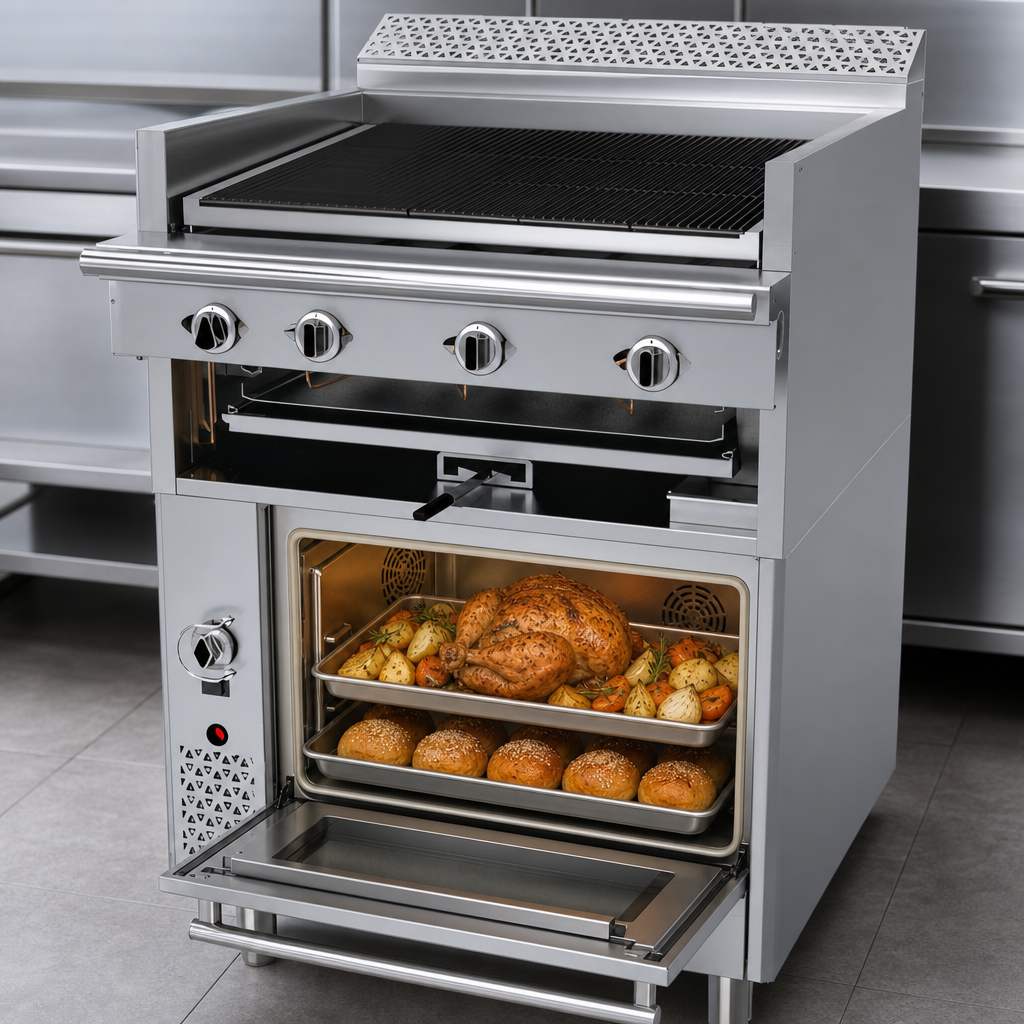

- Fan-cooled convection oven (37,000 BTU) supplies even heat, zero side-clearance install, and 3 chrome racks.
- Oven thermostat ranges from 150-500 °F (66-260 °C) for gentle baking or high-heat roasting.
- All-stainless exterior—including stub back, front rail & burner box—stands up to daily abuse and wipes clean fast.
- 6" (152 mm) adjustable stainless-steel legs for easy leveling on uneven floors.
- Individual burner controls and extra-large grease container keep production flexible and cleanup simple.
- Factory-wired NEMA 5-15P cord & plug; 1/3 HP blower motor draws only 0.6 amps.
- Certified safe & sanitary: CSA Flame, CSA Star & NSF listed.
Technical Specifications
| Model | C36-ABC (Cuisine Series) |
|---|---|
| Overall Dimensions | 36" W × 34.4" D × 54.3" H (914 × 873 × 1377 mm)
Height to cooking surface: 35.1" (893 mm) |
| Total Heat Input | 172,000 BTU/h (Natural Gas) |
| Charbroiler Section | 3 × 45,000 BTU briquette burners, adjustable tilting grates |
| Convection Oven Burner | 37,000 BTU, fan-cooled, 1/3 HP motor |
| Oven Interior (WxDxH) | 26-1/4" × 25" × 13-1/2" (667 × 635 × 343 mm) |
| Oven Racks Supplied | 3 chrome-plated, 3 rack positions |
| Gas Connection | 1-1/4" NPT front manifold (rear optional) – 7" WC min. supply, 6" WC manifold |
| Electrical | 120 V / 1-ph / 0.6 A, NEMA 5-15P |
| Adjustable Legs | 6" (152 mm) stainless steel |
| Shipping Weight | ≈ 655 lb (297 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Built for the Long Haul
- Self-cooling oven fan extends motor life and allows zero-clearance installs—ideal for tight cooklines.
- Keep-cool oven door handle and fully insulated cabinet improve operator comfort.
- Pilots are located outside the spill zone for reliable start-up and easier maintenance.
- Modular design pairs seamlessly with other Garland Cuisine Series fryers, ranges and bases.
Need help configuring a battery line or selecting accessories? Call our food-service specialists at 1-800-424-2411.
