Garland

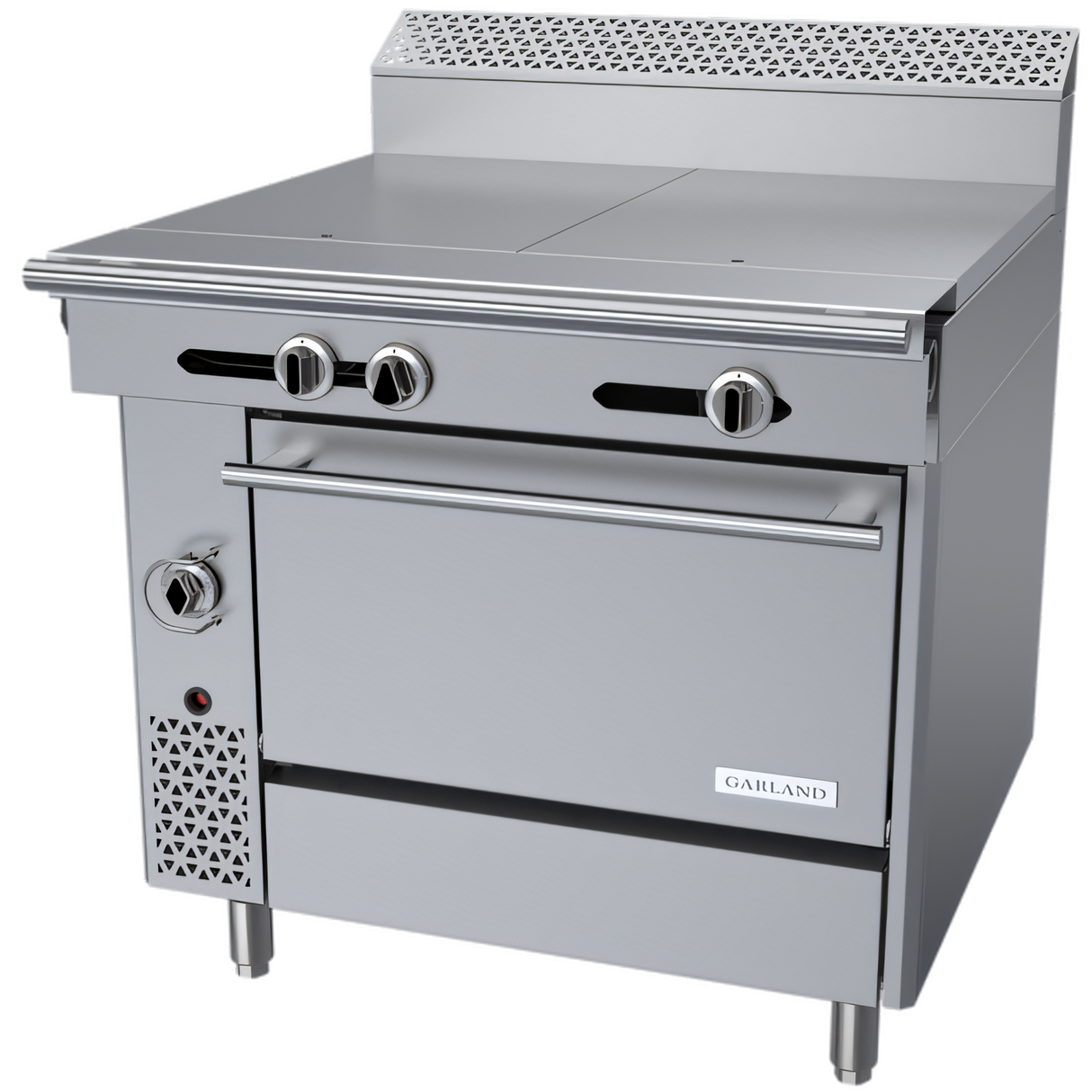

Garland Cuisine Series 36" Heavy Duty Gas Range with (2) 18" Even-Heat Hot Tops and Standard Oven

SKU: C36-9R
$7,215.30
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

Garland Cuisine Series 36" Heavy Duty Gas Range with (2) 18" Even-Heat Hot Tops and Standard Oven

Full-Size, Natural Gas, Standard Depth

Designed for demanding commercial kitchens, the Garland Cuisine C36-9R heavy-duty gas range offers powerful, consistent cooking with two even-heat hot tops and a spacious standard oven.

  • Equipped with two 18" even-heat hot tops, each delivering 32,500 BTU/h for consistent cooking performance.
  • Features a robust standard oven with a 40,000 BTU/h (NG) burner, offering versatile cooking capabilities with thermostat control from 150°-500°F.
  • Built with durable stainless steel front, sides, front rail, and burner box for longevity and easy cleaning in commercial environments.
  • The standard oven includes a porcelain interior and 1 chrome-plated rack, with 4 rack positions for flexible use.
  • Designed for flexible installation, can be used individually or in a battery with other Cuisine Series equipment.
  • Includes 6" adjustable stainless steel legs for proper leveling and easy access for cleaning underneath.

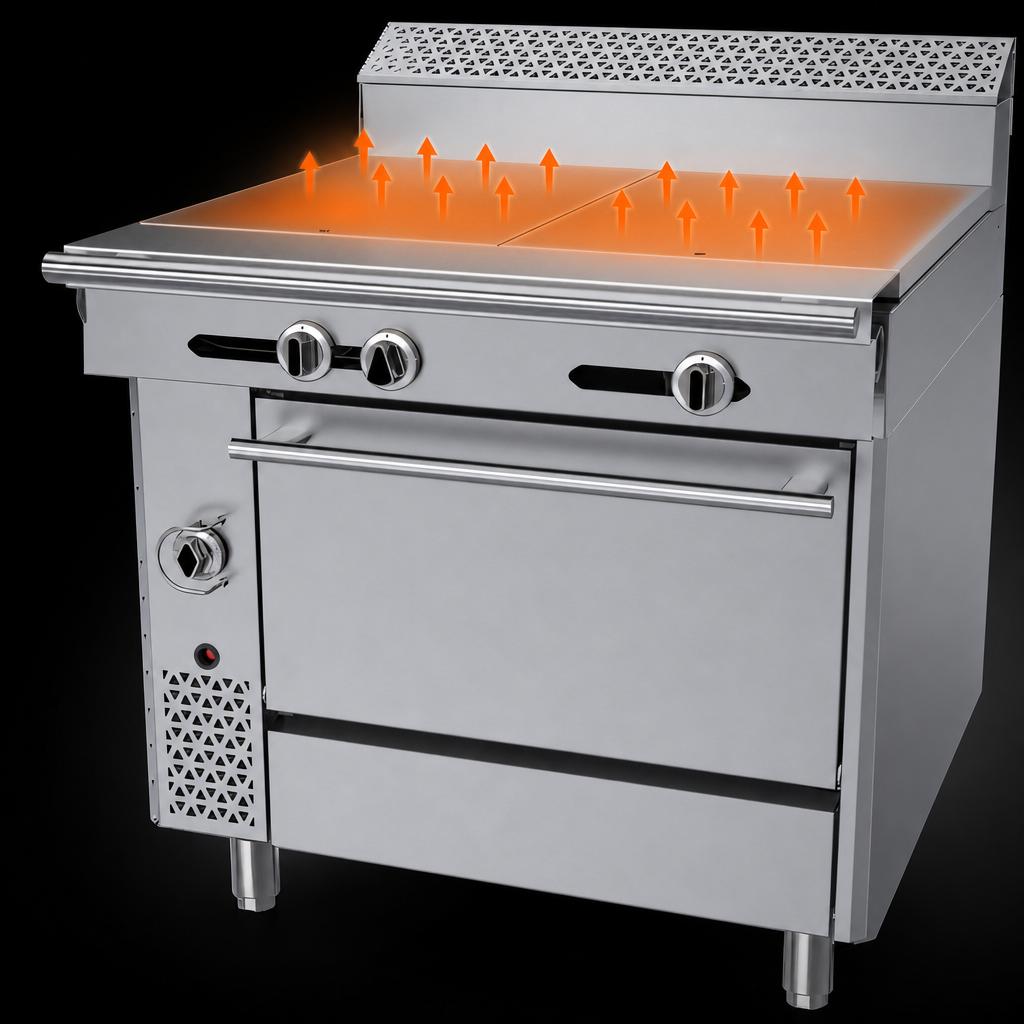

Two 18" Even-Heat Hot Tops

Provides powerful and consistent heat distribution across the cooking surface, ideal for various cooking applications.

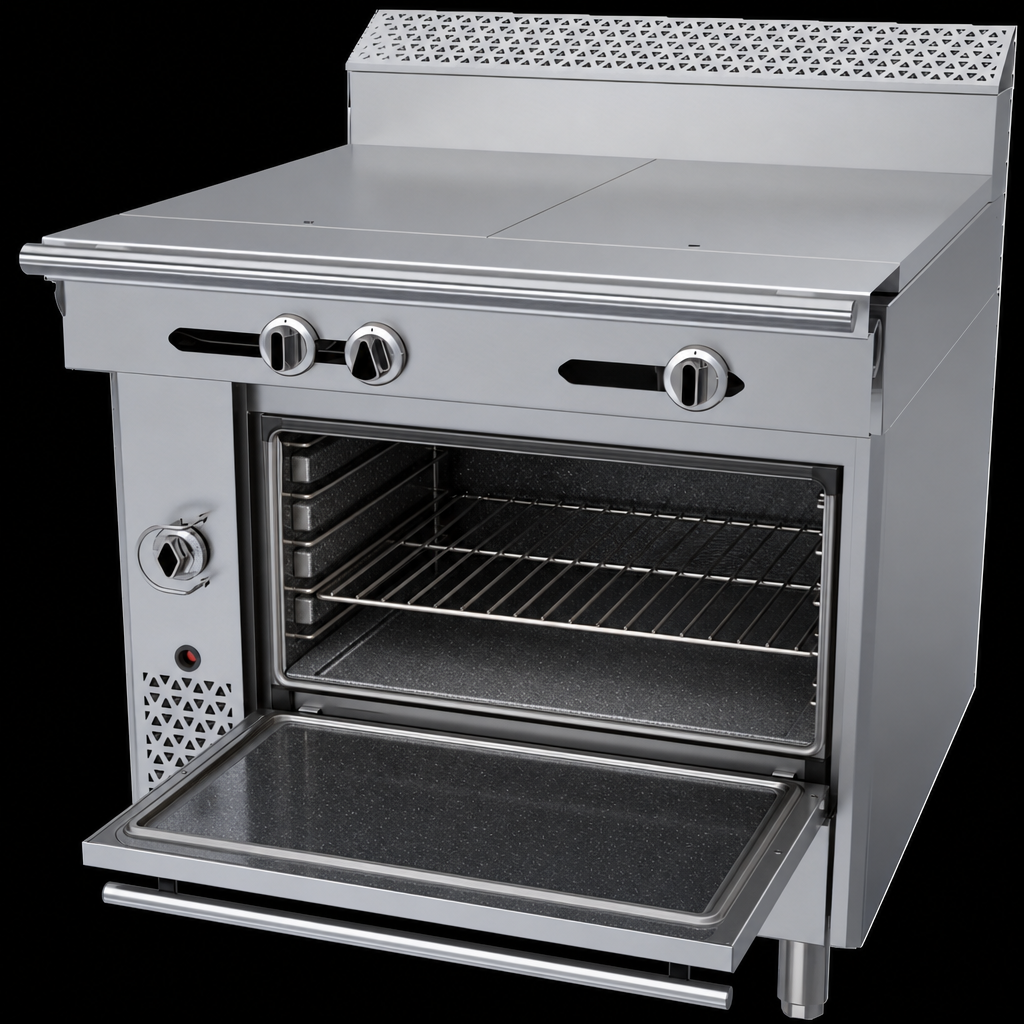

Standard Oven Base

A spacious oven with a fully insulated, porcelain interior and 4 rack positions, supplied with 1 chrome-plated rack for baking, roasting, or holding.

Oven Thermostat Control

Allows for precise temperature management from 150°F to 500°F (66°C to 260°C) to suit a wide range of recipes.

Durable Stainless Steel Construction

The front, sides, front rail, and burner box are constructed from stainless steel, ensuring durability, corrosion resistance, and a professional aesthetic.

7" High Stainless Steel Stub Back

Provides essential protection for walls from splashes and heat, while also facilitating easy cleaning.

6" Adjustable Stainless Steel Legs

Allows for precise leveling on uneven floors and provides ample clearance for cleaning under the unit.

1-1/4" NPT Front Gas Manifold

Standardized gas connection for straightforward and secure installation.

Safety Oven Pilot

Ensures reliable ignition and safe operation of the oven burner.

Type Heavy Duty Range
Style Even-Heat Hot Top Range with Standard Oven
Installation Type Floor Model (With 6" Adjustable Legs)
Width 36 Inches
Depth 34-1/8 Inches
Height 34-3/8 Inches
Shipping Width 36 Inches
Shipping Depth 39-3/8 Inches
Shipping Height 41-3/8 Inches
Shipping Weight 590 lb.
Gas Type Natural Gas
BTU 105,000 BTU
Hot Top BTU 32,500 BTU Per Hot Top
Standard Oven BTU 40,000 BTU
Gas Connection Size 1-1/4" NPT
Gas Inlet Pressure (Minimum Supply) 7 Inches W.C.
Gas Inlet Pressure (Manifold Operating) 6 Inches W.C.
Material Stainless Steel
Interior Finish Porcelain
Compartments 1
Pan Capacity 1 Chrome Plated Rack (4 Rack Positions)
Controls Oven Thermostat Control
Temperature Range 150°-500°F (66°-260°C)
Cooking Surface Width 36 Inches
Hot Top Size 18 Inches
Oven Interior Height 13-1/2 Inches
Oven Interior Width 26-1/4 Inches
Oven Interior Depth 29 Inches
Country of Origin Canada
Selling Unit Each
Units Per Case 1

Warranty & Protection

Not specified in documentation

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Brochure PDF Download PDF Garland cuisine models guide PDF Download PDF Check list PDF Download

Frequently Asked Questions

The C36-9R model is equipped with a standard oven base, featuring a porcelain interior, 4 rack positions, and comes with 1 chrome-plated rack.
The standard oven on the C36-9R has a thermostat control that allows for a temperature range of 150°F to 500°F (66°C to 260°C).
The C36-9R has a total BTU/h rating of 105,000 BTU for natural gas. Each of the two hot tops provides 32,500 BTU/h, and the standard oven delivers 40,000 BTU/h.
Yes, the C36-9R is designed to be installed individually or in a battery (banked) with other Garland Cuisine Series equipment.
For safety, the C36-9R requires a minimum clearance of 10 inches (254mm) on the sides and 6 inches (152mm) at the back from combustible walls.
The interior of the standard oven measures 13-1/2 inches (343mm) in height, 26-1/4 inches (667mm) in width, and 29 inches (737mm) in depth.
