Garland C36-8S Garland Cuisine Gas Ranges
Description

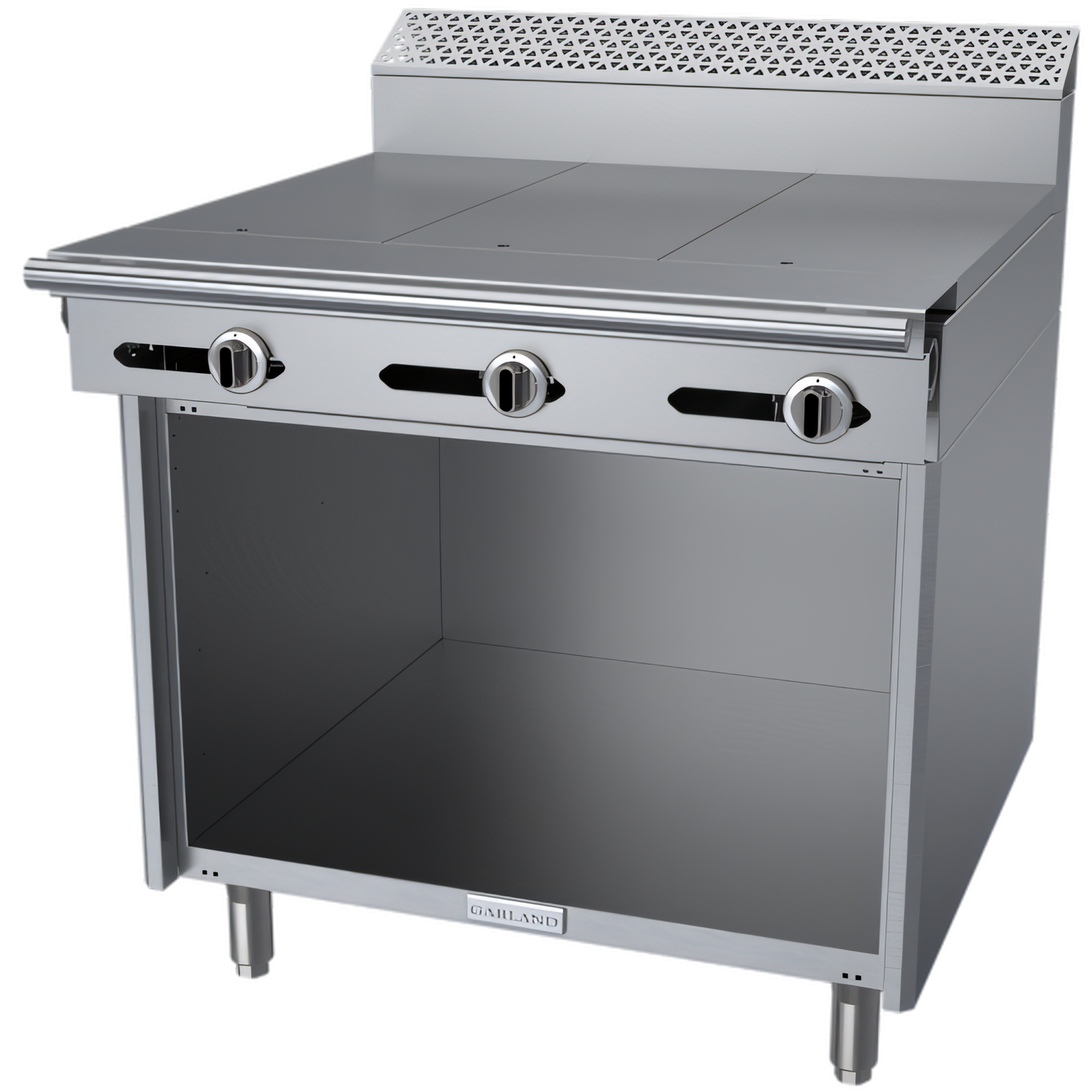

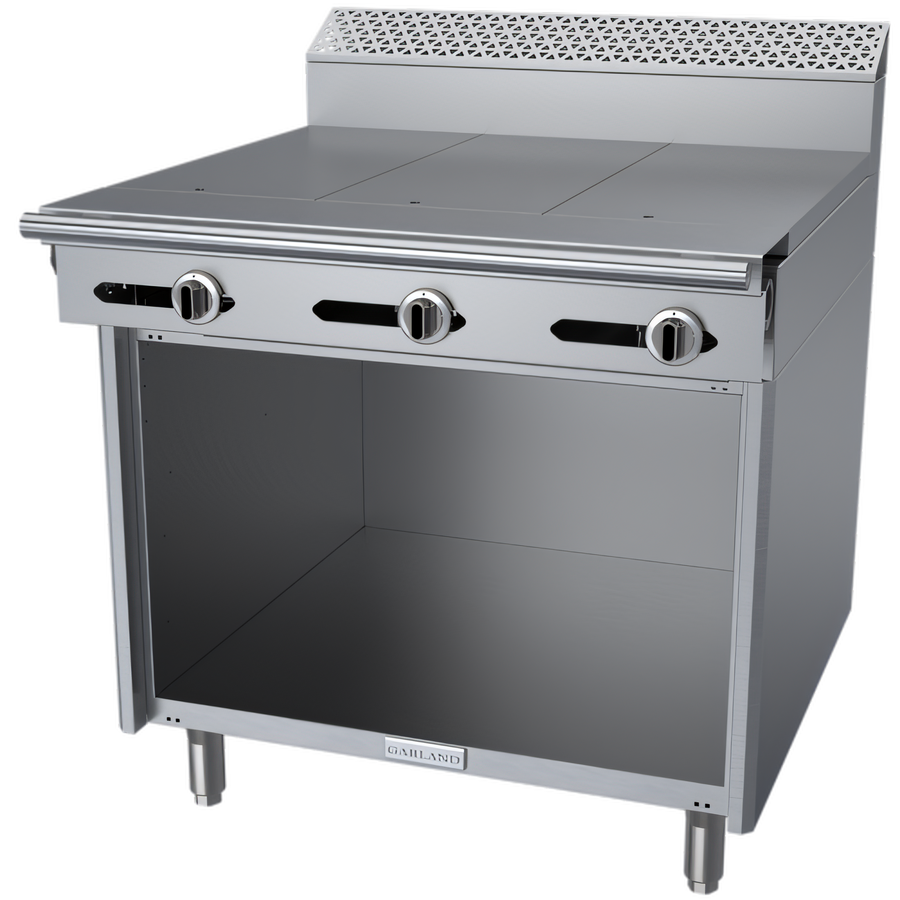

Garland Cuisine™ 36" Heavy-Duty Gas Even-Heat Hot Top Range w/ Open Cabinet Base
Model C36-8S • 75,000 BTU • NSF & CSA CertifiedBuilt to thrive on the toughest cook lines, the Garland Cuisine Series C36-8S delivers rock-solid durability, precise heat control and convenient under-counter storage—all in a space-saving 36 inch footprint.
Key Features

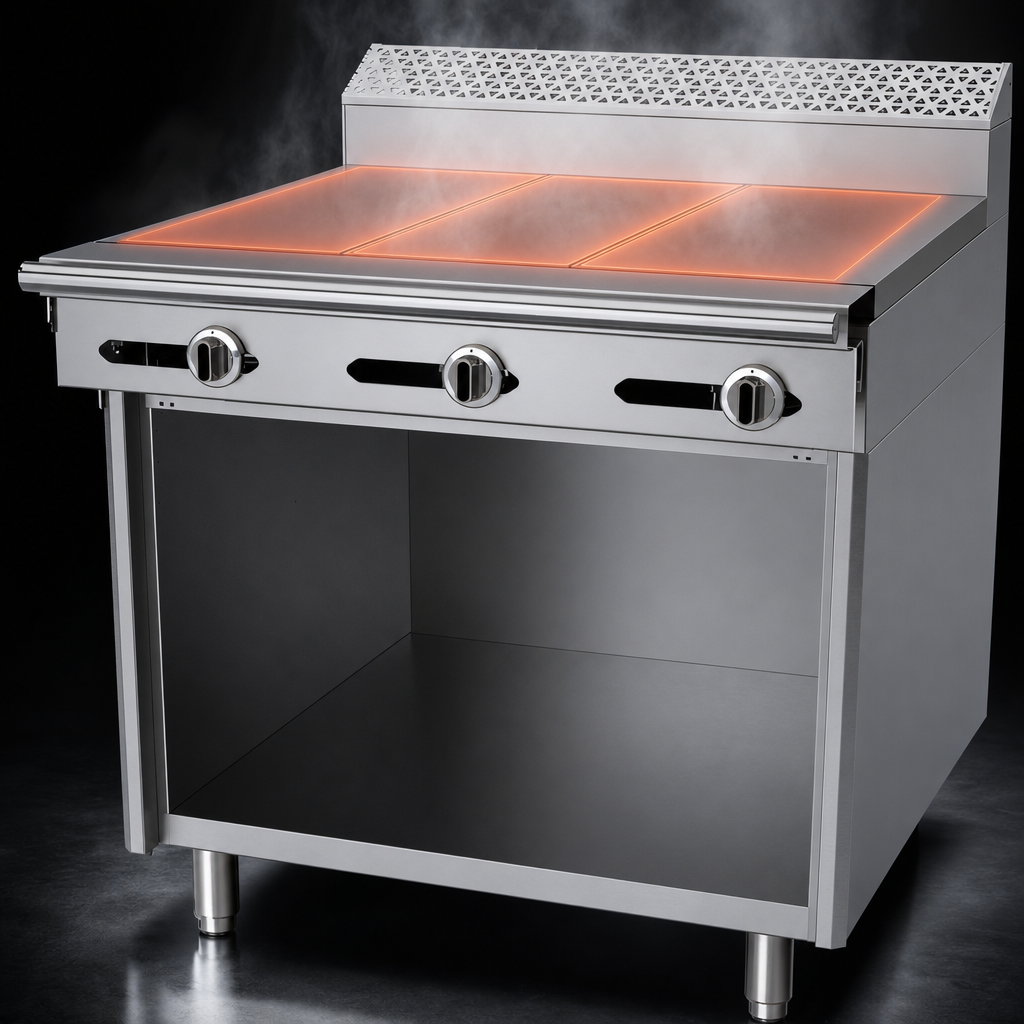

- Three 12" cast-iron Even-Heat hot tops (25,000 BTU/h each)

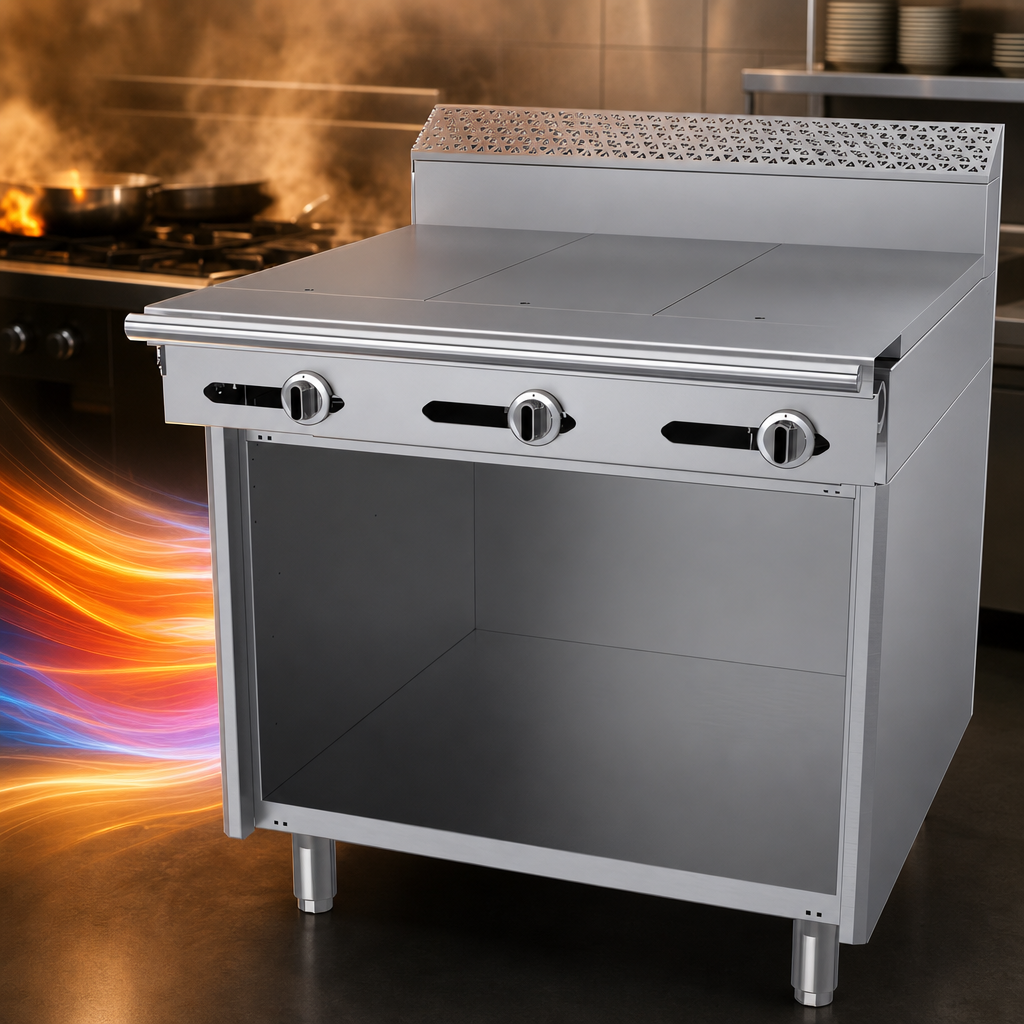

- Total input: 75,000 BTU/h (Natural or LP)
- Uniform, edge-to-edge surface temperatures ideal for stockpots, sauté pans & holding pans

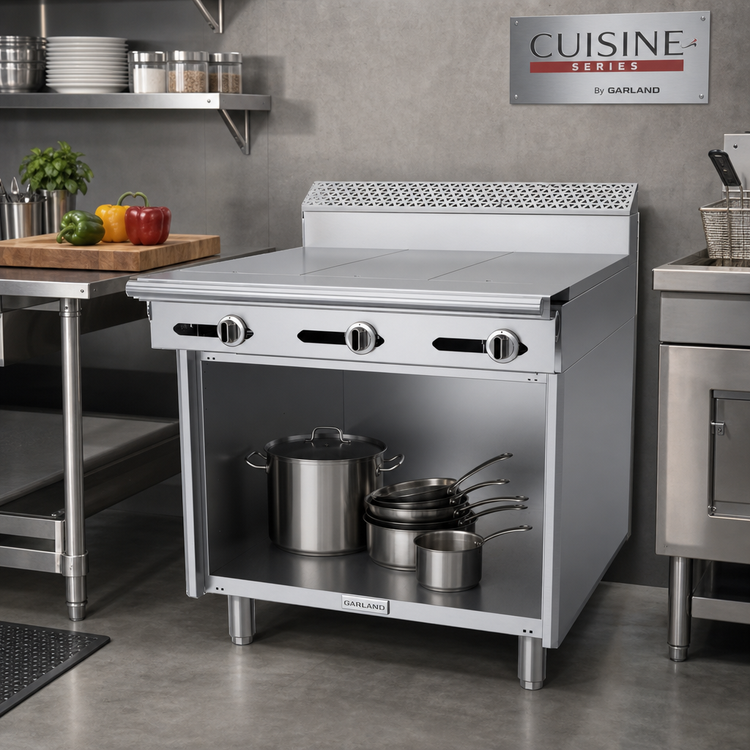

- Open cabinet base keeps cookware within arm’s reach; optional stainless doors & shelf available
- Stainless steel front, sides, plate rail & burner box resist dents, corrosion and daily abuse
- 7" stainless steel stub back protects the wall from heat & splatter
- 6" adjustable stainless steel legs for fast, level installation
- Front 1 ¼" NPT gas manifold—perfect for stand-alone or battery line-ups (rear connection kit optional)
- Field convertible Natural/LP, supplied with pressure regulator
- Certifications: CSA Flame, CSA Star & NSF
Why Even-Heat Hot Tops?
Each heavy, one-piece plate covers a dedicated 25,000 BTU burner, spreading heat evenly across the entire surface. The result: fewer hot spots, faster recovery and lower energy use—ideal for low-simmer sauces right through to rolling boils.
Specifications
| Exterior width | 36" / 914 mm |
|---|---|
| Exterior depth (to plate rail) | 34-1/8" / 867 mm |
| Cooking height | 37-1/4" / 947 mm |
| Stub back height | 7" / 178 mm |
| Total BTU input | 75,000 BTU/h |
| Gas inlet | 1 ¼" NPT front (rear kit optional) |
| Manifold pressure | 6" WC Nat | 10" WC LP |
| Minimum supply pressure | 7" WC Nat | 11" WC LP |
| Combustible clearances | Sides – 10" (254 mm) | Back – 6" (152 mm) |
| Shipping weight | Approx. 427 lb / 192 kg |
Popular Options & Accessories
- Stainless steel cabinet doors
- Intermediate stainless shelf for cabinet base
- 5" or 6" locking casters (polyurethane)
- Flanged feet for curb or dais mounting
- Single or double deck high shelf / back riser
- Rear gas connection kit
Building a full cookline? All Garland Cuisine Series equipment—ranges, fryers, broilers & refrigerated bases—shares the same 36" chassis for a seamless, high-performance lineup.
