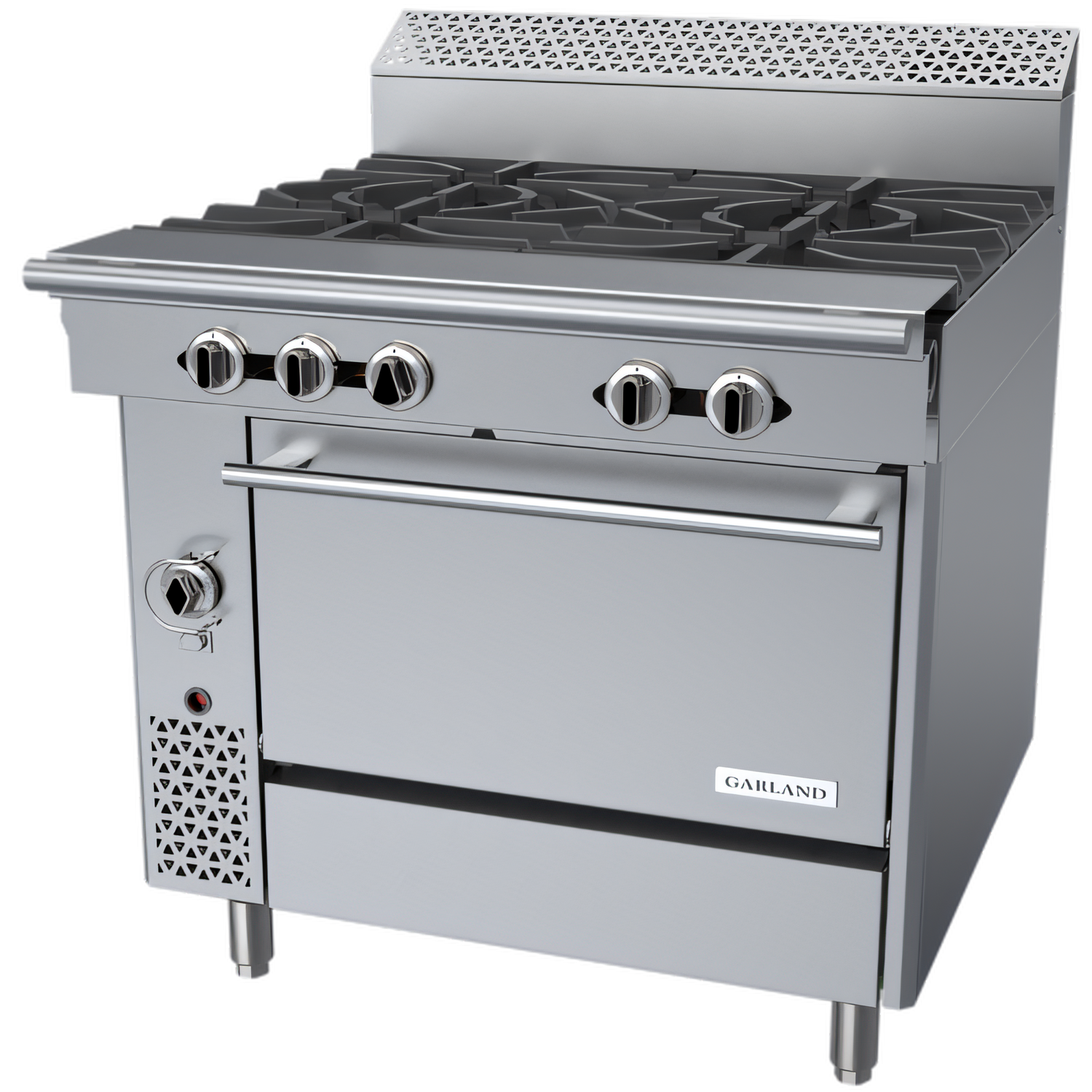

Garland Cuisine Series 36" Heavy-Duty Gas Range with 4 Open Burners & Convection Oven
Model C36-7C | Natural Gas • 197,000 BTU/hEngineered for the toughest commercial kitchens, the Garland Cuisine C36-7C packs four 40,000 BTU Starfire™ open burners above a high-performance 37,000 BTU convection oven— all in a space-saving 36-inch footprint. From rapid sautéing on the line to high-capacity baking below, this range keeps pace with your busiest services.
Key Features

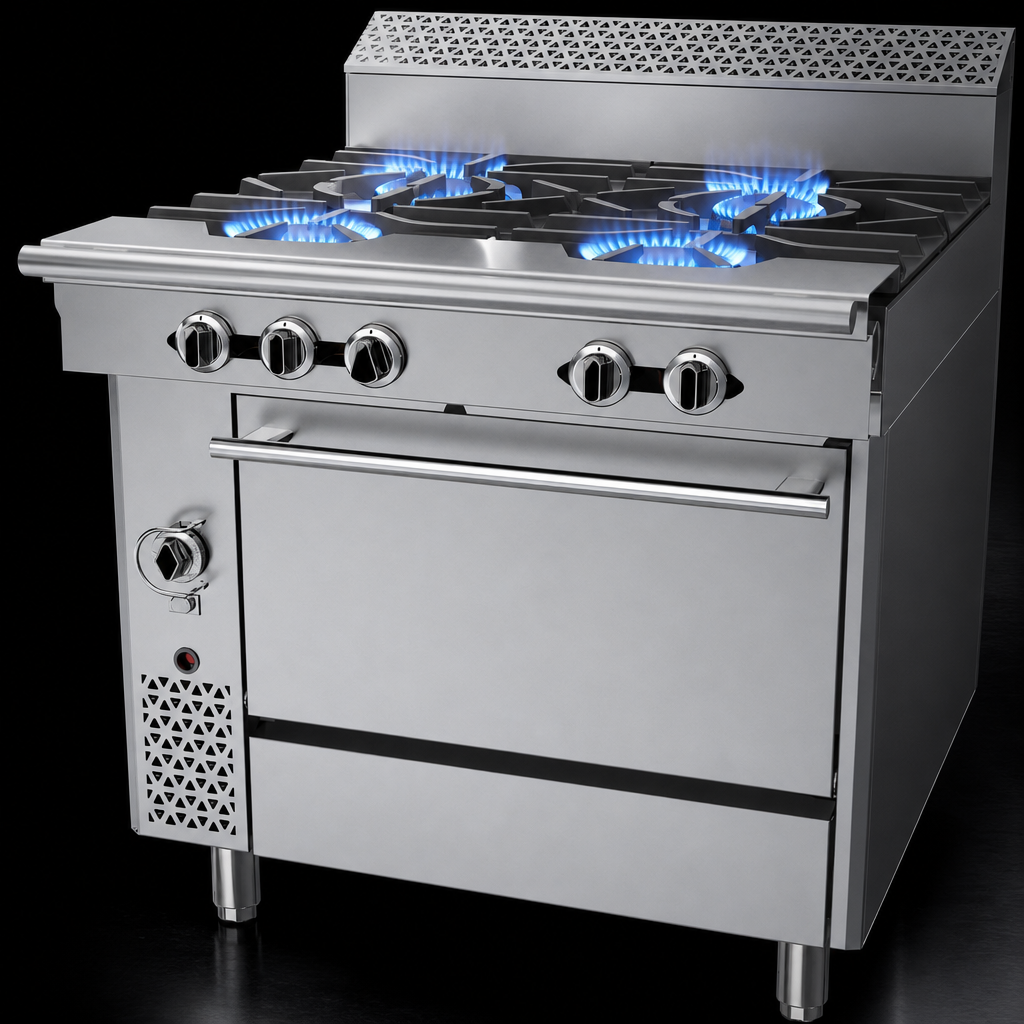

- Four 40,000 BTU Starfire™ open burners with one-piece cast-iron grates & bowls for unbeatable heat transfer and easy clean-up.

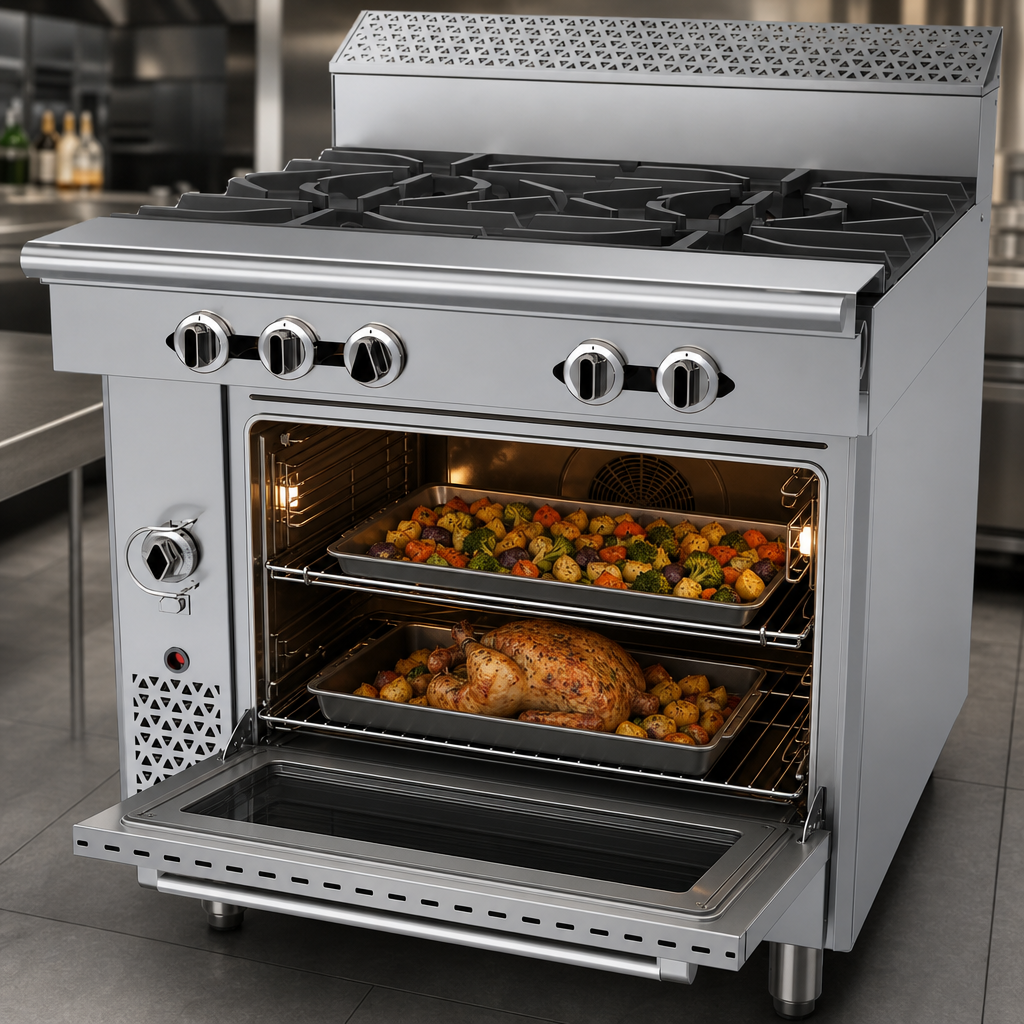

- Full-size convection oven (37,000 BTU) with forced-air circulation for even baking; includes 3 chrome-plated racks.
- Stainless steel front, sides, plate rail, burner box and 7" stub backguard resist corrosion and daily wear.
- 6" adjustable stainless steel legs allow precise leveling on uneven floors.
- Fully insulated oven with “keep-cool” door handle for operator comfort and energy efficiency.
- 1/3 HP fan motor; 120 V plug-and-play connection with NEMA 5-15P, drawing only 0.6 A.
- Front 1-1/4" NPT gas manifold with factory regulator for simple line-up installations (rear connection optional).
- CSA Flame, CSA Star and NSF listings ensure compliance with gas safety & sanitation standards.
Built for High-Volume Performance
With a combined output of 197,000 BTU, this Cuisine Series range delivers the horsepower you need to cut ticket times. The open-burner design offers instant recovery when you move pans, while the convection fan blankets food with consistent heat for perfectly-even roasts, bakes and retherm applications.
Ideal Applications
- Sautéing, searing, boiling and pan-frying on the cookline
- High-volume baking, roasting and finishing in bakeries, cafés and full-service restaurants
- Cook-and-hold or banquet production where even temperatures are critical
Specifications
| Cooktop | 4 open burners @ 40,000 BTU each (NG) |
|---|---|
| Oven Type | Convection, 37,000 BTU; 3 rack positions |
| Total Input | 197,000 BTU/h (NG) | 187,000 BTU/h (LP) |
| Exterior Dimensions | 36" W × 34-1/8" D × 37-1/4" H (to top of backguard) |
| Backguard Height | 7" (178 mm) stainless steel stub |
| Electrical | 120 V / 60 Hz / 1-ph, 0.6 A, NEMA 5-15P |
| Fan Motor | 1/3 HP |
| Gas Connection | 1-1/4" NPT front manifold (rear optional) |
| Operating Pressure | Natural 6" W.C. | Propane 10" W.C. |
| Clearances to Combustibles | Sides 10" (254 mm) | Back 6" (152 mm) |
| Certifications | CSA Flame, CSA Star, NSF |
| Approx. Shipping Weight | 556 lb (252 kg) |
What’s Included
- (3) chrome-plated oven racks
- Factory-installed gas pressure regulator
- Piezo ignition & safety oven pilot
Want casters, a high shelf or a rear gas connection? Contact our team for factory-installed options and accessories.
