Garland C36-6SUR Garland Cuisine Gas Ranges
Description

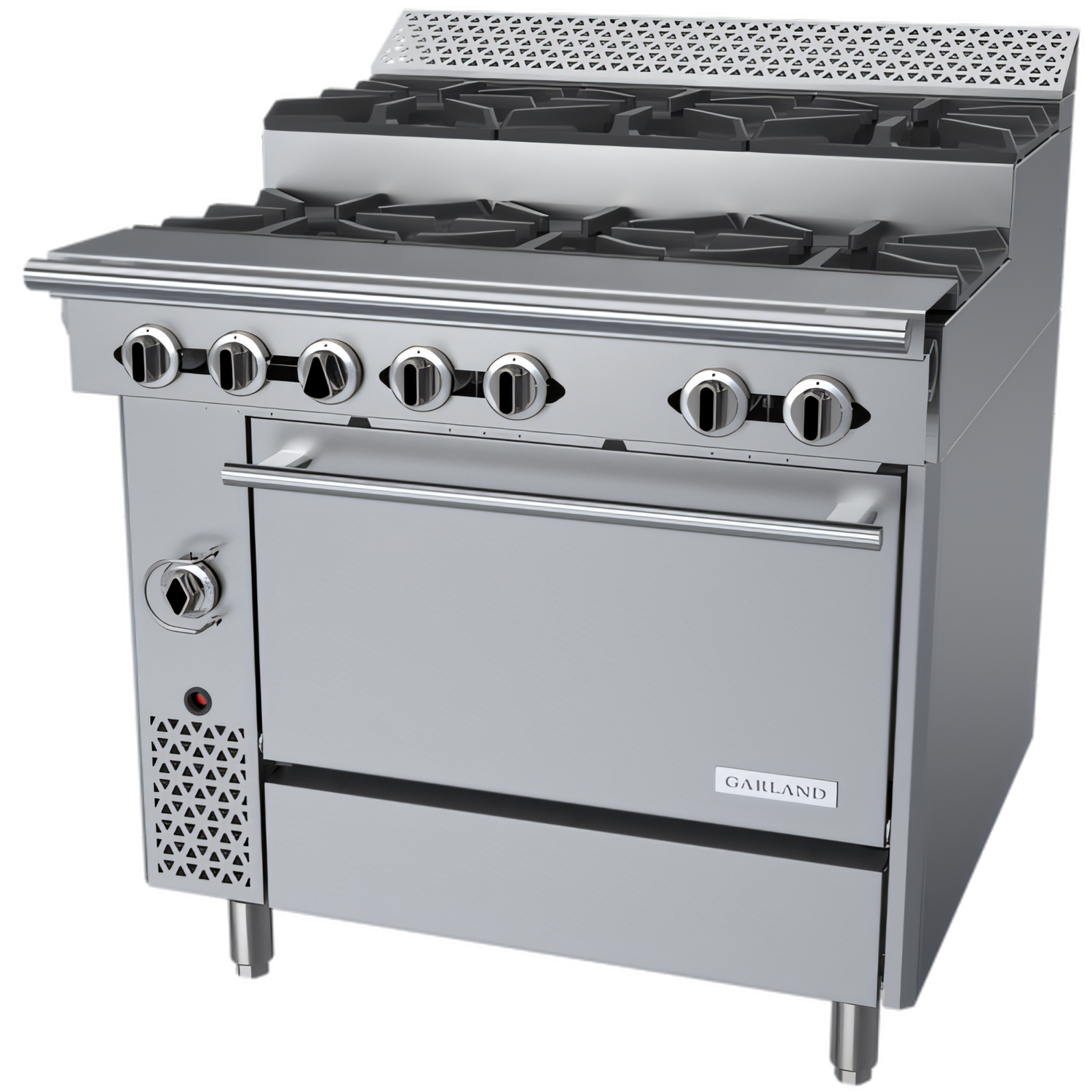

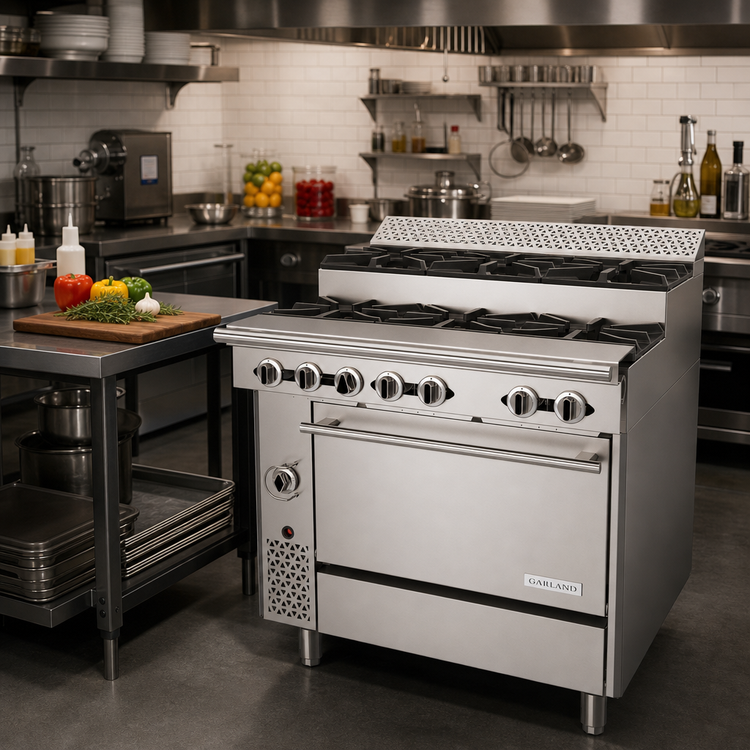

Garland C36-6SUR Cuisine Series Heavy-Duty 36" Step-Up Range
6 × 35,000 BTU Starfire open burners | 40,000 BTU standard oven | Natural Gas, 250,000 BTU totalElevate production without expanding your footprint. Garland’s 36" Cuisine Series step-up range combines six high-output Starfire burners with a full-size oven, giving busy kitchens double-deck cooking power and superior durability—perfect for sauté stations, stock-pot work and everything in-between.
Key Benefits

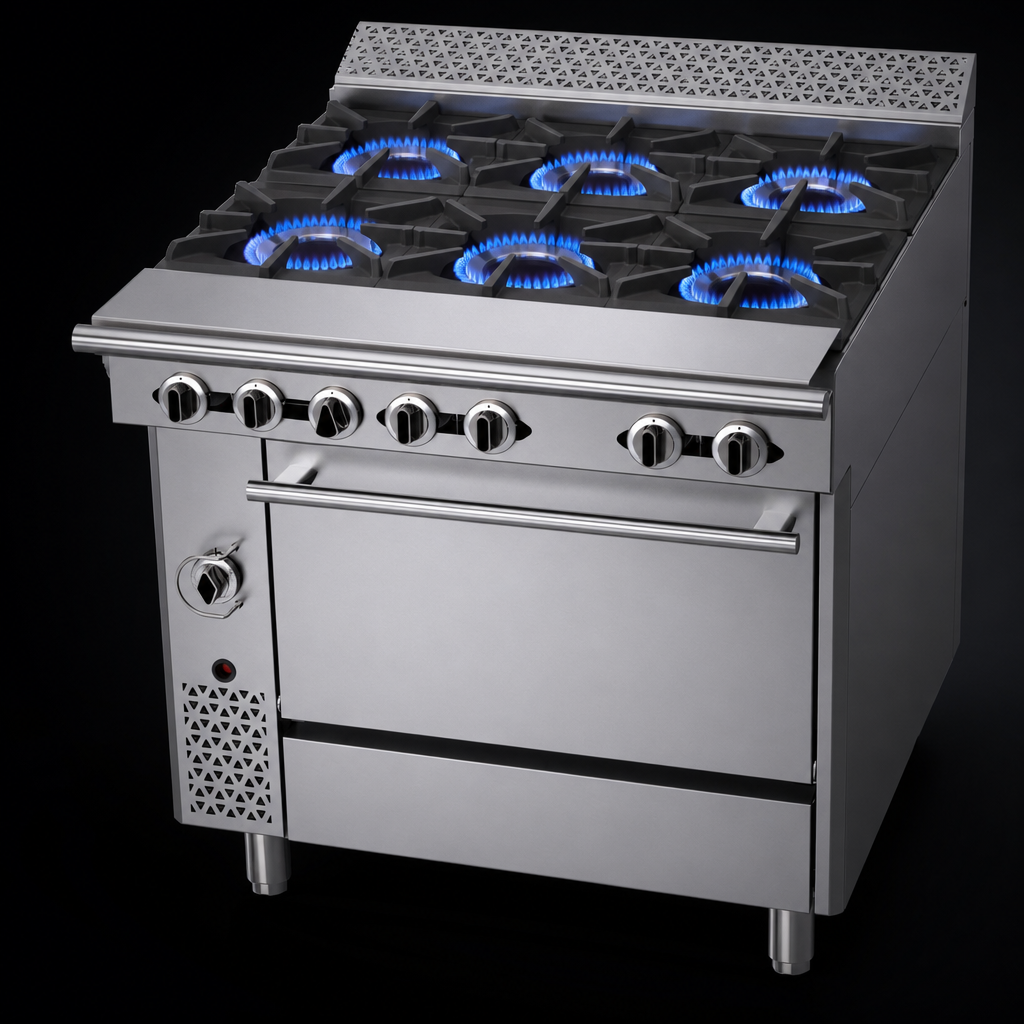

- Six 12" open burners (3 front + 3 rear step-up) at 35,000 BTU/h each for lightning-fast heat.
- Raised rear section improves visibility & access—no more reaching across crowded pans.
- One-piece cast-iron grates and bowls lift off for quick clean-ups.

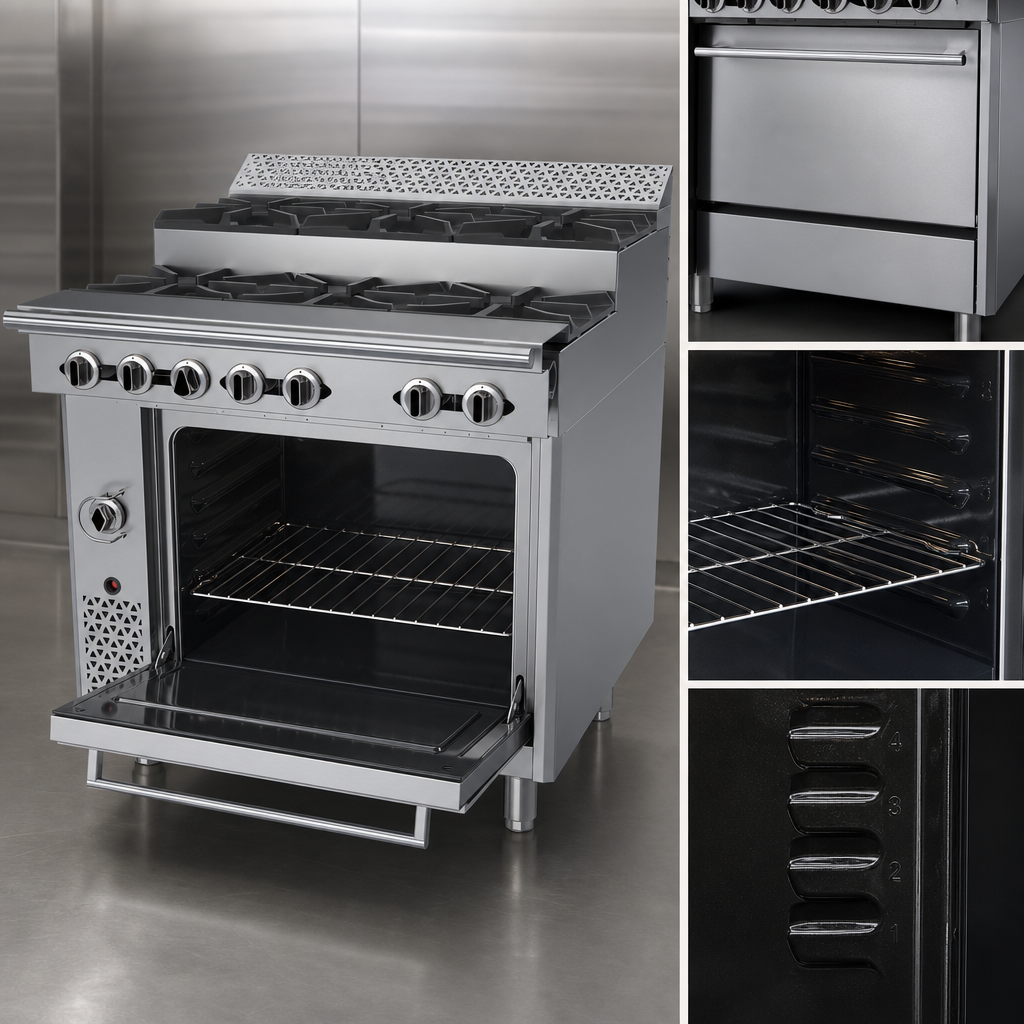

- 40,000 BTU standard oven with porcelain interior, four rack positions & one chrome rack included.
- Accurate FDO thermostat maintains 150 °F–500 °F (66 °C–260 °C).
- Fully insulated door with “keep-cool” handle and safety pilot.
- 7" stainless-steel stub back/backguard for splash protection under salamanders or shelves.
- All-stainless front, sides, plate rail and burner box stand up to corrosive kitchen environments.
- 6" adjustable stainless legs make leveling and floor cleaning easy.
- 1-1/4" NPT front gas manifold with regulator; battery-ready for line-ups.
- Field convertible to LP gas (kit required).
- Certified: CSA Flame, CSA Star & NSF.
Technical Specifications
| Model | C36-6SUR |
|---|---|
| Cooktop | (3) 35 kBTU front burners / (3) 35 kBTU rear step-up burners |
| Total Input (NG) | 250,000 BTU/h |
| Oven Output | 40,000 BTU/h – standard bake/roast |
| Oven Interior (H × W × D) | 13-1/2" × 26-1/4" × 29" (343 × 667 × 737 mm) |
| Overall Dimensions | 36" W × 32" D × 34-3/8" H to cook surface 41-3/4" H to top of stub back |
| Gas Connection | 1-1/4" NPT front manifold (regulator supplied) |
| Manifold Pressure | 6" WC Natural / 10" WC Propane |
| Minimum Supply Pressure | 7" WC Natural / 11" WC Propane |
| Clearances (Combustibles) | Sides 10" (254 mm) / Back 6" (152 mm) |
| Shipping Weight | ≈ 562 lb (255 kg) |
Built for the Long Haul
- Pilots mounted outside the spill zone for reliable ignition and longer component life.
- Battery-ready design mates perfectly with other Cuisine Series equipment—create the line you want.
- Supported nationwide by Welbilt KitchenCare® parts & service network.
Looking for casters, convection oven bases, extra racks or rear gas connections? Ask our team for factory-approved Garland options.
