Garland C36-5R Garland Cuisine Gas Ranges
$7,640.00
Unit price
/
Unavailable
Description

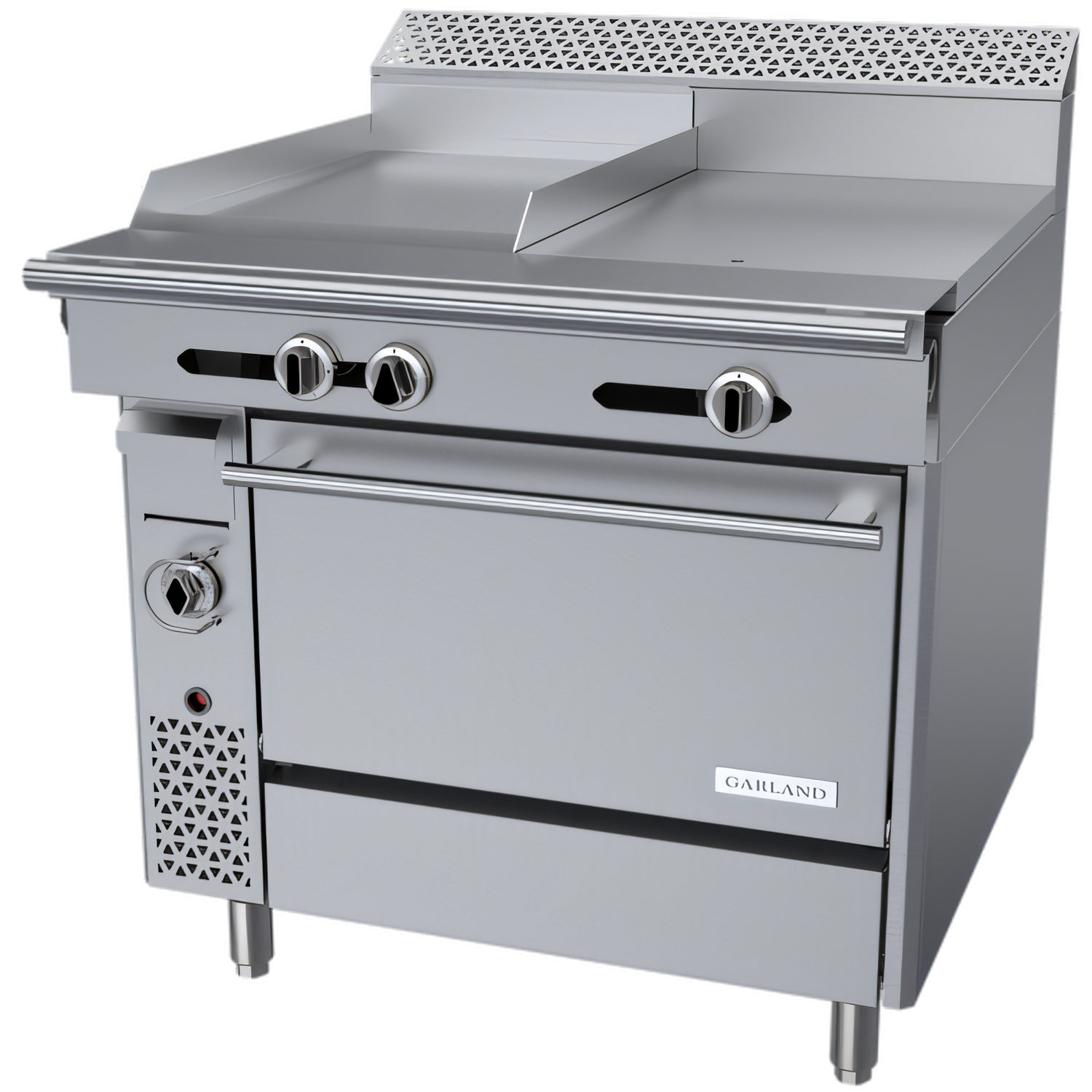

Garland Cuisine Series 36" Heavy-Duty Combination Range
Model C36-5R | 18" Griddle (LH) + 18" Hot Top (RH) | Standard OvenBuilt for high-volume, all-day production, the Garland Cuisine C36-5R packs three unique work stations into just 36 inches of counter space. An ultra-thick griddle, an even-heat hot top, and a powerful standard oven let you sear, sauté, simmer, and bake simultaneously—perfect for busy restaurants, hotels, and institutional kitchens.
Why chefs choose the C36-5R
- True heavy-duty construction – 1" steel griddle plate, stainless front, sides, plate rail & burner box.

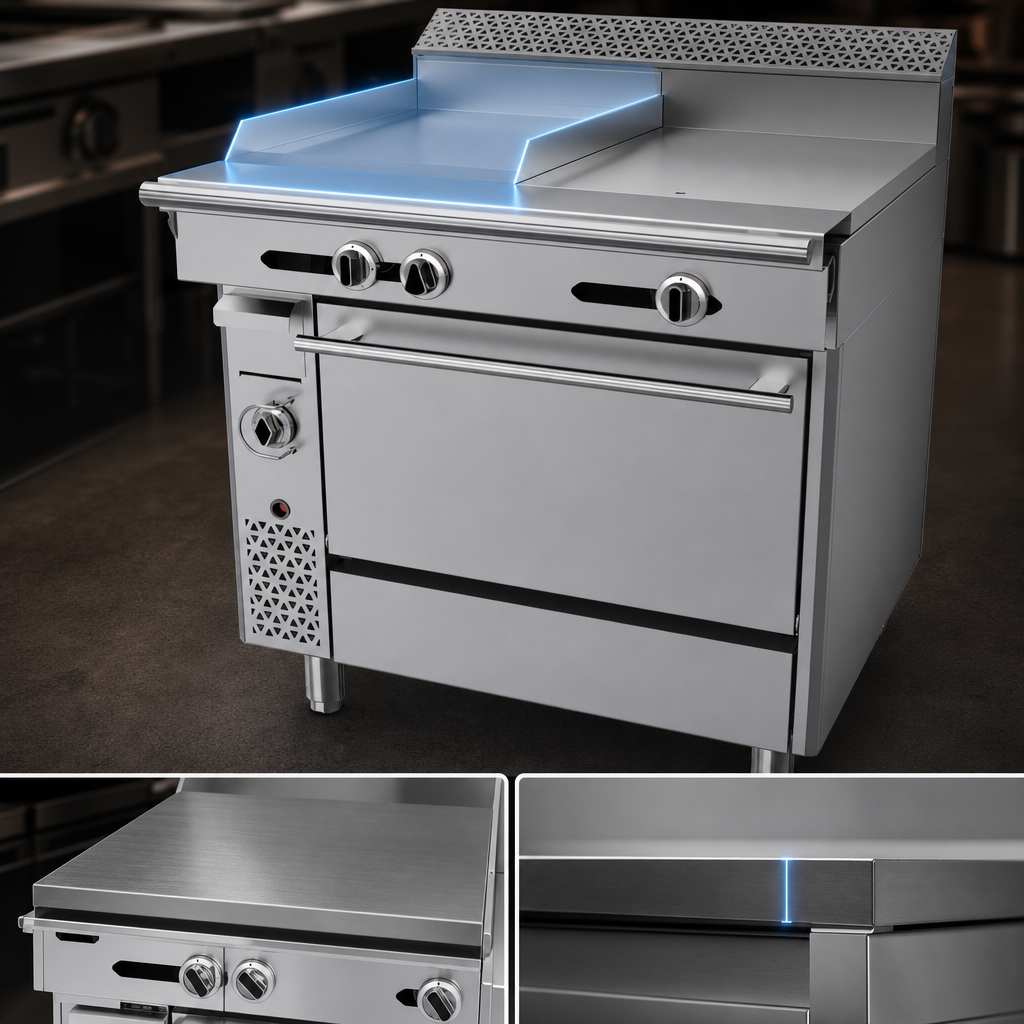

- 18" left-side griddle with Hi-Lo manual valve control; 30,000 BTU “U” burner delivers fast recovery and a 3" wide grease trough for mess-free operation.

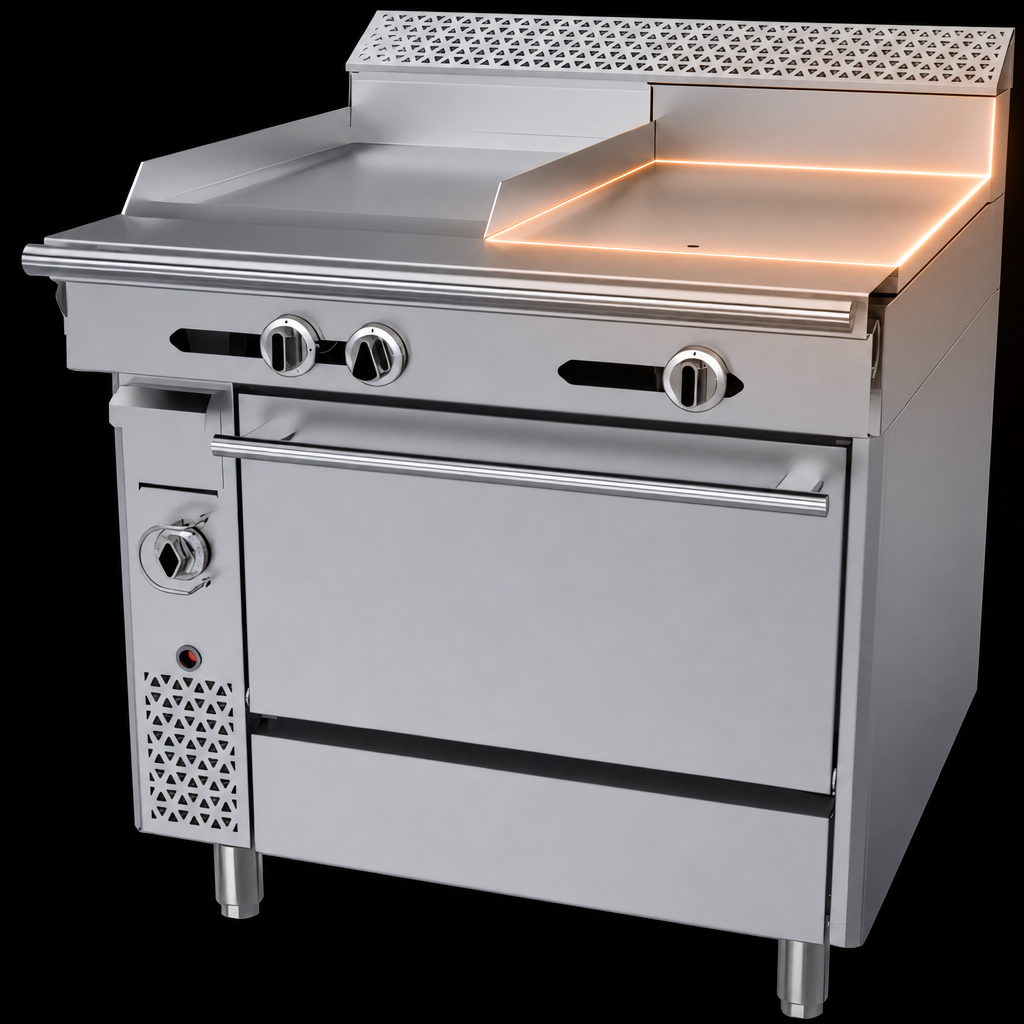

- 18" right-side hot top (even heat) rated at 32,500 BTU—ideal for stock pots, sauce pans, or holding pans.
- 40,000 BTU standard oven with 4 rack positions and 1 chrome rack included; 150-500 °F thermostat.
- Compact 7" stainless stub back-guard protects walls without sacrificing visibility.
- 6" adjustable stainless legs for easy leveling or cleaning underneath; optional casters available.
- Front 1-1/4" NPT gas manifold simplifies line-ups or future expansion.
- Independently safety-piloted burners for reliable ignition and continuous operation.
- Certified safe: CSA Flame & Star, NSF.
Performance at a glance
- Total input: 102,500 BTU/h (Natural Gas)
- Griddle temperature range: low to searing 550 °F ≈ (cook surface)
- Oven thermostat: 150 – 500 °F (66 – 260 °C)
- Manifold pressure: 6" WC (Nat.) | Min. supply: 7" WC (Nat.)
Technical specifications
| Dimensions (W × D × H*) | 36" × 34 ⅜" × 37 ¼" (914 × 873 × 947 mm) *to cook surface – add 7" (178 mm) for stub back |
|---|---|
| Cooking surfaces | 18" griddle (LH) | 18" hot top (RH) |
| Individual burner ratings | Griddle 30,000 BTU | Hot Top 32,500 BTU | Oven 40,000 BTU |
| Total input | 102,500 BTU/h (Natural Gas) |
| Oven interior (H × W × D) | 13 ½" × 26 ¼" × 29" (343 × 667 × 737 mm) |
| Rack positions / supplied | 4 / 1 chrome rack |
| Gas connection | Front 1-1/4" NPT (rear connection optional) |
| Shipping weight | ~ 635 lb (288 kg) |
| Clearances (combustible) | Sides 10" (254 mm) | Back 6" (152 mm) |
| Certifications | CSA Flame, CSA Star, NSF |
Popular options & accessories
- Swivel or polyurethane casters with front brakes
- Single / double deck high-shelf or full back riser
- Extra chrome oven racks
- Rear gas connection kit
- Protective control shield
Installation notice: This appliance is intended for commercial kitchens only and must be installed by
qualified personnel in accordance with local codes. A gas shut-off valve and approved restraining device are required
when the unit is mounted on casters.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
42.0in
Width
36.0in
Depth
39.38in
Shipping Weight
635.0lbs
Exterior Finish
stainless steel front & sides
Base
(1) standard oven
Top
(1) 18" griddle, (1) 18" hot top
Plate Thickness
1.000" = 1"
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 36", (1) 18" griddle on left only, 1" thick steel plate, Hi-Lo manual valve controls, (1) 18" even heat hot top - right, standard oven, includes (1) rack, 7"H backguard, stainless steel front, sides, plate rail & burner box, 6" adjustable legs, 102,500 BTU (NG), CSA Flame, CSA Star, NSF (Garland)
