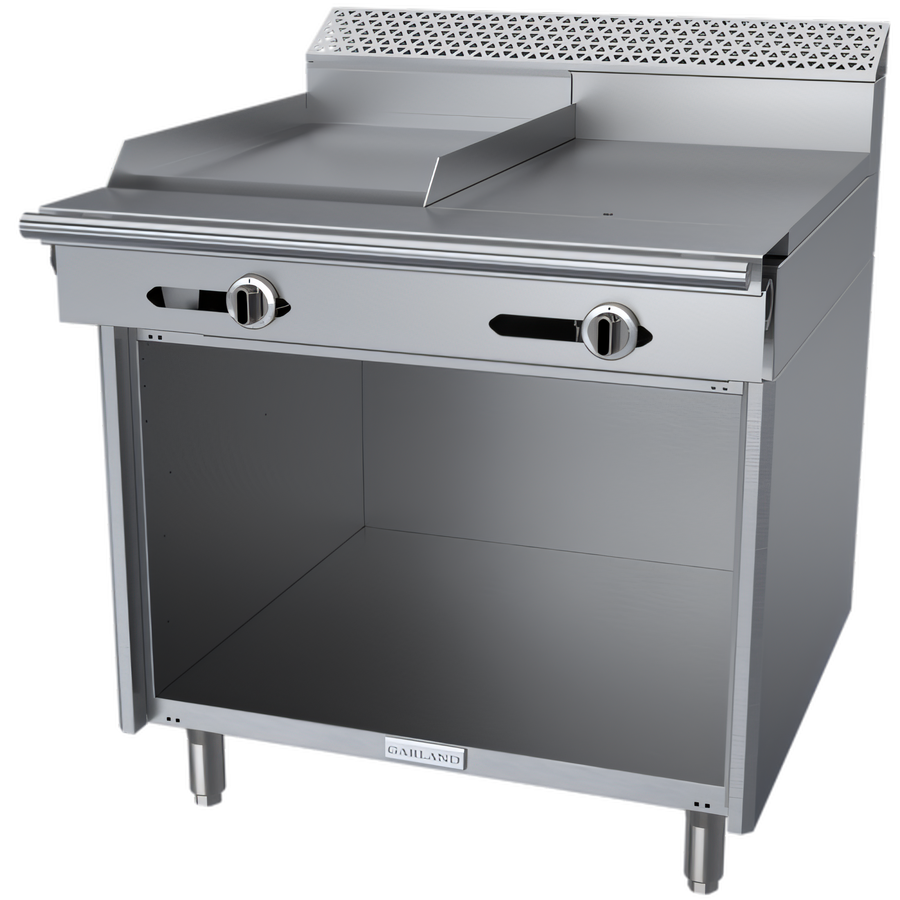

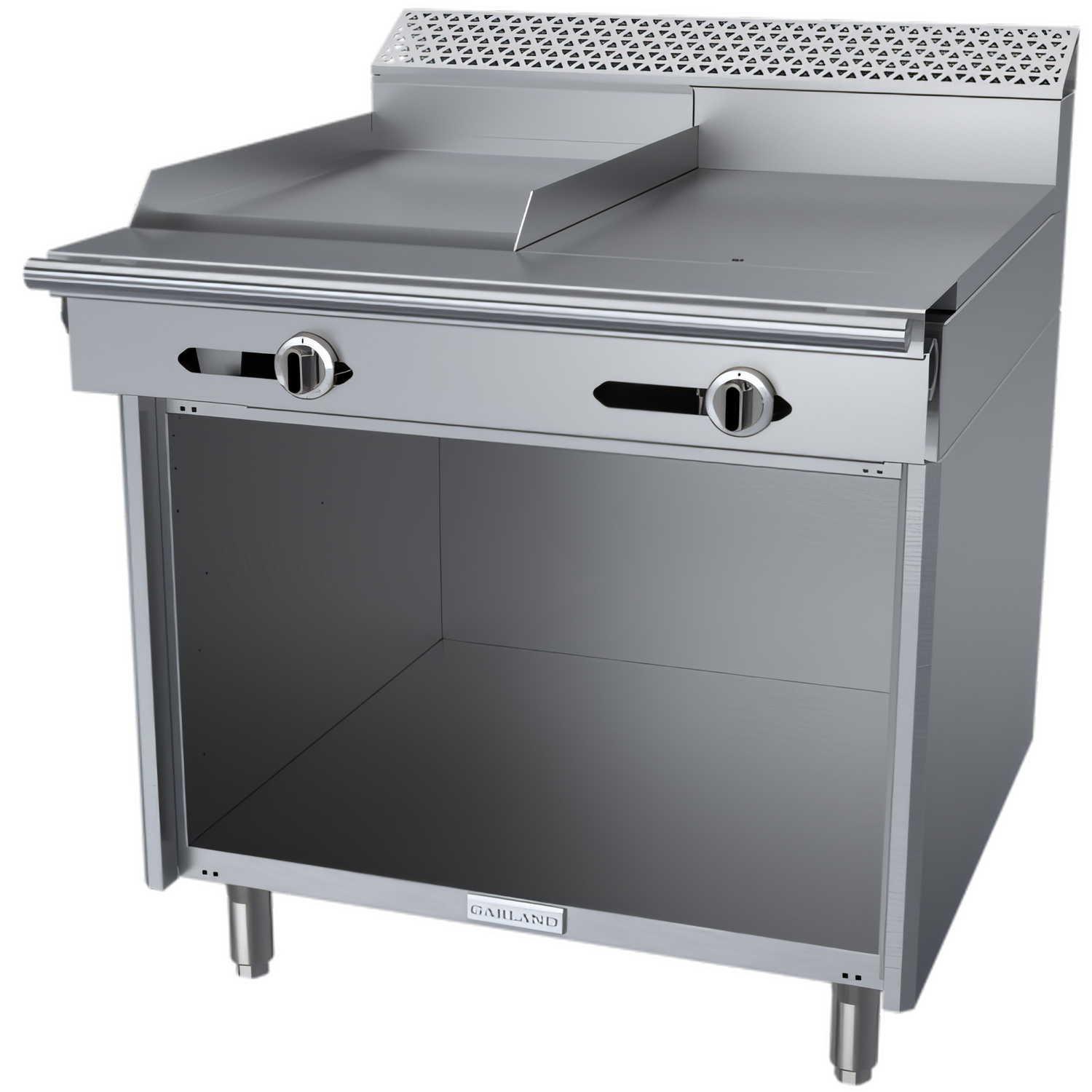

Garland Cuisine 36-Inch Heavy Duty Gas Combination Top Range with 18-Inch Griddle, 18-Inch Hot Top and Storage Base

Thermostatic Griddle Control, 7-Inch Backguard, Stainless Steel Front and Sides

This 36-inch heavy-duty range combines a thermostatic griddle and even-heat hot top over a rugged storage base for versatile, high-output cooking.

  • 36-inch gas combination top with an 18-inch griddle on the left and an 18-inch hot top on the right.
  • 1-inch thick steel griddle plate with thermostatic control for precise temperature management.
  • Open cabinet storage base provides convenient under-range storage space.
  • Stainless steel front, sides, plate rail and burner box for durability in busy kitchens.
  • 62,500 BTU total output supports demanding commercial cooking applications.
  • 7-inch backguard and 6-inch adjustable legs help with installation and splash control.

Overall Dimensions:

36.0"W x 39.38"D x 42.0"H

Product Weight:

462.0 lb

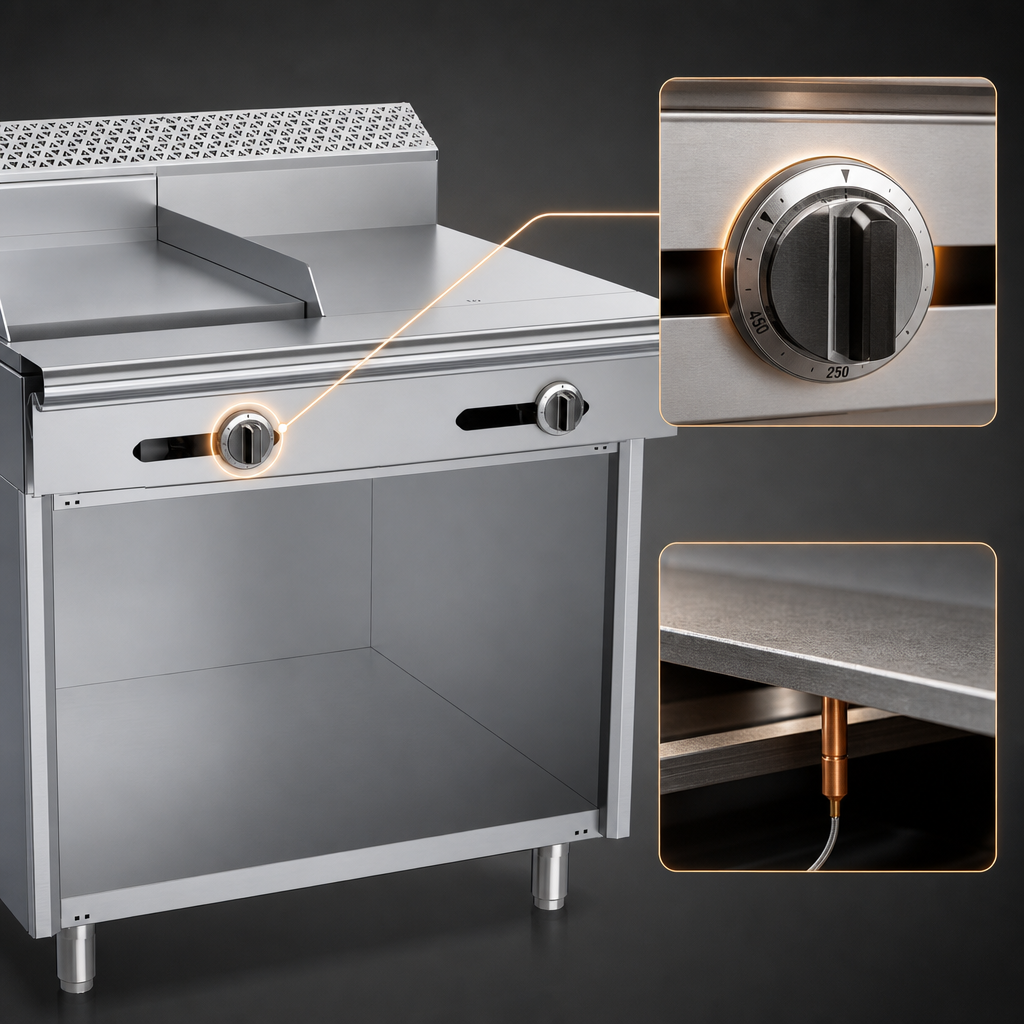

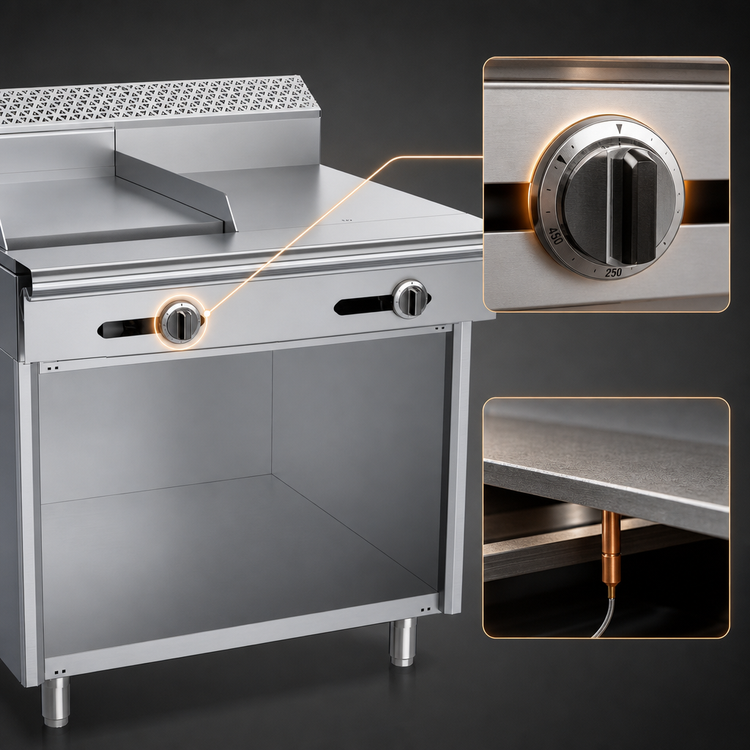

Thermostatic Griddle Control

Embedded thermostat sensor bulb provides controlled griddle temperatures from low to 450°F.

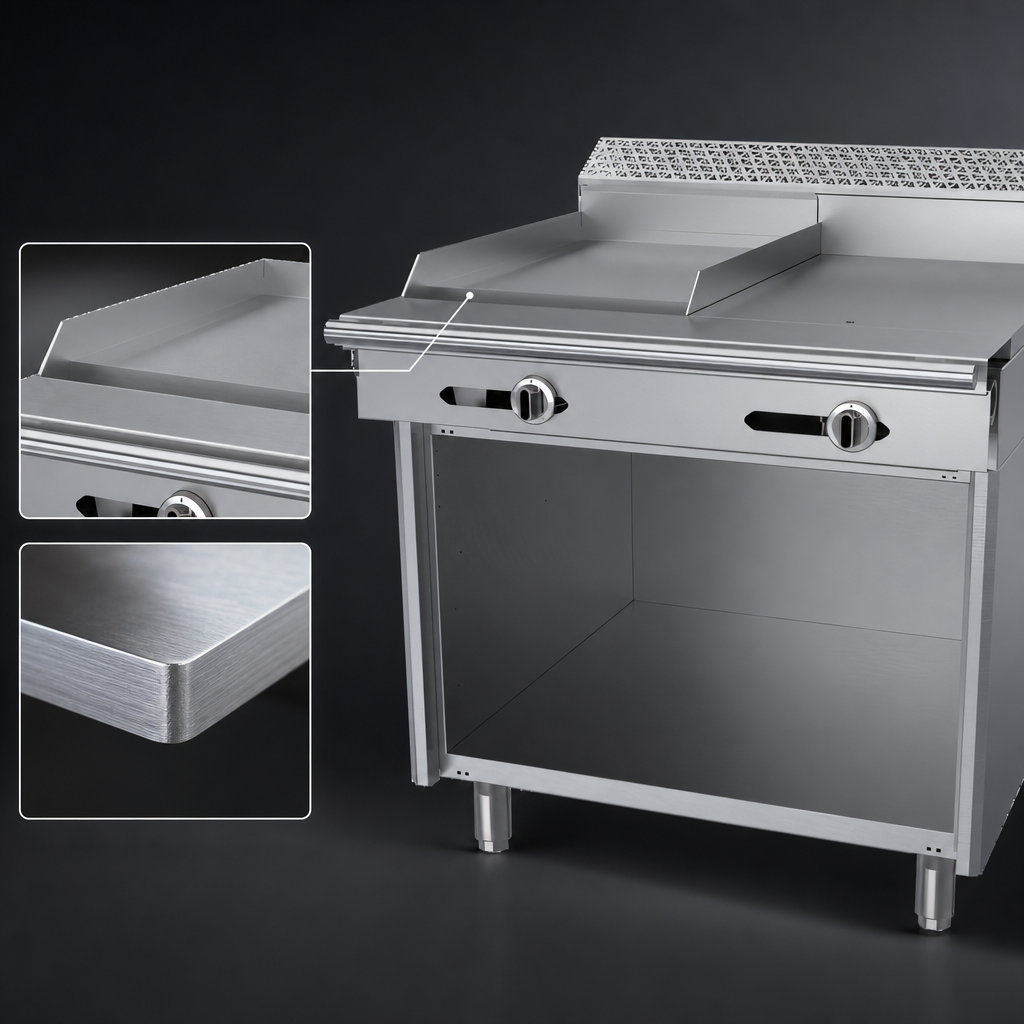

18-Inch Steel Griddle

Left-side griddle section uses a 1-inch thick steel plate for even heating and heavy-duty use.

18-Inch Even-Heat Hot Top

Right-side hot top adds a separate high-output cooking surface for holding and finishing.

Open Cabinet Storage Base

Open base design provides accessible storage below the cooking surface.

Stainless Steel Construction

Stainless steel front, sides, plate rail and burner box help the range stand up to commercial use.

Adjustable Legs

6-inch adjustable stainless steel legs help level the unit during installation.

Front Gas Manifold

1-1/4-inch NPT front gas manifold supports connection during installation.

High Output Rating

62,500 BTU total output delivers the heat needed for high-volume kitchen production.

Type Combination Top Range
Style Heavy Duty
Installation Type Floor Model
Base Type Open Cabinet Storage Base
Top Configuration 18-Inch Griddle Left / 18-Inch Hot Top Right
Controls Thermostatic
Temperature Range Low to 450 °F
BTU 62,500 BTU
Gas Connection Size 1-1/4 Inch NPT
Material Stainless Steel
Finish Stainless Steel
Plate Thickness 1 Inch
Backguard Height 7 Inches
Leg Height 6 Inches
Selling Unit Each
Units Per Case 1
Shipping Width 36 Inches
Shipping Depth 40 Inches
Shipping Height 42 Inches
Shipping Weight 462 Pounds

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Garland cuisine models guide PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download PDF Brochure PDF Download

Frequently Asked Questions

No. Model C36-5-1S uses a storage base/open cabinet base instead of an oven.
It includes an 18-inch griddle on the left with a 1-inch steel plate and an 18-inch even-heat hot top on the right.
The front gas manifold is 1-1/4-inch NPT. Minimum supply pressure is 7 inches W.C. for natural gas and 11 inches W.C. for propane, with manifold operating pressure at 6 inches W.C. natural or 10 inches W.C. propane.
Yes. The documentation states that it can be installed individually or in a battery.
Required clearances are 10 inches on the sides and 6 inches at the back.
