Garland C36-4R Garland Cuisine Gas Ranges
Description

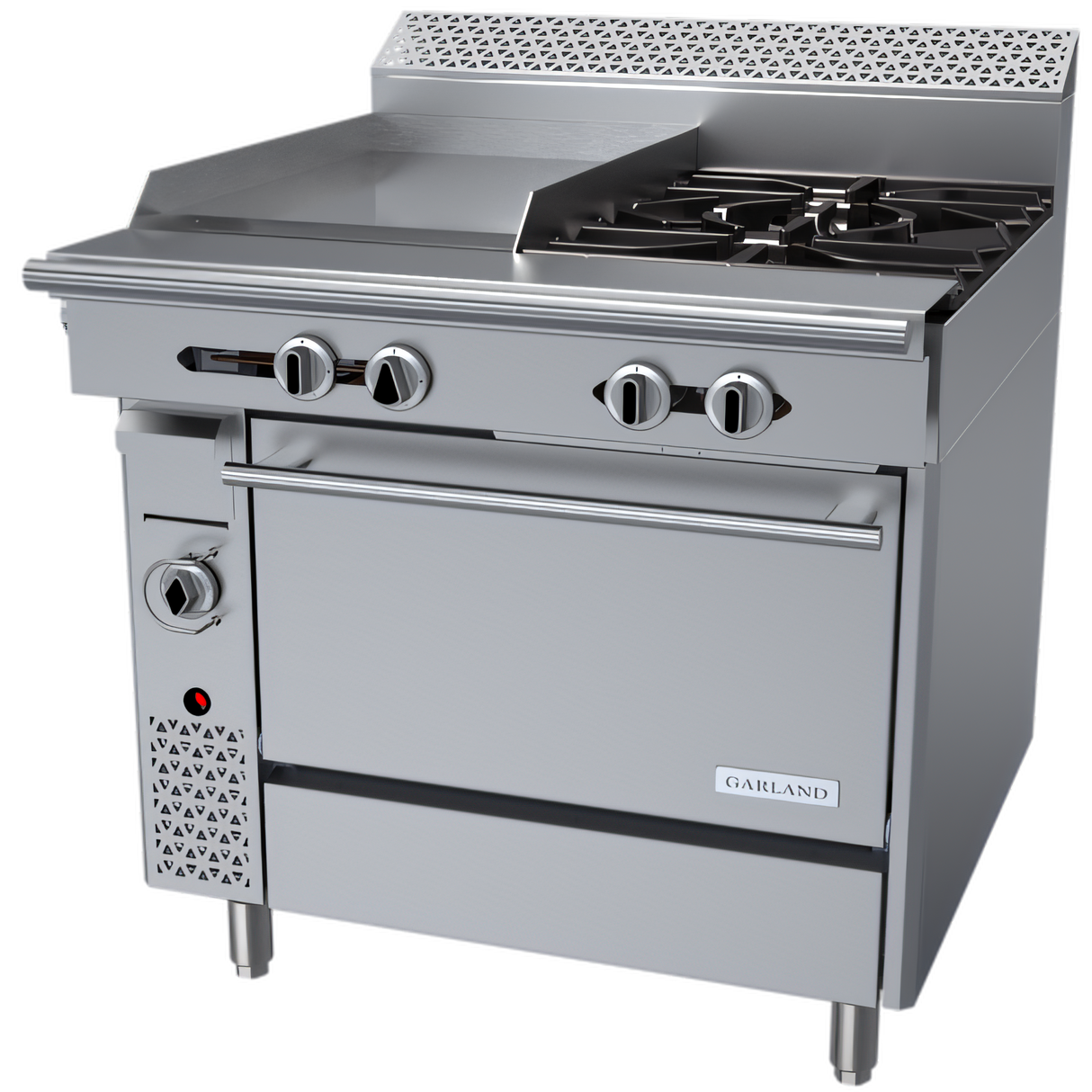

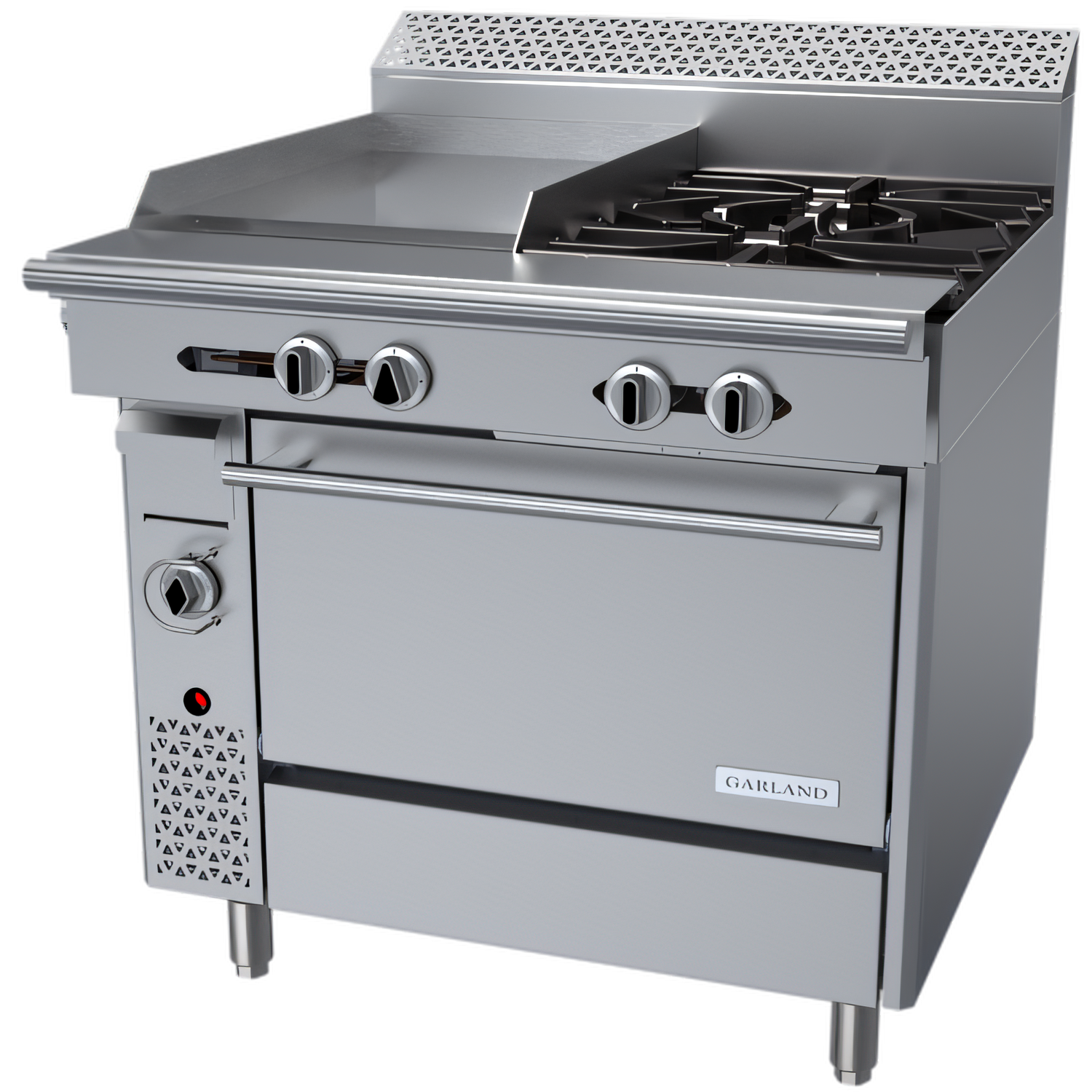

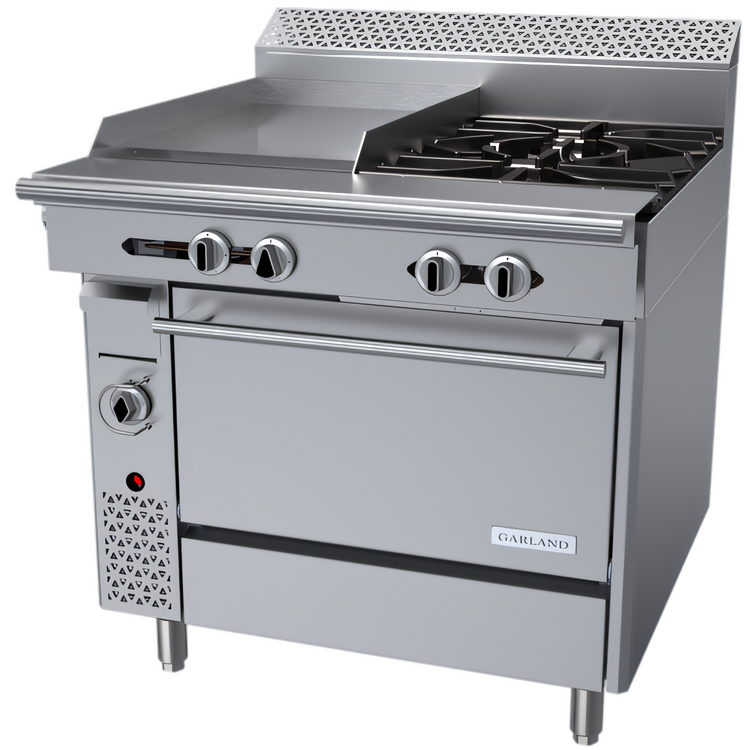

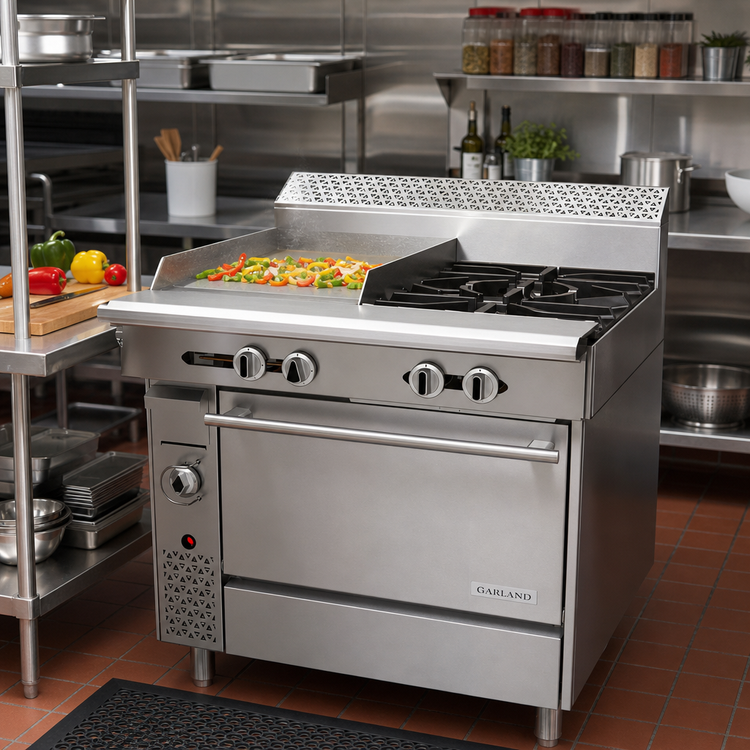

Garland Cuisine 36" Heavy-Duty Range – 2 Open Burners & 18" Griddle, Standard Oven
Model C36-4R | Natural Gas 150,000 BTU/hPut more production on a smaller footprint. The Garland Cuisine C36-4R combines blistering 40,000 BTU Starfire™ open burners, a precision 18" griddle and a full-size oven—ideal for line kitchens that need sauté, sear, grill and bake capabilities all in one ultra-durable platform.
Key Features

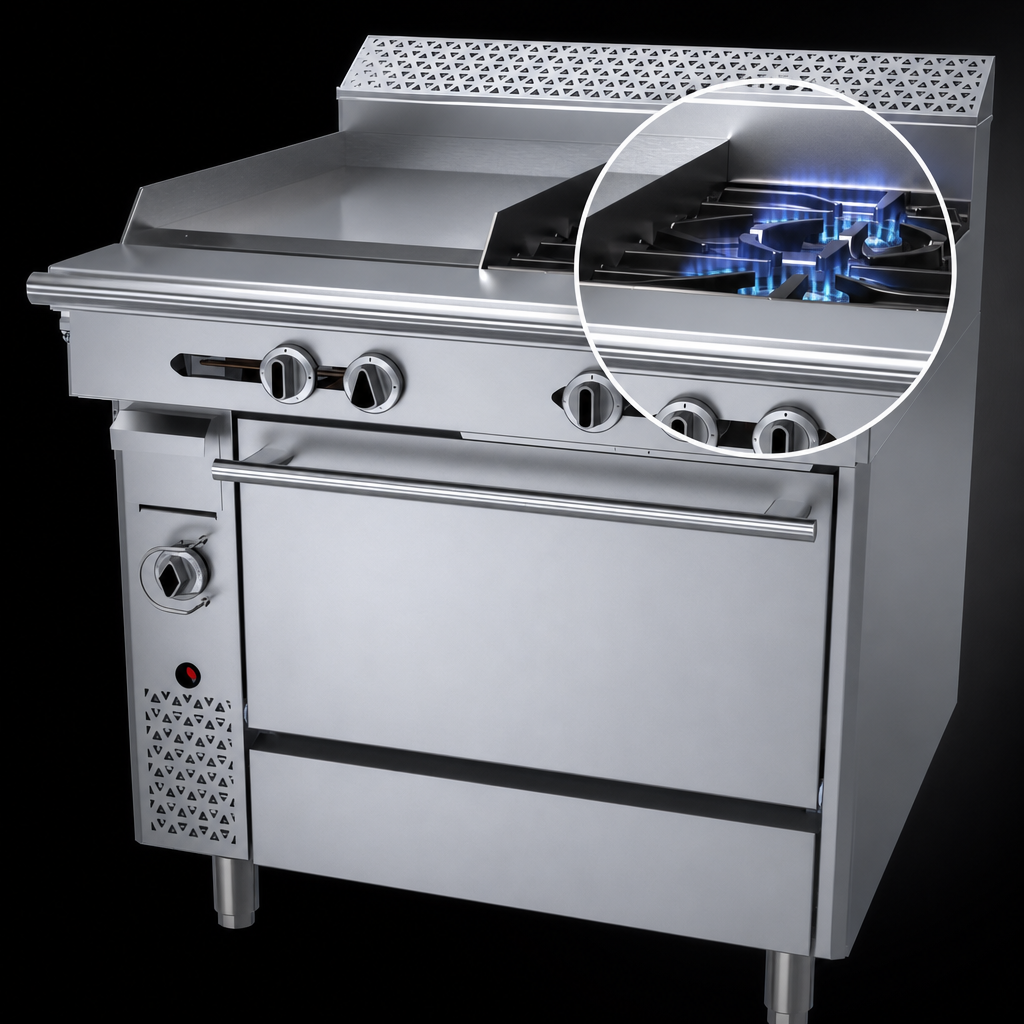

- Two 40,000 BTU/h Starfire 18" open burners (right side) with one-piece cast-iron bowls & grates.

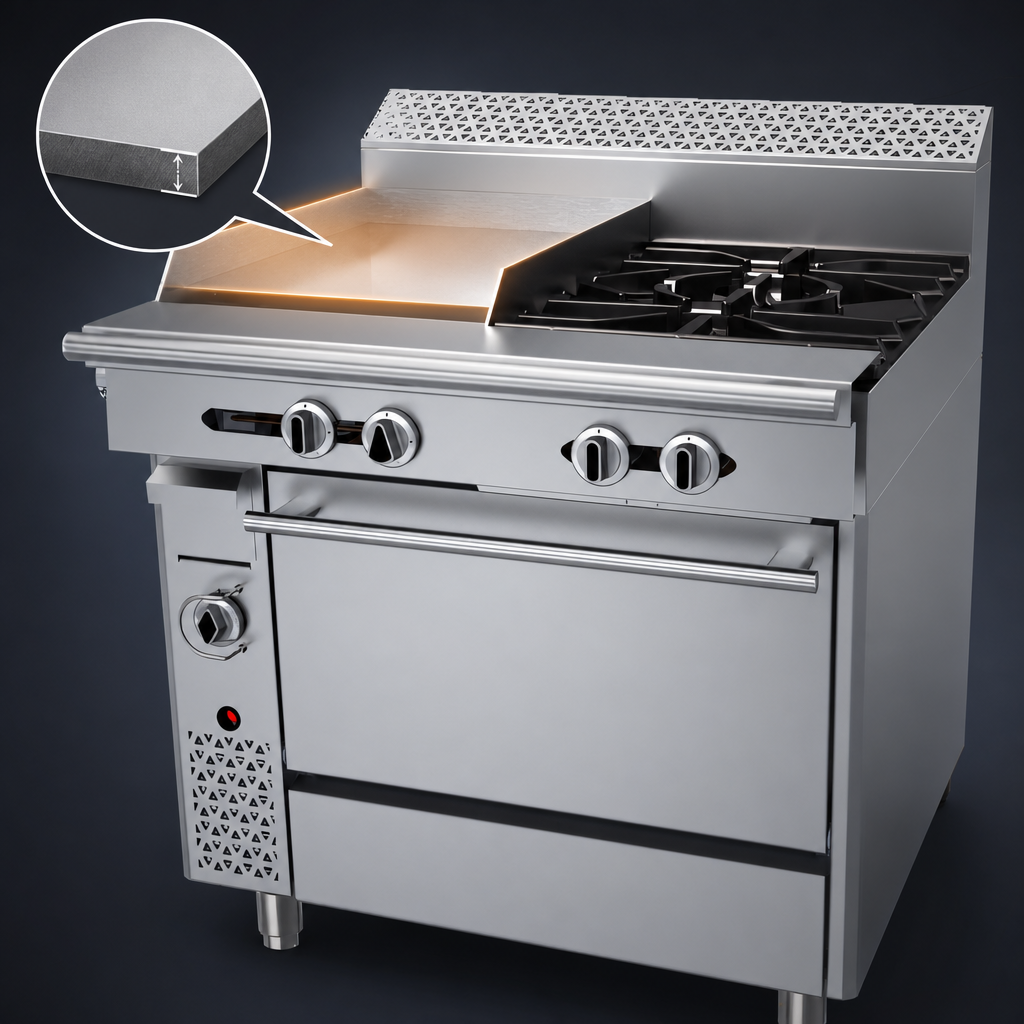

- 18" griddle (left side) with 1" (25 mm) thick steel plate & Hi-Lo manual valve control, 30,000 BTU/h burner.
- Standard oven (40,000 BTU/h) — thermostat range 150-500 °F (66-260 °C), 4-position rack guides, 1 chrome rack included.
- All-stainless exterior: front, sides, plate rail, burner box and 7" stub backguard for quick wipe-downs and long service life.
- 6" (152 mm) adjustable stainless legs level the range on uneven floors.
- Front 1-1/4" NPT gas manifold—perfect for single installs or battery lines; optional rear connection available.
- Fully insulated cabinet keeps sidewalls cooler and improves energy efficiency.
- CSA Flame, CSA Star & NSF listed for safe, sanitary commercial operation.
Performance at a Glance
| Model | C36-4R |
|---|---|
| Overall width | 36" (914 mm) |
| Overall depth | 34-1/8" (867 mm) |
| Cooktop configuration | 2 open burners (R) + 18" griddle (L) |
| Total input (NG / LP) | 150,000 / 141,000 BTU/h |
| Individual burner ratings | Open top 40,000 BTU ea. | Griddle 30,000 BTU | Oven 40,000 BTU |
| Oven interior (H × W × D) | 13-1/2" × 26-1/4" × 29" (343 × 667 × 737 mm) |
| Rack positions / racks supplied | 4 / 1 |
| Gas connection | 1-1/4" NPT front manifold (min. supply 7" WC NAT, 11" WC LP) |
| Shipping weight | 620 lb (281 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Why Chefs Love It
- 40,000 BTU Starfire burners slash boil times and bounce back fast after heavy loads.
- 1" thick griddle plate maintains even temps breakfast-to-dinner.
- One-piece cast-iron grates lift off for sink-side cleaning—no tools needed.
- Continuous plate rail keeps finished plates organized and cool to the touch.
- Modular design batteries seamlessly with other 36" Cuisine Series equipment for custom cooklines.
Looking for casters, a high-shelf or rear gas connection? Most accessories can be factory-installed—ask our team for details.
