Garland C36-15R Garland Cuisine Gas Ranges
Description

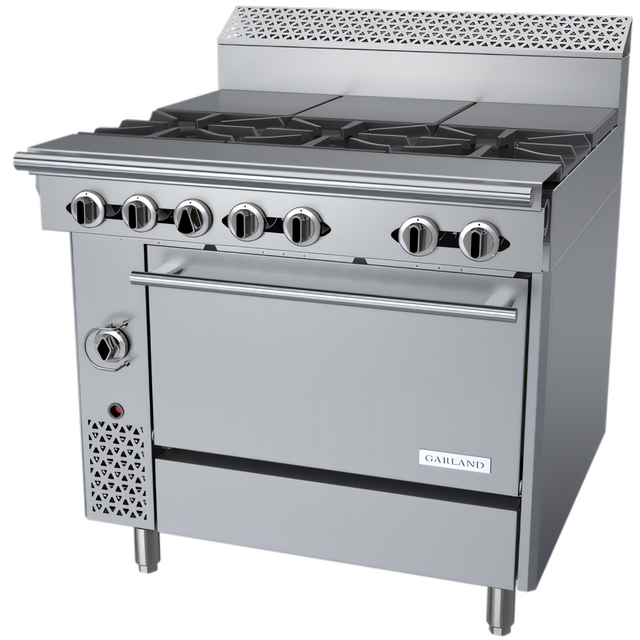

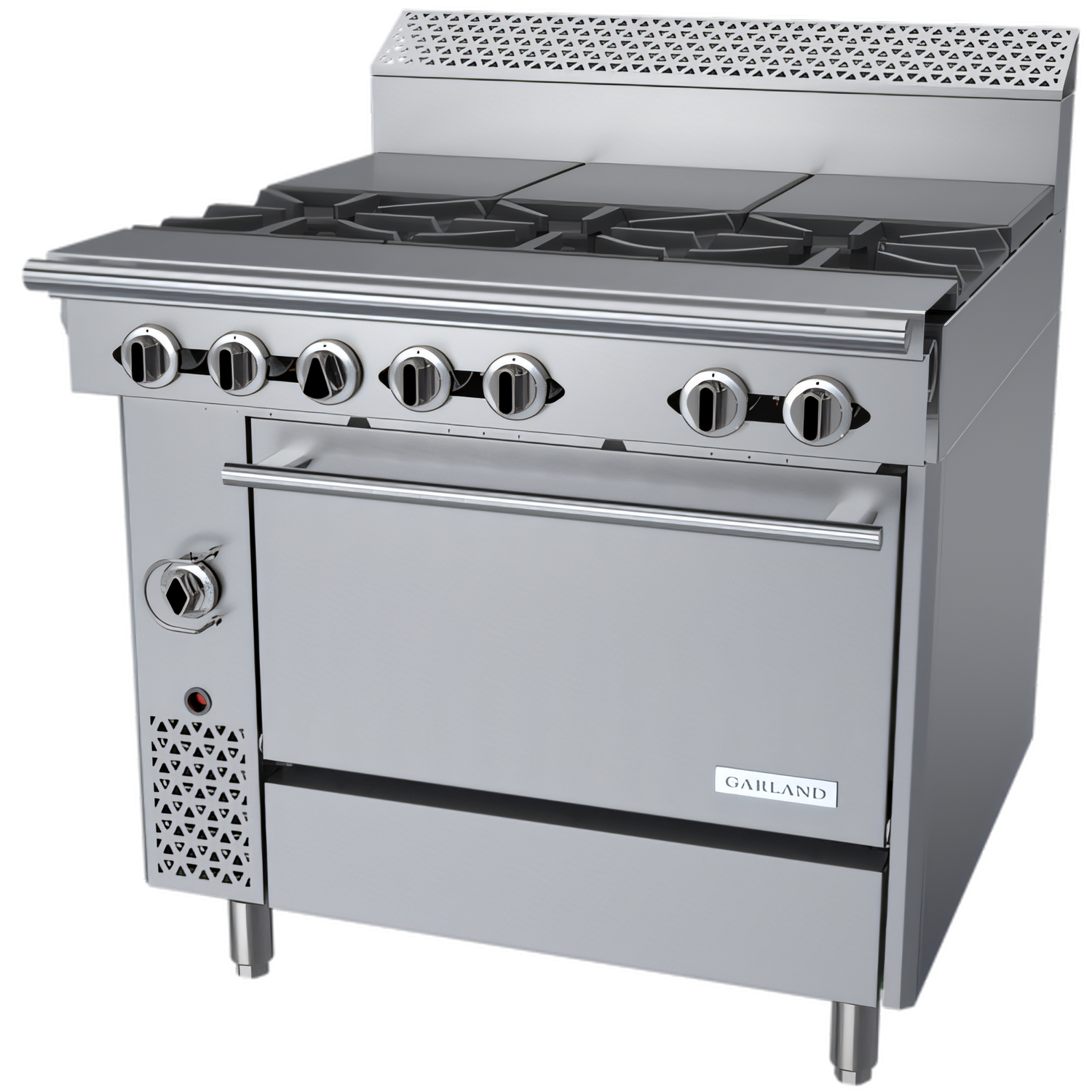

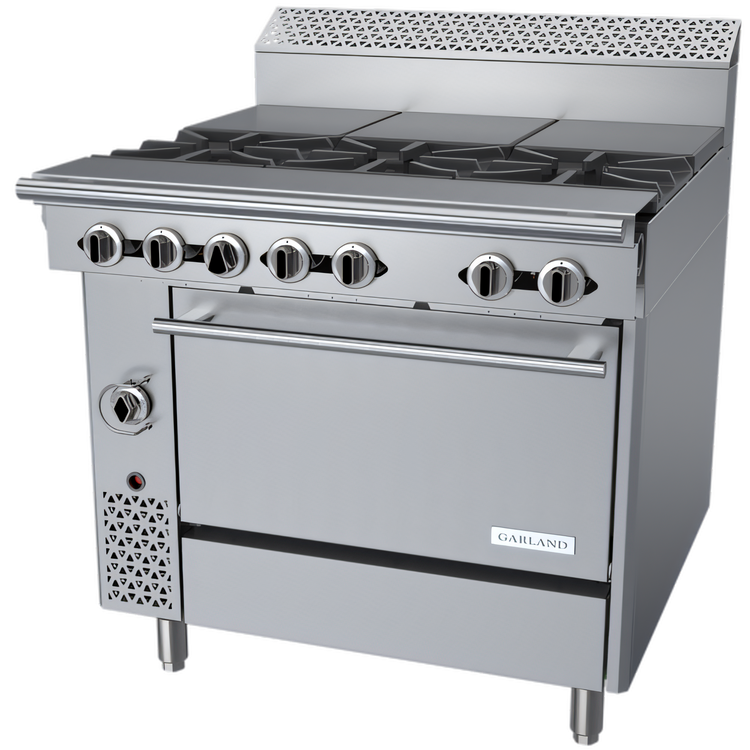

Garland Cuisine Series 36" Heavy-Duty Range – 3 Open Burners / 3 Hot Tops, Standard Oven
Model C36-15R | Natural Gas 190,000 BTU (179,000 BTU LP)The Garland C36-15R delivers uncompromising power, flexibility and durability in a compact 36-inch footprint. Three high-performance Starfire burners up front bring sauces to a rolling boil in seconds, while three rear hot tops offer gentle, even heat for simmering or holding. A full-size 40,000 BTU oven below completes this all-in-one workhorse, built to thrive in the busiest commercial kitchens.
Key Features

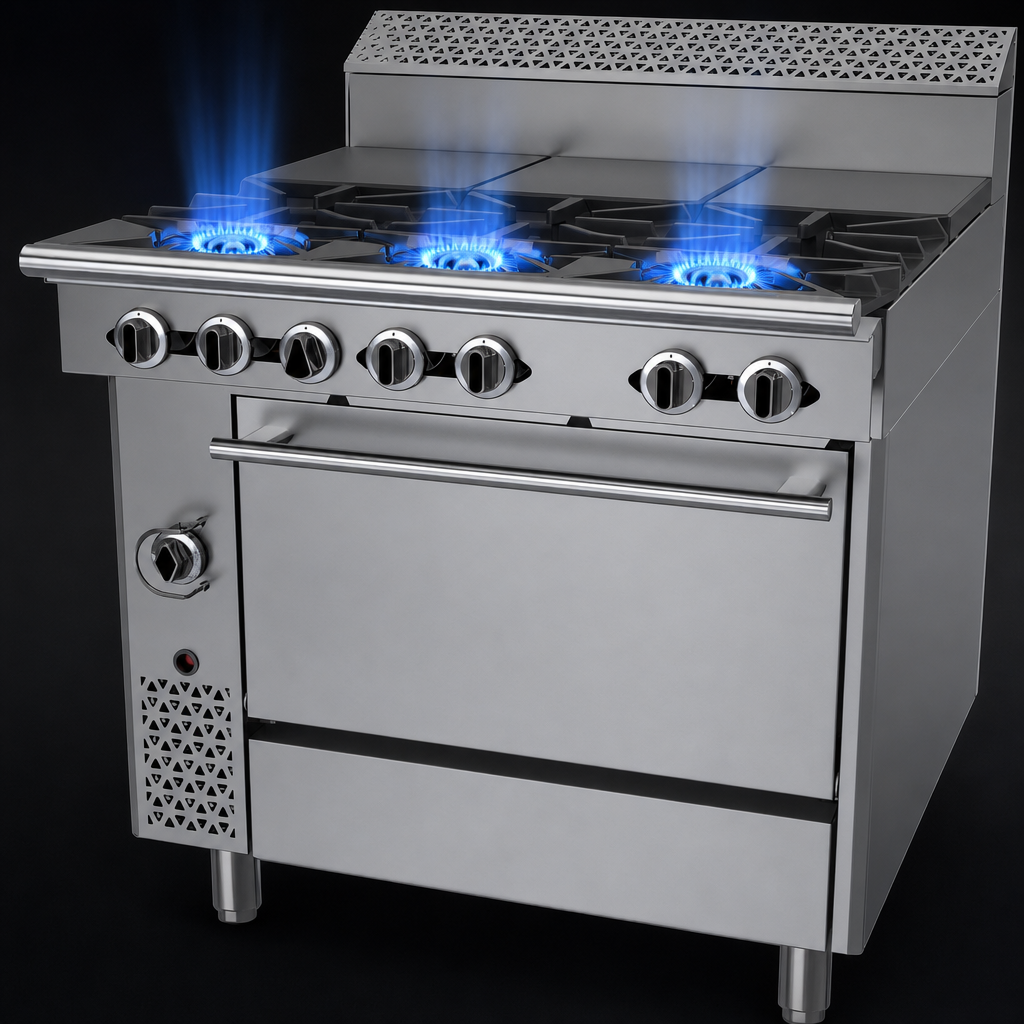

- (3) 35,000 BTU/h open burners with one-piece cast-iron grates for maximum heat transfer.

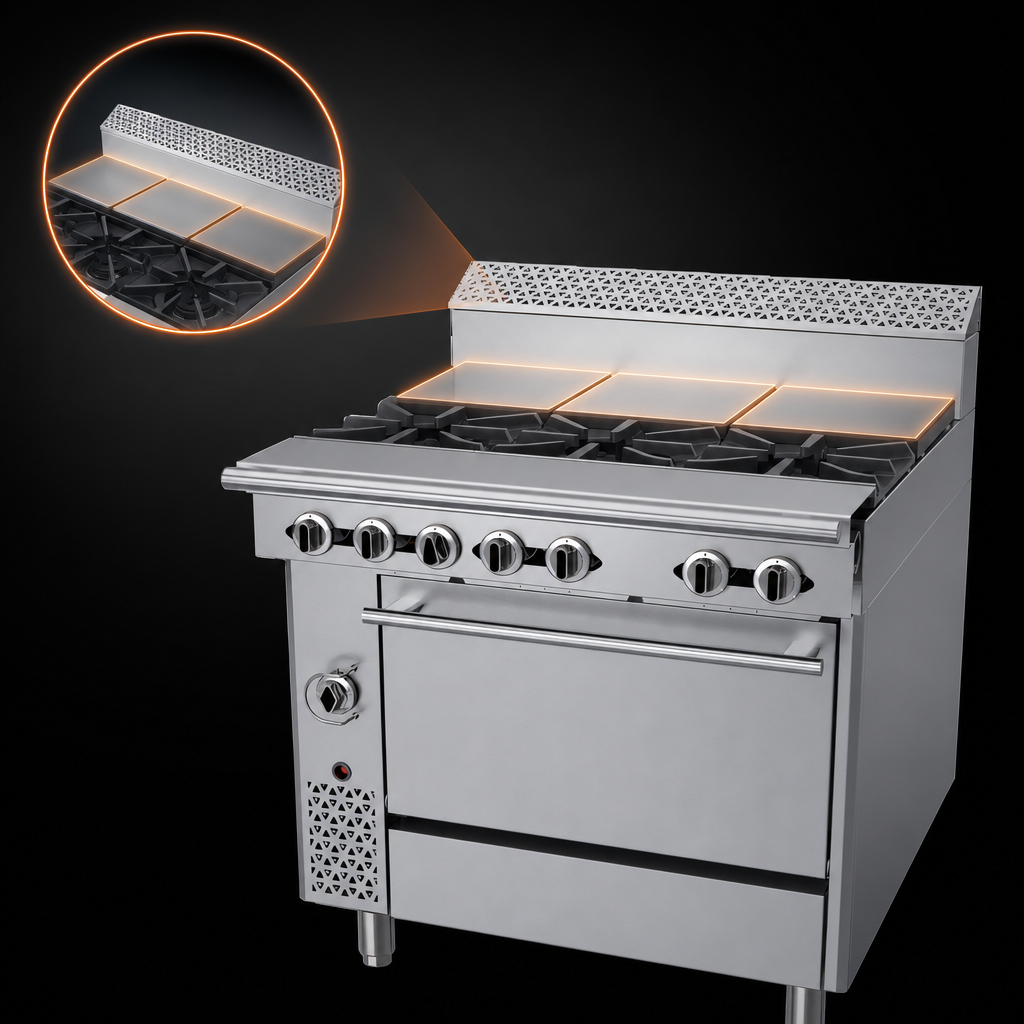

- (3) 15,000 BTU/h 12" hot tops provide a uniform cooking surface—perfect for stock pots and bains-marie.
- 40,000 BTU/h standard oven, 150-500 °F (66-260 °C) thermostat, four rack positions, (1) chrome rack included.
- Rugged stainless-steel front, sides, plate rail and burner box stand up to daily abuse and simplify cleanup.
- 7" (178 mm) stainless-steel stub backguard protects walls without blocking visibility.
- 6" (152 mm) adjustable stainless legs for easy leveling and under-range cleaning.
- Front 1-1/4" NPT gas manifold—ideal for battery line-ups; rear connection kit optional.
- CSA Flame & Star certified and NSF listed for gas safety and sanitation compliance.
Performance Highlights
- Total input: 190,000 BTU/h (NG) – plenty of headroom for peak-hour production.
- Hi/Lo valve control on every burner for precise flame modulation.
- Fully insulated oven cabinet keeps the kitchen cooler and boosts efficiency.
Specifications
| Overall width | 36" / 914 mm |
|---|---|
| Overall depth | ≈ 36" / 914 mm (to plate rail) |
| Cooking height | 34-3/8" / 873 mm |
| Backguard height | 7" / 178 mm stub |
| Open burners | (3) × 35,000 BTU/h |
| Hot tops | (3) × 15,000 BTU/h |
| Oven burner | 40,000 BTU/h |
| Total input (NG) | 190,000 BTU/h |
| Gas connection | 1-1/4" NPT (front, left-hand) |
| Manifold pressure | 6" WC Natural | 10" WC Propane |
| Minimum supply | 7" WC Natural | 11" WC Propane |
| Shipping weight | ≈ 600 lb / 272 kg |
| Certifications | CSA Flame, CSA Star, NSF |
What’s Included
- Garland C36-15R range
- (1) chrome-plated oven rack
- 6" adjustable stainless legs
- Gas pressure regulator (field convertible NG/LP)
- Factory-installed 7" stub backguard
Popular Options & Accessories (sold separately)
- Single or double-deck high shelf/back riser
- Full-height equipment stand or refrigerated base
- Additional oven racks
- Rear gas connection kit
- 5" or 6" locking caster set
- Gas flex hose with quick-disconnect
