Garland C36-14R Garland Cuisine Gas Ranges
Description

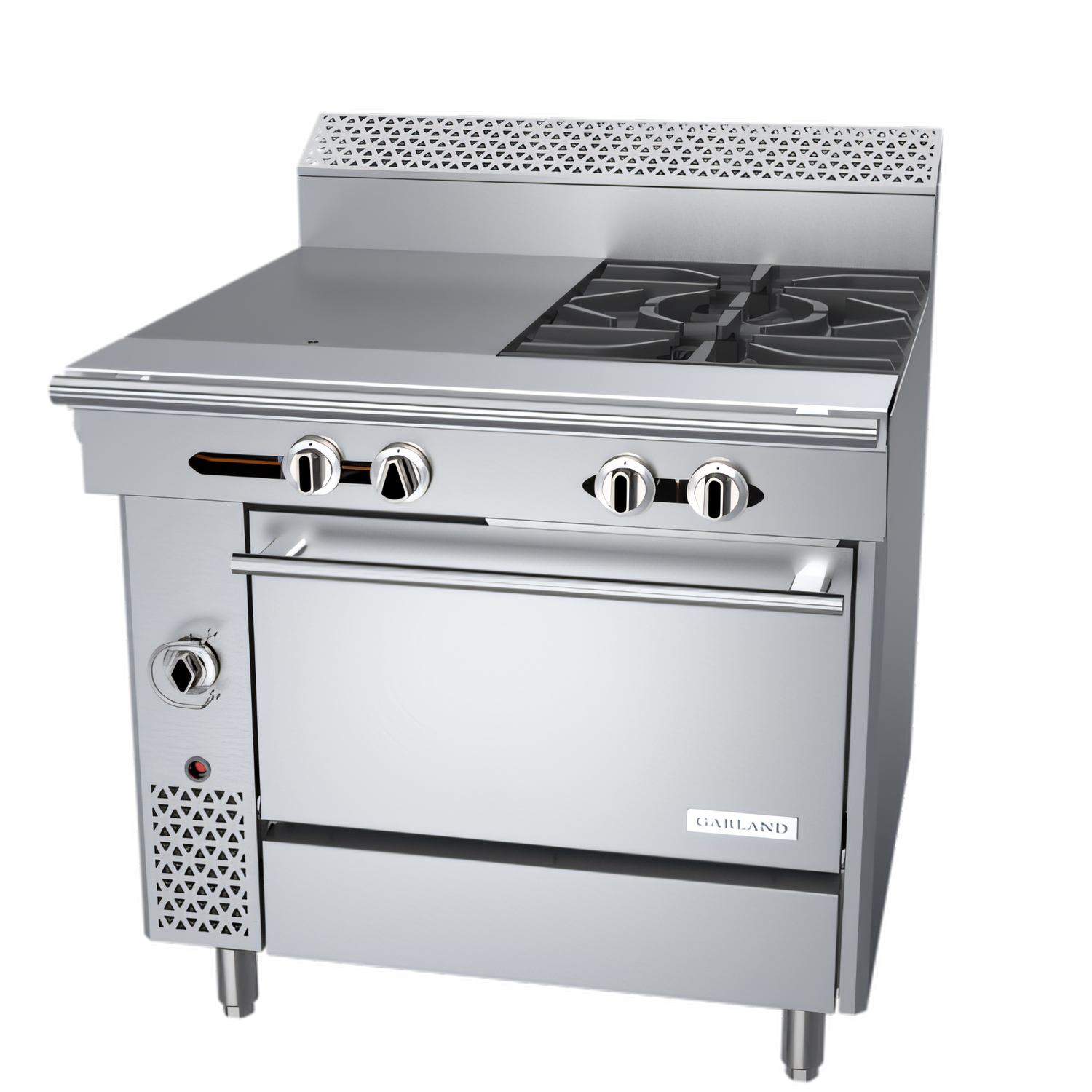

Garland Cuisine Series C36-14R Heavy-Duty 36" Gas Range
2 × 40,000 BTU Starfire Open Burners • 18" Even-Heat Hot Top • Standard OvenBuilt for punishing commercial schedules, the Garland C36-14R packs massive fire power and precise hot-top control into a compact 36" footprint. Sear, simmer and bake simultaneously while its rugged stainless-steel frame shrugs off daily abuse and wipes clean in seconds.
Key Advantages
- Total input: 152,500 BTU/h (natural gas)

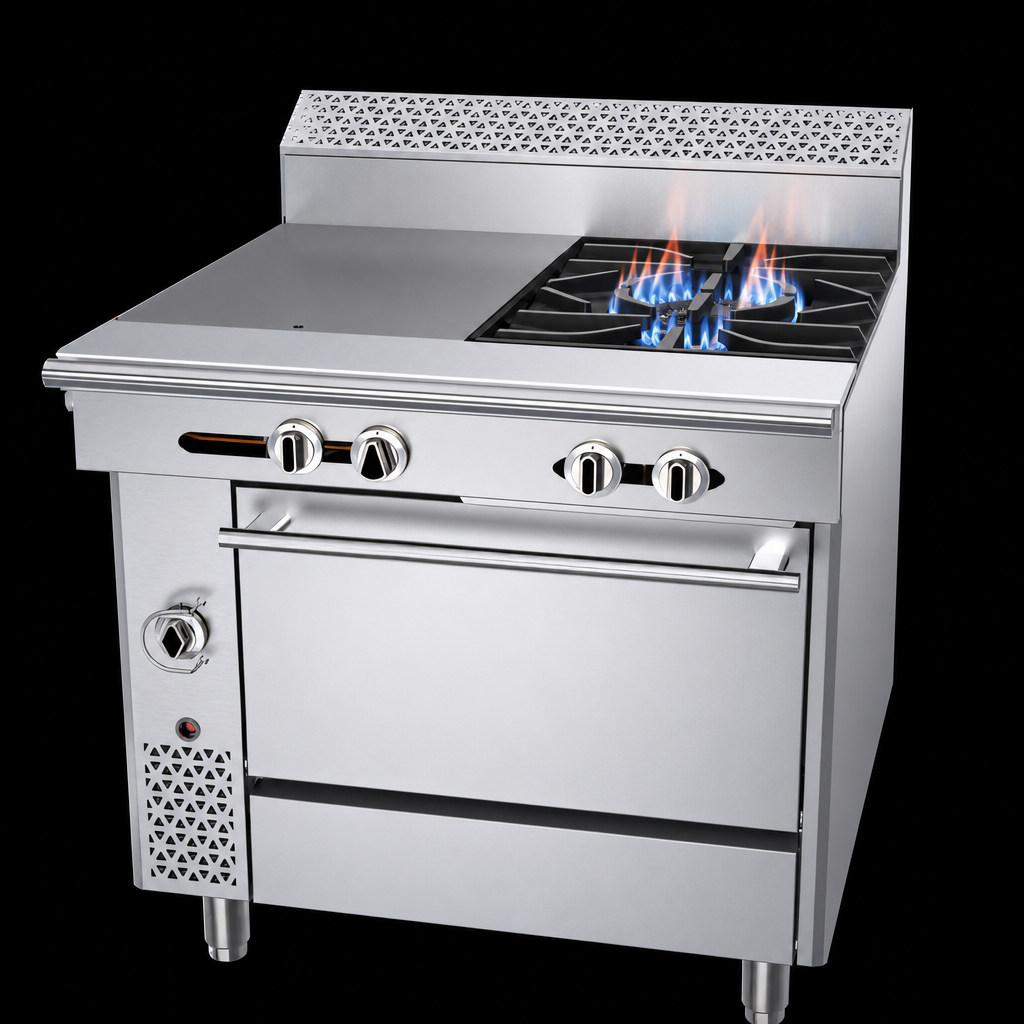

- Two 40,000 BTU/h Starfire open burners for instant boil and high-heat sauté
- 18" Even-Heat hot top (32,500 BTU/h) delivers uniform heat for sauces, stocks & holding pans
- Standard oven with 40,000 BTU/h burner, 150-500 °F thermostat & four rack positions
- Includes one chrome-plated oven rack
- 7" stainless backguard keeps splatter off the wall and fits under low hoods
- Heavy-gauge stainless front, sides, plate rail & burner box for long-term durability
- 6" adjustable stainless legs level the unit on uneven floors
- CSA Flame, CSA Star & NSF listed
Performance Engineering
- One-piece cast-iron grates and bowls — lift off for sink-side cleaning
- Center pilot lights both open burners, cutting relight time
- Precision-machined hot-top plate eliminates hot/cold spots across the surface
- Fully insulated oven cabinet speeds recovery and keeps kitchens cooler
- “Keep-cool” door handle stays comfortable throughout service
Specifications
| Model | C36-14R |
|---|---|
| Gas type | Natural gas (field convertible to LP) |
| Total input | 152,500 BTU/h NG | 143,500 BTU/h LP |
| Top configuration | 2 × 40,000 BTU open burners + 18" (32,500 BTU) Even-Heat hot top |
| Oven | Standard, 40,000 BTU burner, 150-500 °F, 4-position rack guides, 1 rack included |
| Exterior dimensions (W × D × H) | 36" × 34-1/4" × 41-5/8" (914 × 871 × 1058 mm) with 7" backguard |
| Cooking height | 36" (914 mm) |
| Oven interior (H × W × D) | 13-1/2" × 26-1/4" × 29" (343 × 667 × 737 mm) |
| Gas connection | 1-1/4" NPT front manifold (rear optional) |
| Clearances (combustible) | 10" side • 6" rear |
| Certifications | CSA Flame, CSA Star, NSF |
| Warranty | 1-year parts & labor (USA & Canada) |
Recommended For
- Hotel and resort lineups needing both rapid sauté and slow-simmer zones
- High-volume restaurants and banquet kitchens with limited line space
- Catering commissaries and ghost kitchens that demand versatile, durable gear
Looking for a convection oven base, casters, or other factory options? Contact us and we’ll customise the perfect Cuisine Series range for your kitchen.
