Garland C36-13M Garland Cuisine Gas Ranges
$5,304.00
Unit price
/
Unavailable
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Garland C36-13M Garland Cuisine Gas Ranges is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Garland C36-13M Garland Cuisine Gas Ranges
$5,304.00
Unit price
/
Unavailable
Description

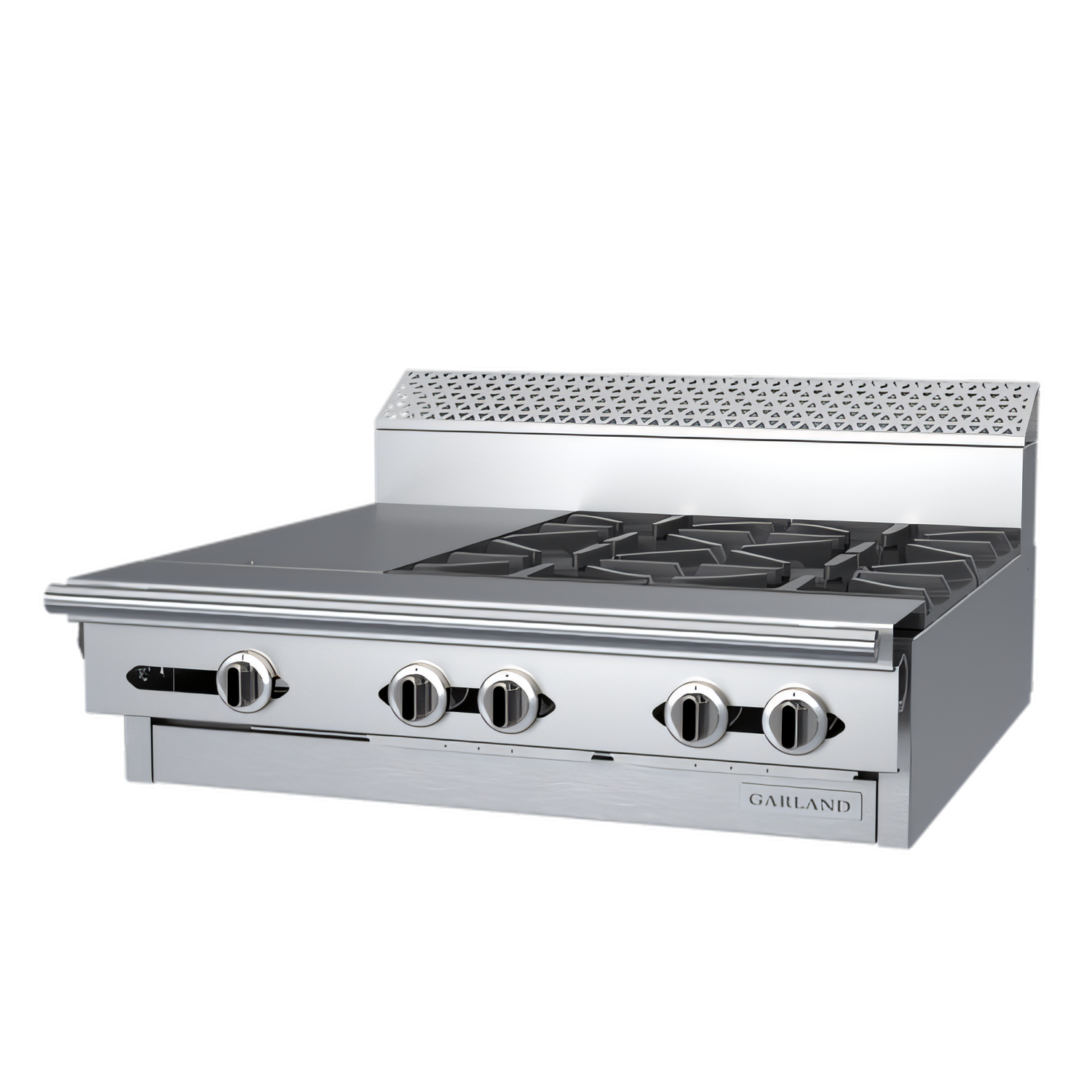

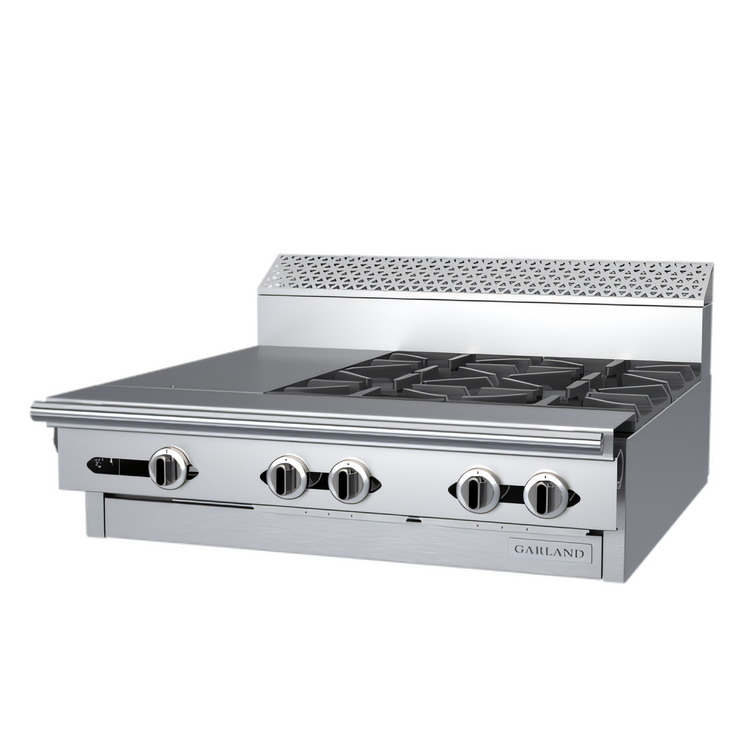

Garland Cuisine Series 36" Heavy-Duty Gas Range Top

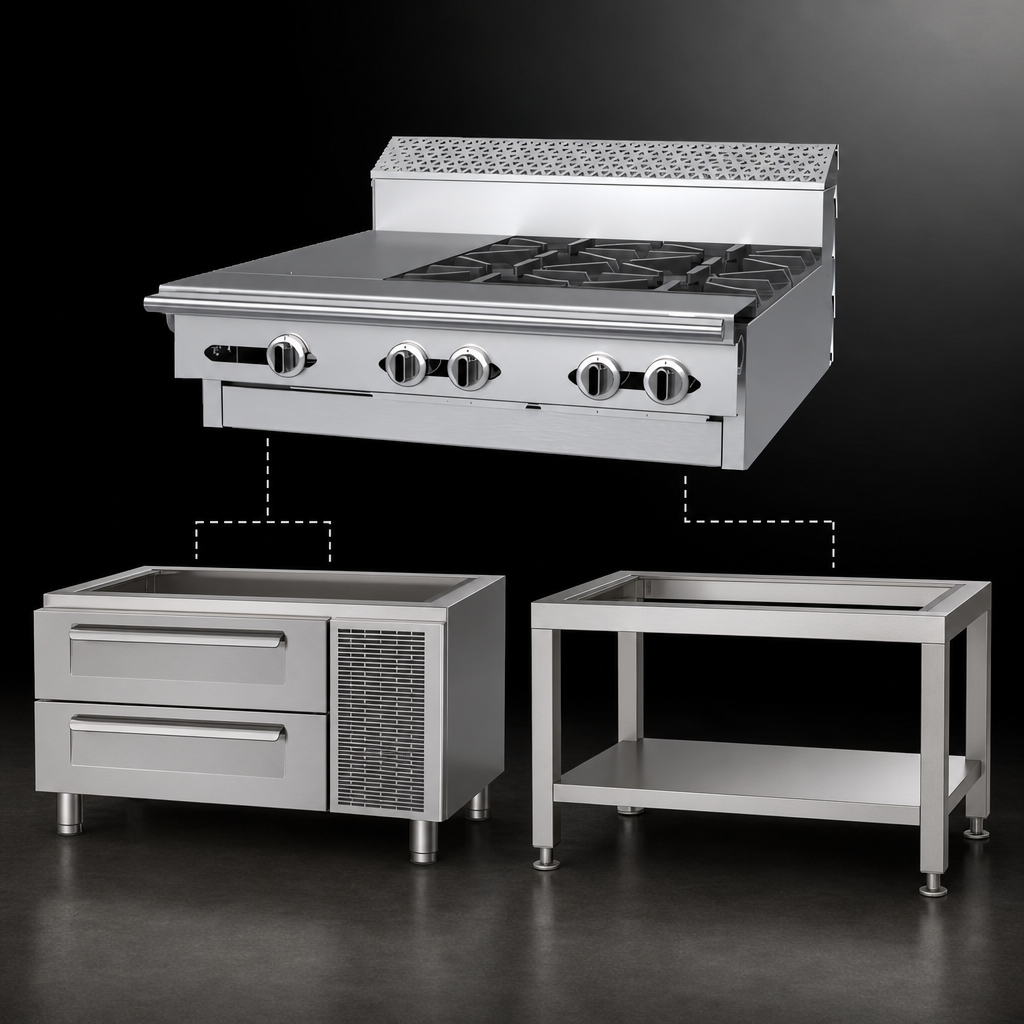

Model C36-13M | 4 Starfire® Open Burners + 12" Even-Heat Hot TopWhen your line needs uncompromising power in a compact 36 inch footprint, the Garland Cuisine Series C36-13M delivers. Four 35,000 BTU Starfire open burners paired with a 12" even-heat hot top give you the versatility to sauté, sear, simmer and hold sauces—all on a rugged modular top that can sit on a stand, refrigerated base or be battery-connected with other Garland equipment.
Key Features

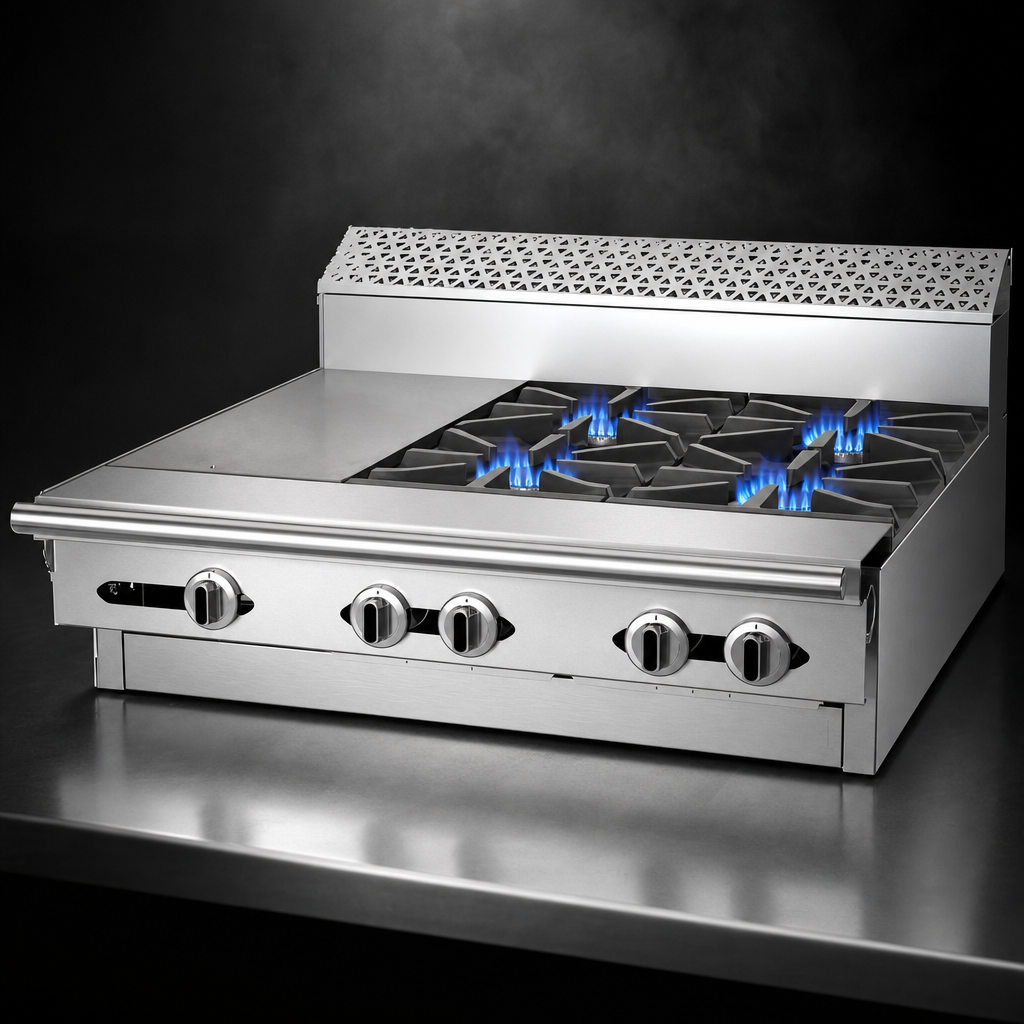

- 4 × 35,000 BTU (NG) Starfire burners with cast-iron bowls for exceptional heat retention and fast recovery.
- 12" (305 mm) even-heat hot top (25,000 BTU) provides a uniform surface—ideal for stock pots, sauce pans or holding work.
- One-piece, heavy cast-iron top grates remove easily for quick cleaning and long service life.
- Stainless steel front, sides, plate rail and burner box stand up to daily commercial abuse.
- 7" (178 mm) stainless stub backguard protects surrounding walls; optional high-shelf available.
- Front 1-1/4" NPT gas manifold—perfect for single installation or line-up battery connection.
- Pilots are located outside the spill zone for reliable ignition and reduced service calls.
- Certified: CSA Flame, CSA Star & NSF—meets strict safety and sanitation standards.
Specifications
| Model | C36-13M (modular top) |
|---|---|
| Configuration | 4 open burners + 1 × 12" hot top |
| Fuel / Total Input | Natural Gas, 165,000 BTU/h |
| Individual Inputs | Open burner: 35,000 BTU ea · Hot top: 25,000 BTU |
| Dimensions (W×D×H) | 36" (914 mm) × 39-3/8" (1,001 mm) × 37-1/4" (947 mm) to cooking surface |
| Backguard Height | 7" (178 mm) stub back |
| Gas Connection | 1-1/4" NPT front manifold (rear connection optional) |
| Manifold Pressure | 6" WC Natural Gas |
| Clearances (combustible) |
10" (254 mm) sides · 6" (152 mm) back |
| Shipping Weight | ≈ 321 lb / 146 kg |
| Certifications | CSA Flame · CSA Star · NSF |
Popular Options & Accessories (sold separately)
- Full-height or double-deck stainless steel high shelf / riser
- Equipment stand with legs or locking swivel casters
- Rear gas connection kit & gas shut-off valve
- Continuous plate rail for battery installations
Installation Note: This appliance is intended for commercial use only and
must be installed by a qualified technician in accordance with local codes.
Units supplied with casters require a certified restraining device.
Features & Specs
Features & Specs
Manufacturer
Garland
Brand_name
Garland Cuisine
Certifications
NSF, CSA Star, CSA Flame
Height
10.0in
Width
36.0in
Depth
39.38in
Shipping Weight
321.0lbs
Base
modular
Exterior Finish
stainless steel front & sides
Top
(4) open burners, (1) hot top
Specifications
Garland Cuisine Series Heavy Duty Range, gas, 36", modular top, (4) 35,000 BTU open burners, (1) 12" even heat hot top, 7"H backguard, stainless steel front, sides, plate rail & burner box, 165,000 BTU (NG), CSA Flame, CSA Star, NSF (Garland)
