Garland C36-13C Garland Cuisine Gas Ranges
Description

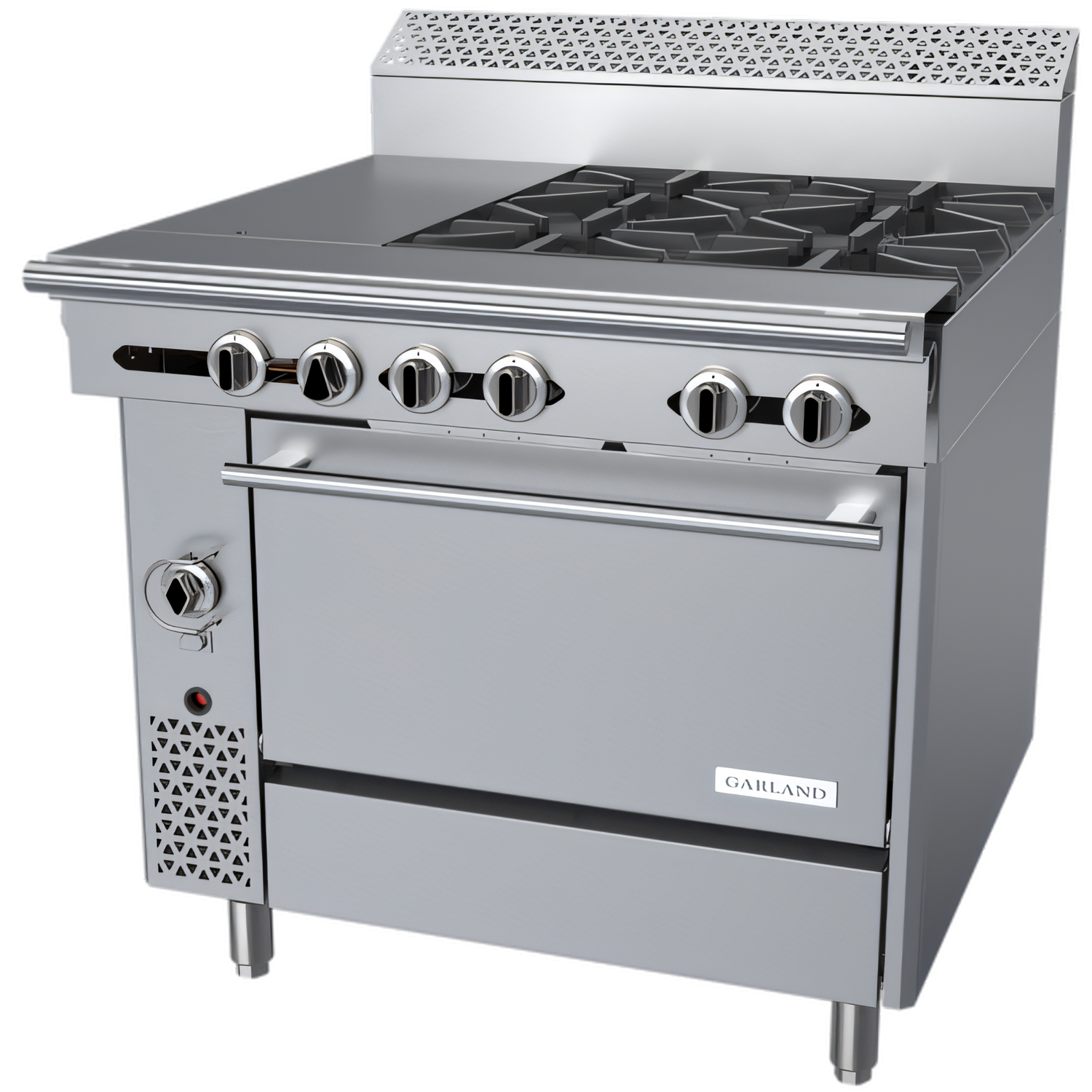

Garland Cuisine Series 36" Heavy-Duty Gas Range
4 × 35,000 BTU Open Burners • 12" Even-Heat Hot Top • Convection Oven • Model C36-13CBuilt on Garland’s rock-solid 36" chassis, this Cuisine Series range delivers 202,000 BTU of menu-driven performance in a single compact footprint. From high-output open burners to a gentle simmering hot top and a fast-recovery convection oven, it equips your line to sear, sauté, hold and bake—without compromise.
Key benefits

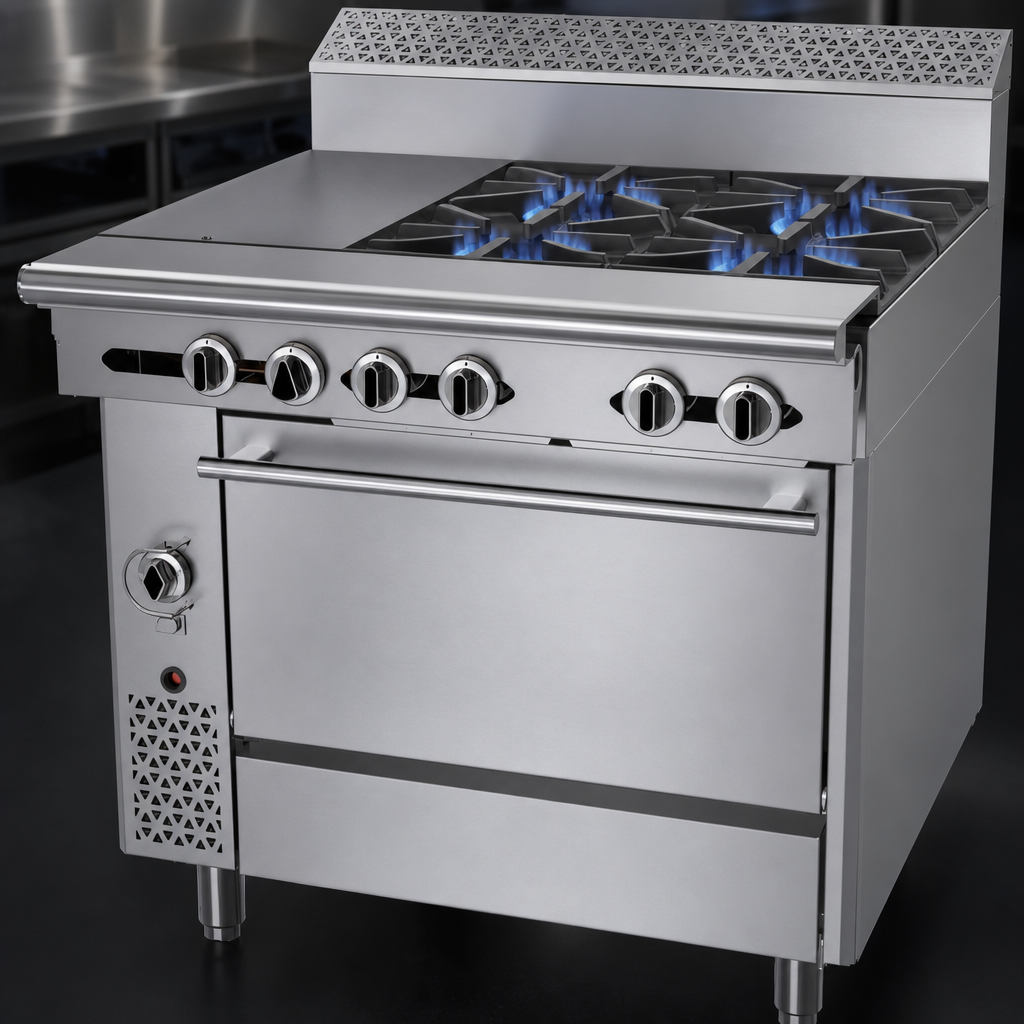

- Four 35,000 BTU Garland Starfire open burners with one-piece cast-iron grates & bowls.

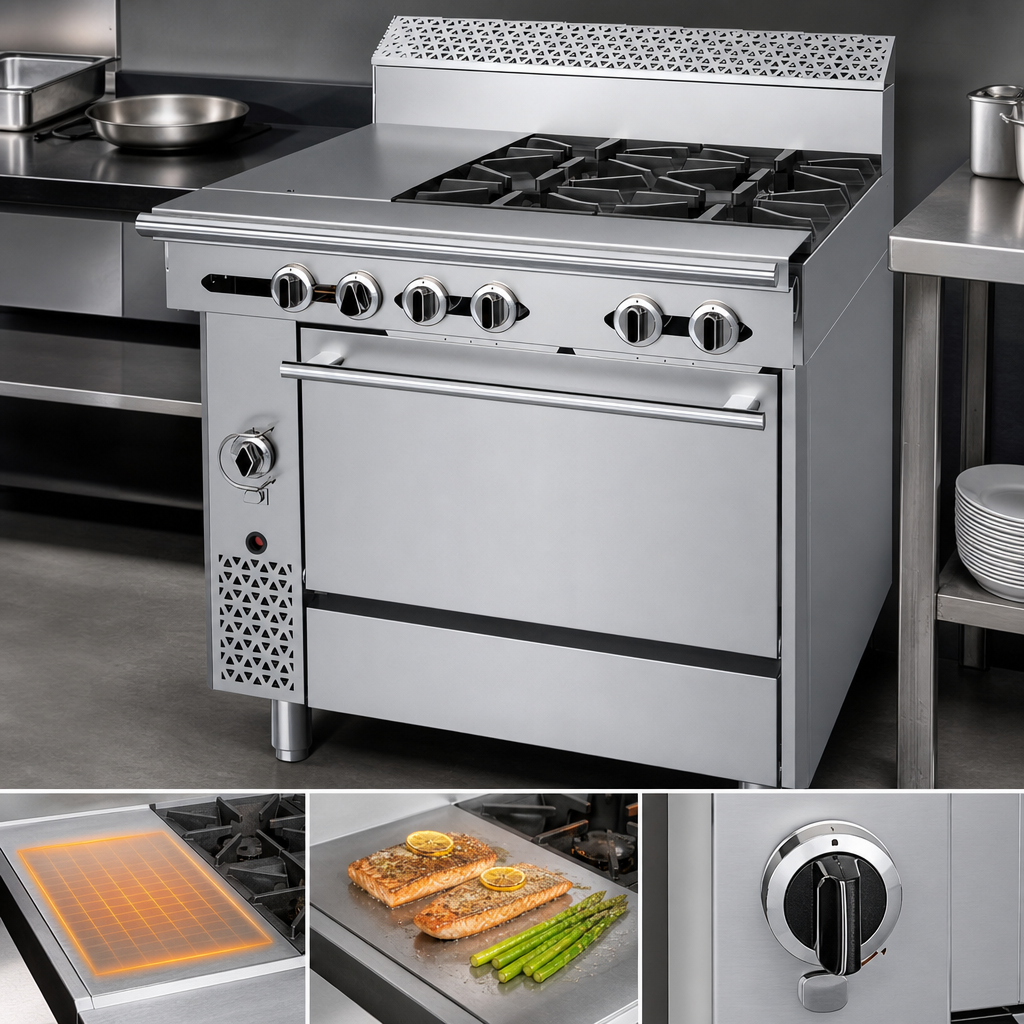

- 12" (305 mm) even-heat hot top, 25,000 BTU—perfect for finishing sauces or holding stockpots.
- Full-size convection oven (120 V, 1/3 HP fan) speeds cook times and improves bake uniformity; includes 3 chrome racks on 3 positions.
- Durable stainless-steel front, sides, plate rail and burner box stand up to daily abuse.
- 7" (178 mm) stub backguard protects the wall while maintaining a low profile on the line.
- 6" (152 mm) adjustable stainless legs make leveling and cleaning a breeze.
- Front 1-1/4" NPT gas manifold simplifies battery or single-unit installation.
- “Keep-cool” oven door handle and externally mounted pilots boost operator safety & uptime.
- Certified CSA Flame, CSA Star & NSF for gas safety and sanitation peace of mind.
Technical specifications
| Width | 36" / 914 mm |
|---|---|
| Top configuration | (4) open burners + (1) 12" hot top |
| Total input (NG) | 202,000 BTU/h |
| Open burner rating | 35,000 BTU/h each |
| Hot-top rating | 25,000 BTU/h |
| Oven type | Convection, forced-air |
| Oven interior (H × W × D) | 13.5" × 26.25" × 25" (343 × 667 × 635 mm) |
| Rack positions / supplied | 3 / 3 chrome racks |
| Motor | 1/3 HP, 0.6 A |
| Electrical | 120 V, 60 Hz, 1-Ph, NEMA 5-15P |
| Gas connection | 1-1/4" NPT (front) |
| Combustible clearances | Sides 10" / 254 mm • Rear 6" / 152 mm |
| Certifications | CSA Flame • CSA Star • NSF |
Popular accessories (sold separately)
- Single or double-deck high shelf / back riser
- Extra oven racks
- Polyurethane or swivel caster kits (with front brakes)
- Rear gas connection kit
- Stainless intermediate shelf for cabinet bases
Unit ships for natural gas; LP conversion kit available on request. Please specify gas type and optional accessories at time of order.
