Garland

Garland Cuisine Series Heavy Duty 36-Inch Gas Combination Top Range with Storage Base

SKU: C36-11S
$7,900.20
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Gas Ranges Commercial Ranges Garland Gas Ranges New Arrivals Ranges Restaurant Equipment

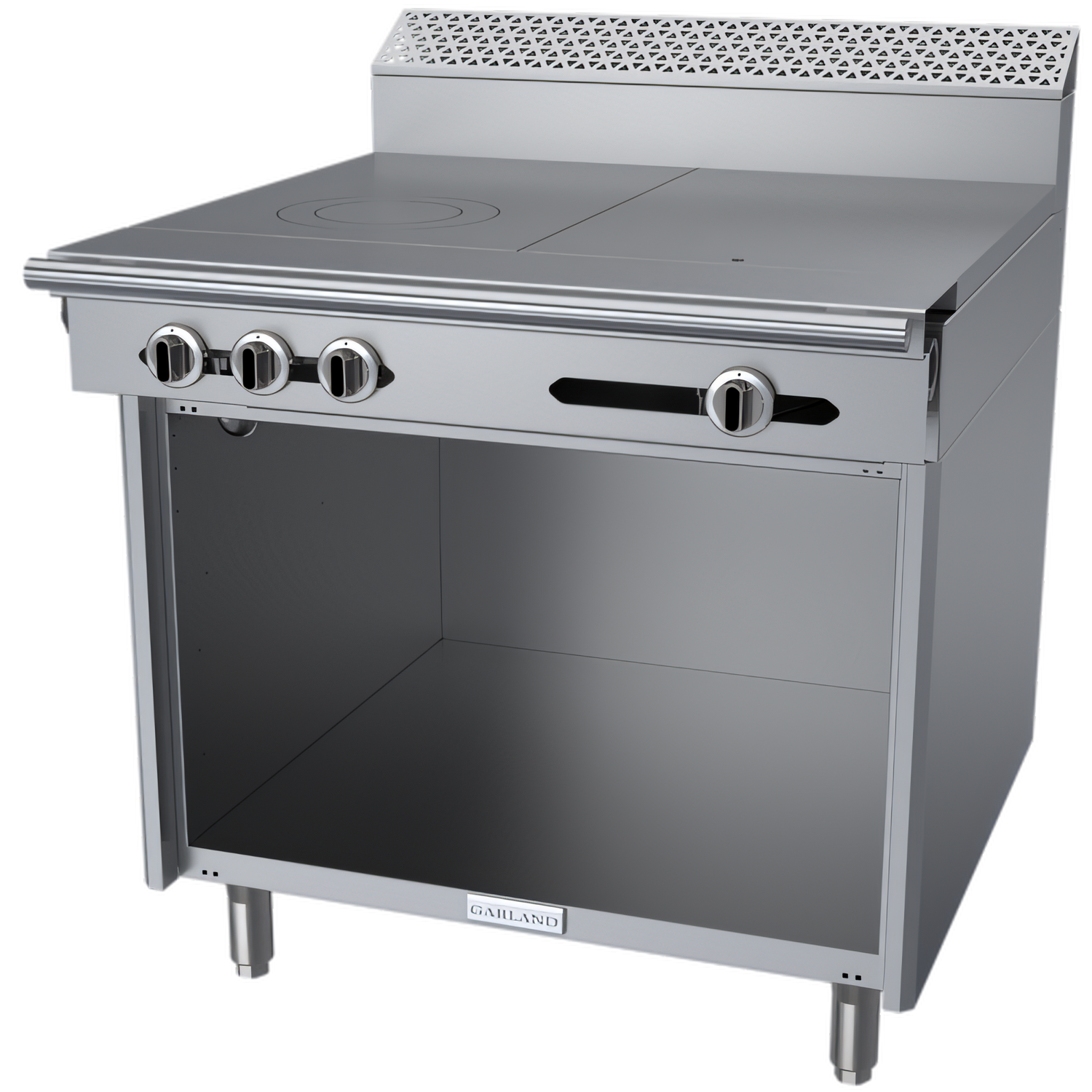

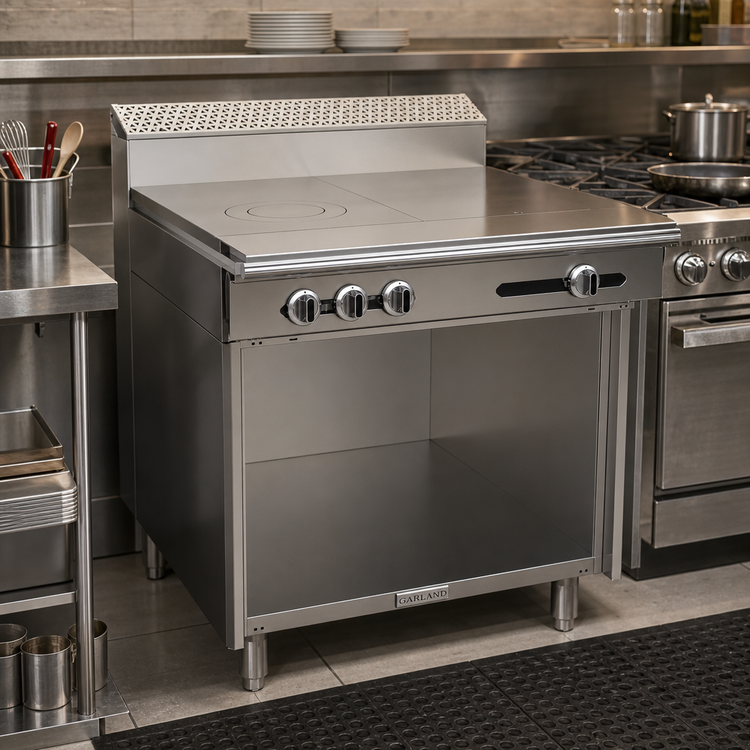

Garland Cuisine Series Heavy Duty 36-Inch Gas Combination Top Range with Storage Base

18-Inch Even-Heat Hot Top and 18-Inch Front-Fired Hot Top, Stainless Steel Front and Sides

Built for high-volume kitchens, this 36-inch Garland Cuisine range combines dual hot-top sections with a rugged storage base and stainless steel construction for dependable daily service.

  • One 18-inch even-heat hot top and one 18-inch front-fired hot top provide versatile cooking coverage.
  • Open cabinet storage base keeps pans, tools, and supplies within easy reach.
  • Stainless steel front, sides, plate rail, and burner box are built for durability and easier cleanup.
  • Removable lids and rings on the front-fired hot top simplify maintenance.
  • 7-inch stainless steel stub back helps contain splatter and heat.
  • 6-inch adjustable stainless steel legs support stable floor installation.
  • 70,000 BTU output delivers strong cooking performance for demanding commercial use.

Overall Dimensions:

36.0"W x 39.38"D x 42.0"H

Product Weight:

414.0 lb

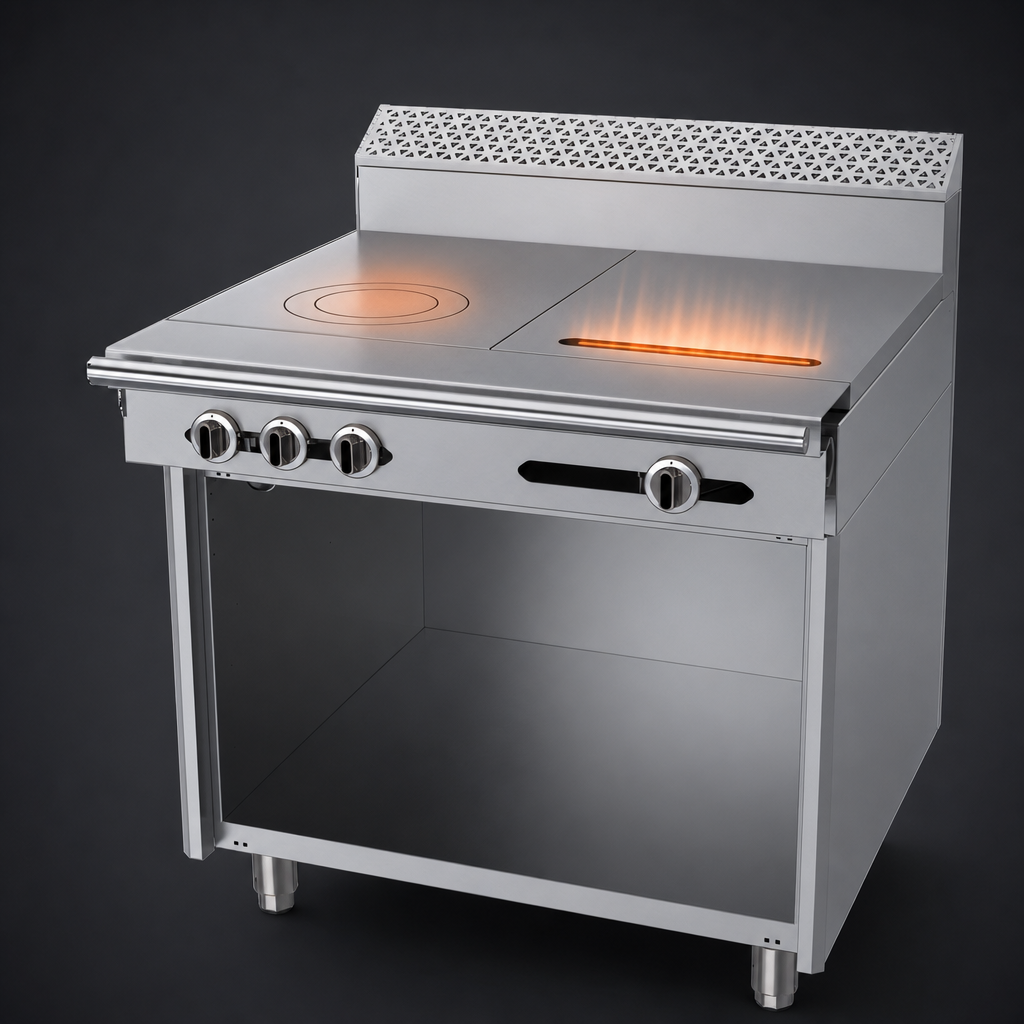

Dual Hot-Top Layout

Includes one 18-inch even-heat hot top and one 18-inch front-fired hot top.

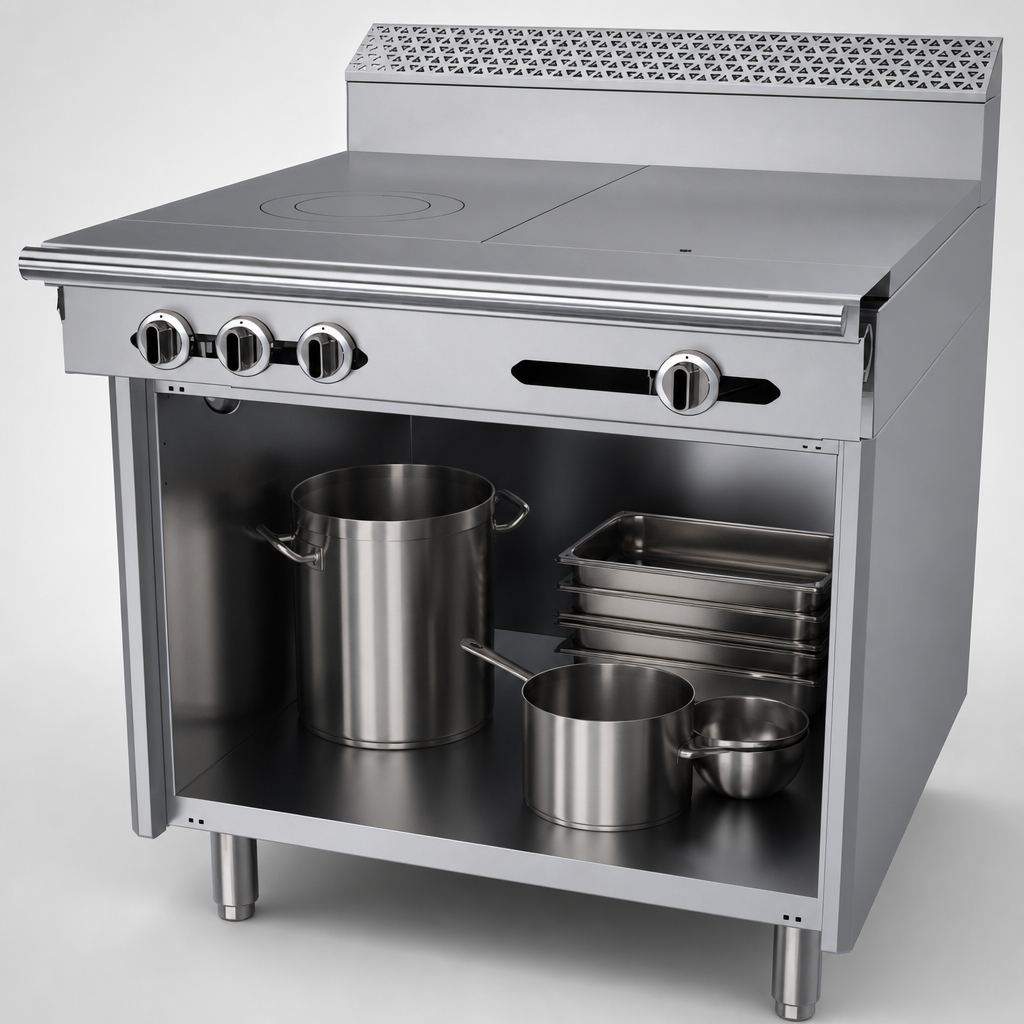

Storage Base

Open cabinet base provides convenient under-range storage.

Removable Lids and Rings

Front-fired hot top components lift out for easier cleaning and service access.

Stainless Steel Construction

Stainless steel front, sides, plate rail, and burner box improve durability and appearance.

Stub Backguard

7-inch high stainless steel back helps protect the wall area behind the range.

Adjustable Legs

6-inch stainless steel adjustable legs help level the unit on uneven floors.

High Heat Output

70,000 BTU total output supports demanding production needs.

Front Gas Manifold

1-1/4 inch NPT front gas manifold connection.

Gas Pressure Requirements

Minimum supply pressure is 7 inches W.C. for natural gas and 11 inches W.C. for propane; manifold operating pressure is 6 inches W.C. natural and 10 inches W.C. propane.

Type Range
Style Combination Top
Installation Type Floor Model
Material Stainless Steel
Finish Stainless Steel
Controls Manual Valve
BTU 70,000 BTU
Gas Type Natural Gas / Propane
Gas Connection Size 1-1/4 Inch NPT
Gas Inlet Pressure 7 Inches W.C. Natural / 11 Inches W.C. Propane
Shipping Width 36 Inches
Shipping Depth 40 Inches
Shipping Height 42 Inches
Shipping Weight 414 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified
Certified badge of CSA Certified
CSA Certified

Documents

PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Cutsheet PDF Download PDF Owner's manual PDF Download PDF Check list PDF Download PDF Brochure PDF Download PDF Garland cuisine models guide PDF Download

Frequently Asked Questions

It includes one 18-inch even-heat hot top and one 18-inch front-fired hot top.
Yes. This version uses an open cabinet storage base.
Minimum supply pressure is 7 inches W.C. for natural gas and 11 inches W.C. for propane. Manifold operating pressure is 6 inches W.C. natural and 10 inches W.C. propane.
The document lists 10 inches on the sides and 6 inches at the back.
Yes. The document states that the range can be connected individually or in a battery.
