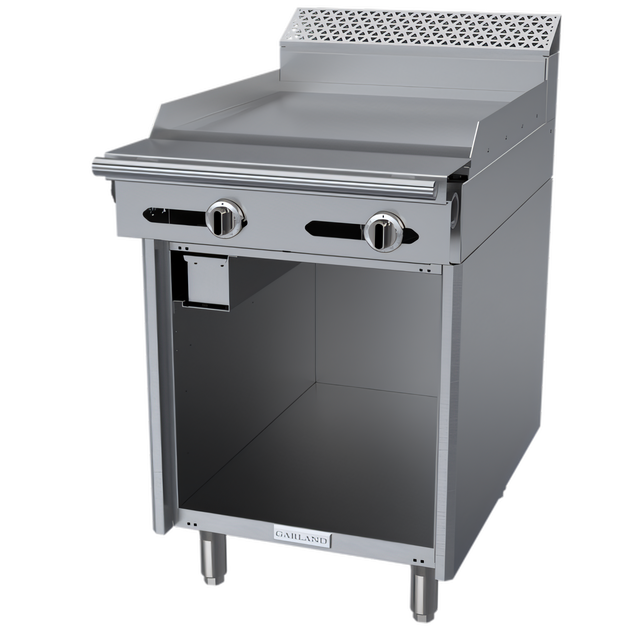

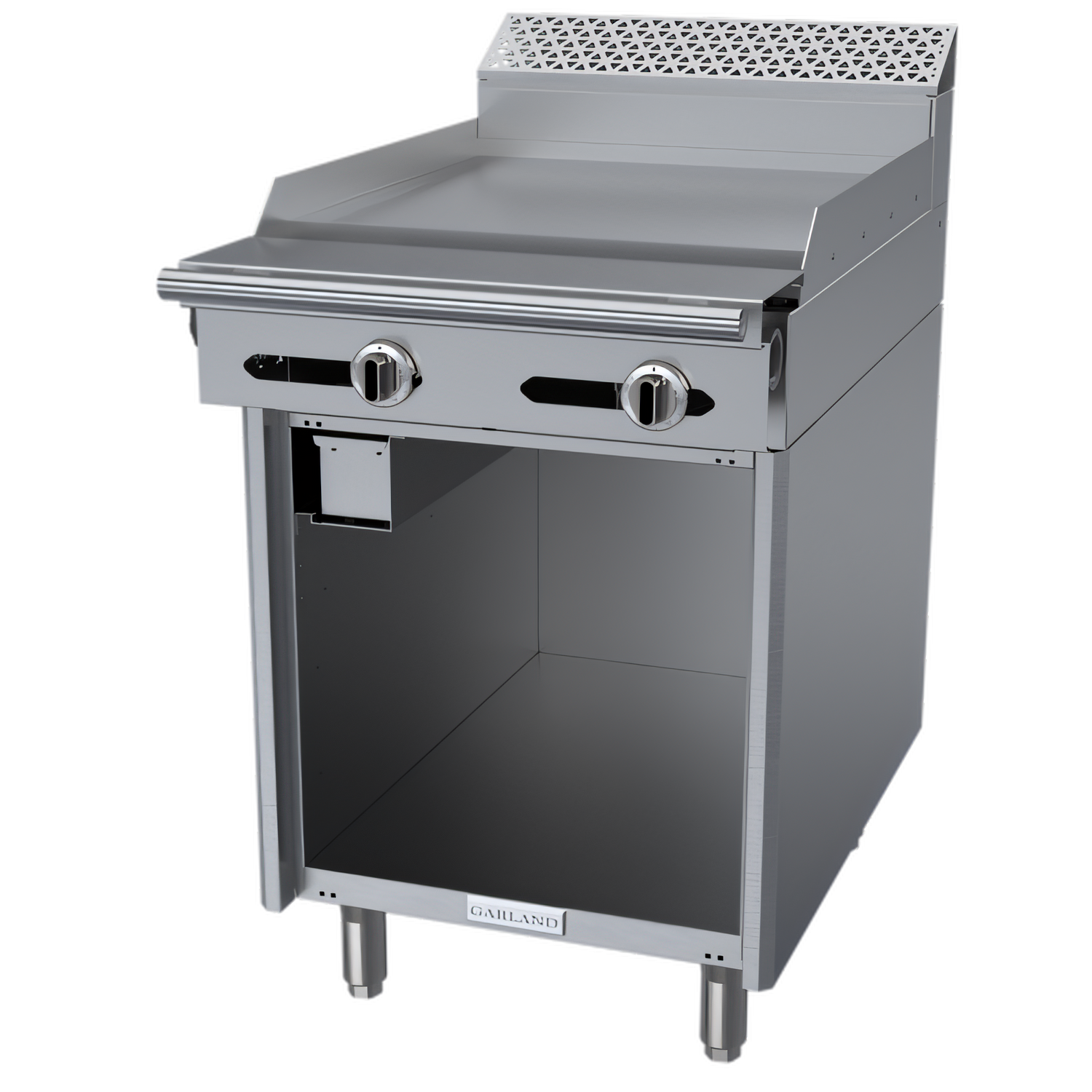

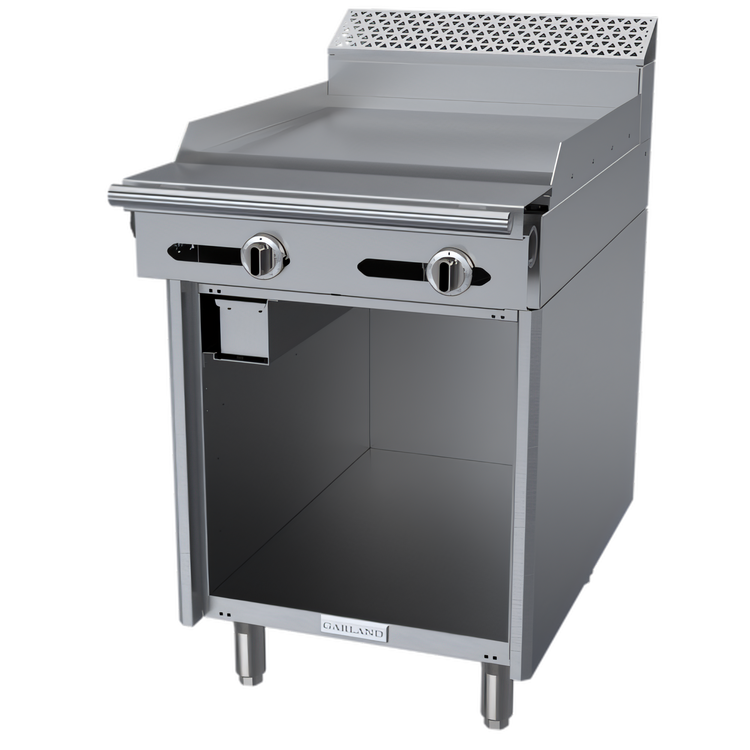

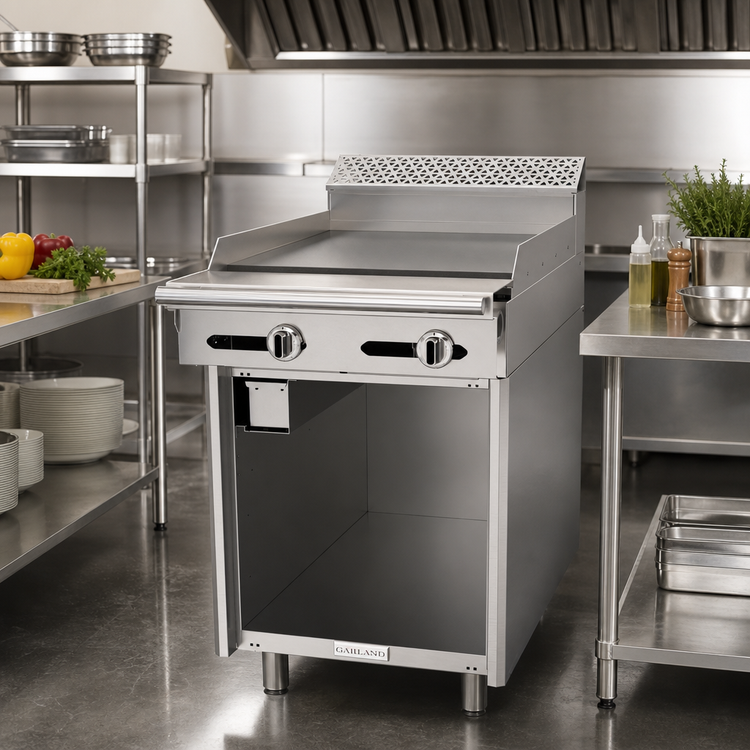

Garland Cuisine Series™ 24" Heavy-Duty Add-A-Unit Griddle Range
Model C24-1-1S – 60,000 BTU Gas, Thermostatic, Open Cabinet BaseDrop massive griddle power into even the tightest cookline. Built on Garland’s legendary Cuisine Series platform, this 24" Add-A-Unit delivers 60,000 BTU of even, controllable heat, rock-solid stainless-steel construction and the flexibility to stand alone or battery with the rest of your Garland suite.
Why this unit rules the rush

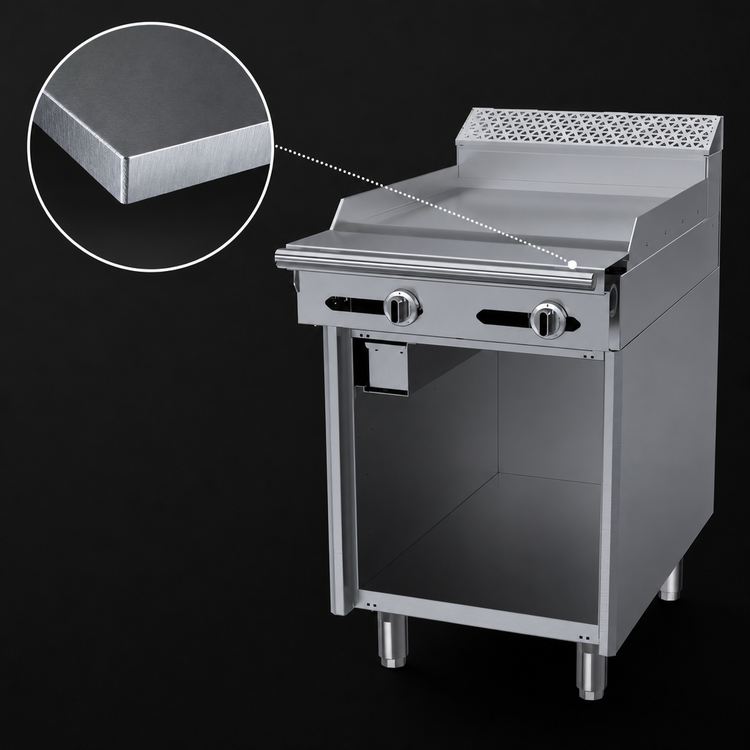

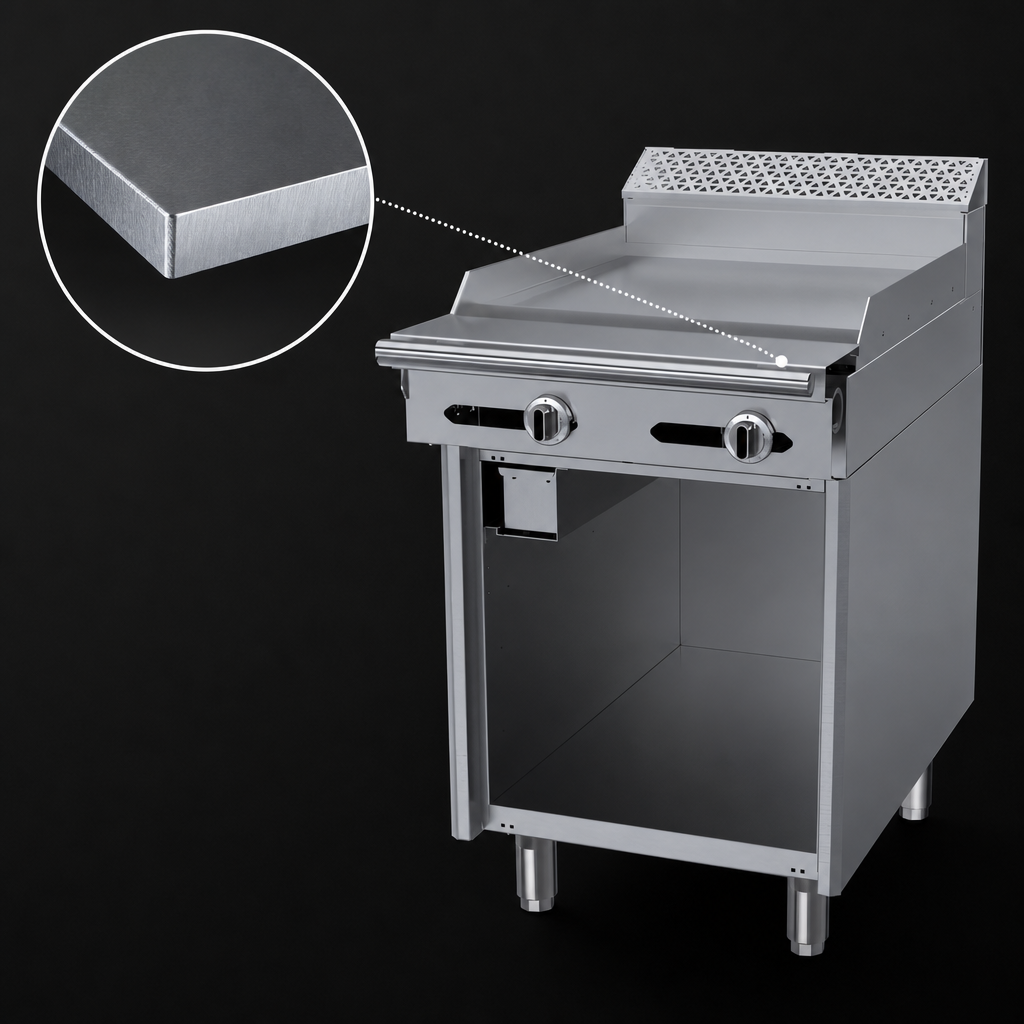

- 1" (25 mm) thick steel griddle plate holds & recovers heat for relentless searing.

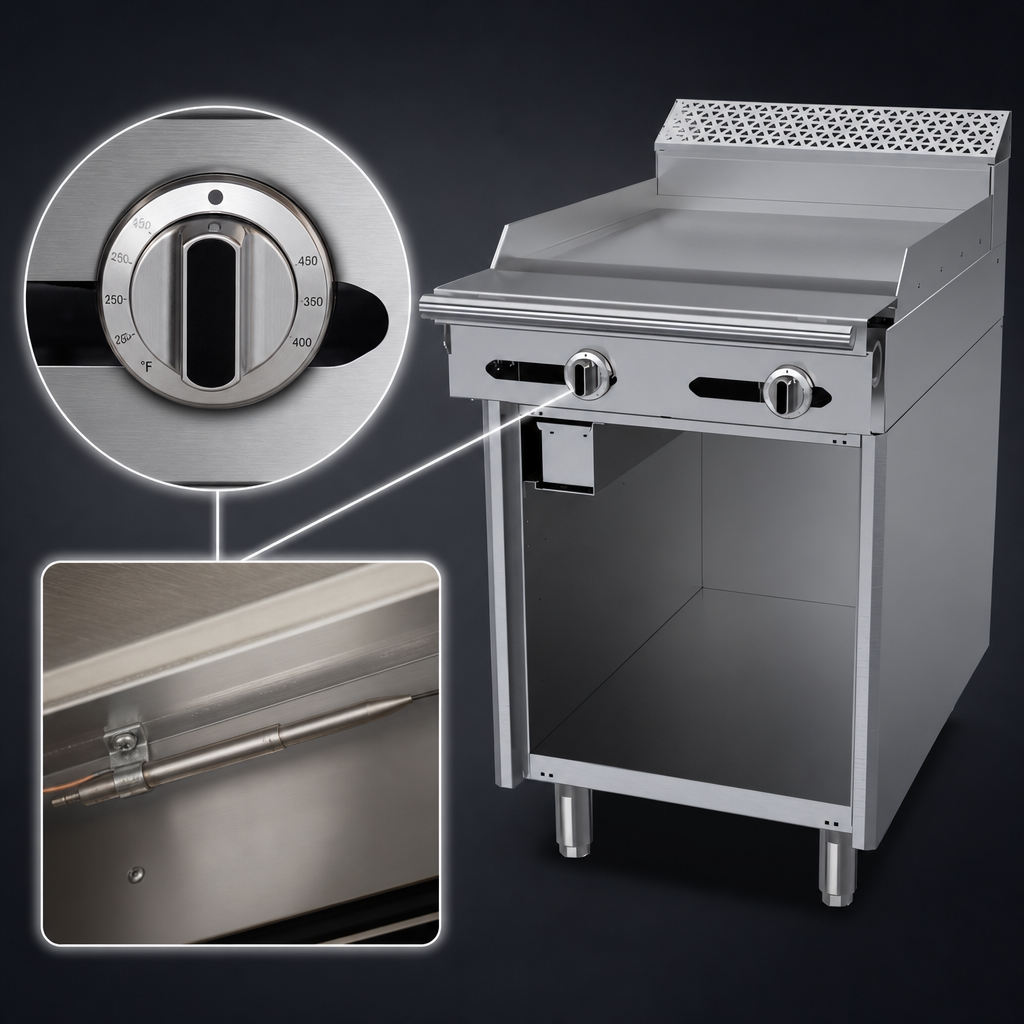

- Embedded-bulb thermostatic controls (Low – 450 °F / 232 °C) let you dial in perfect temps section to section.
- Two 30,000 BTU griddle burners (one every 12") = 60,000 BTU total output.
- 7" stainless backguard keeps splatter off the wall and lines up cleanly with adjacent units.
- Open cabinet base adds instant sheet-pan storage right under the plate.
- Full stainless exterior – front, sides, plate rail & burner box – shrugs off daily abuse and wipes down fast.
- 6" (152 mm) adjustable stainless legs for easy leveling and under-unit cleaning.
- Front 1 ¼" NPT gas manifold lets you hook up solo or in a multi-unit battery.
Built to work back-to-back – literally
Cuisine Series equipment is engineered for zero-clearance installations, so you can push ranges flush against the wall or back-to-back to maximize every inch of cookline real estate. With pilots located safely outside the spill zone and a seamless front rail to catch drips, uptime and clean-time are both on your side.
Safety & sanitation
- CSA Flame & CSA Star certified for gas safety
- NSF listed for food-service sanitation
Technical specifications
| Griddle plate | 1" thick polished steel, 24" W × 21" D cooking surface |
|---|---|
| Total BTU input | 60,000 BTU/hr (Natural or Propane) |
| Control type | Thermostatic – embedded bulb, Low–450 °F (232 °C) |
| Dimensions (W × D × H) | 24" × 37-7/8" × 36-1/4" (610 × 962 × 921 mm) with legs |
| Gas connection | 1 ¼" NPT front manifold (¾" rear connection optional) |
| Manifold pressure | Natural 6" WC | Propane 10" WC |
| Minimum supply pressure | Natural 7" WC | Propane 11" WC |
| Clearances (combustible) | Sides 10" (254 mm) | Back 6" (152 mm) |
| Shipping weight | ≈ 380 lb / 172 kg |
Popular options & accessories
- Grooved griddle plate (full or half)
- Single or double deck high-shelf / back riser
- Stainless door kit for cabinet base
- 5" or 6" locking swivel caster sets
- Flanged feet for curb mounting
- Rear ¾" NPT gas connection kit
Garland reserves the right to change specifications without notice.
