Garland C18-1M Garland Cuisine Gas Ranges
Description

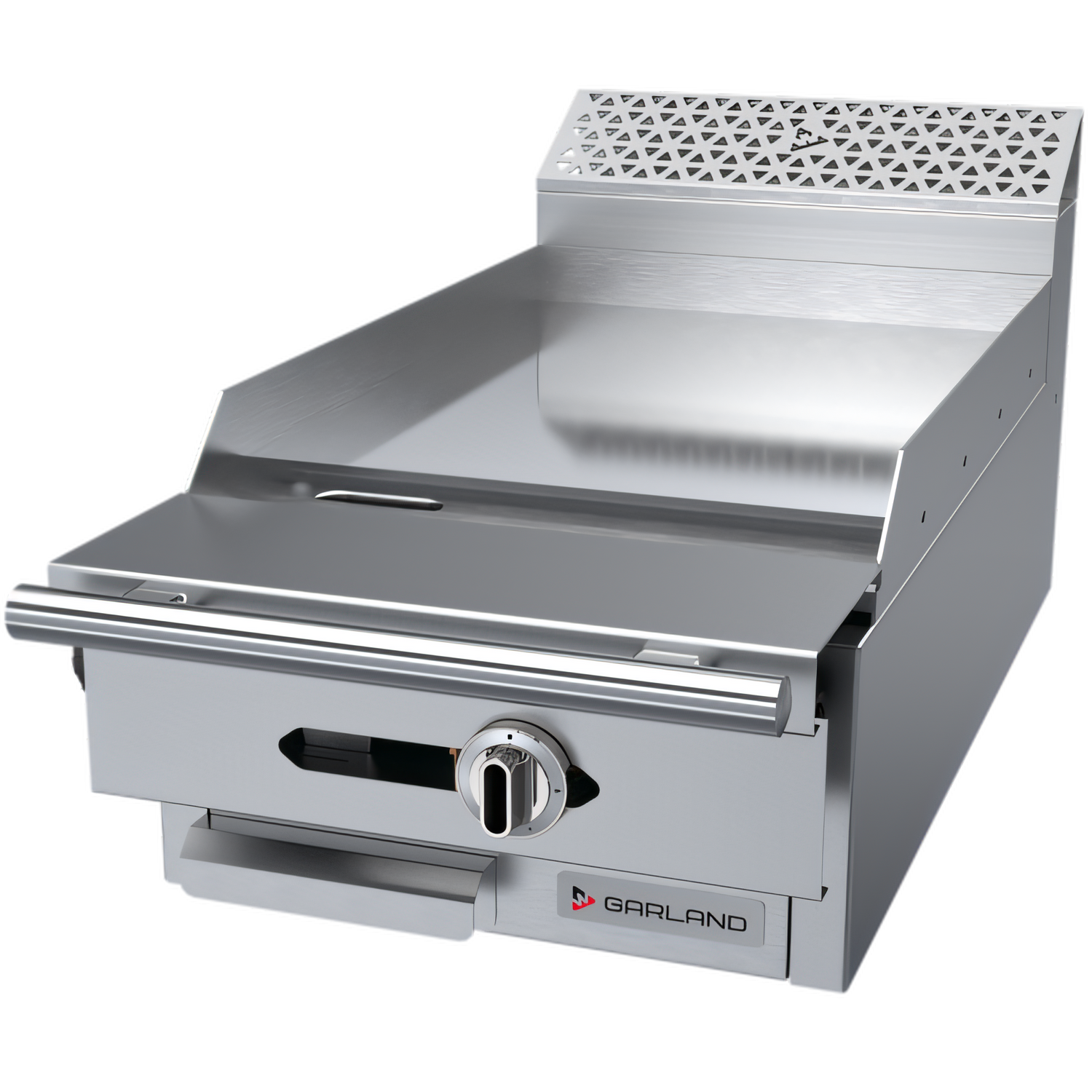

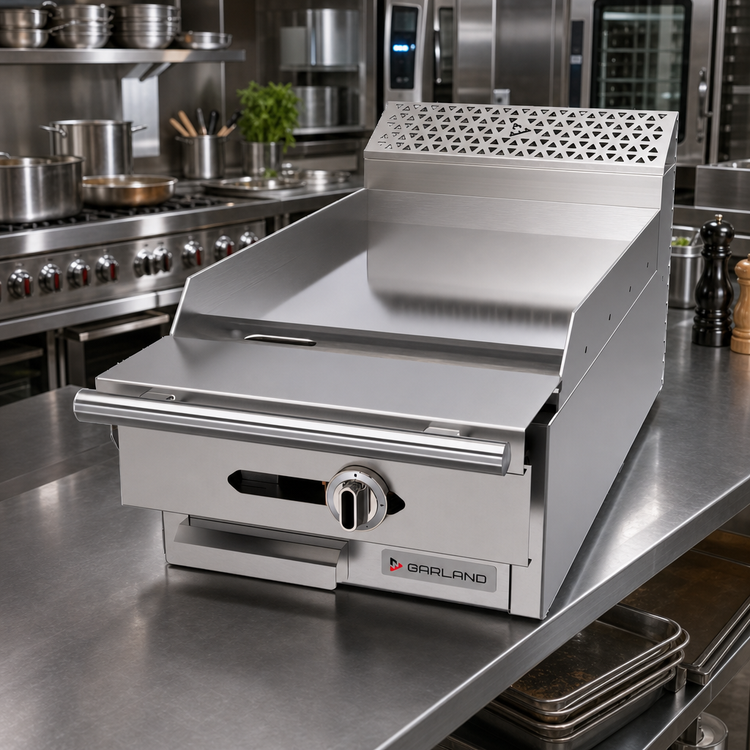

Garland Cuisine Series 18" Heavy-Duty Add-A-Unit Gas Griddle
30,000 BTU • Manual Hi-Lo Valve • 1" Steel PlatePurpose-built for busy, high-volume kitchens, the 18" Garland Cuisine Add-A-Unit griddle drops seamlessly into a battery or stands alone as a powerful modular workhorse. A full 30,000 BTU burner delivers even heat to the extra-thick 1" (25 mm) steel plate, while the stainless steel construction and compact footprint free up valuable line space without sacrificing durability.
Key Features

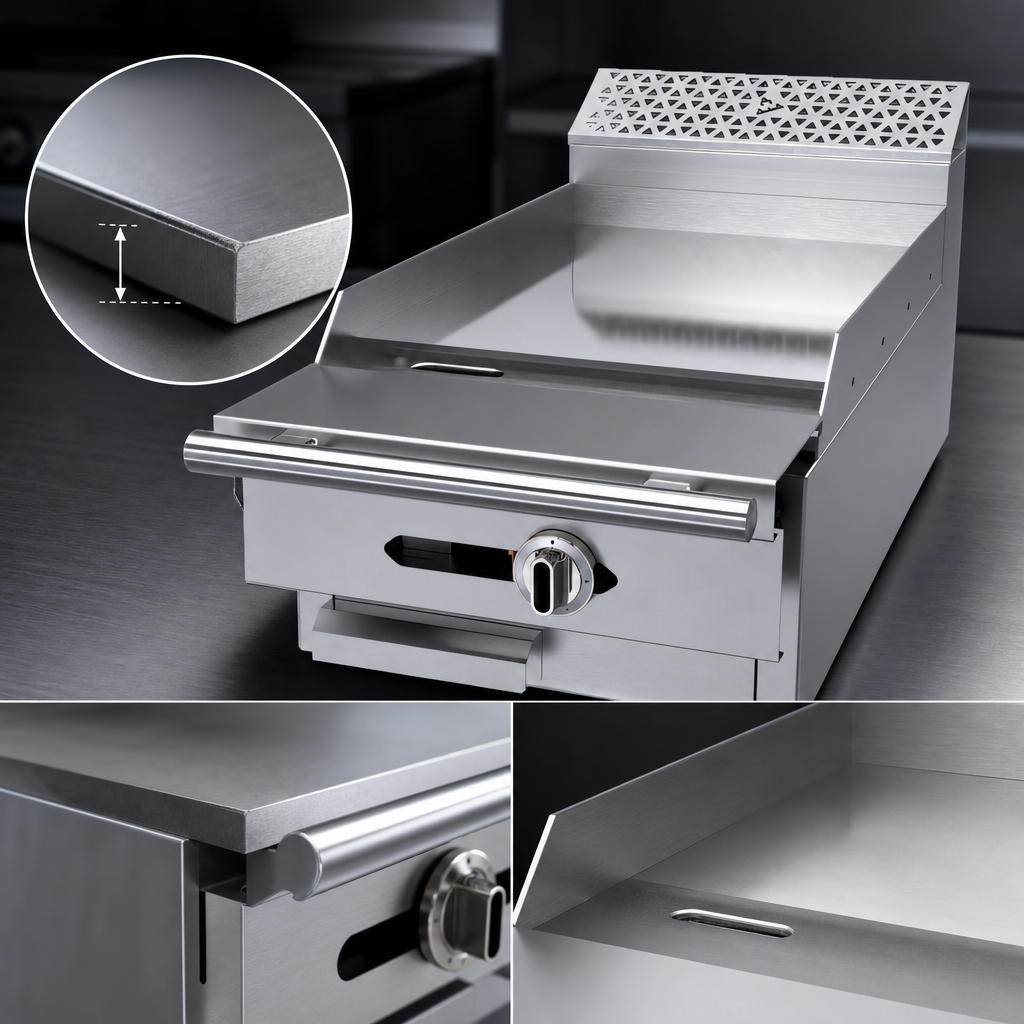

- 1" (25 mm) polished steel griddle plate with 3" (76 mm) grease trough for faster recovery and effortless cleanup.
- Powerful single burner rated at 30,000 BTU/h (Natural or Propane) with dependable standing pilot.

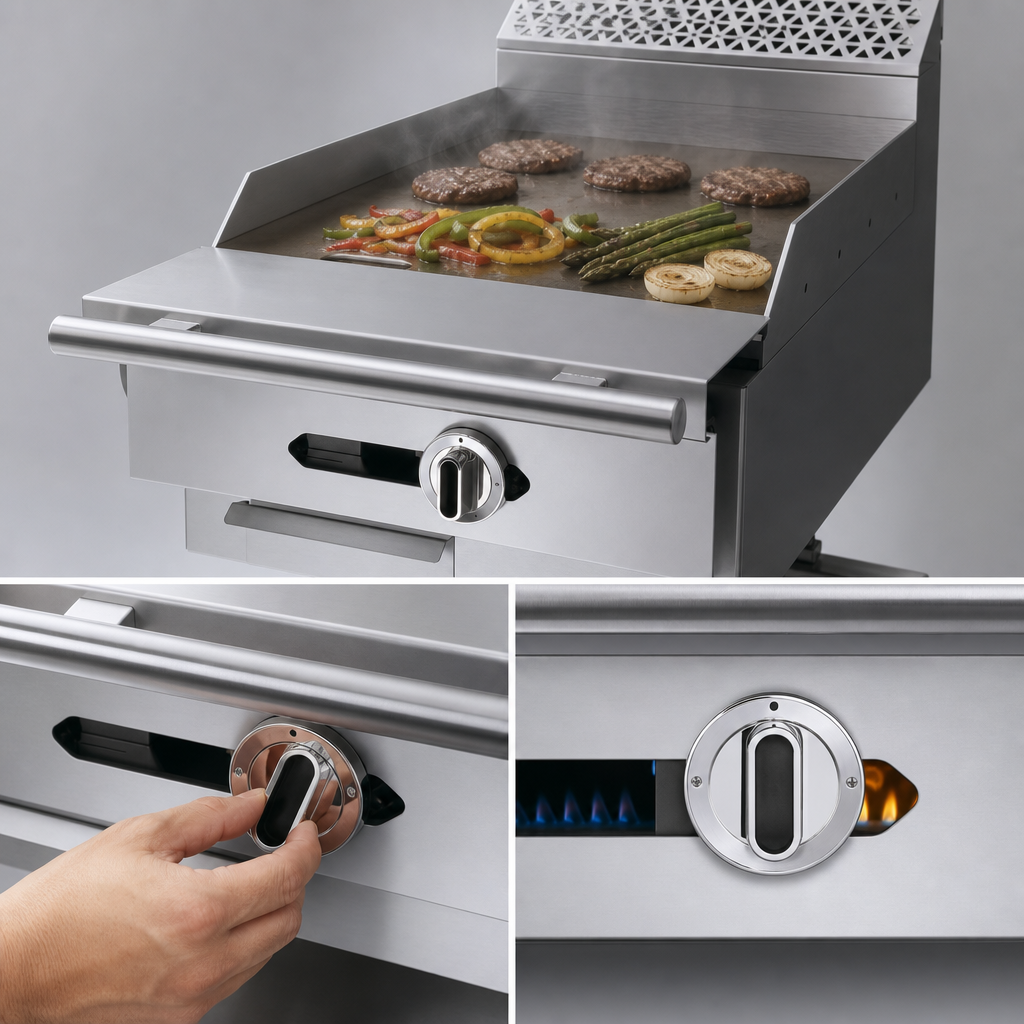

- Manual Hi-Lo valve provides infinite heat control from low to searing.
- 7" (178 mm) stainless steel stub backguard protects surrounding equipment & walls.
- Heavy-gauge stainless steel front, sides, front rail and burner box resist dents, corrosion and daily wear.
- Modular “Add-A-Unit” design – front 1 ¼" NPT manifold allows quick connection in a lineup or as a stand-alone.
- 6" (152 mm) adjustable stainless steel legs included for easy leveling and under-unit cleaning.
- Large removable stainless crumb/grease tray keeps the work area tidy.
- Certified to CSA Flame, CSA Star & NSF standards for gas safety and sanitation.
At-a-Glance Specifications
| Model | Cuisine Series C18-1S (manual griddle) – Modular Add-A-Unit |
|---|---|
| Width | 18" / 457 mm |
| Depth | 39 ⅜" / 1,001 mm |
| Height (to cook surface) | 30 ¼" / 769 mm 36 ¼" / 921 mm with 6" legs |
| Griddle Plate | 1" thick polished steel, 3" wide grease trough |
| Burner Rating | 30,000 BTU/h (Natural or Propane) |
| Gas Connection | Front 1 ¼" NPT manifold (rear connection optional) |
| Manifold Pressure | Natural 6" WC | Propane 10" WC |
| Minimum Supply Pressure | Natural 7" WC | Propane 11" WC |
| Clearances (combustible) |
Sides – 10" / 254 mm | Back – 6" / 152 mm |
| Shipping Weight | Approx. 315 lb / 143 kg |
| Certifications | CSA Flame, CSA Star, NSF |
Optional Accessories
- Single or double-deck high shelf / back riser
- Full-height equipment stand with shelves (legs or locking casters)
- Stainless extension rail for 1/9-size pans
- Rear gas connection kit & gas flex hose (¾", 1", 1 ¼")
- Flanged feet for curb or dais mounting
Gas units must be installed by a qualified technician and connected with an approved, properly sized gas regulator. Ranges supplied on casters require a field-installed restraining device.
