Garland C18-1-1S Garland Cuisine Gas Ranges
Description

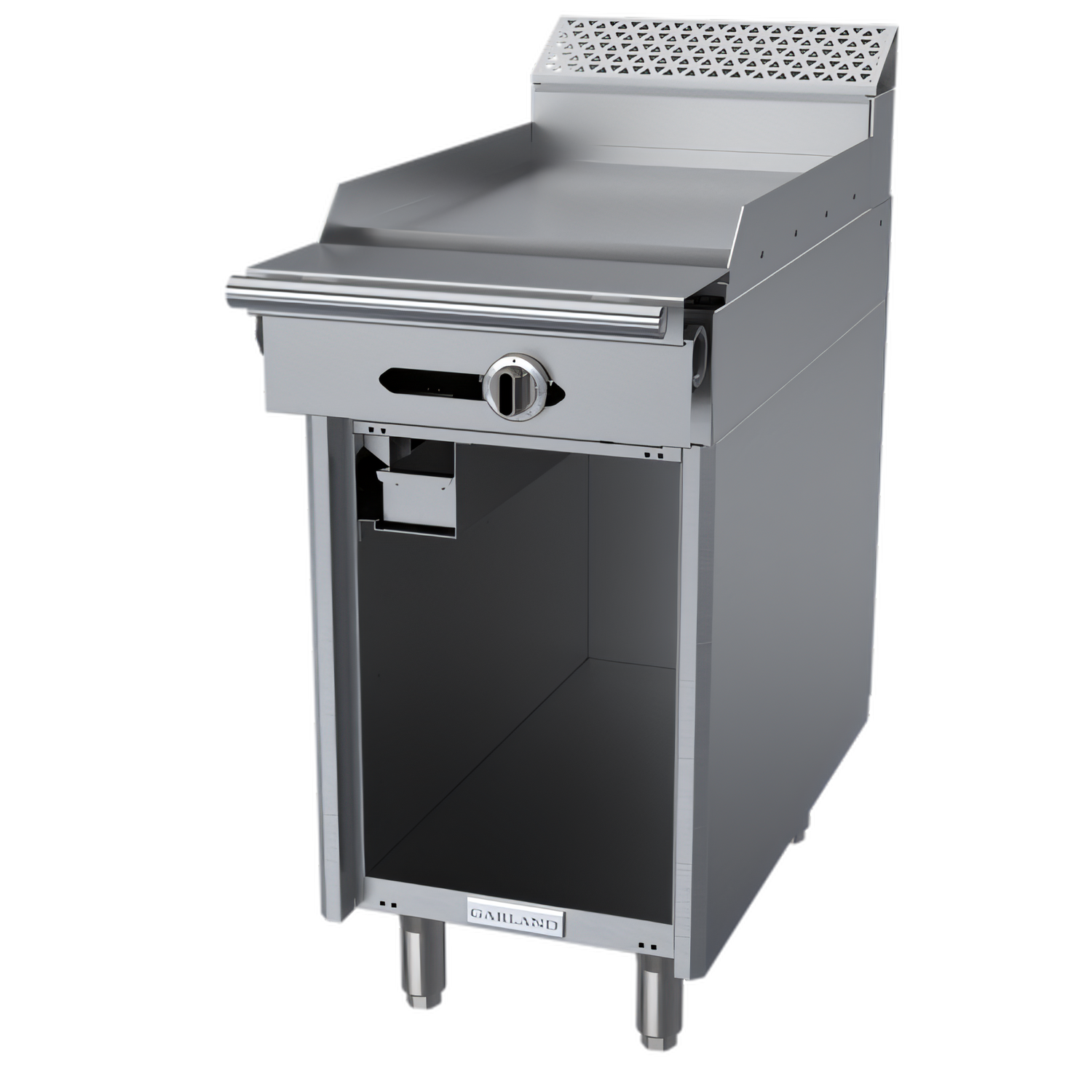

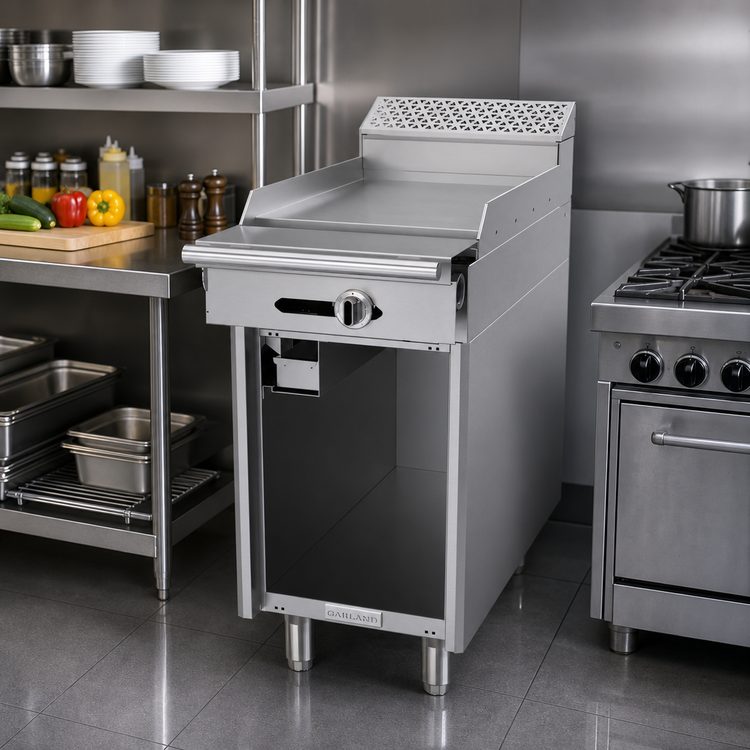

Garland Cuisine Series 18" Thermostatic Griddle Add-A-Unit
Model C18-1-1S | 30,000 BTU Natural/LP GasAdd instant griddle capacity to any Cuisine Series battery—or run it as a powerful standalone station. The 18 inch Garland C18-1-1S pairs a 1 inch thick steel plate with true thermostatic control, stainless-steel construction and an open storage base, giving busy kitchens heavy-duty performance in the footprint of a single burner section.
Why this unit earns its keep
- 1" (25 mm) polished steel griddle plate—forged for warp-free durability & lightning-fast recovery.

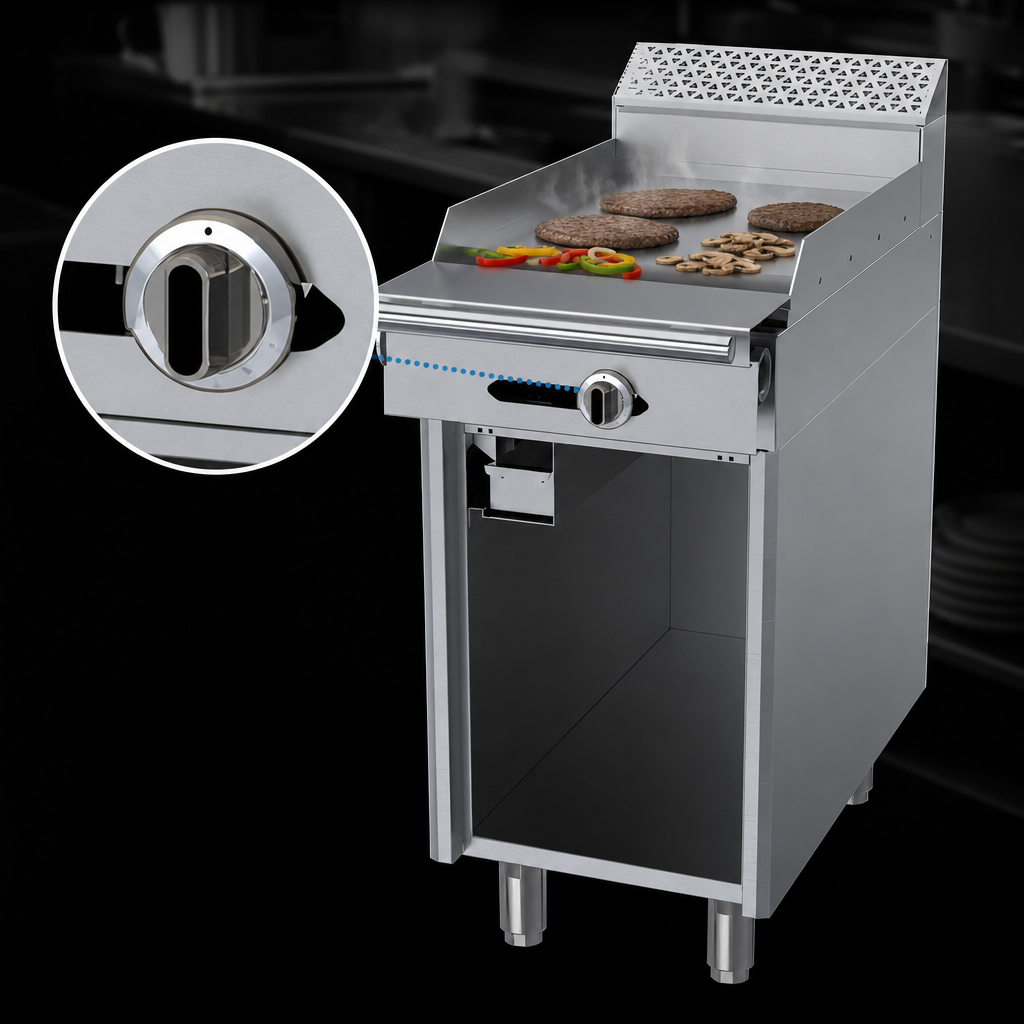

- Embedded thermostat bulb regulates from Low to 450 °F (232 °C) for consistent, repeatable results.
- Single 30,000 BTU/h burner delivers even heat across the entire 18" surface.
- 7" (178 mm) stainless stub backguard keeps splatter contained without sacrificing visibility.
- Open cabinet base provides quick-grab pan & utensil storage—no doors to block traffic.
- All stainless front, sides, front-rail & burner box stand up to the daily scrub-down.
- 6" (152 mm) adjustable legs level the unit on uneven floors & allow easy under-counter cleaning.

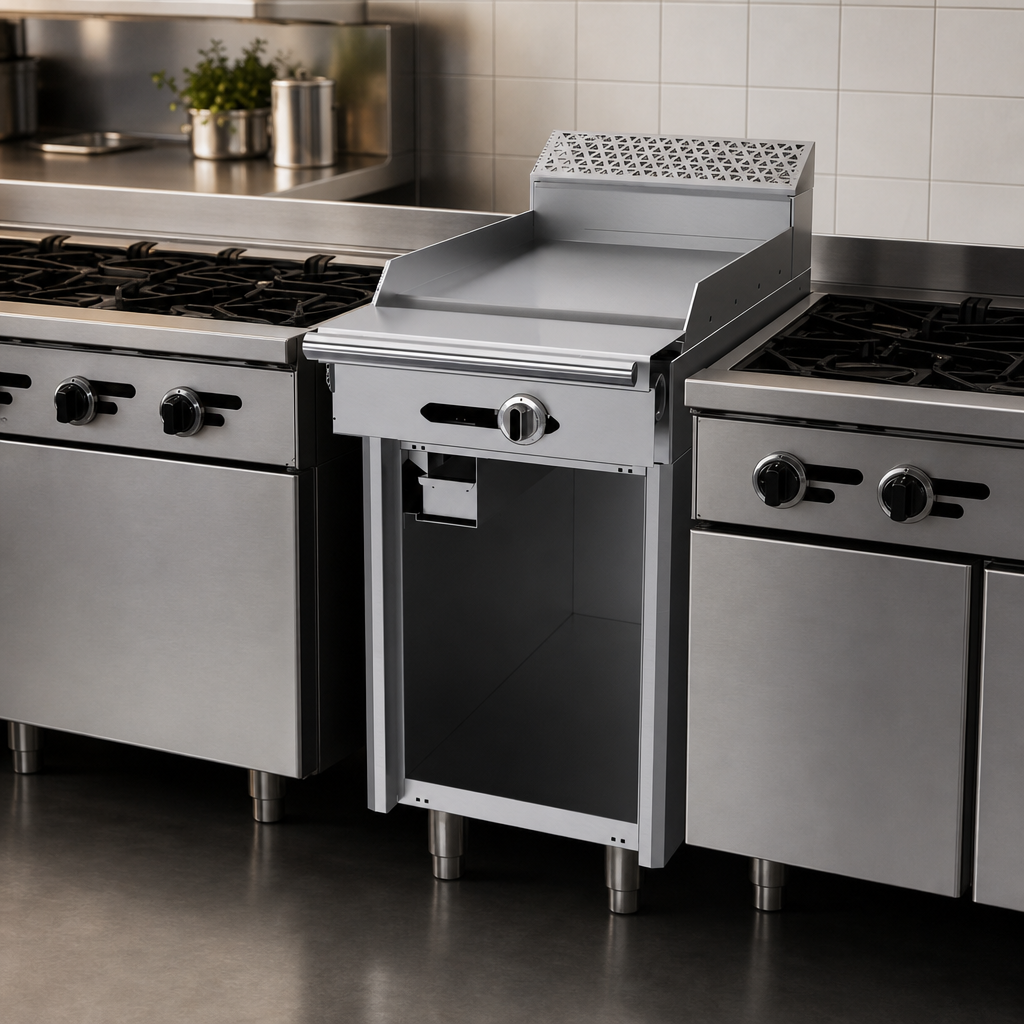

- 1¼" front NPT gas manifold lets you Add-A-Unit to existing Cuisine Series ranges with a single connection.
- Field convertible rear ¾" NPT gas connection simplifies island or wall installations.
- Certified safe & sanitary: CSA Flame, CSA Star & NSF listings.
Technical data
| Griddle width | 18" / 457 mm |
|---|---|
| Plate thickness | 1" / 25 mm polished steel |
| Temperature range | Low – 450 °F (232 °C) thermostatic |
| Total input | 30,000 BTU/h (Natural or Propane) |
| Gas pressure (min. supply) | Natural 7" WC | LP 11" WC |
| Manifold pressure | Natural 6" WC | LP 10" WC |
| Connections | Front 1¼" NPT manifold (standard) / Rear ¾" NPT (optional) |
| Overall dimensions (w × d × h) | 18" × 39 ⅜" × 36 ¼" (457 × 1001 × 921 mm, incl. 6" legs) |
| Shipping weight | ≈ 315 lb / 145 kg | 28 cu ft |
| Clearances (combustible) | Sides 10" / 254 mm • Back 6" / 152 mm |
| Certifications | CSA Flame, CSA Star, NSF |
Popular options & accessories
- Full-height equipment stand with intermediate shelf & caster or flanged-feet kits.
- Single or double hi-shelf / back riser for extra plating space.
- Continuous plate rail (48–72") for multi-unit batteries.
- Gas flex-hose kits with quick disconnect (¾", 1", 1¼").
- Grooved plate conversion for signature grill marks.
Garland products are engineered for commercial use only—installation must conform to local codes. Ranges supplied on casters require an approved restraint.
