Garland C18-1-1M Garland Cuisine Gas Ranges
Description

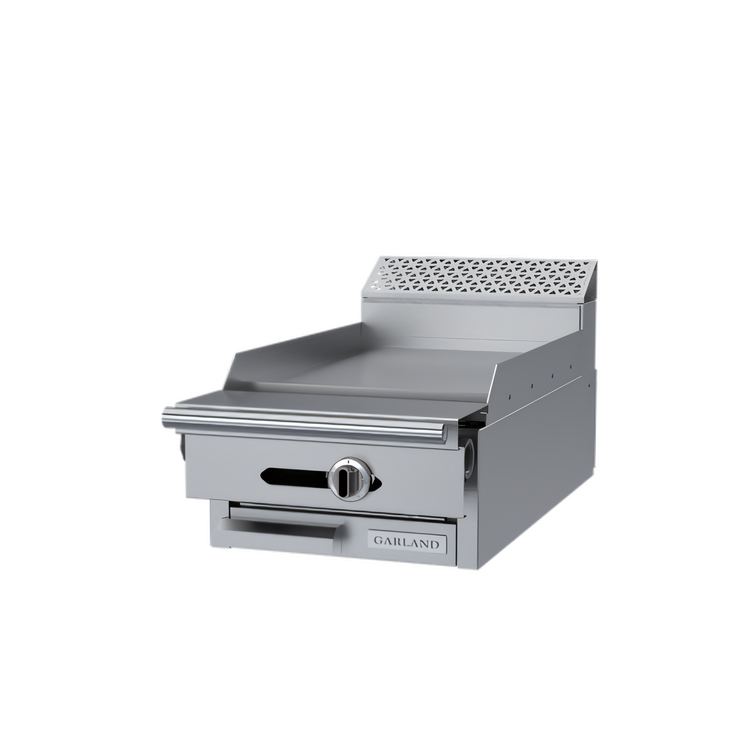

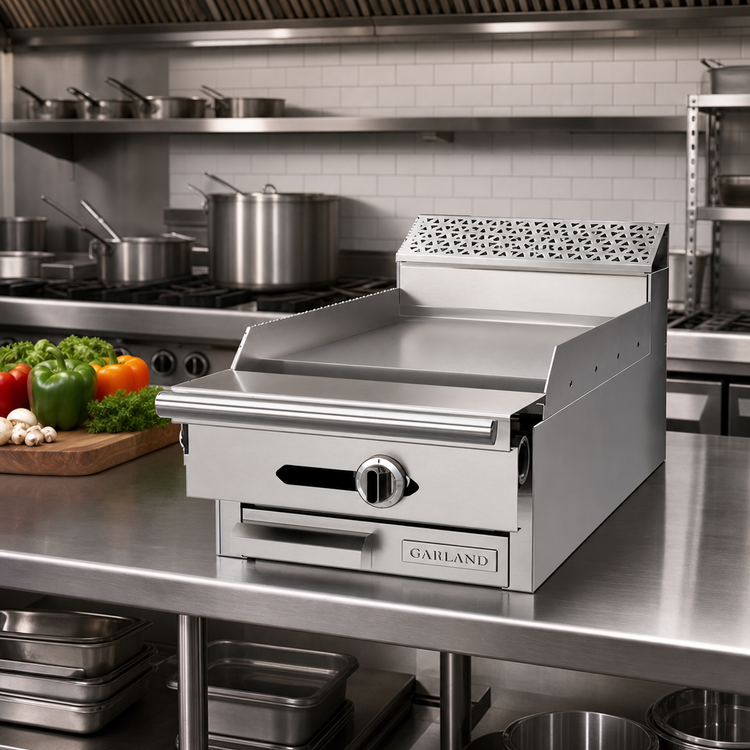

Garland Cuisine Series 18″ Add-A-Unit Thermostatic Griddle
Model C18-1-1M | 30,000 BTU Heavy-Duty Modular Range TopBring precision griddling to any cookline—without giving up precious space. The Garland C18-1-1M slots into a battery or stands alone to deliver even, controllable heat across a thick 1″ steel plate. Rugged stainless construction, quick-connect gas plumbing and NSF/CSA certifications make this 18″ powerhouse the easy way to expand a Cuisine Series range or upgrade an existing operation.
Key Features

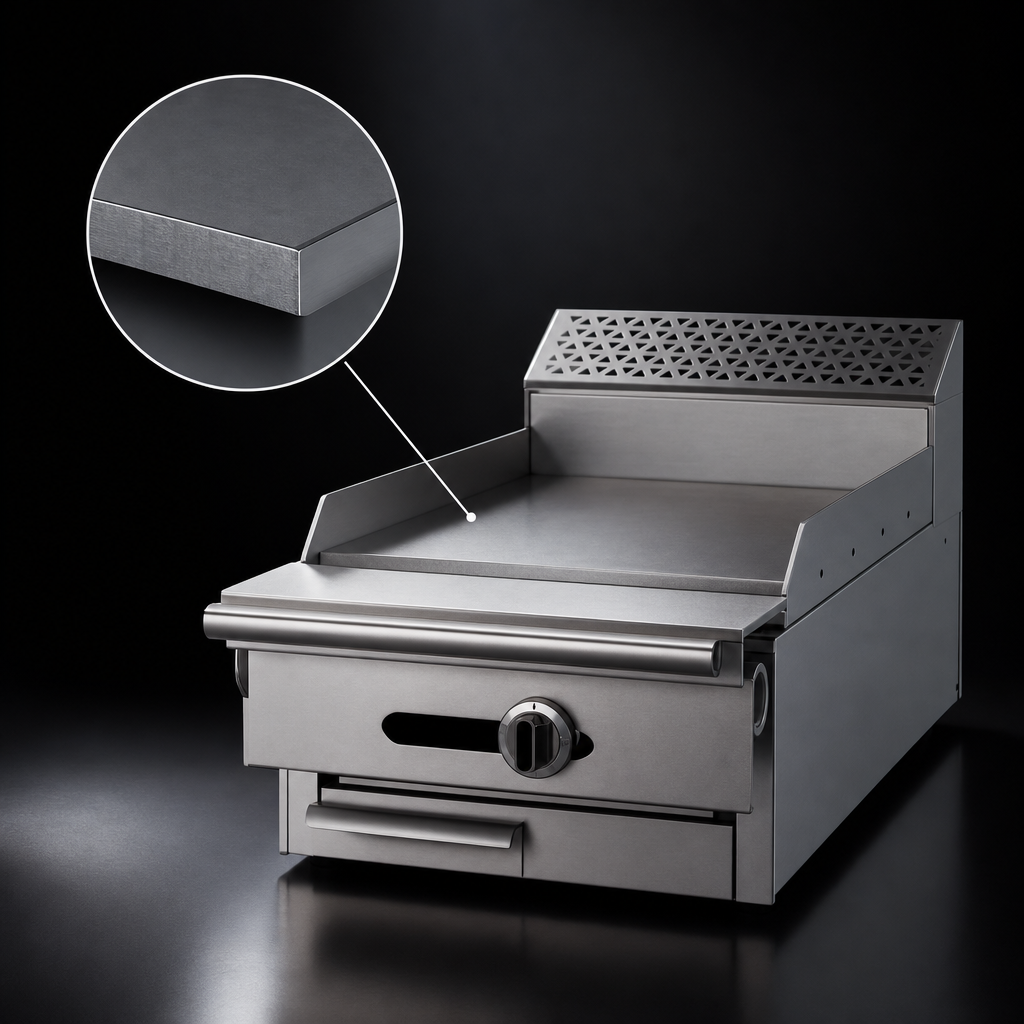

- 1″ (25 mm) polished steel griddle plate for exceptional heat retention and fast recovery.

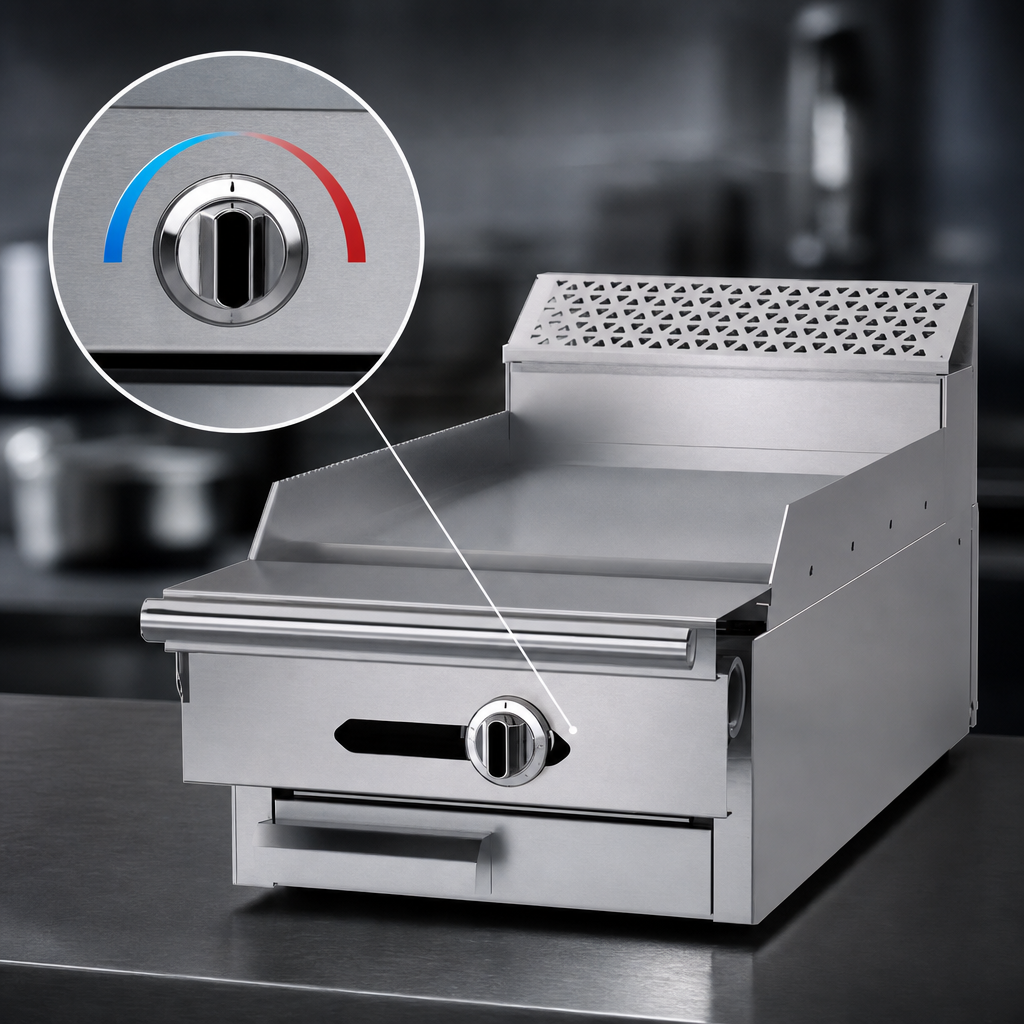

- Embedded thermostat bulb maintains set temps from “Low” to 450 °F (232 °C) for perfect results all day.
- One 30,000 BTU cast-iron burner per 18″ section—rated for natural or propane gas.
- 7″ (178 mm) stainless steel stub backguard shields walls and mates cleanly with adjoining equipment.
- All-stainless exterior (front, sides, front rail & burner box) stands up to harsh commercial cleaning.
- 1¼″ NPT front gas manifold lets you plug the unit in by itself or feed it from a common battery line; optional rear connection kit available.
- Modular design: mount on a refrigerated base, equipment stand or the supplied 6″ adjustable legs.
- Safety & sanitation assured—CSA Flame, CSA Star and NSF listed.
Ideal For
- Breakfast lines, diners & short-order grills
- Finishing stations on large banqueting cooklines
- Supplemental griddle space in quick-service kitchens
- Back-of-house upgrades where floor space is limited
Technical Specifications
| Plate size | 18″ W × ≈24 ⅞″ D usable (457 × ≈631 mm) |
|---|---|
| Plate thickness | 1″ (25 mm) solid steel |
| Temperature range | Low to 450 °F (232 °C) |
| Heat input | 30,000 BTU/h (Natural or Propane) |
| Gas connection | 1¼″ NPT front manifold (¾″ rear kit optional) |
| Overall dimensions | 18″ W × 39 ⅜″ D × 30 ¼″ H (36 ¼″ H with 6″ legs) |
| Wall clearances (combustible) |
Sides 10″ (254 mm) | Back 6″ (152 mm) |
| Shipping | 26 cu ft | 315 lb (143 kg) |
| Certifications | CSA Flame, CSA Star, NSF |
Popular Options & Accessories (sold separately)
- Grooved griddle plate
- Single or double-deck high shelf / back riser
- Full-height equipment stand, refrigerated base or storage cabinet
- 5″ or 6″ swivel casters with front brakes (unit must be restrained)
- Rear gas connection kit, flex hose & shut-off valve
- Continuous plate rail for multi-unit batteries
Units supplied with casters must be installed with an approved restraining device. Garland Cuisine Series equipment is intended for commercial use only.
