Eurodib USA DSP3 Lamber Undercounter Dishwashers
Description

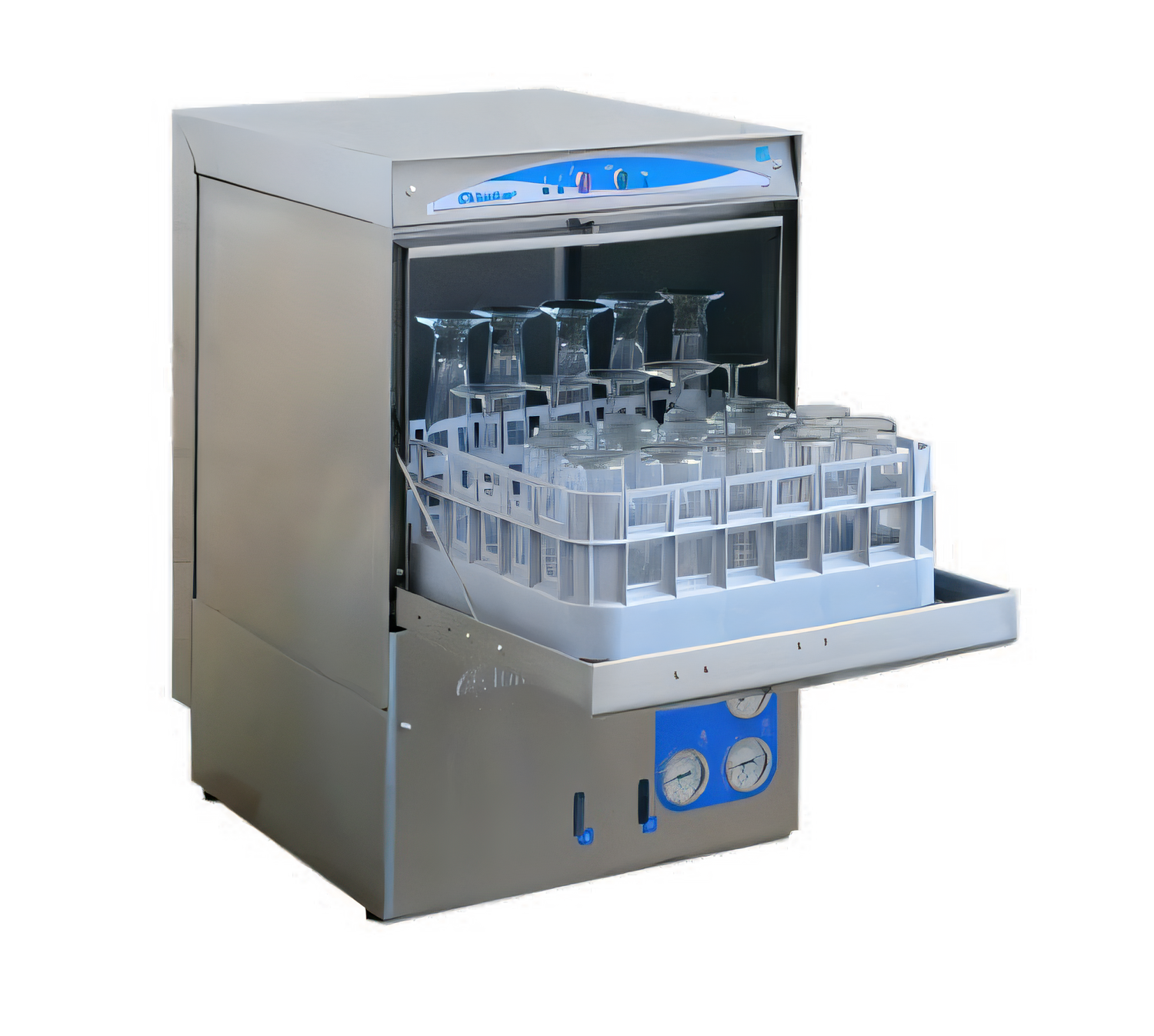

Lamber DSP3 High-Temp Glasswasher
16" x 16" square rack • 2-minute cycle • Made in ItalyEngineered for busy bars, cafés and tasting rooms, the Lamber DSP3 delivers pristine glassware every 120 seconds while using less than ½ gallon of water per cycle. Built entirely of 18/10 AISI 304 stainless steel and certified UL/NSF for high-temperature sanitizing, this compact under-counter unit combines European craftsmanship with the ease-of-use features North-American operators demand.
Why you’ll love it
- Fast 2-minute wash cycle – up to 30 racks per hour
- High-temperature sanitizing with thermocontrol to guarantee 179-194 °F rinse
- Dual analog thermometers for instant wash & rinse temperature confirmation
- Built-in detergent pump and rinse-aid dispenser – no extra dosing equipment needed
- Automatic tank fill plus gravity drain for simple installation
- Safety features: door interlock, security thermostat & over-heat protection
- Removable, front-facing control panel for quick maintenance access
- Quiet operation < 70 dB(A) – perfect for front-of-house placement
- Rugged AISI 304 stainless-steel wash & rinse arms (lower rotating / upper fixed)
Included racks & inserts
- (2) Open glass racks – 16" x 16"
- (1) Saucers insert
- (2) Cutlery containers
Technical specifications
| Model | Lamber DSP3 (gravity drain) |
|---|---|
| Rack size | 16" x 16" (406 x 406 mm) |
| Cycle time | 2 minutes |
| Capacity | 30 racks / hour |
| Glass clearance | 11.81" (300 mm) |
| Dimensions (W × D × H) | 18.11" W × 19.92" D × 29.25" H (460 × 506 × 743 mm) |
| Net weight | 77 lbs (35 kg) |
| Construction | 18/10 AISI 304 stainless steel, inside & out |
| Electrical | 208-240 V / 1-Phase / 60 Hz, 15 A |
| Total load | 3.2 kW |
| Wash pump | 210 W centrifugal – 42 GPM (160 L/min) |
| Heaters | Tank 3.0 kW • Boiler 3.0 kW |
| Tank / boiler capacity | 5.3 gal (20 L) / 0.8 gal (3 L) |
| Water use per cycle | 0.53 gal (2 L) |
| Water pressure | 20 ± 5 psi (1.4 ± 0.3 bar) |
| Water inlet / outlet | 3/4" G (hot 131 °F) / 1-1/4" G gravity drain |
| Noise level | < 70 dB(A) |
| Certifications | UL, cULus, ANSI/NSF 3 |
Popular accessories (sold separately)
- Stainless-steel open glass rack – 15.75" × 15.75" (SKU CC00075)
- Compartmented plastic racks for 9–25 glasses (multiple SKUs)
- 18.5" stainless stand to raise work height (SKU AC00027)
Professional installation by a licensed electrician/plumber is recommended to ensure compliance with local codes and to maintain warranty coverage.
