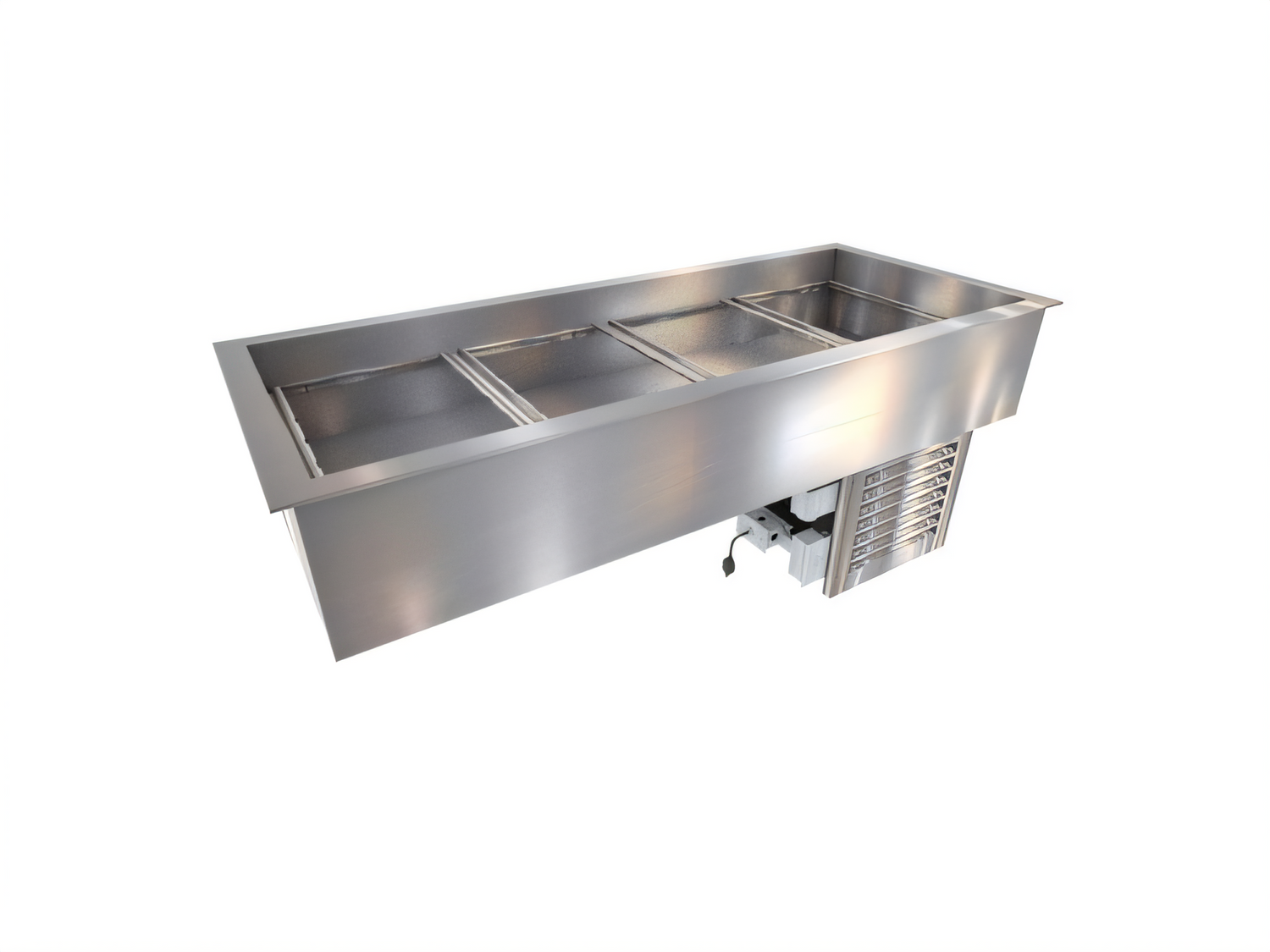

Duke CP4-SB-DC-D Drop-In 4-Pan Refrigerated Cold Food Pan with Touchscreen Control
Duke CP4-SB-DC-D Drop-In 4-Pan Refrigerated Cold Food Pan with Touchscreen Control
Full-Size, Drop-In, Self-Contained Refrigeration
Keep your food perfectly chilled and ready for service with Duke's CP4-SB-DC-D drop-in cold food pan, featuring intuitive touchscreen controls and efficient R290 refrigeration.
- Accommodates (4) full-size food pans up to 6 inches deep for versatile cold food storage.
- Utilizes environmentally safe R290 refrigerant with TXV control for optimal cooling performance.
- Features an intuitive touchscreen control panel with 3 pre-set temperatures for easy operation.
- Constructed with a heavy gauge 300 series stainless steel top and liner for durability and hygiene.
- Designed for seamless drop-in installation with a 3/4 inch product recess below the countertop.
- Equipped with built-in Wi-Fi and Bluetooth for future connectivity and advanced management.
Overall Dimensions:
60.13"W x 25.5"D x 24.58"HProduct Weight:

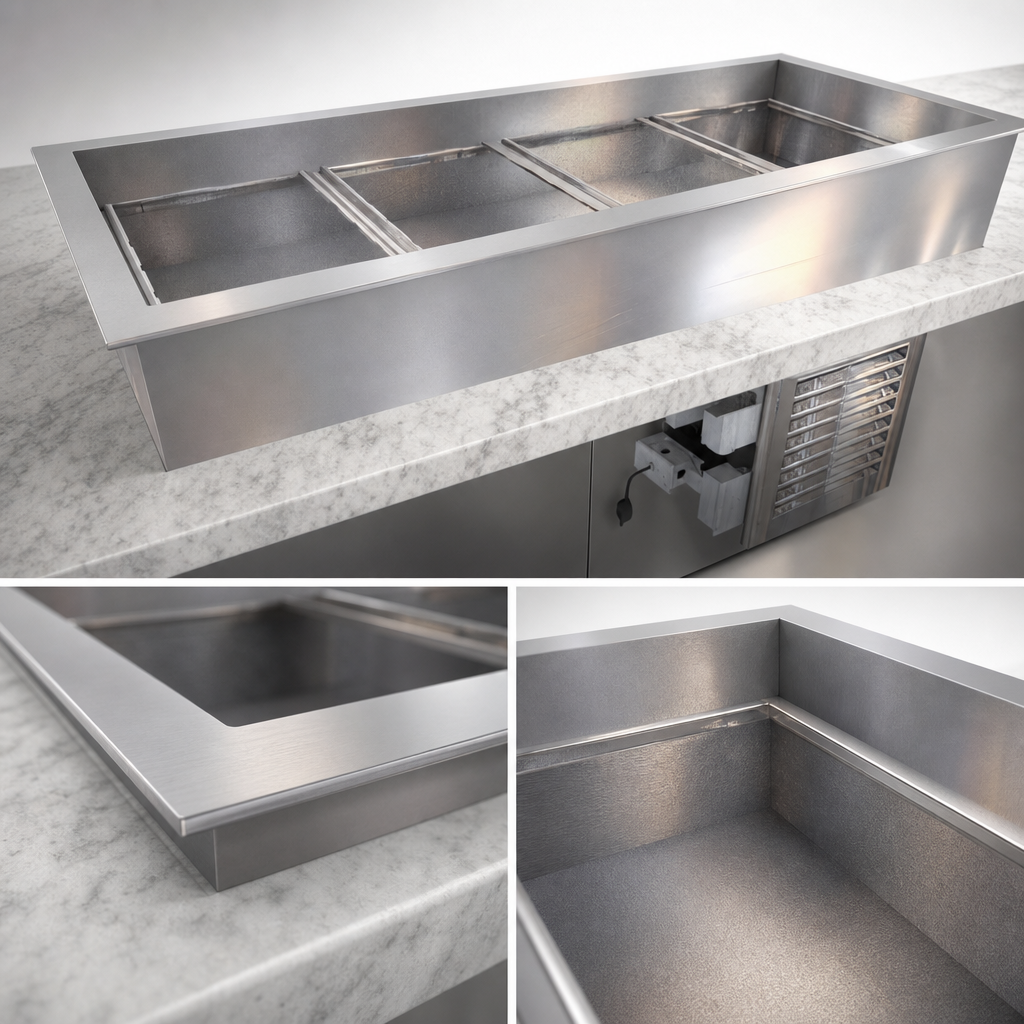

200.0 lbHeavy Gauge Stainless Steel Top
Features a heavy gauge 300 series stainless steel top with a 90-degree turndown, overhang on the front, back, and ends, complete with locking tabs for secure installation and enhanced durability.
300 Series Stainless Steel Cold Pan Liner
The cold pan liner is constructed from 300 series stainless steel, ensuring a sanitary, rust-resistant, and long-lasting food holding environment.
High-Density CFC-Free Polyurethane Foam Insulation
Insulated with high-density, CFC-free polyurethane foam, providing excellent thermal retention with zero global warming potential (GWP) and zero ozone depletion potential (ODP).
Environmentally Safe R290 Refrigerant
Utilizes R290 hydrocarbon refrigerant, which is an environmentally friendly choice, contributing to optimal performance with a TXV control system.
Intuitive Touchscreen Control
Equipped with a standard intuitive and easy-to-use touchscreen control panel offering 3 pre-set temperatures, along with an On/Off switch for straightforward operation.
Advanced Connectivity
Includes built-in Wi-Fi and Bluetooth capabilities for future connectivity, allowing for potential remote monitoring or software updates.
1 Inch Cast Brass Drain and Plug
A 1-inch cast brass drain and plug are included for easy and efficient cleaning and draining of the cold pan.
Accommodates Multiple Pan Sizes
Designed to accommodate standard 12" x 20" full-size food pans up to 6" deep, and can also be used with 1/3rd size pans for flexible food presentation.
Product Recess Design
The product is recessed 3/4 inch below the top, helping to maintain colder temperatures and enhancing aesthetic integration with the countertop.
Durable Exterior Housing
Features a heavy gauge paint grip steel exterior housing, providing robust protection and a clean appearance.
Removable Stainless Brackets
Includes removable stainless brackets positioned 3/4 inch below the top, offering versatility for various pan configurations.
