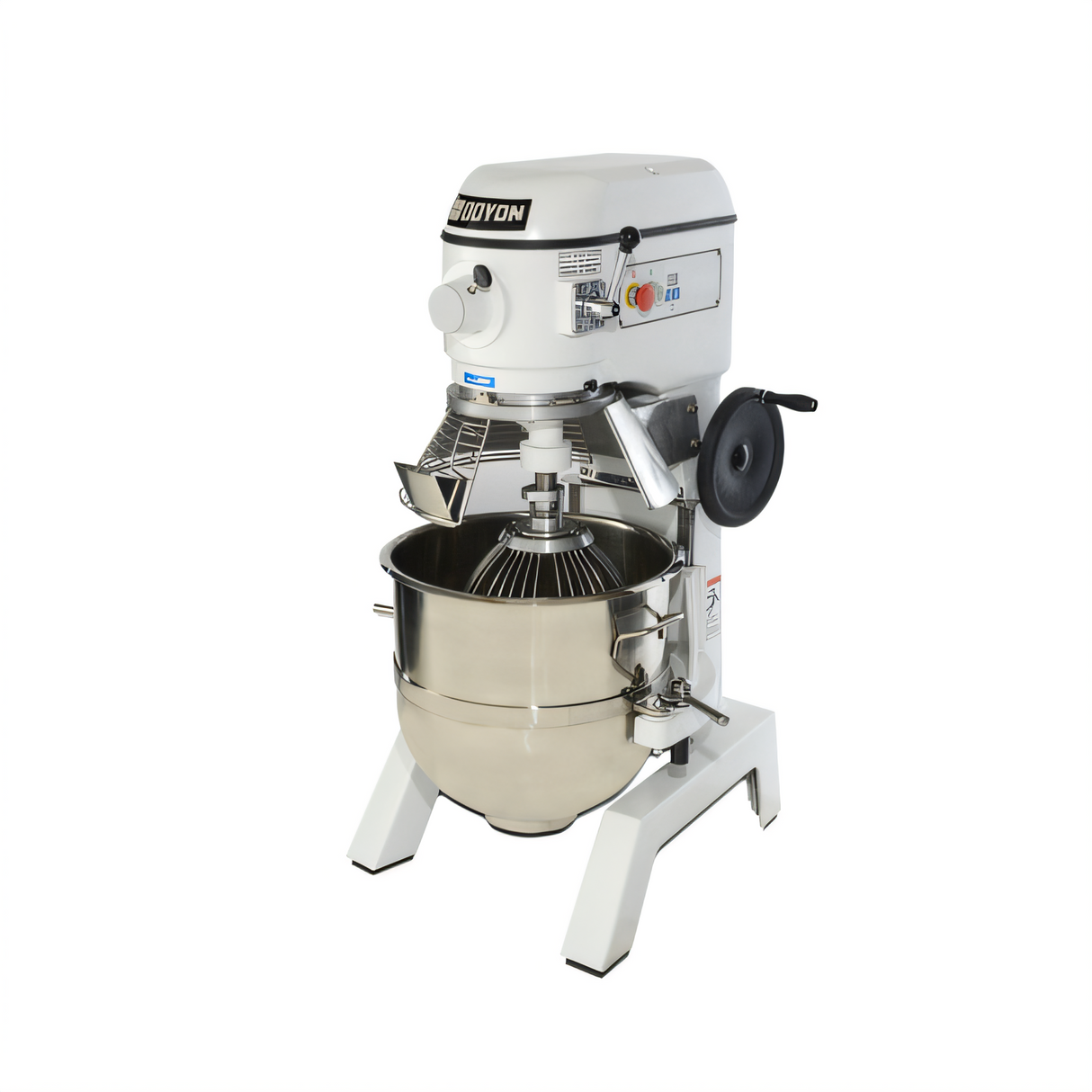

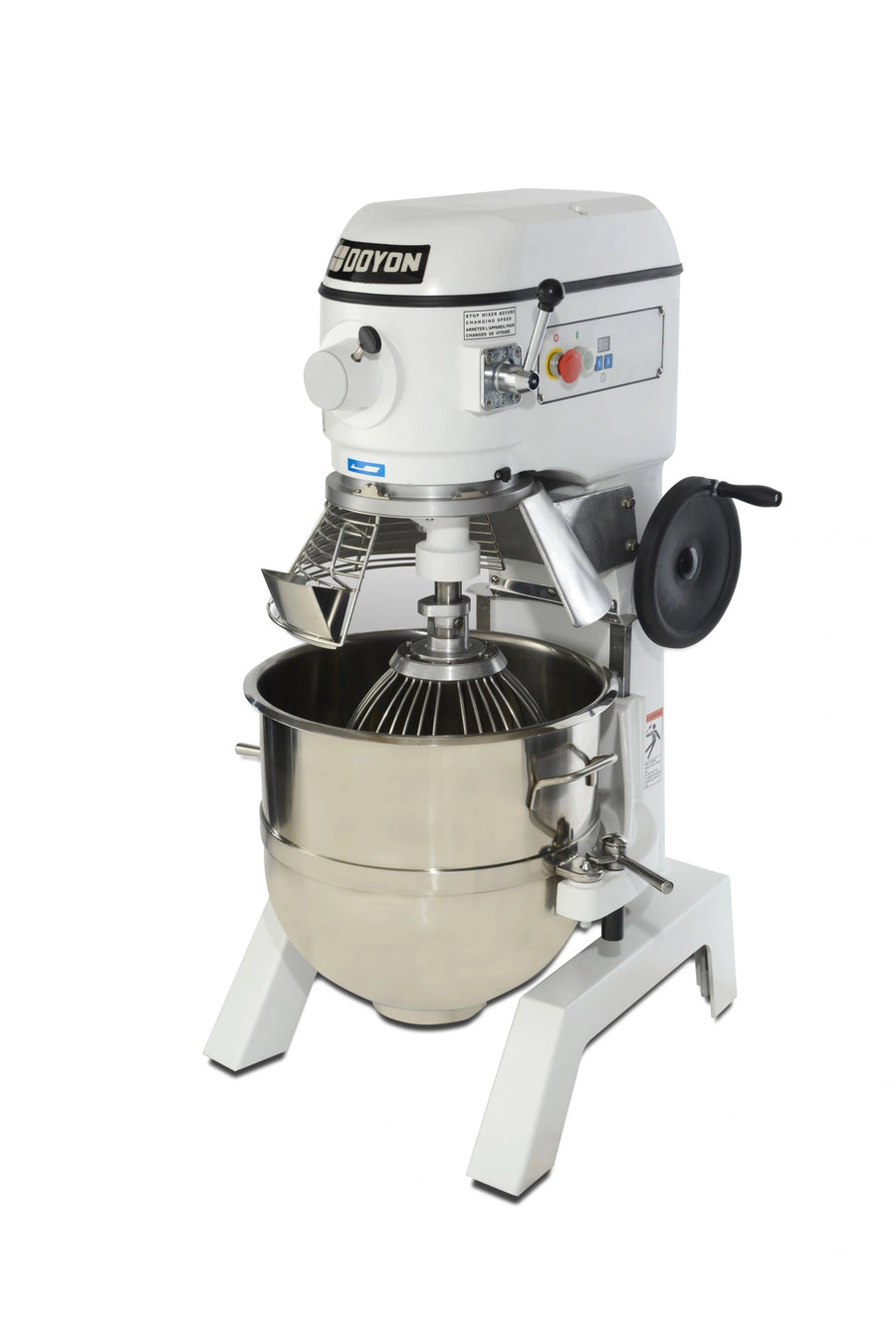

Doyon SM402NA 40-Quart Planetary Mixer
Heavy-duty floor model • gear-driven • 3 speeds & 60-min timerEngineered for non-stop bakery, pizza, and commissary production, the Doyon SM402NA pairs a high-torque 1.5 HP gear-drive with a generous 40-quart bowl—delivering consistent, repeatable results from dense dough to delicate meringue.
Key benefits

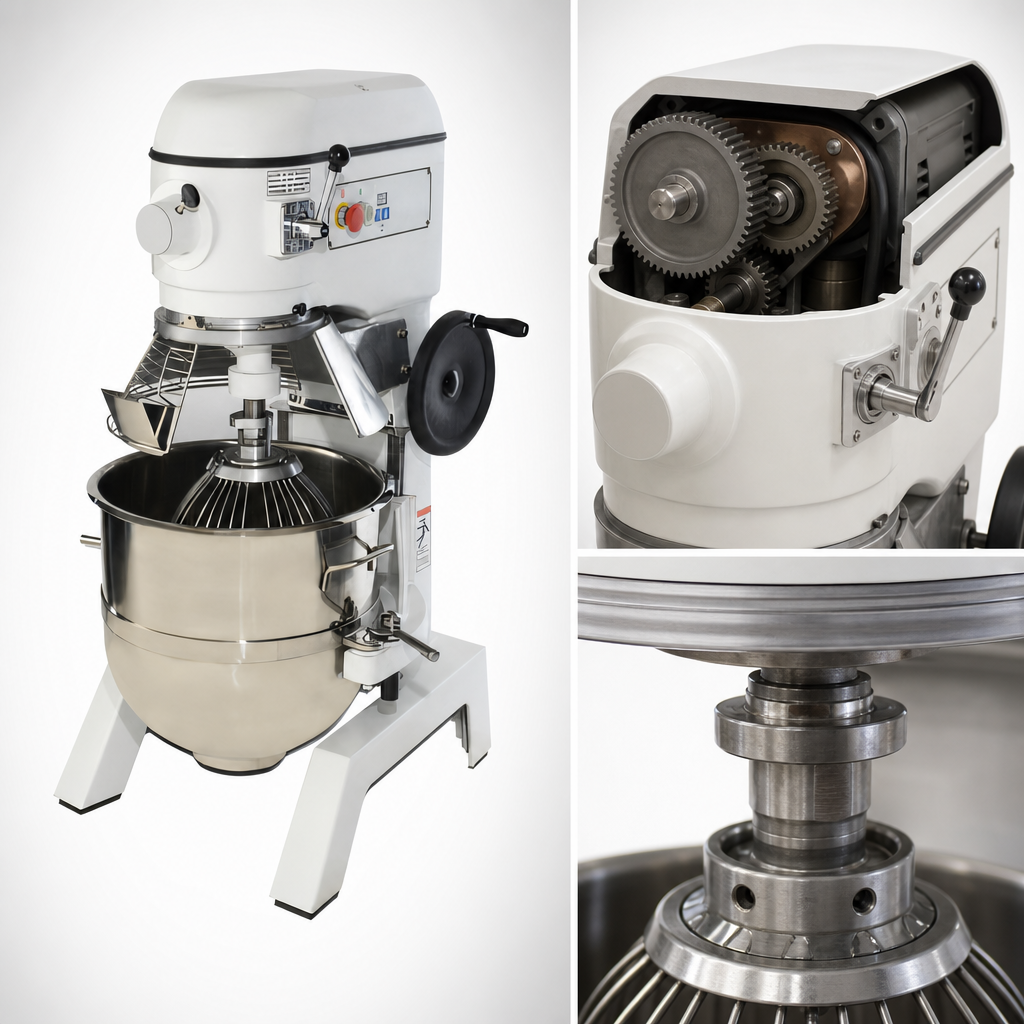

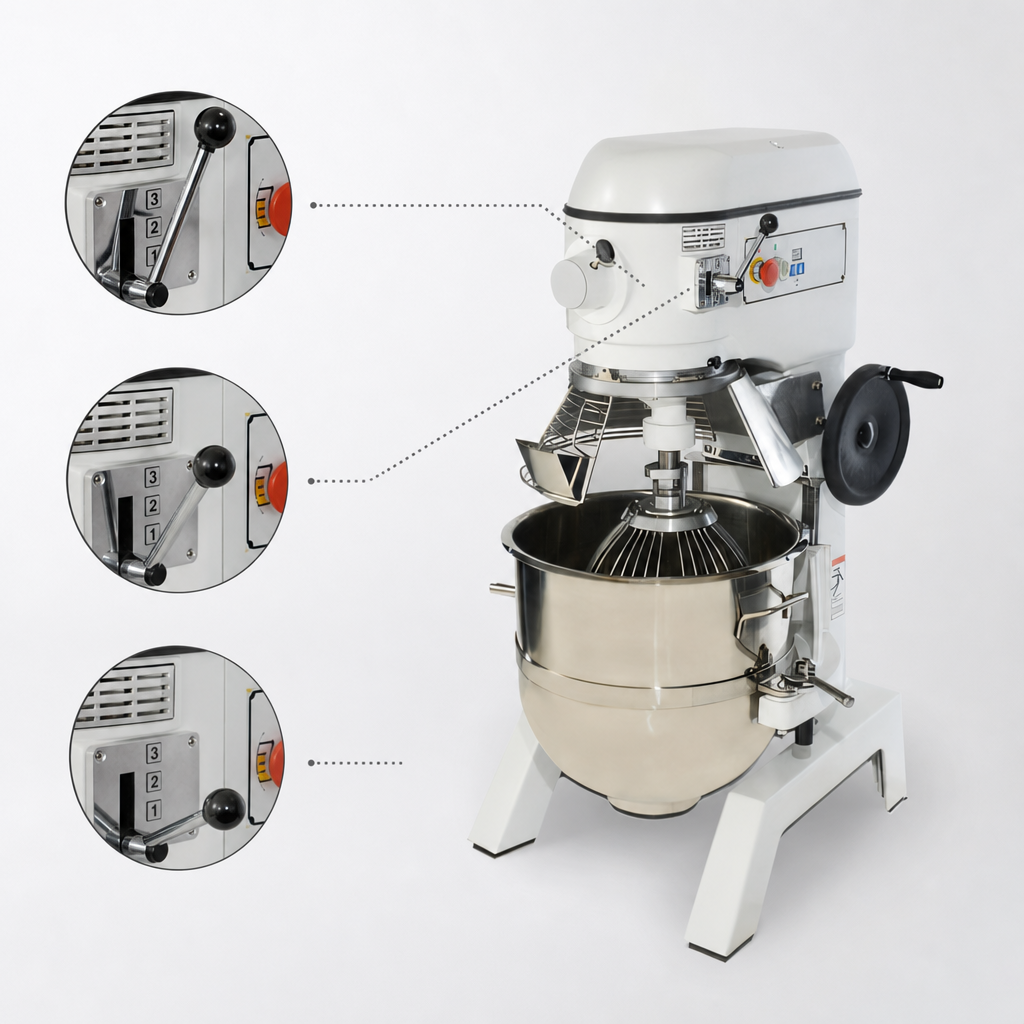

- Three fixed speeds (90 / 170 / 310 RPM) powered by a rugged, low-maintenance gear box.
- 60-minute countdown timer frees operators to multitask without losing track of mix time.
- Stainless bowl guard with integrated ingredient chute & automatic motor cut-off for superior safety.
- Manual bowl lift plus #12 attachment hub expand capabilities to grinding, slicing, shredding, and more.
- Thermal overload protection & prominent emergency stop safeguard both motor and staff.
- Easy-clean, white powder-coated cast-iron frame built to withstand years of commercial wear.
- Ships complete: 40 qt stainless bowl, dough hook, flat beater, and wire whip included.
Specifications
| Model | SM402NA |
|---|---|
| Capacity | 40 qt • 30 lb (13.6 kg) dough @ 50 % AR |
| Speeds | Low 90 RPM | Medium 170 RPM | High 310 RPM |
| Motor | 1.5 HP gear-driven, with thermal overload protection |
| Timer | 0 – 60 minute countdown |
| Included agitators | Dough hook, flat beater, wire whip |
| Attachment hub | #12 standard (accepts meat grinder, slicer, etc.) |
| Construction | Cast-iron body, white powder-coat finish; stainless-steel bowl & guard |
| Dimensions (H × D × W) | 40 1/4" × 26 1/2" × 22" (1022 × 673 × 559 mm) |
| Weight | 575 lb (261 kg) |
| Electrical | 208–240 V / 60 Hz / 1-ph • 3.143 kW • 14 A • NEMA 6-20P |
| Certifications | NSF, cETLus, ETL-Sanitation |
| Warranty | 2 years parts • 1 year labor |
Optional accessories (sold separately)
- SM100HV meat grinder attachment
- SM100CL vegetable & pepperoni slicer with 3-plate cheese shredding kit
Install with at least 6" (152 mm) clearance on all sides. Top and bottom must remain unobstructed for proper ventilation.
Electrical notice: Unit ships with a NEMA 6-20P plug and requires a dedicated
208–240 V, single-phase circuit installed by a qualified electrician.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) SM402NA Planetary Mixers
SKU: SM402NA
$9,254.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Durable 40-qt floor planetary mixer with 3 speeds, 1.5HP motor, timer, safety guard & manual bowl lift—NSF cETLus certified for commercial kitchens.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
NSF, cETLus
Height
40.25in
Width
22.0in
Depth
26.5in
Shipping Weight
575.0lbs
Type
floor model
Attachments
bowl guard, bowl, beater, whip, hook, chute
Hub size
#12 hub
Timer
with timer
Speed
3-speed
Bowl Capacity
30 - 40 quart
Specifications
(MIDDLEBY ESSENTIALS ITEM) Planetary Mixer, floor model, 40 quart capacity, 3 speeds, gear-driven motor, timer, emergency stop, manual bowl lift, includes: stainless steel bowl, safety guard with integrated feed chute, dough hook, whip & flat beater, #12 driven hub, cast iron frame with white powder coated finish, 1-1/2 HP, 208-240v/60/1-ph, 3.143 kW, 14.0 amps, NEMA 6-20P, NSF, cETLus
