Doyon Baking Equipment (Middleby)  |  SKU: SM300

Doyon Baking Equipment (Middleby) SM300 Planetary Mixers

$6,835.40
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Terms & conditions Warranty sheet
Related Searches
Mixers Planetary Mixers

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

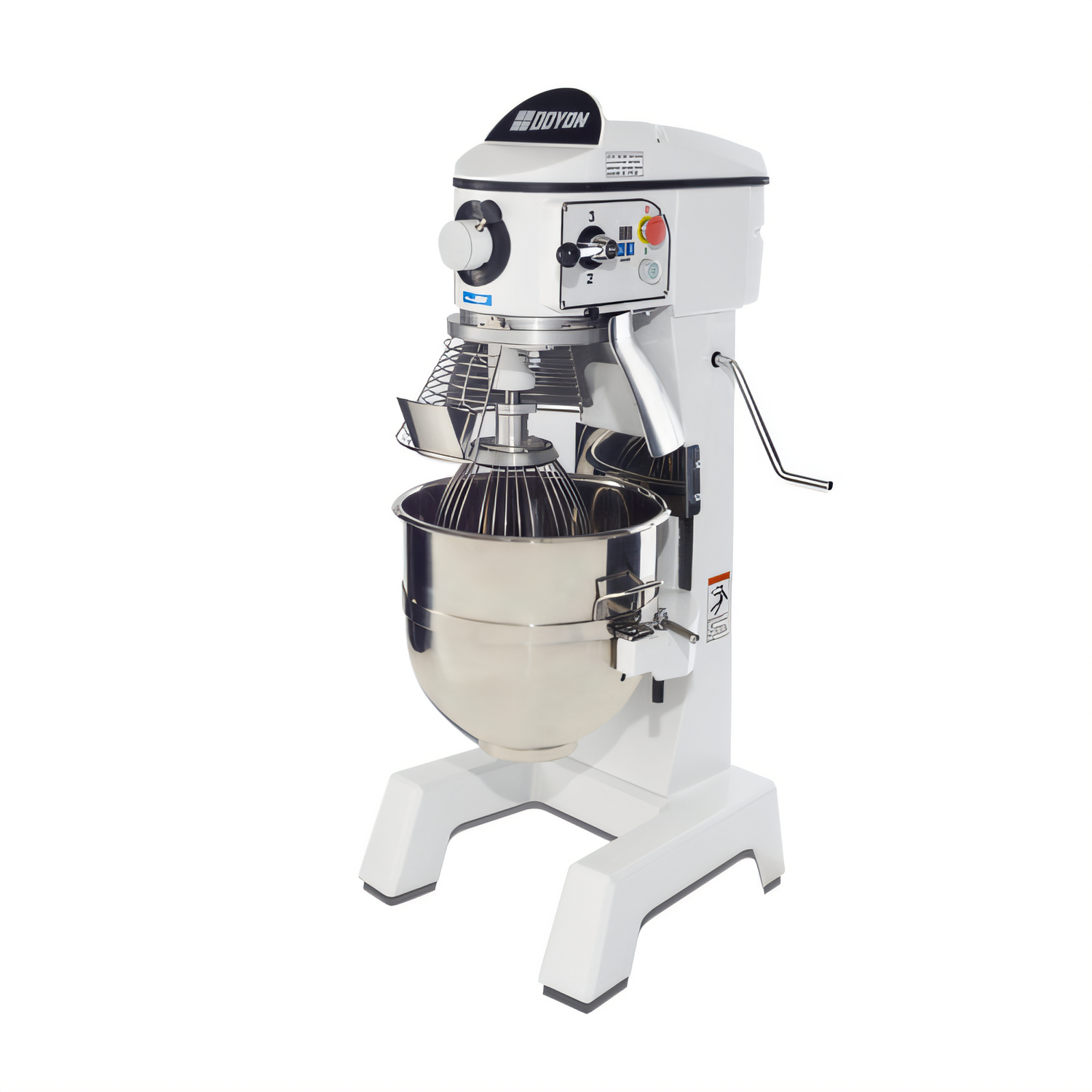

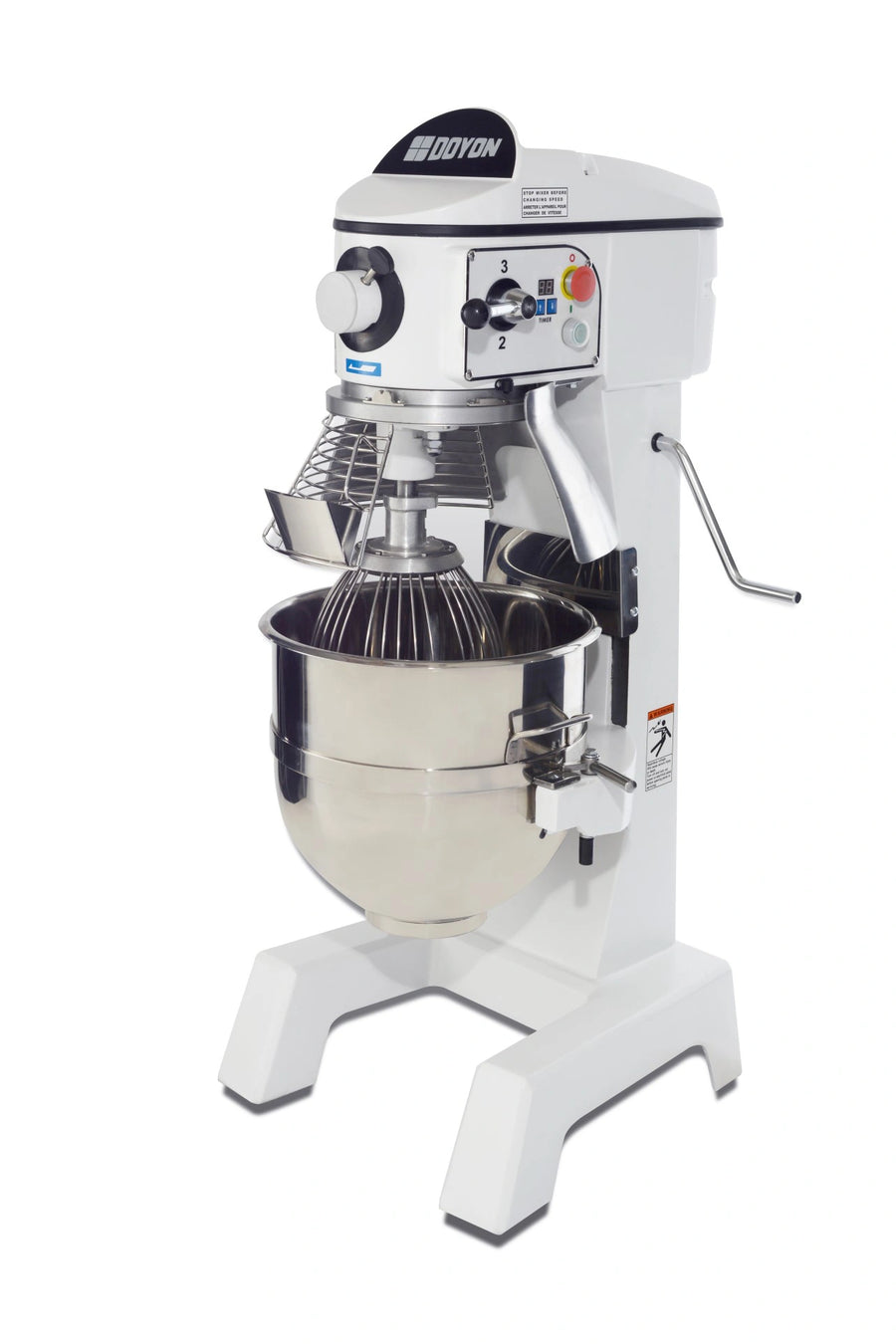

Doyon SM300 30-Quart Planetary Mixer

Heavy-duty floor model with gear-drive power & full accessory package

Built for busy bakeries, commissaries and restaurants, the SM300 delivers consistent, high-torque mixing in a compact 30-quart footprint. A rugged cast-iron frame, intuitive controls and a complete set of stainless-steel accessories let you tackle everything from artisan doughs to fluffy meringues with total confidence.

Key Features

  • 30 qt stainless-steel bowl with manual bowl lift

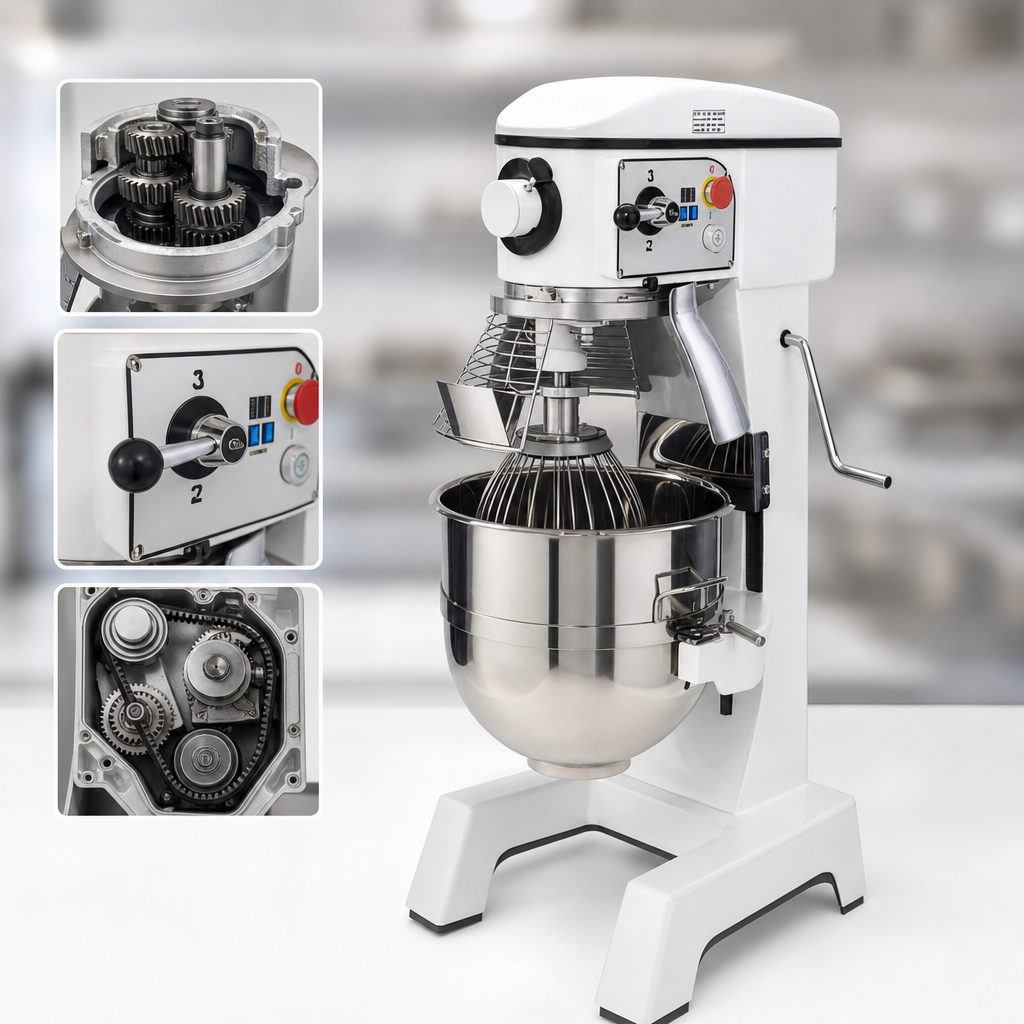

  • Gear-driven 1 HP motor for constant torque at all loads
  • Three fixed speeds — 95, 176 & 321 RPM — perfect for dough, batter or whip tasks

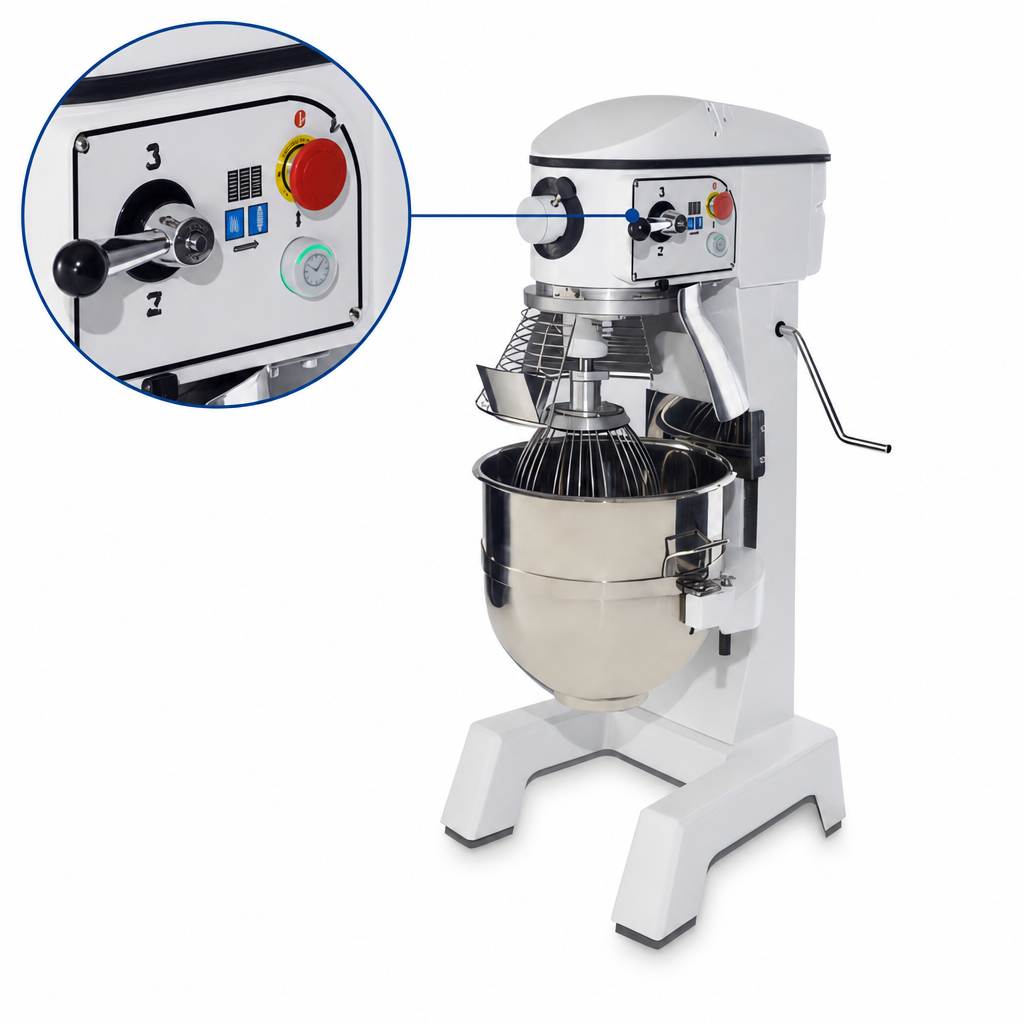

  • 60-minute countdown timer with automatic shut-off
  • Emergency stop button & thermal overload protection
  • Stainless safety guard with integrated ingredient feed chute; interlock cuts power when open
  • #12 powered hub accepts meat grinders, slicers and more
  • Easy-to-clean white powder-coated cast-iron construction
  • NSF, cETLus & ETL-Sanitation listed for commercial use

What’s in the Box

  • 30 qt stainless-steel bowl
  • Dough hook (spiral)
  • Wire whip
  • Flat beater (paddle)
  • Ingredient/feed chute
  • Factory-installed NEMA 5-20P power cord

Performance & Safety Advantages

  • Gear drive never slips — ideal for stiff doughs up to 15 lb (50 % absorption)
  • All-metal transmission for long service life and low maintenance
  • Interlocked bowl guard prevents operation until properly closed
  • Manual bowl lift keeps mechanisms simple and reliable; no hydraulics to fail
  • 6 in. minimum clearance on all sides assures adequate ventilation

Specifications

Capacity 30 qt (28.4 L)
Speeds / RPM Low 95 RPM  |  Med 176 RPM  |  High 321 RPM
Motor 1 HP, gear-driven with thermal overload
Electrical 120 V / 60 Hz / 1-phase  |  1.92 kW • 16 A
Plug NEMA 5-20P (factory wired)
#12 Hub Yes — drives meat grinder, slicer, etc.
Dimensions (W × D × H) ≈ 23 in × 22 in × 48 in (584 × 559 × 1219 mm)
Shipping Weight 525 lb (238 kg)
Certifications NSF, cETLus, ETL-Sanitation
Warranty 2 yr parts / 1 yr labor limited warranty

Optional Attachments

  • SM100HV – Meat Grinder
  • SM100CL – Vegetable & Pepperoni Slicer (includes three cheese-shredding plates)
Power Note: This mixer draws up to 16 amps. Use a dedicated 120 V, 20 A circuit and keep 6 in. of clearance on all sides for safe operation.

Specifications are subject to change without notice. Always refer to the installation manual for full guidelines before setup.

Features & Specs

Manufacturer

Doyon Baking Equipment (Middleby)

Certifications

NSF, cETLus

Height

48.5in

Width

22.5in

Depth

23.25in

Shipping Weight

525.0lbs

Type

floor model

Bowl Capacity

30 - 40 quart

Hub size

#12 hub

Timer

with timer

Attachments

bowl guard, bowl, beater, whip, hook, chute

Speed

3-speed

Specifications

Planetary Mixer, floor model, 30 quart capacity, 3 speeds, gear-driven motor, timer, emergency stop, manual bowl lift, includes: stainless steel bowl, safety guard with integrated feed chute, dough hook, whip & flat beater, #12 driven hub, cast iron frame with white powder coated finish, 1 HP, 120v/60/1-ph, 1.92 kW, 16.0 amps, NEMA 5-20P, NSF, cETLus
