Doyon Baking Equipment (Middleby)

Doyon SM200 Floor Model Planetary Mixer, 20 Qt, 3-Speed, 1/2 HP, 120V

SKU: SM200
$4,274.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Commercial Mixers Doyon Baking Equipment (Middleby) Food Prep Equipment Mixers New Arrivals Planetary Mixers Restaurant Equipment

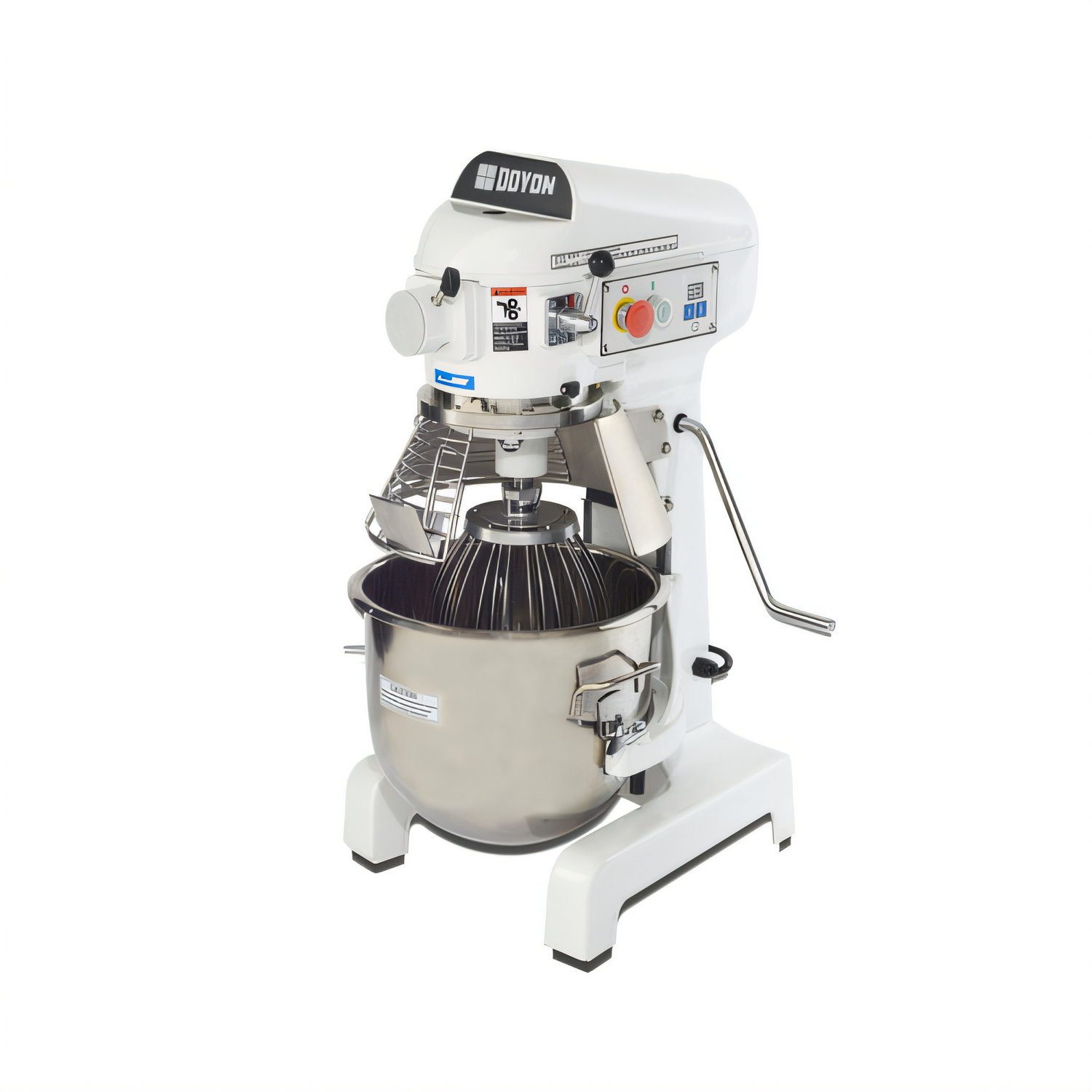

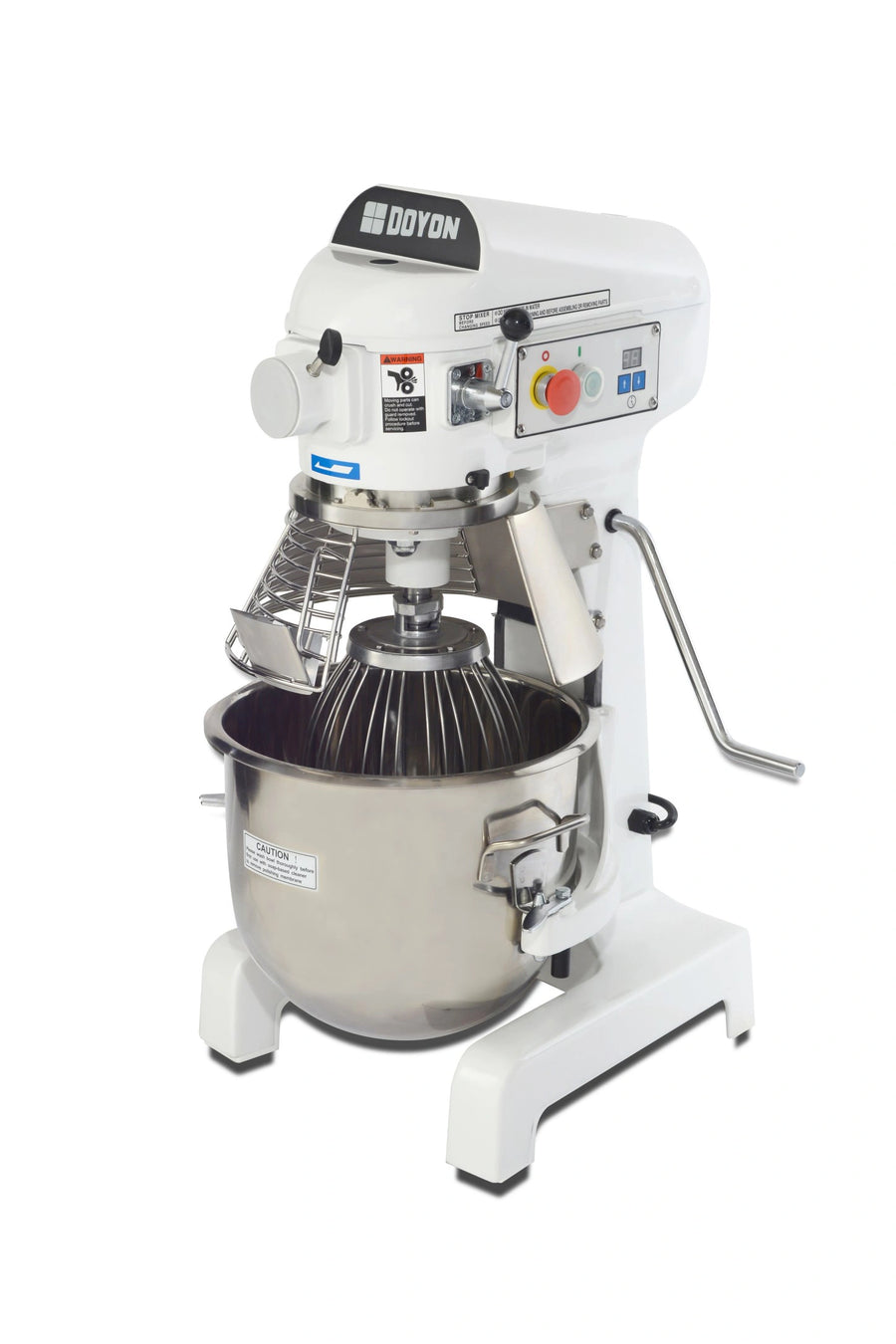

Doyon SM200 Floor Model Planetary Mixer, 20 Qt, 3-Speed, 1/2 HP, 120V

Gear-driven motor, manual bowl lift, and included bowl/attachments

Built for dependable commercial prep, this 20-quart floor mixer combines a 3-speed gear-driven motor, safety-focused operation, and included mixing accessories in one heavy-duty package.

  • 20-quart floor model planetary mixer for commercial kitchens and prep rooms.
  • 3-speed gear-driven motor delivers flexible mixing control for a range of batch types.
  • Ships with stainless steel bowl, safety guard with integrated feed chute, dough hook, wire whip, and flat beater.
  • 60-minute countdown timer, emergency stop, and automatic motor cut-off help support safe operation.
  • Manual bowl lift and #12 hub expand versatility with compatible attachments.
  • Heavy-duty cast iron frame with easy-to-clean white powder-coated finish.
  • 120V single-phase power with standard NEMA 5-15P plug.

Overall Dimensions:

22.0"W x 22.25"D x 33.25"H

Product Weight:

250.0 lb

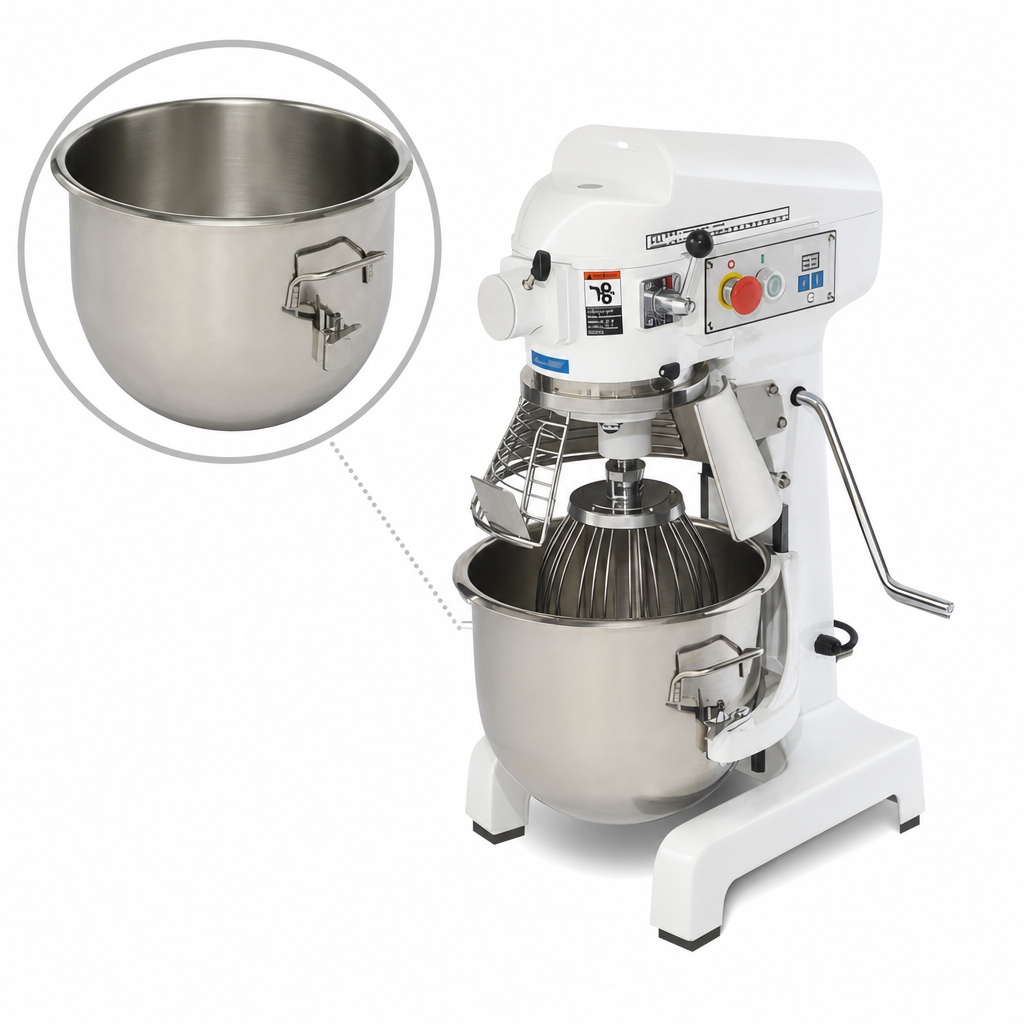

20-Quart Stainless Steel Bowl

Sized for medium batch mixing and included with the mixer.

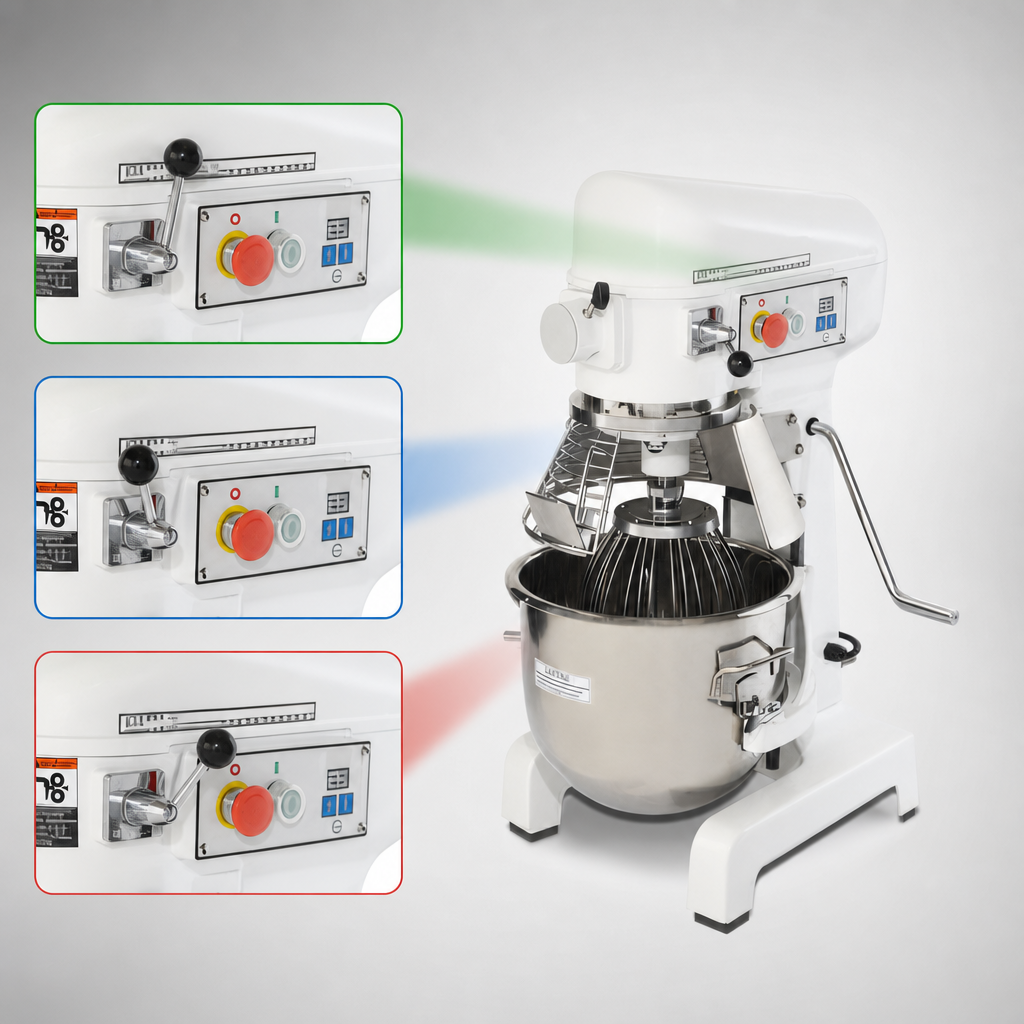

3-Speed Gear-Driven Motor

Provides low, medium, and high mixing speeds for greater control over different ingredients.

60-Minute Countdown Timer

Helps support repeatable batch timing during mixing.

Safety Guard with Integrated Feed Chute

Helps protect the operator while allowing ingredients to be added during operation.

Manual Bowl Lift

Simple manual bowl positioning for loading, mixing, and removal.

Emergency Stop

Provides an immediate stop control for added operator safety.

Thermal Overload Protection

Helps protect the motor during extended or demanding use.

#12 Attachment Hub

Compatible with optional attachments for expanded mixer functionality.

Included Mixing Package

Includes the stainless steel bowl, dough hook, wire whip, flat beater, and ingredient chute.

Cast Iron Frame with Powder-Coated Finish

Durable construction designed for commercial use and easier cleaning.

Type Mixer
Style Planetary
Installation Type Floor Model
Capacity 20 Quarts
Horsepower 1/2 HP
Speeds 3
Hub Size #12
Material Cast Iron
Finish White Powder Coated
Voltage 120 Volts
Amps 12 Amps
Watts 1.44 kW
Hertz 60 Hz
Phase 1-Phase
Plug Type NEMA 5-15P
Shipping Width 22 Inches
Shipping Depth 23 Inches
Shipping Height 34 Inches
Shipping Weight 250 lb.
Selling Unit Each
Units Per Case 1

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

1 year labor, 2 years parts

Documents

PDF Cutsheet PDF Download PDF Middleby financial flyer PDF Download PDF Terms & conditions PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It includes a 20-quart stainless steel bowl, safety guard with integrated feed chute, dough hook, wire whip, flat beater, and ingredient chute.
It has 3 speeds: low at 107 RPM, medium at 198 RPM, and high at 361 RPM.
The mixer requires 120V, 60 Hz, single-phase power, draws 12 amps, and comes with a NEMA 5-15P plug.
Safety features include a wire guard with automatic motor cut-off, an emergency stop, and thermal overload protection.
Documented accessories include the SM100HV meat grinder attachment, SM100CL vegetable and pepperoni slicer with 3 cheese shredding plate, and the SM200T equipment stand.
The mixer carries a limited warranty of 1 year labor and 2 years parts for the original purchaser in the United States and Canada.
