Doyon Baking Equipment (Middleby) KDPR33 Dough Proofers & Retarders
Doyon Baking Equipment (Middleby) KDPR33 Dough Proofers & Retarders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Doyon Baking Equipment (Middleby) KDPR33 Dough Proofers & Retar...
Description

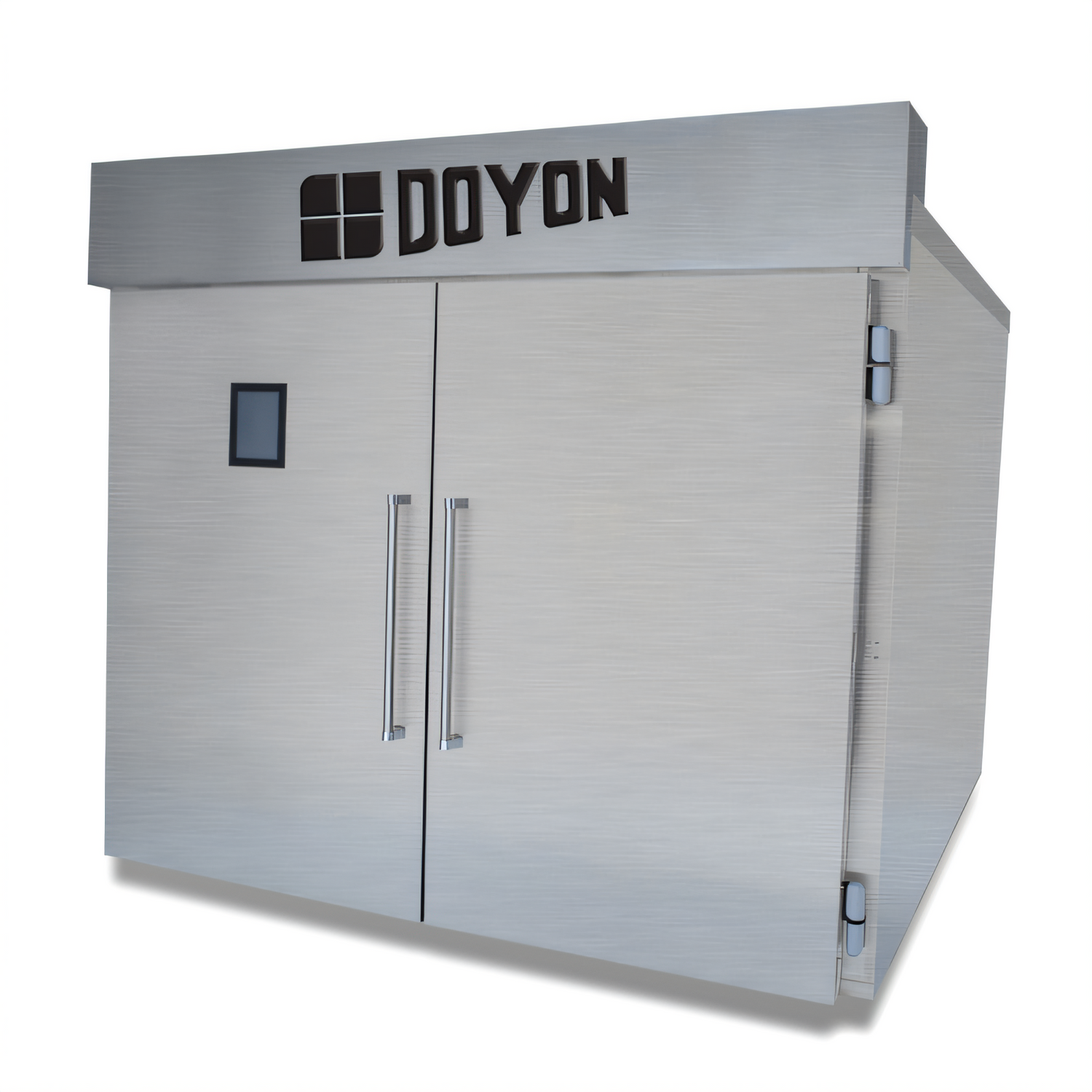

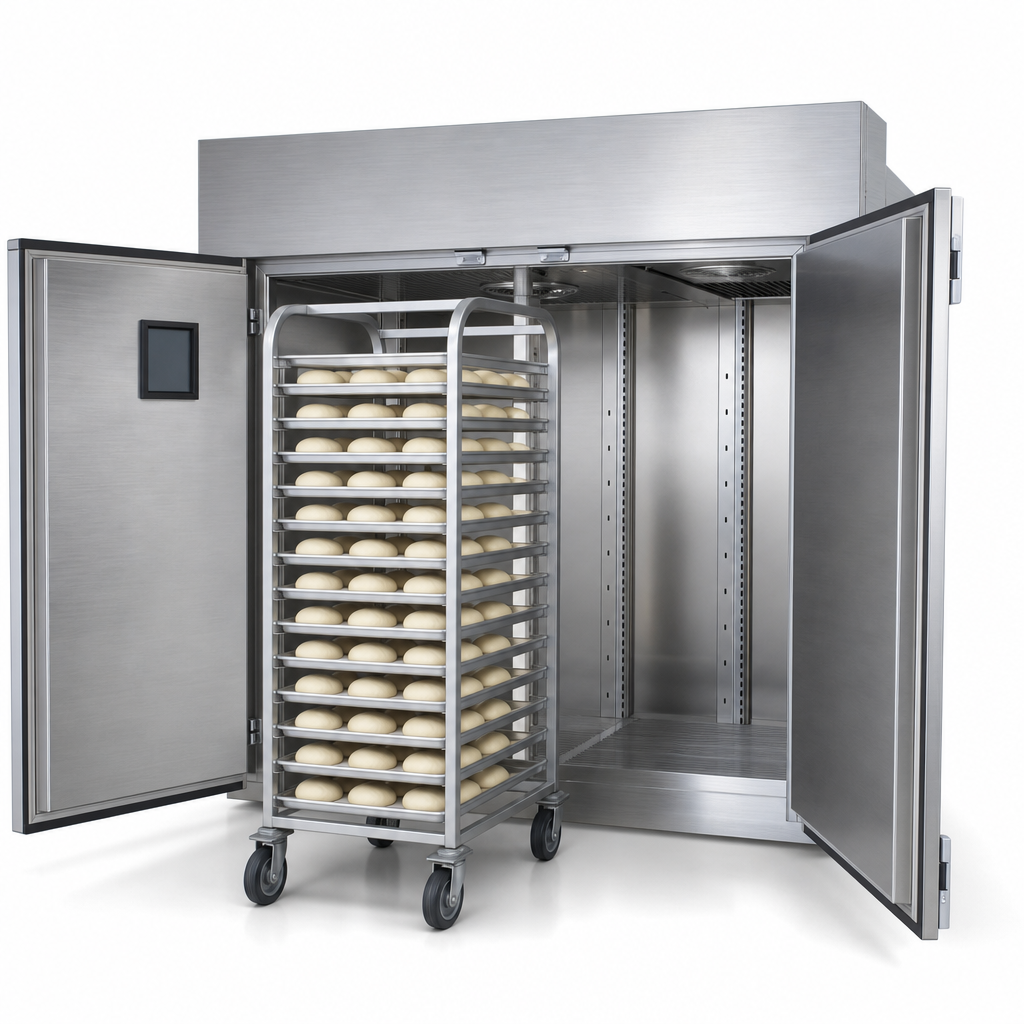

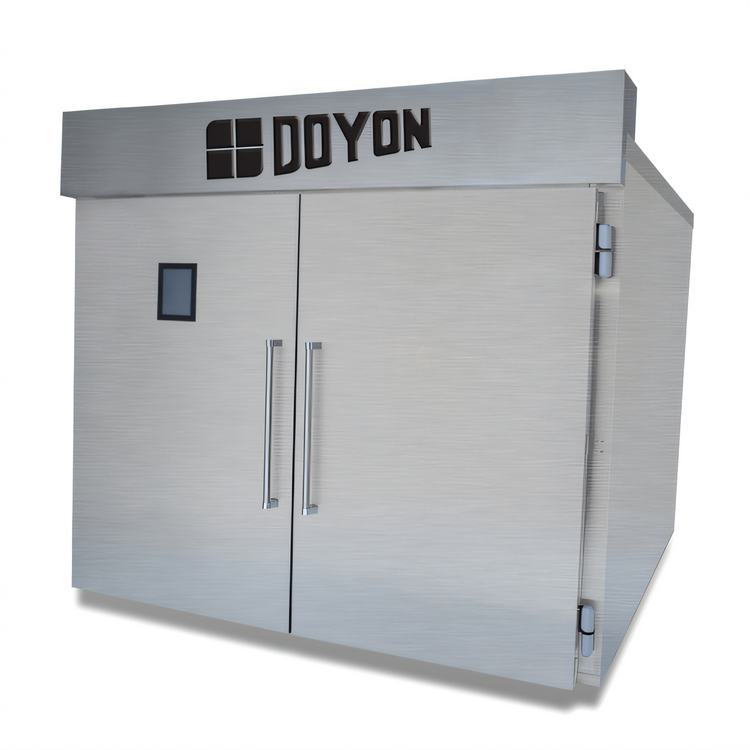

Knock-Down Roll-In Retarder/Proofer Cabinet – 3-Section
Doyon Baking Equipment • cETLus & NSF • Made in USAExpand your production capacity while protecting dough quality with the Doyon three-section knock-down retarder/proofer. This roll-in cabinet combines precise refrigeration, humidity and gentle air flow to let you cold-retard, hold and proof up to 9 double side-load, 16 single end-load or 18 single side-load racks* in one seamless workflow. Heavy-duty stainless construction ships knocked-down to slide through 36" doorways, then bolts together in a matter of hours for years of dependable, high-volume service.
Why Bakers Choose Doyon
- Intuitive digital touchscreen stores programmable retarder, proof & hold recipes.
- Automatic water fill—single ¼" cold-water line, no water pans to refill.
- Proofing range from room temperature to 110 °F (43 °C); up to 95 % RH.
- Even-airflow system keeps every rack at the same temperature & humidity.
- Energy-efficient, field-proven R-134a refrigeration module.
- Modular, insulated panels lock together quickly and keep heat/cold where it belongs.
- Expandable design—add more sections as your bakery grows.

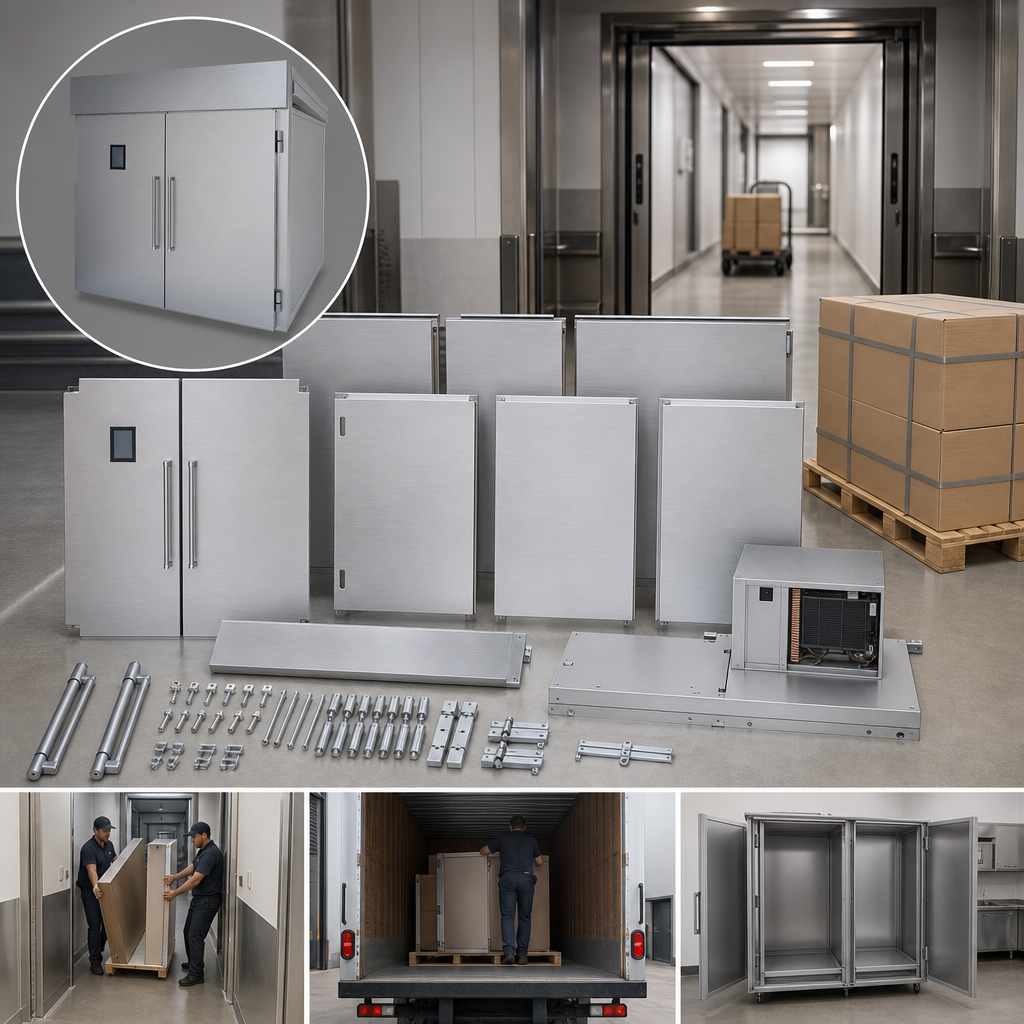

- Ships knock-down to minimize freight cost and fit through tight spaces.
- Backed by a 2-year parts / 1-year labor warranty and nationwide service network.
At-a-Glance Specifications
| Capacity* | (9) double side-load, (16) single end-load, or (18) single side-load racks |
|---|---|
| Sections / Doors | 3 sections / 2 tall stainless swing doors (left door carries control) |
| Controls | Touchscreen, programmable; retarder, proof & hold modes |
| Temperature Range | Retard 34–40 °F • Proof ambient–110 °F (43 °C) |
| Relative Humidity | Up to 95 % |
| Refrigerant | R-134a (eco-friendly, non-ozone depleting) |
| Exterior / Interior | All stainless steel, foamed-in-place insulated panels |
| Water Connection | ¼" OD tube cold water, 15–25 psi |
| Drain | ½" rear drain connection (floor drain required) |
| Electrical (standard) | 208/240 V, 1-ph, 72/63 A, 15 kW 208/240 V, 3-ph, 42/36 A, 15 kW |
| Overall Dimensions | W 107" × D 127 3⁄8" × H 101" (2720 × 3235 × 2565 mm) |
| Certifications | cETLus, NSF, Made in the USA |
| Warranty | 2 years parts • 1 year labor |
Installation Requirements
- Minimum clearances: 1" sides, 3" rear, 19" top; 10' ceiling height for service access.
- Non-combustible, level floor (±⅛" per foot); floor drain directly behind cabinet.
- Dedicated electrical circuit sized per the chosen voltage/phase.
- Use Doyon water filter #50-1530 or equivalent to maintain water quality and warranty.
*Rack capacities based on 18" × 26" pan footprint. Specifications subject to change without notice.
