Doyon Baking Equipment (Middleby)

Doyon KDPR31 Knockdown Roll-In 3-Section Retarder Proofer Cabinet

SKU: KDPR31
$38,720.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to ?
Want to speak to an expert?
(888) 307-5030
Chat
Bulk pricing available

Related Searches

Best Sellers Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Dough Proofers & Retarders Doyon Baking Equipment (Middleby) New Arrivals Restaurant Equipment

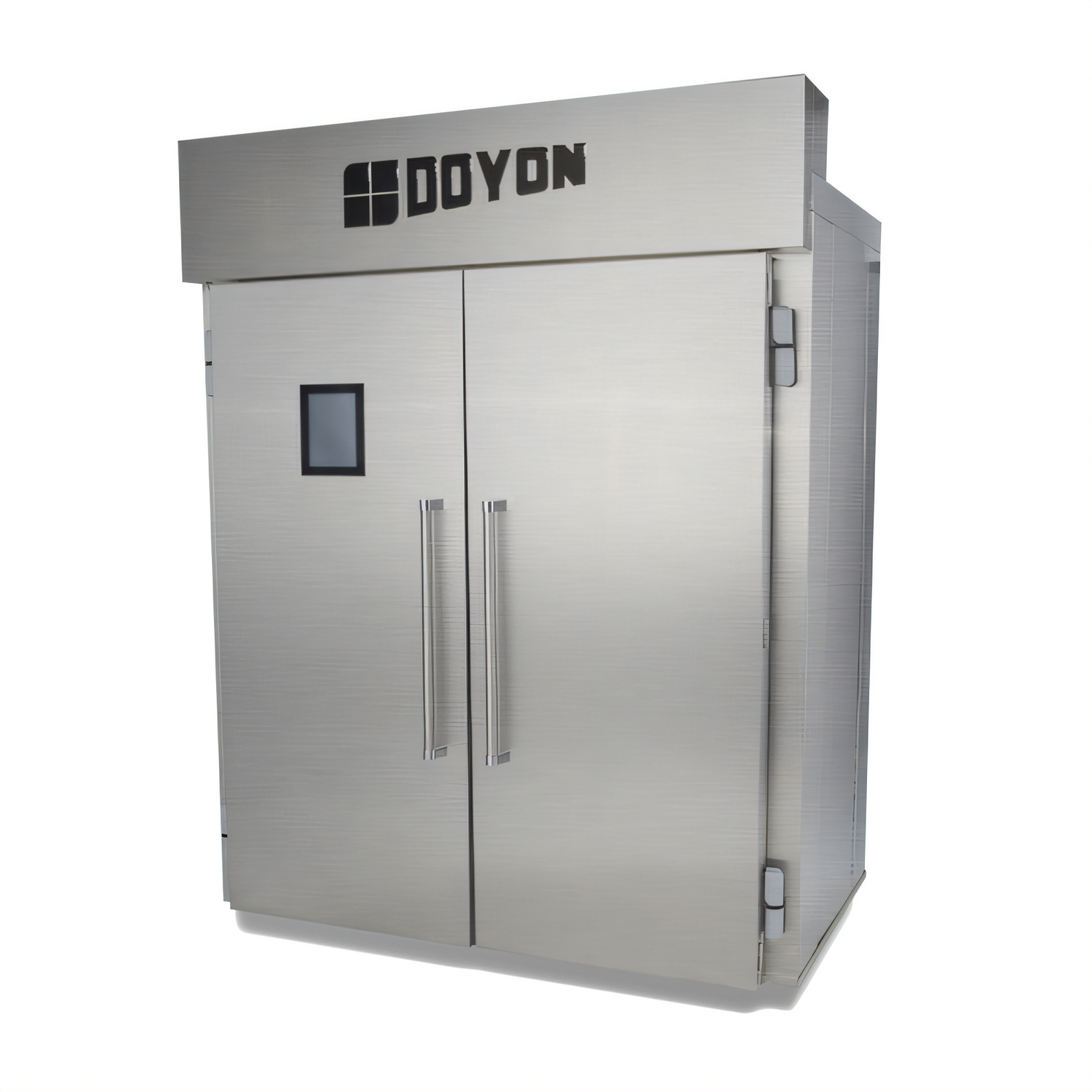

Doyon KDPR31 Knockdown Roll-In 3-Section Retarder Proofer Cabinet

Self-Contained R134a Refrigeration, Digital Touchscreen, Stainless Steel

Built for high-volume bakery operations, this roll-in knockdown retarder proofer delivers controlled proofing with self-contained refrigeration, auto-fill humidity, and a durable stainless steel build.

  • Knockdown, roll-in cabinet simplifies delivery and installation in tight spaces.
  • Three-section layout supports up to 3 double side-load racks, 4 single end-load racks, or 6 single side-load racks.
  • Digital touchscreen control gives operators straightforward proofing and retarding adjustments.
  • Auto-fill humidity and a required cold water line help maintain consistent proofing conditions.
  • Self-contained R134a refrigeration keeps the cooling system built into the cabinet.
  • Stainless steel construction, insulated panels, and an expandable design support durability and future growth.

Overall Dimensions:

107.0"W x 44.38"D x 94.19"H

Product Weight:

1472.0 lb

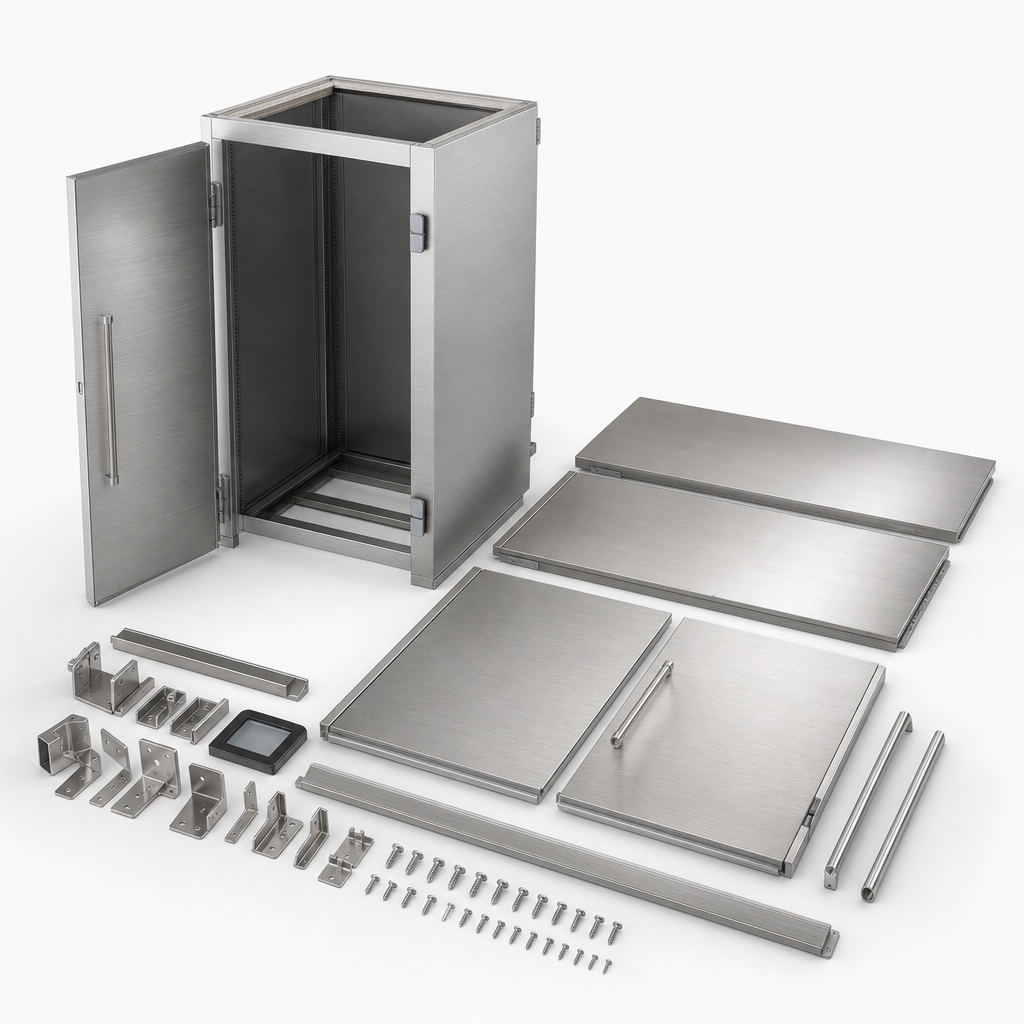

Knockdown Construction

Ships disassembled for easier freight handling and site placement.

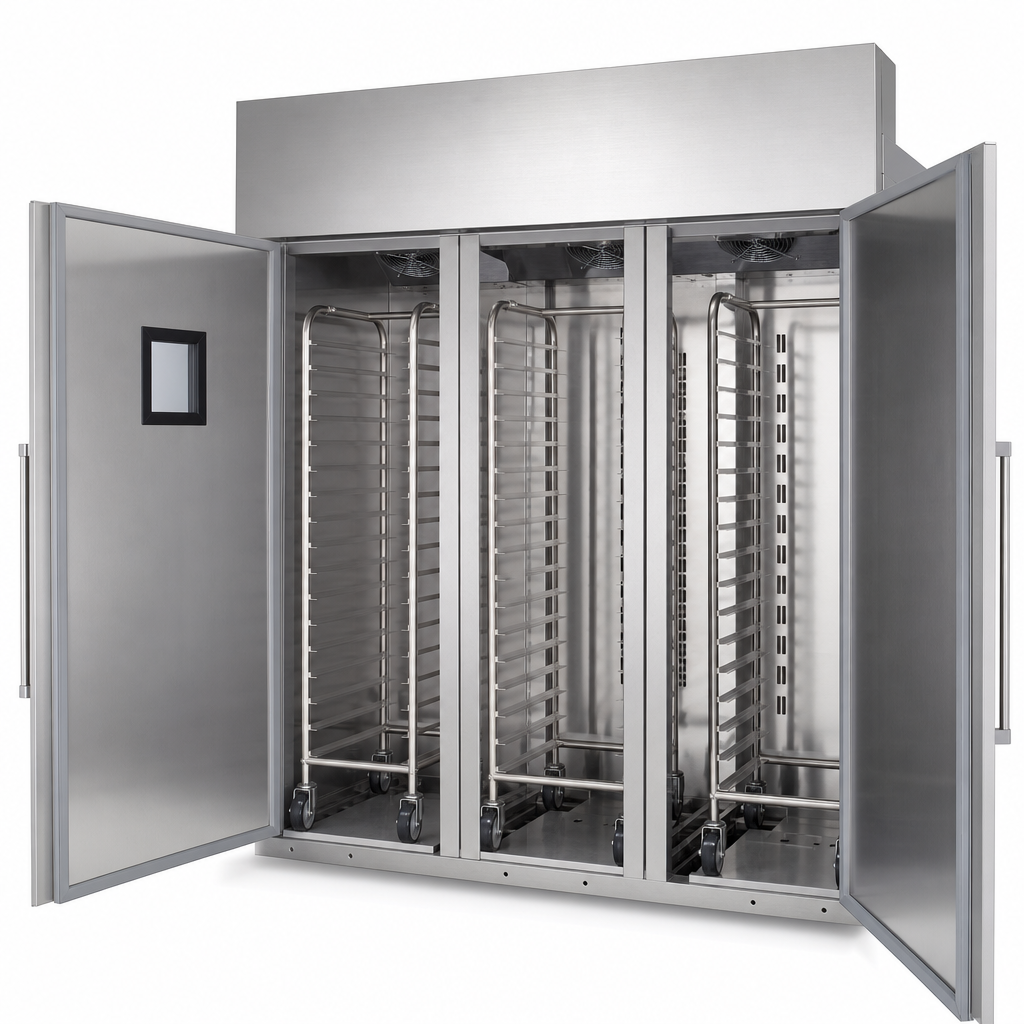

Roll-In, Three-Section Design

Floor-standing cabinet is designed to accept large rack loads across three sections.

Rack Capacity

Holds up to 3 double side-load racks, 4 single end-load racks, or 6 single side-load racks.

Dual Doors

Two doors provide access to the cabinet sections for loading and unloading.

Digital Touchscreen Control

A single digital touchscreen offers simple control of proofing settings.

Auto-Fill Humidity System

Automatically maintains humidity and requires only one water line.

Self-Contained R134a Refrigeration

Built-in refrigeration uses R134a refrigerant for an all-in-one system.

Stainless Steel Construction

Stainless steel exterior and interior with insulated panels support durability and easier cleanup.

Expandable Design

Designed to expand as bakery operations and capacity needs grow.

Type Retarder Proofer Cabinet
Style Roll-In
Installation Type Floor Model
Compartments 3
Capacity 3 Double Side Load Racks / 4 Single End Load Racks / 6 Single Side Load Racks
Controls Digital Touchscreen
Refrigeration Type Self-Contained
Refrigerant Type R134a
Material Stainless Steel
Interior Finish Stainless Steel
Water Connection Required
Water Inlet Size 1/4 Inch Tube
Drain Connection Required
Drain Connection Size 1 1/2 Inches Diameter
Voltage 208/240 Volts
Amps 48/42 Amps
Watts 10 kW
Hertz 60 Hz
Phase 1-Phase
Country of Origin USA
Selling Unit Each
Units Per Case 1
Shipping Width 107 Inches
Shipping Depth 45 Inches
Shipping Height 95 Inches
Shipping Weight 1472 lb.

Certifications & Compliance

Certified badge of NSF Certified
NSF Certified

Warranty & Protection

2-year parts, 1-year labor

Documents

PDF Cutsheet PDF Download PDF Site inspection PDF Download PDF Terms & conditions PDF Download PDF Middleby financial flyer PDF Download PDF Warranty sheet PDF Download

Frequently Asked Questions

It holds up to 3 double side-load racks, 4 single end-load racks, or 6 single side-load racks.
The KDPR31 is available in 208V or 240V, single-phase, 60 Hz, with 48 amps at 208V or 42 amps at 240V.
Yes. It requires a 1/4 inch cold water line at 15-25 PSI and a 1-1/2 inch rear drain connection. Drain is not included.
Minimum clearances are 1 inch on the sides, 19 inches on top, and 3 inches at the rear. A 10-foot ceiling height is required, and 1 inch of clearance between the proofer and oven is recommended.
Doyon offers a two-year parts and one-year labor limited warranty in the U.S. and Canada, with racks and bread cabinets excluded.
