Doyon Baking Equipment (Middleby)  |  SKU: KDPR23

Doyon Baking Equipment (Middleby) KDPR23 Dough Proofers & Retarders

$85,275.85
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Site inspection Terms & conditions Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

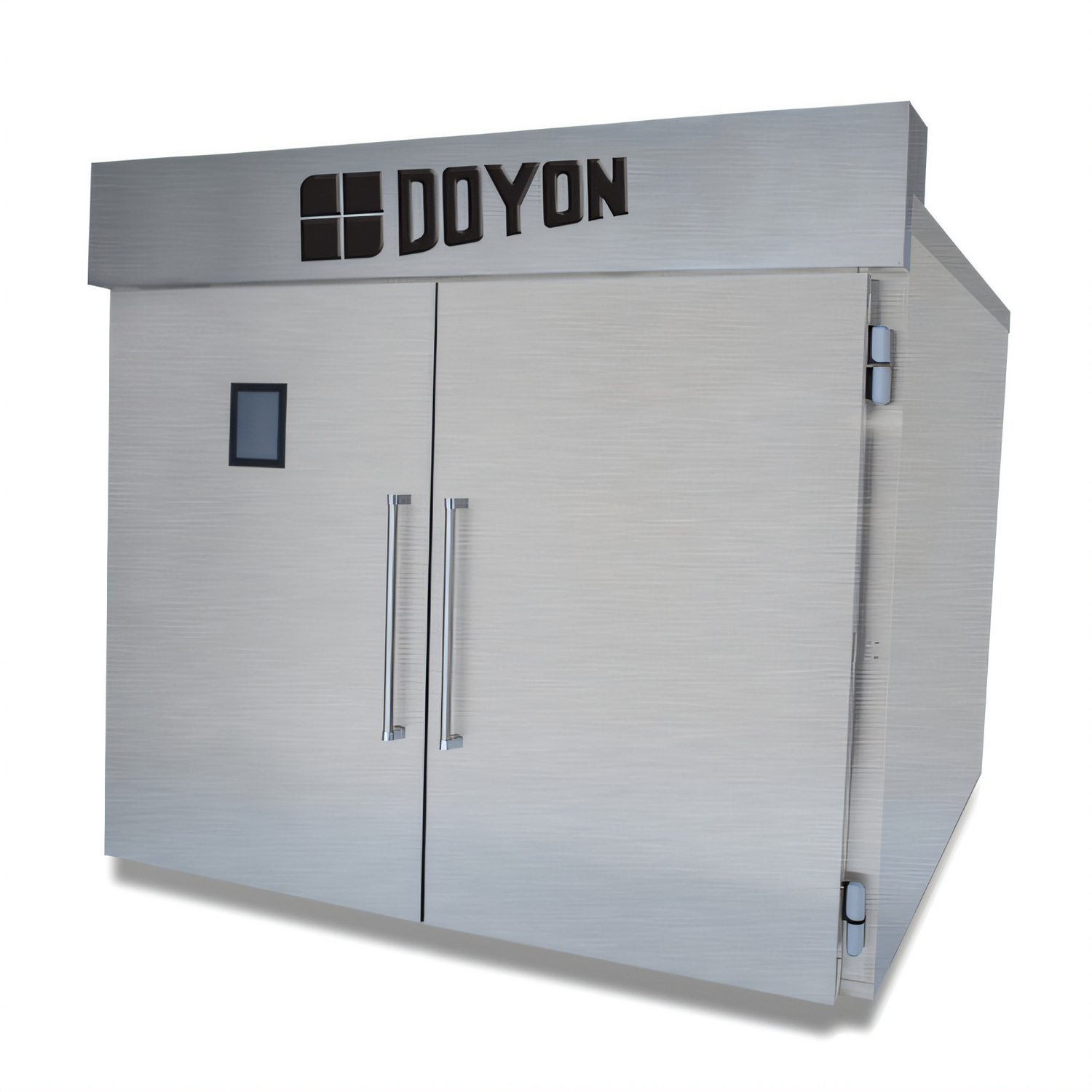

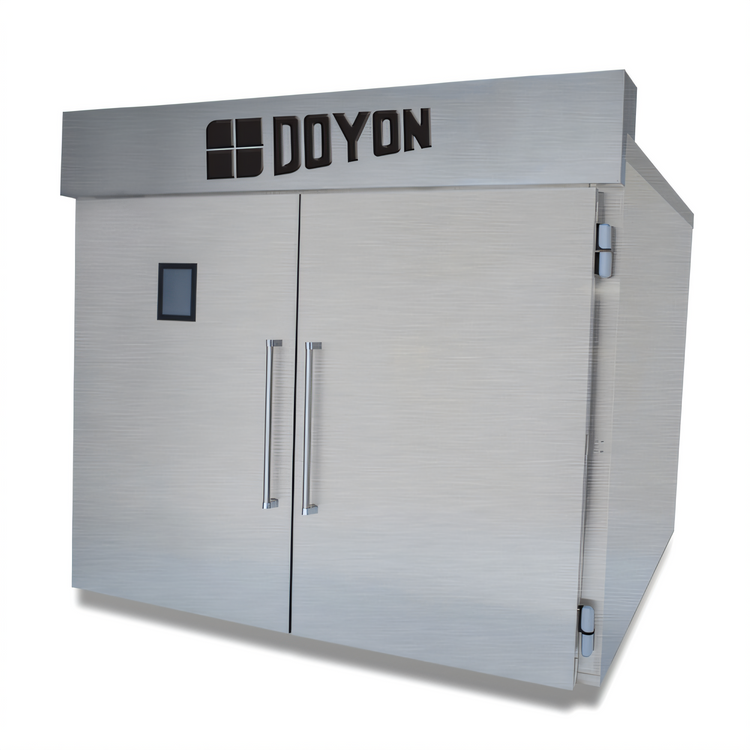

Knock-Down Roll-In Retarder/Proofer – 2-Section

High-capacity cabinet for up to 12 racks • ETL & NSF certified

Engineered by Doyon, this expandable knock-down retarder/proofer gives busy bakeries the precision of digital touchscreen control and the flexibility of roll-in rack operation—all in a rugged, stainless-steel package that ships through any standard doorway.

Why you’ll love it

  • Holds 6 double side-load or 12 single end/side-load racks (racks not included)

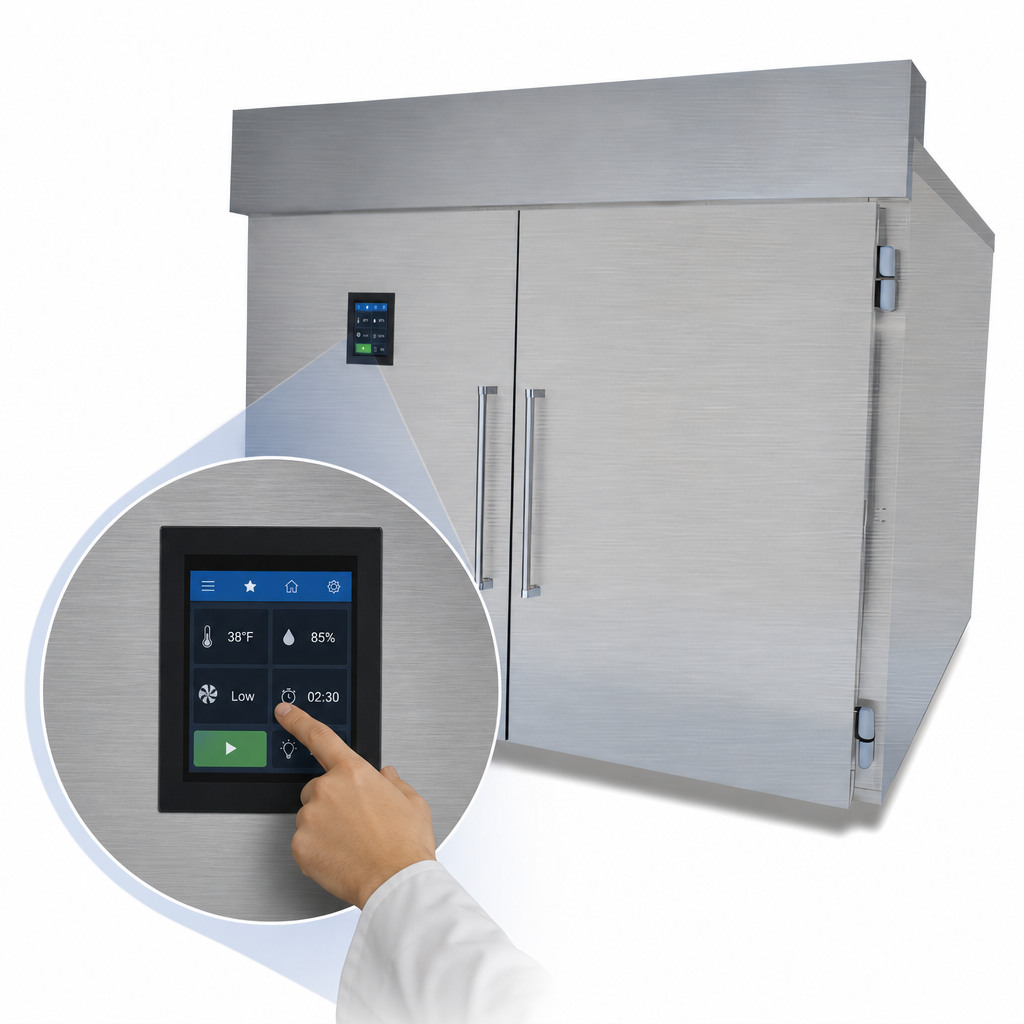

  • Program & store recipes on the intuitive touchscreen control

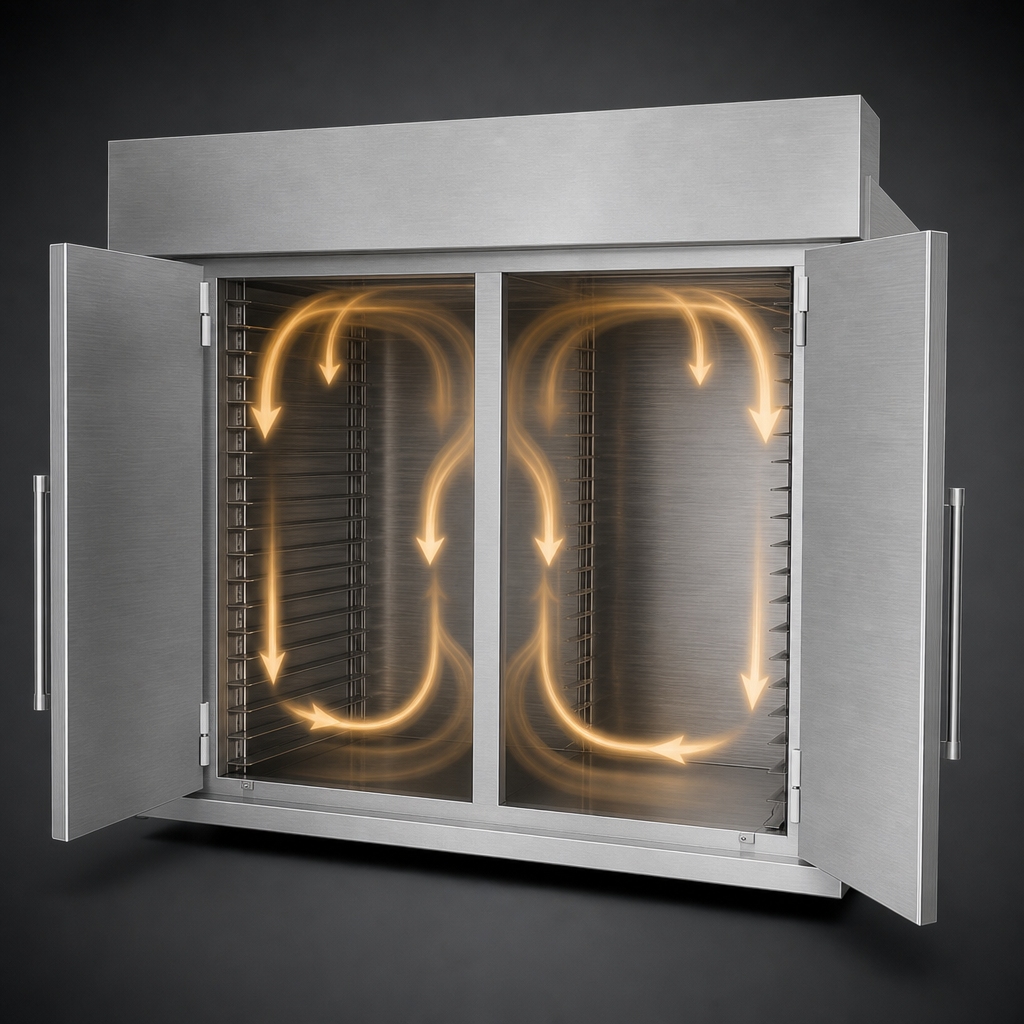

  • Even-Airflow system delivers uniform heat & humidity for picture-perfect proofing
  • Proofs from room temp up to 110 °F / 43 °C  |  Relative humidity up to 95 %
  • Automatic water fill—no pans to refill, one ¼″ cold-water line (15-25 psi)
  • Refrigerated with eco-friendly R134a to precisely hold dough overnight
  • Ships knock-down for easy site access; modular panels bolt together in minutes
  • All stainless-steel interior & exterior with high-density insulation
  • Backed by 2-year parts / 1-year labor warranty

At-a-glance specs

Configuration Roll-in, 2-section cabinet – knock-down panels
Rack capacity (6) double side-load  |  (12) single side or end-load
Doors 2 full-height stainless doors with single touchscreen control
Temperature range Retard (refrigerated) to +110 °F (43 °C) proof setting
Humidity range Up to 95 % RH – auto-fill steam generation
Refrigerant R134a
Electrical 208 / 240 V, 1-ph, 48 / 42 A, 10 kW
(3-ph available – see factory)
Water connection ¼″ OD tube, cold, 15–25 psi
Drain ½″ floor drain required at rear of unit
Overall (crated) 74 ½″ W × 87 ⅜″ D × 101″ H
Certifications ETL (US & C)  |  NSF

Site requirements

  • Ceiling height: minimum 10′ for service clearance
  • Clearances: 19″ top, 1″ sides, 3″ rear
  • Level, non-combustible floor (≤ ⅛″ slope per foot)
  • Water quality must meet Doyon standards (TDS < 100 ppm, 0 ppm chlorine/chloramines) – filter kit 50-1530 recommended

Popular options & upgrades

  • Pass-through configuration (single control panel on front)
  • Factory installation & start-up services
  • Stainless floor with integral drain
Need flexible payments? Finance this retarder/proofer through Middleby Equipment Financing and turn your purchase into low fixed monthly payments.

Warranty

2-year parts  |  1-year labor. See Doyon limited warranty for complete terms.

Features & Specs

Manufacturer

Doyon Baking Equipment (Middleby)

Certifications

NSF, cETLus, Made in USA

Height

94.19in

Width

74.5in

Depth

124.38in

Shipping Weight

1230.0lbs

Refrigeration

self-contained refrigeration

Proofer Controls

digital controls

Exterior Finish

all stainless steel exterior

Sections

2 section

Interior Finish

stainless steel

Specifications

Knockdown Retarder Proofer Cabinet, roll-in, two-section, capacity (6) double side load (12) single end load racks or (12) single side load racks, (2) doors with (1) digital touchscreen control, single water line, auto fill humidity, insulated panels, stainless steel construction, R134a, expandable, shipped KD, ETL, NSF
