Doyon Baking Equipment (Middleby)  |  SKU: KDPR22

Doyon Baking Equipment (Middleby) KDPR22 Dough Proofers & Retarders

$64,021.10
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Site inspection Terms & conditions Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

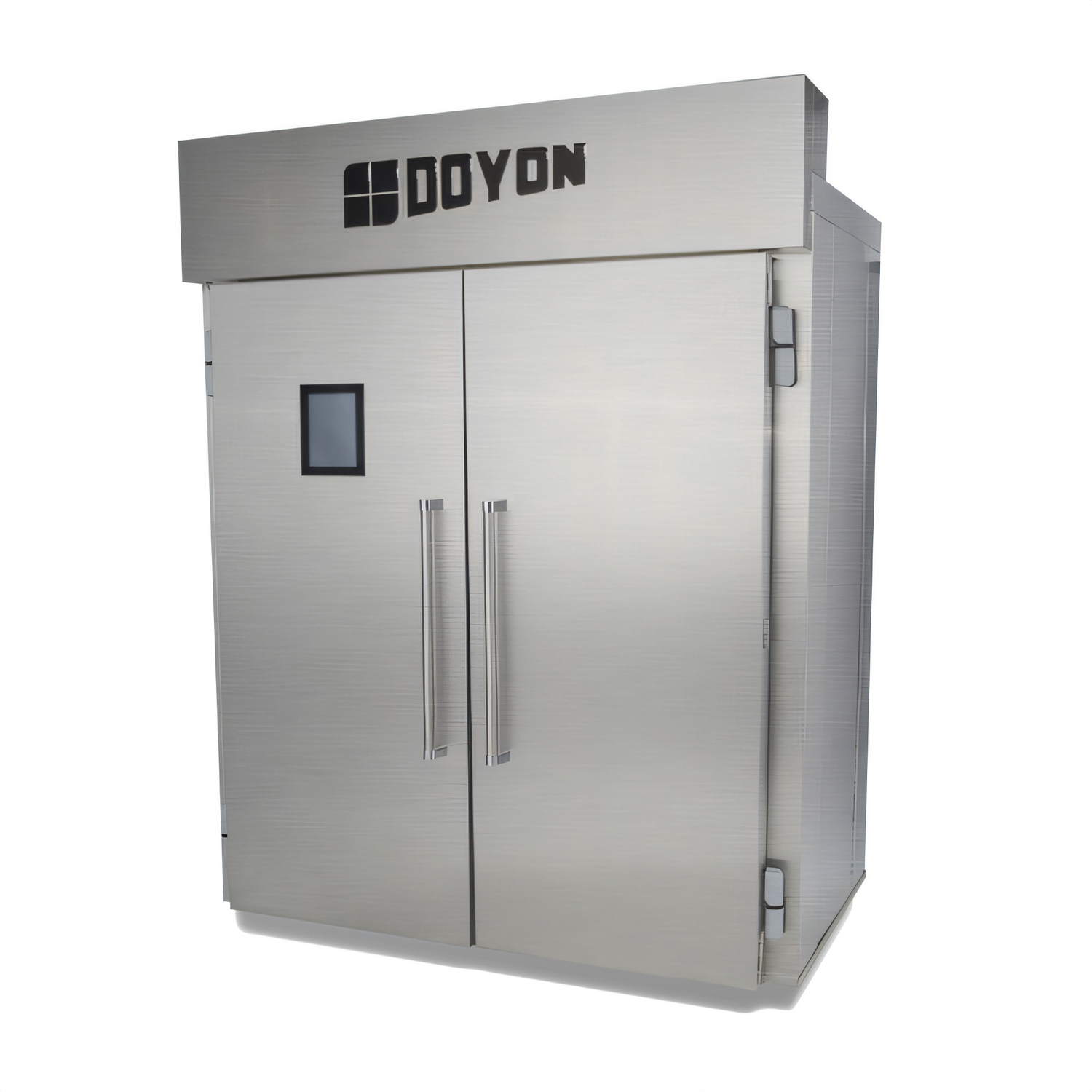

Doyon KDPR22 Knock-Down Roll-In Retarder/Proofer Cabinet

Two-Section • 4 Double-Side or 8 Single Racks • Made in USA

Give your dough the perfect start—right out of the rack. The KDPR22 combines precise refrigeration, gentle heat and auto-fill humidity in one expandable, roll-in cabinet that ships knocked-down to fit through a standard 36 inch doorway.

Key Benefits

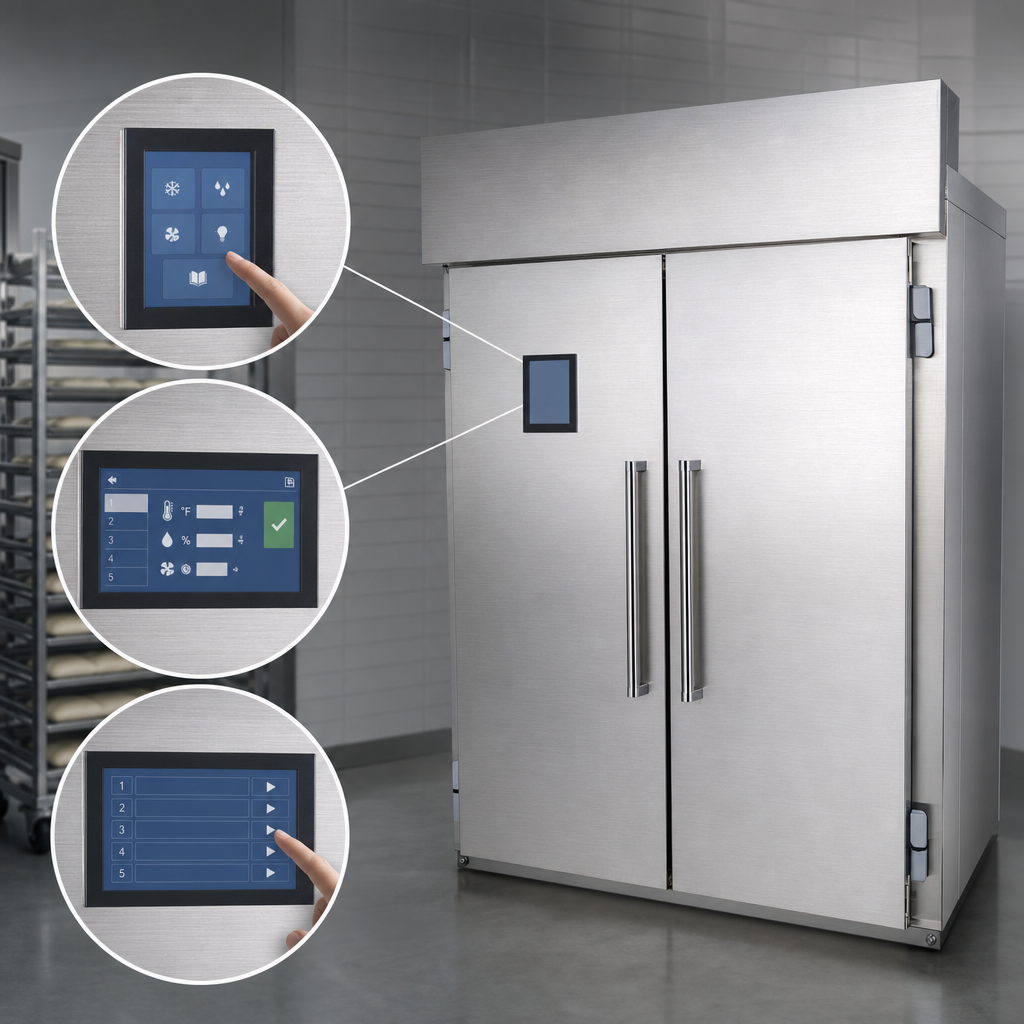

  • 7 in. full-color touchscreen with programmable recipes for hands-off overnight retard & proof cycles.

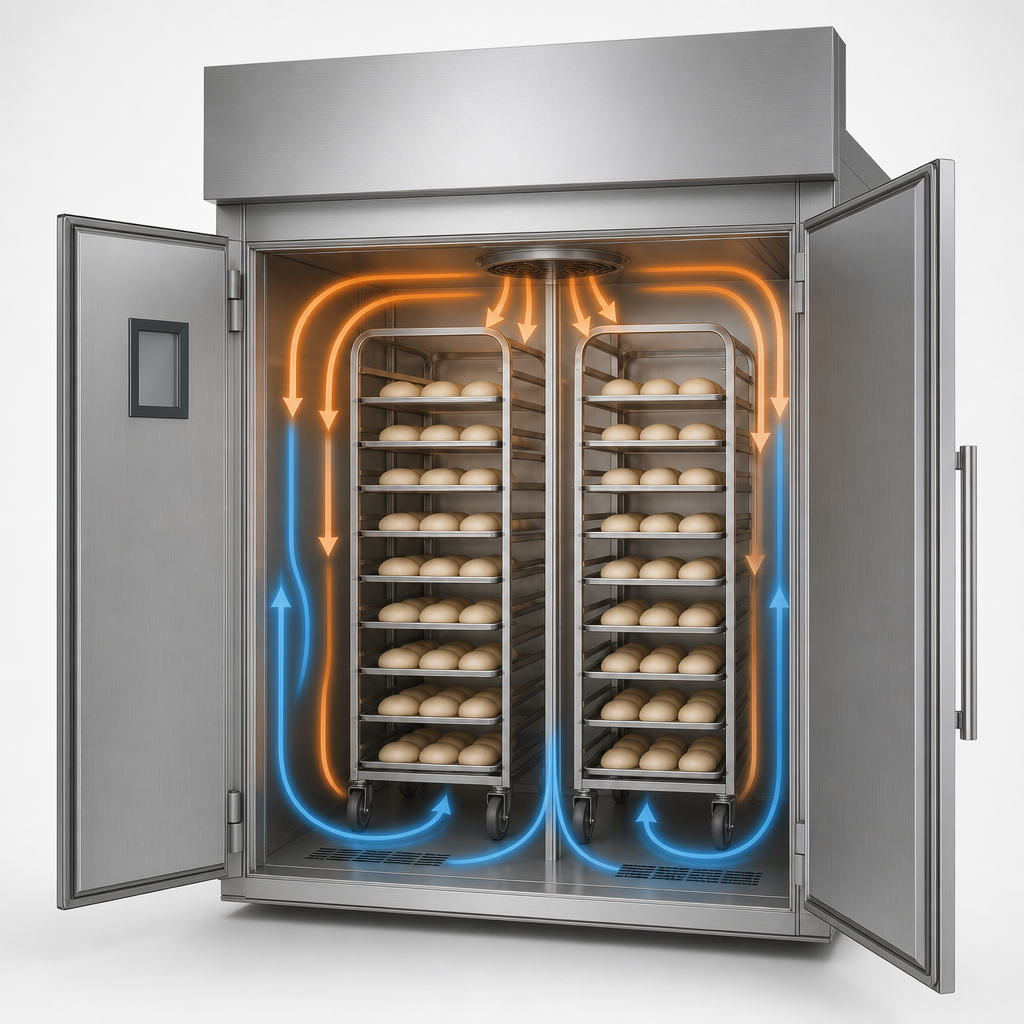

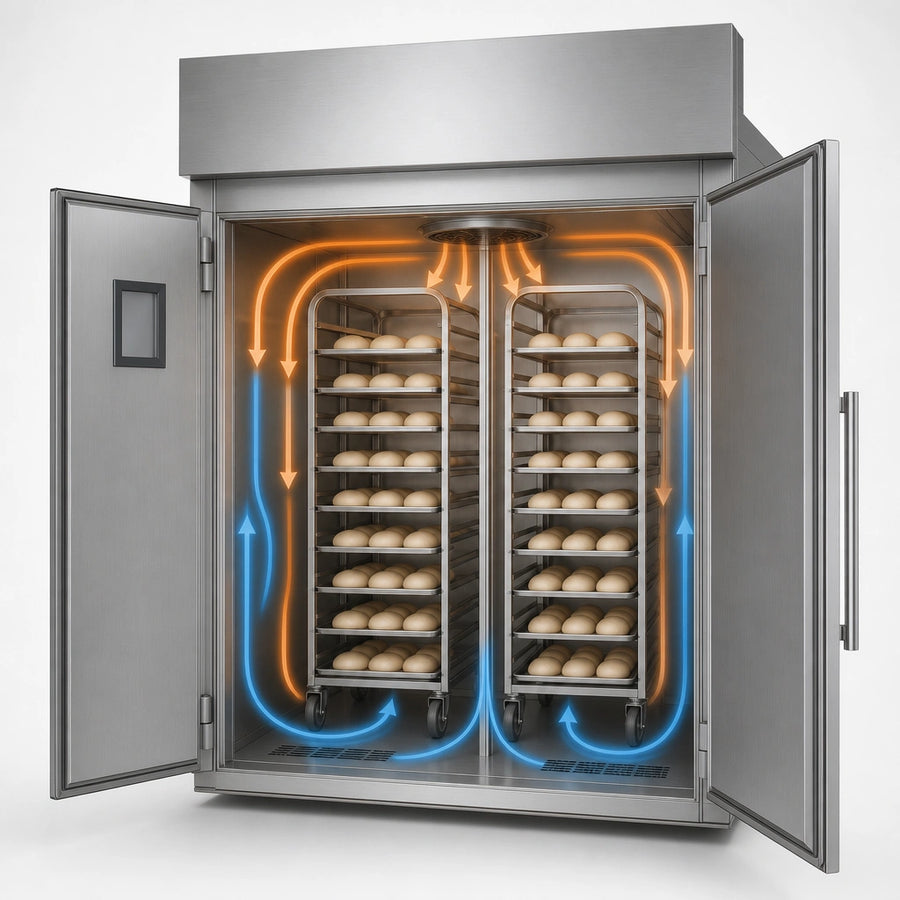

  • Even-Airflow system keeps heat and humidity uniform—no “hot” or “dry” corners.
  • Wide operating range: room temp-110 °F (43 °C) and up to 95 % RH.
  • Roll-in capacity (racks not included):
    • 4 double side-load racks
    • 8 single end-load racks
    • 8 single side-load racks
  • Auto-fill humidity; only a single ¼ in. cold-water line (15-25 PSI) required—no water pans to handle.
  • High-density insulated stainless-steel panels for maximum energy savings.
  • R134a refrigeration for dependable, eco-friendly cooling.
  • Expandable frame lets you add more sections as production grows.
  • cETLus & NSF listed; backed by a 2-year parts / 1-year labor warranty.
Technical Specs
Model KDPR22 (two-section)
Exterior (W × D × H) 74 ½ in. × 87 ⅜ in. × 101 in.  (1892 × 2219 × 2565 mm)
Door Configuration 2 full-height stainless doors, single control panel
Temperature Range Retard 34–40 °F (1–4 °C) / Proof ambient–110 °F (43 °C)
Relative Humidity Up to 95 %
Refrigerant R134a
Water Connection ¼ in. tube, cold water, 15–25 PSI
Drain ½ in. floor drain at rear of unit (not supplied)
Electrical 208 V / 1 ph / 48 A / 10 kW
240 V / 1 ph / 42 A / 10 kW
Clearances Top 19 in. • Sides 1 in. • Rear 3 in.
10 ft ceiling height recommended
Shipping Ships knocked-down on 2 skids (≈ 1,545 lb total)
Warranty 2 yr parts / 1 yr labor (USA & Canada)
Installation Checklist
  • Level, non-combustible floor (≤ ¾ in. slope in any direction).
  • ½ in. floor drain located behind unit.
  • Dedicated electrical line matching selected voltage & phase.
  • Water quality within Doyon spec; filter #50-1530 strongly recommended.
Heads-up: Roll-in racks are sold separately. Add compatible Doyon racks to your order for a true plug-and-play solution.

Need a pass-through layout or factory start-up services? Contact us for available options.

Features & Specs

Manufacturer

Doyon Baking Equipment (Middleby)

Certifications

NSF, cETLus, Made in USA

Height

94.19in

Width

74.5in

Depth

84.38in

Shipping Weight

900.0lbs

Refrigeration

self-contained refrigeration

Proofer Controls

digital controls

Exterior Finish

all stainless steel exterior

Interior Finish

stainless steel

Sections

2 section

Specifications

Knockdown Retarder Proofer Cabinet, roll-in, two-section, capacity (4) double side load (8) single end load racks or (8) single side load racks, (2) doors with (1) digital touchscreen control, single water line, auto fill humidity, insulated panels, stainless steel construction, R134a, expandable, shipped KD, cETLus, NSF, Made in USA
