Doyon Baking Equipment (Middleby)  |  SKU: KDPR11

Doyon Baking Equipment (Middleby) KDPR11 Dough Proofers & Retarders

$27,937.80
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Site inspection Terms & conditions Middleby financial flyer Warranty sheet
Related Searches
Butane Stove Cooking Equipment Cooking Equipment Countertop Cooking Equipment Restaurant Equipment

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

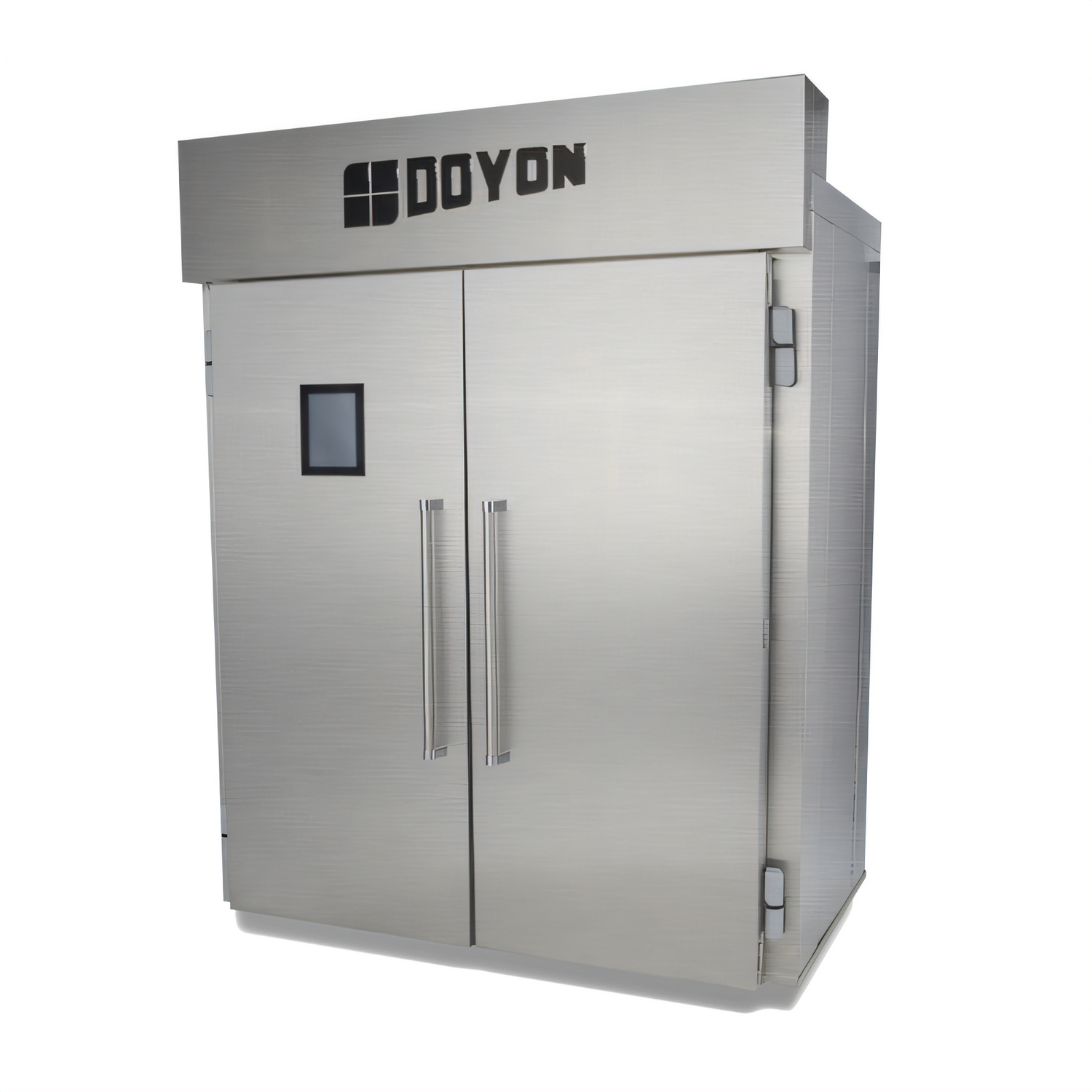

KDPR11 Knock-Down Roll-In Retarder/Proofer Cabinet

One-section • Touchscreen-controlled • Made in the USA

Give your dough the perfect start—right from the rack. Doyon’s KDPR11 combines precision retarding, reliable proofing and true roll-in convenience in a knock-down cabinet that ships through standard doorways and assembles exactly where you need it.

Why Bakers Love It

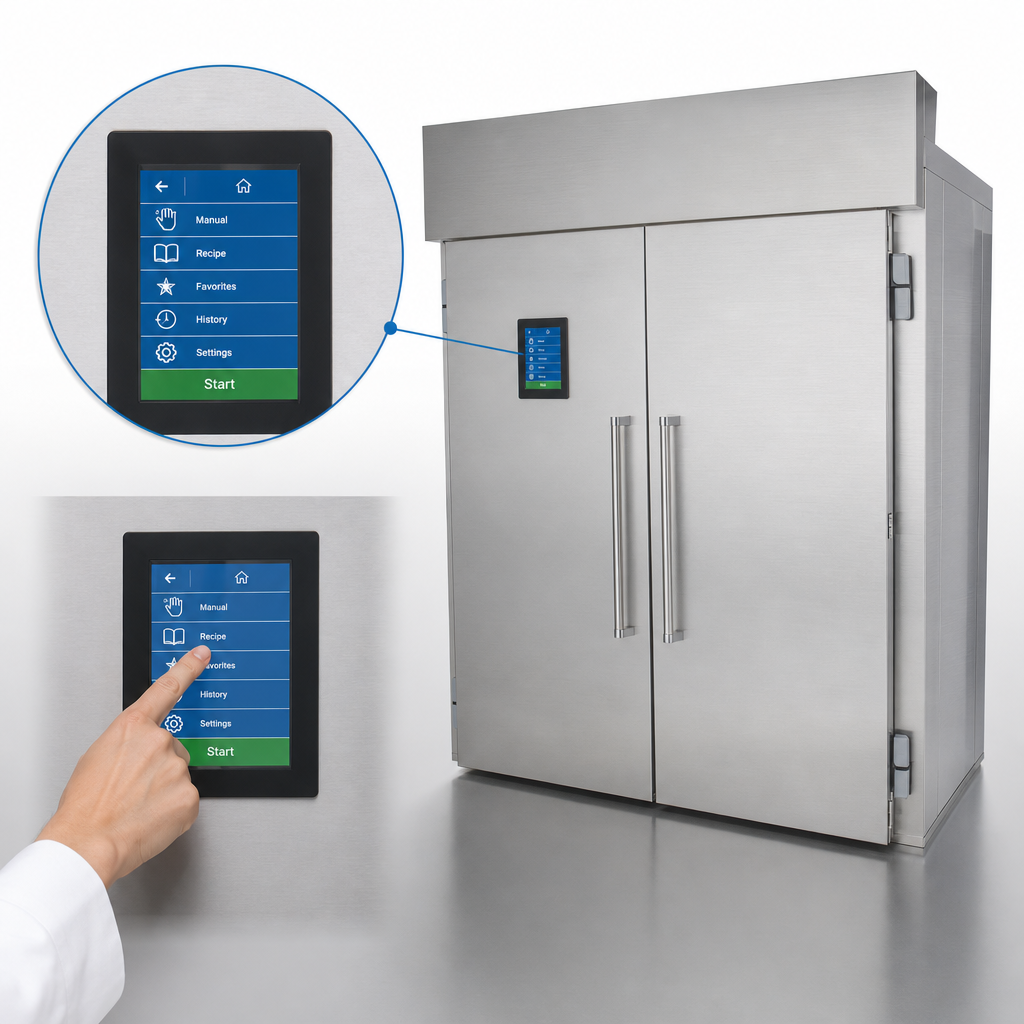

  • Programmable 7" touchscreen stores multiple recipes for set-and-forget operation.

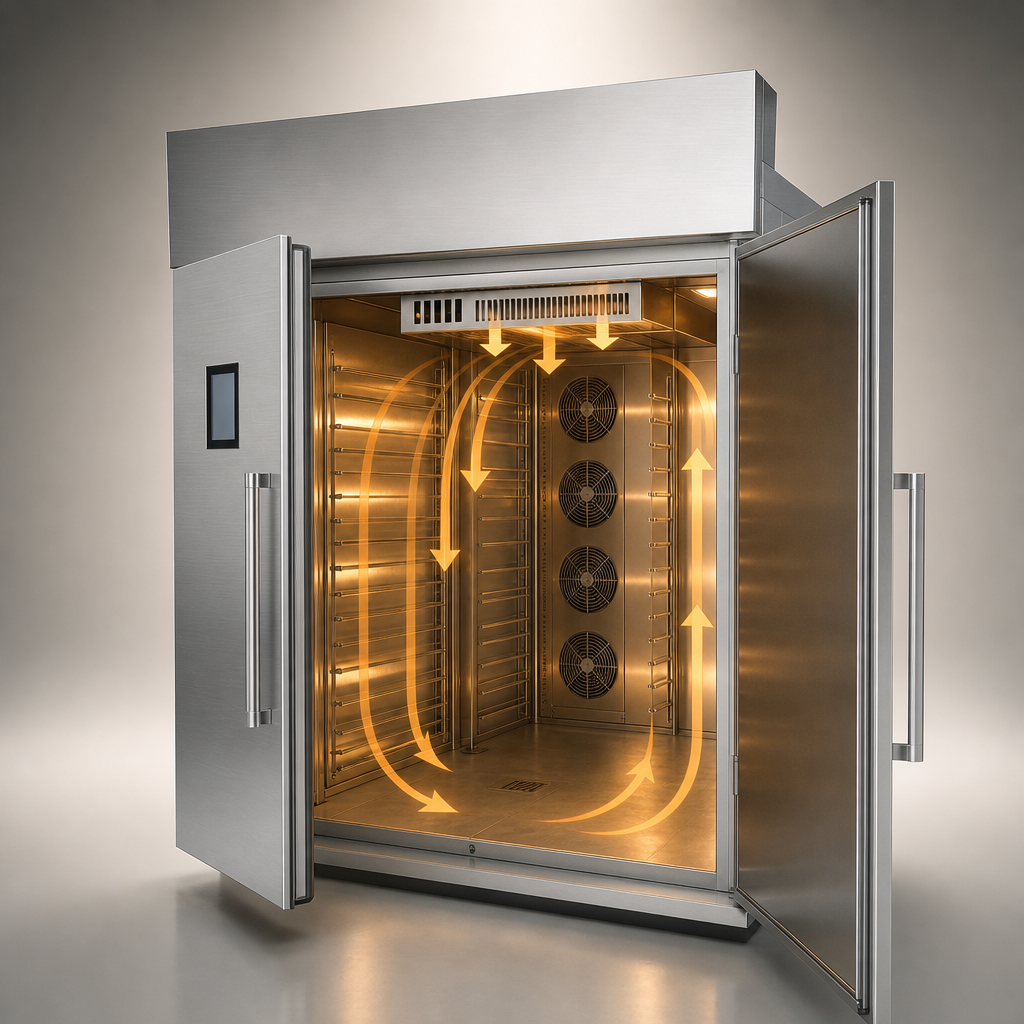

  • Even Airflow System balances heat and humidity top-to-bottom for consistent results on every rack level.
  • Wide environmental range: retard overnight, then proof up to 110 °F (43 °C) at up to 95 % RH.
  • Auto-fill humidity—no water pans to fill. Connect one ¼" cold-water line (15-25 psi) and bake on.
  • Ships knocked down to fit through a 36" doorway; field-assembled in just a few hours.
  • Stainless-steel construction & insulated panels stand up to busy production schedules.
  • Expandable design: add additional sections as your business grows.
  • cETLus & ETL-Sanitation listed for peace of mind and code compliance.

Rack Capacity

Roll in your existing rack—no lifting required.

  • (1) double side-load rack or
  • (1) single end-load rack or
  • (2) single side-load racks

Rack(s) not included.

Specifications

Model KDPR11
Control Full-color capacitive touchscreen, multi-recipe programmable
Temperature Range Retard down to 38 °F (3 °C) • Proof up to 110 °F (43 °C)
Relative Humidity Up to 95 %
Refrigerant R-134a (environmentally friendly)
Electrical 208 V / 1 ph / 24 A / 5 kW –or– 240 V / 1 ph / 21 A / 5 kW, 60 Hz
Water Connection ¼" OD tube, cold water, 15–25 psi (auto-fill system)
Drain ½" floor drain required (rear)
External Dimensions (assembled) 42" W × 47 ⅜" D × 101" H (1066 × 1203 × 2565 mm)
Shipping Ships knocked-down on (2) skids – total weight approx. 1,090 lb
Clearances Top 19" • Sides 1" • Rear 3" • 10' ceiling recommended
Construction All stainless interior & exterior, high-density insulated wall panels
Certifications cETLus, ETL-Sanitation (NSF), Made in USA
Warranty 2-year parts / 1-year labor

Popular Options & Accessories

  • Water filtration kit (part #50-1530) – protects components & maintains warranty
  • Left- or right-hand hinge door
  • Pass-through configuration (front & rear doors)
  • Stainless floor with floor drain
  • Factory installation / start-up services
Before you order: verify water quality (TDS < 100 ppm) and ensure a level, non-combustible floor.

Ask about Middleby Equipment Financing—get the KDPR11 today with affordable monthly payments and potential Section 179 tax savings.

Features & Specs

Manufacturer

Doyon Baking Equipment (Middleby)

Certifications

cETLus, ETL-Sanitation, Made in USA

Height

94.19in

Width

42.0in

Depth

44.38in

Interior Finish

stainless steel

Exterior Finish

all stainless steel exterior

Sections

1 section

Refrigeration

self-contained refrigeration

Proofer Controls

digital controls

Specifications

Knockdown Retarder Proofer Cabinet, roll-in, one-section, capacity (1) double side load/single end load rack or (2) single side load racks, (1) door with digital touchscreen control, single water line, auto fill humidity, insulated panels, stainless steel construction, R134a, expandable, shipped KD, cETLus, ETL-Sanitation, Made in USA
