Doyon Baking Equipment (Middleby) KDP33 Dough Proofers & Retarders
Description

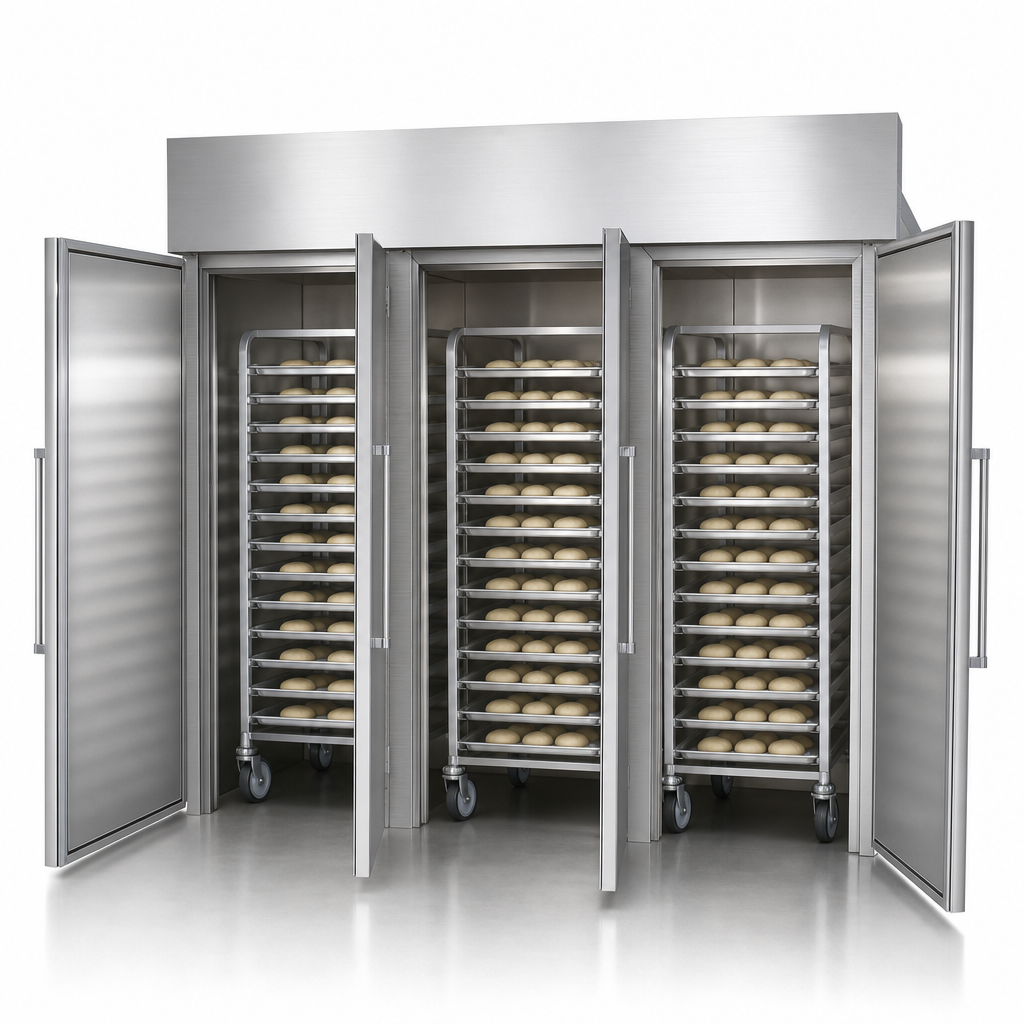

Knock-Down Roll-In Proofer Cabinet – Three Section
Doyon Baking Equipment • Made in USA • cETLus & ETL-SanitationEngineered for high-volume bakeries that never stop growing, the Doyon three-section Knock-Down Proofer rolls in more dough, holds tighter tolerances and ships in pieces that fit through a standard 36 in. doorway. Assemble it where you need it today—and expand it tomorrow.
Key Features
- Massive capacity – up to 9 double side-load, 16 single end-load or 18 single side-load racks*
- One intuitive touchscreen controller with 20 programmable recipes
- Even-Airflow™ system maintains uniform heat & humidity throughout the cabinet
- Proofs from ambient up to 110 °F (43 °C) with relative humidity to 95 %
- Automatic water fill – single ¼ in. cold-water line (no water pans to top-off)
- All-stainless construction with 4 in. insulated, cam-lock panels

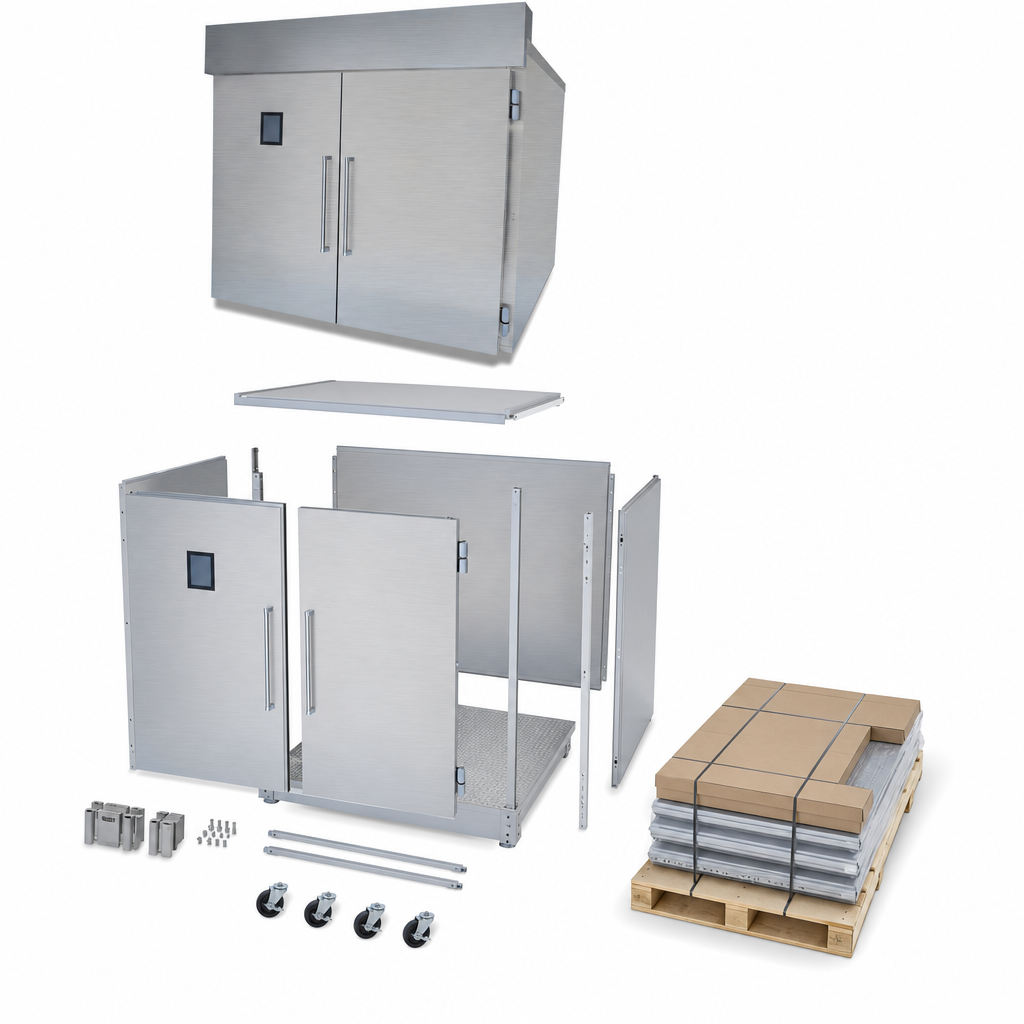

- Ships knocked-down for easy entry—re-assemble in a few hours on-site
- Modular design lets you add extra sections later as production increases
*Racks sold separately.
Specification Highlights
| Sections / Doors | 3 sections • 2 full-height stainless doors |
|---|---|
| Rack Capacity | 9 double side-load, 16 single end-load or 18 single side-load |
| Control System | 7 in. capacitive touchscreen • 20 recipe memory • °F / °C selectable |
| Proofing Range | Ambient to 110 °F (43 °C) • ≤ 95 % RH |
| Water Connection | ¼ in. OD tubing, 15 – 25 psi (1.0 – 1.7 bar) |
| Electrical | 208/240 V, 60 Hz – 1 ph 72/63 A, 15 kW or 3 ph 42/36 A, 15 kW |
| Exterior Dimensions* | 107 in. W × 87 ⅜ in. D × 101 in. H (2 716 × 2 219 × 2 565 mm) |
| Construction | Heavy-gauge stainless steel inside & out • 4 in. insulated panels |
| Certifications | cETLus, ETL-Sanitation (NSF/ANSI 4) |
| Warranty | Two-year parts • One-year labor |
*Nominal; confirm site clearances prior to installation.
Popular Options & Accessories
- Doyon water filter kit (part #50-1530) – protects components & keeps warranty intact
- Pass-through configuration (suffix “PT”) – load one side, unload the other
- Stainless floor with drain for wash-down environments
- Factory installation and/or start-up services
• Level, non-combustible floor (± ⅛ in./ft slope, ≤ ¾ in. overall)
• Minimum clearances: 4 in. sides/back, 24 in. top, 1 in. from adjacent oven
• 10 ft (3 m) ceiling height for service access
From artisan breads to delicate pastries, deliver consistent, high-quality proofing every shift with the Doyon Knock-Down Proofer—built to perform today and grow with you tomorrow.
