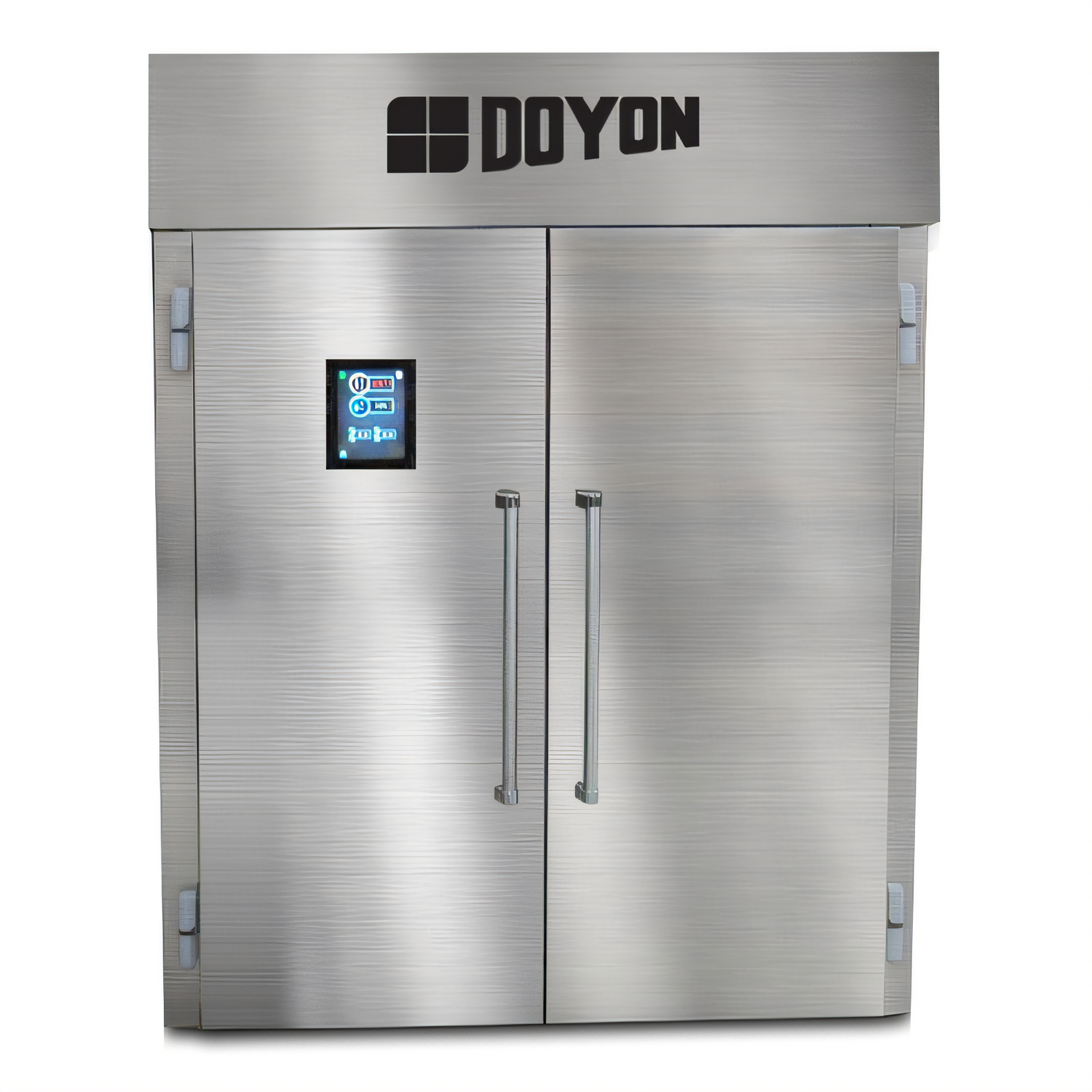

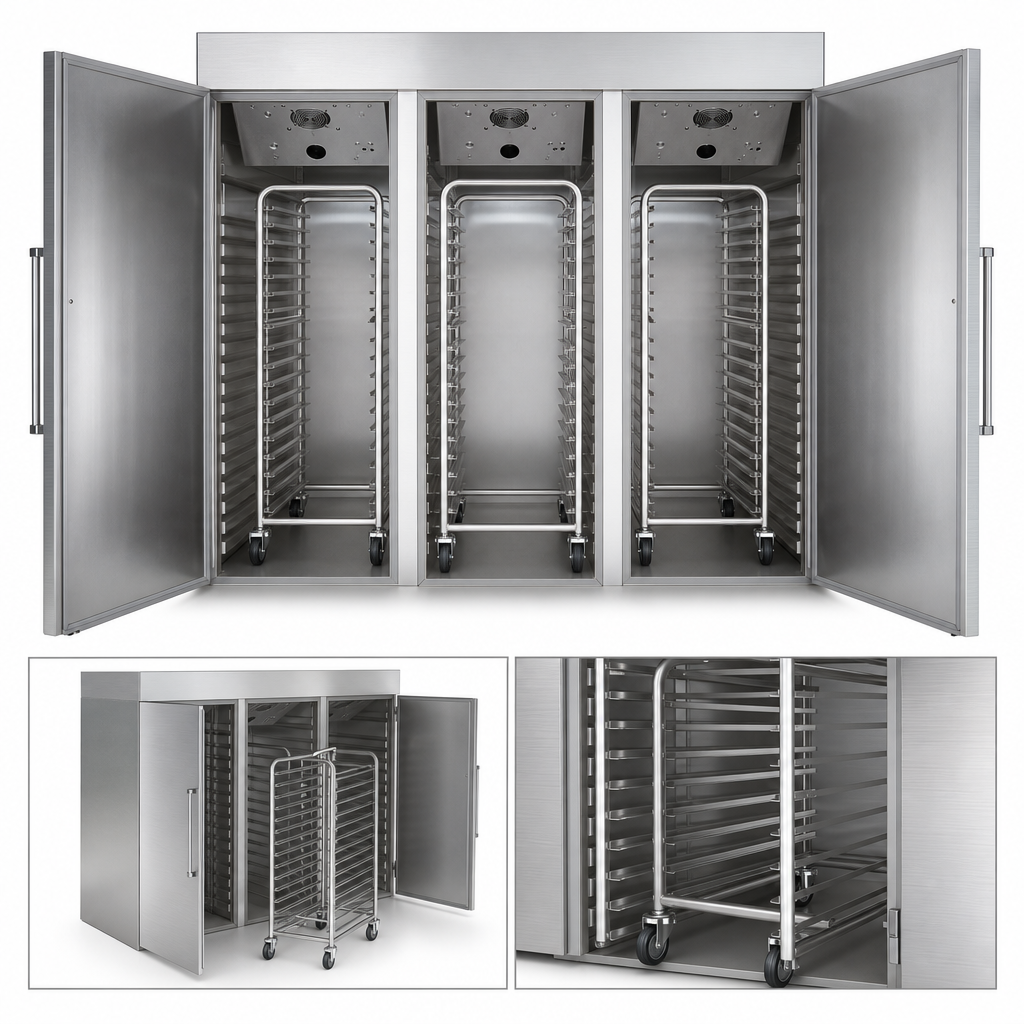

Knock-Down Roll-In Proofer Cabinet – Three-Section
Doyon Baking Equipment • Made in the USAEngineered for high-volume, artisan-quality proofing, the Doyon three-section Knock-Down Proofer delivers precise heat and humidity control for consistent, picture-perfect dough development. Stainless-steel construction, modular panels, and field-expandable design make it the last proofer you’ll buy—even if your bakery grows.
Key Features & Benefits

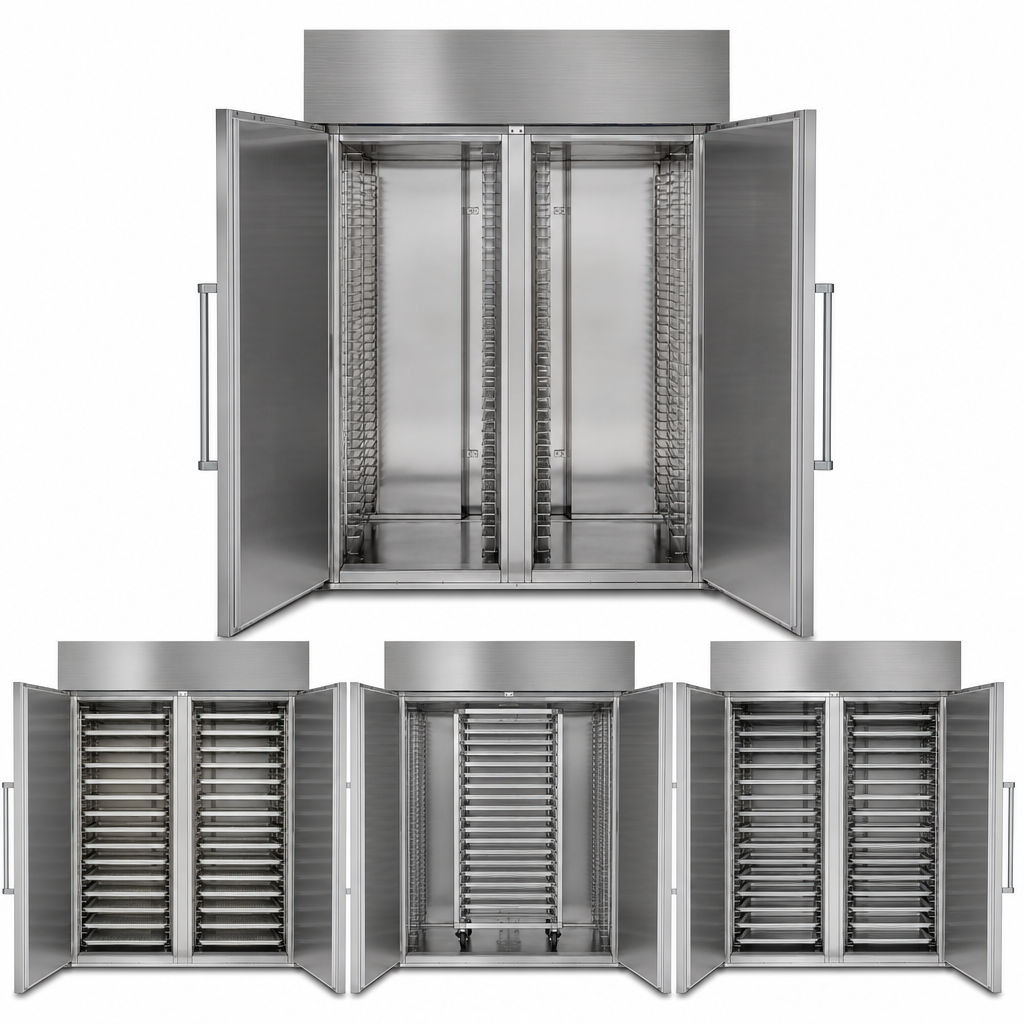

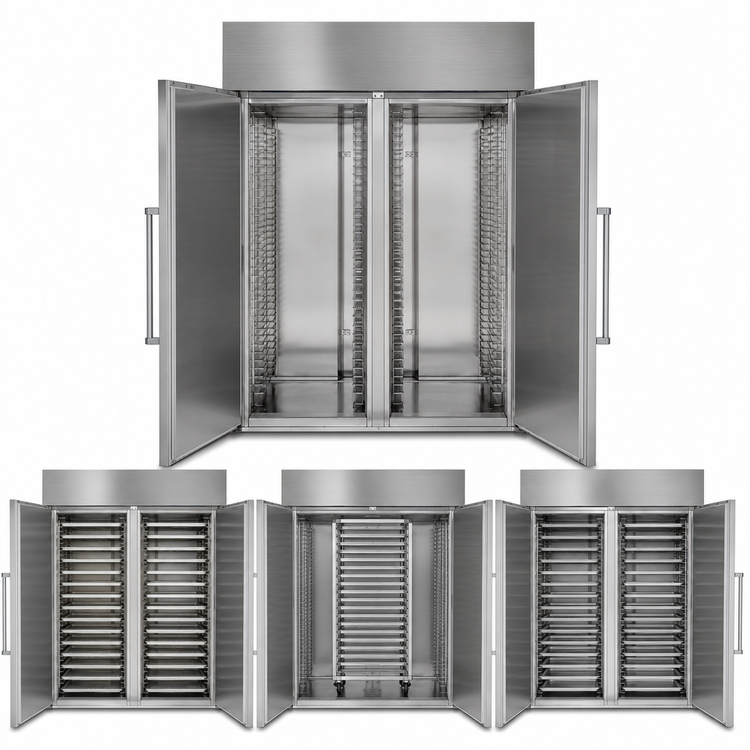

- High capacity – Holds up to 6 double side-load, 11 single end-load, or 12 single side-load racks*
- Digital touchscreen control with programmable recipes for worry-free proof cycles
- Even-Airflow™ system maintains uniform temperature & humidity throughout the cabinet
- Proofs from room temperature up to 110 °F / 43 °C and 95 % RH
- Auto-fill humidity—single ¼" cold-water line; no water pans to fill or spill
- Knock-down shipment fits through 36" doors; assembles quickly on-site
- Expandable panel construction lets you add sections as production grows
- cETLus & ETL-Sanitation certified for safety and sanitation
At-a-Glance Specifications
| Rack Capacity* | 6 double side-load • 11 single end-load • 12 single side-load |
|---|---|
| Sections / Doors | 3 sections • 2 full-height doors |
| Control | Touchscreen; programmable multi-step recipes |
| Temperature Range | Ambient to 110 °F (43 °C) |
| Relative Humidity | Up to 95 % |
| Water Connection | ¼" cold-water line, 15 – 25 psi (auto fill) |
| Electrical Options | 208 / 240 V, 1-ph 72/63 A 15 kW • 208 / 240 V, 3-ph 42/36 A 15 kW, 60 Hz |
| Exterior Dimensions | 107" W × 127 ⅜" D × 101" H |
| Construction | All stainless-steel with high-density insulated panels |
| Certifications | cETLus • ETL-Sanitation |
| Warranty | 2-year parts • 1-year labor (factory authorized service) |
*Racks sold separately.
Popular Options & Accessories
- Water filter kit #50-1530 (recommended for warranty compliance)
- Pass-through configuration (single control panel on front)
- Factory installation & start-up services
- Stainless-steel floor with drain
Installation Requirements
- 10 ft (3.05 m) minimum ceiling height for airflow & service access
- Clearances: 1" sides & back, 19" top, 1" from adjacent ovens
- Level, non-combustible, cleanable floor—slope < ¾" in any direction
- No drain required (unless optional floor drain is ordered)
Water Quality Notice —
Use feed water meeting Doyon specifications (TDS < 100 ppm, pH 7-8, 0 ppm chlorine/chloramines).
Poor-quality water will void the humidity system warranty.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) KDP32 Dough Proofers & Retarders
SKU: KDP32
$55,757.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon KDP32 knockdown proofer/retarder: stainless, insulated, auto-humidity, digital touchscreen, roll-in expandable design, cETLus, Made in USA.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
94.19in
Width
107.0in
Depth
84.38in
Pan Capacity
6 double pan racks
Sections
3 section
Proofer Controls
digital controls
Exterior Finish
all stainless steel exterior
Interior Finish
stainless steel
Specifications
Knockdown Proofer Cabinet, roll-in, three-section, capacity (6) double side load (11) single end load racks or (12) single side load racks, (2) doors with (1) digital touchscreen control, single water line, auto fill humidity, insulated panels, stainless steel construction, expandable, shipped KD, cETLus, ETL-Sanitation, Made in USA
