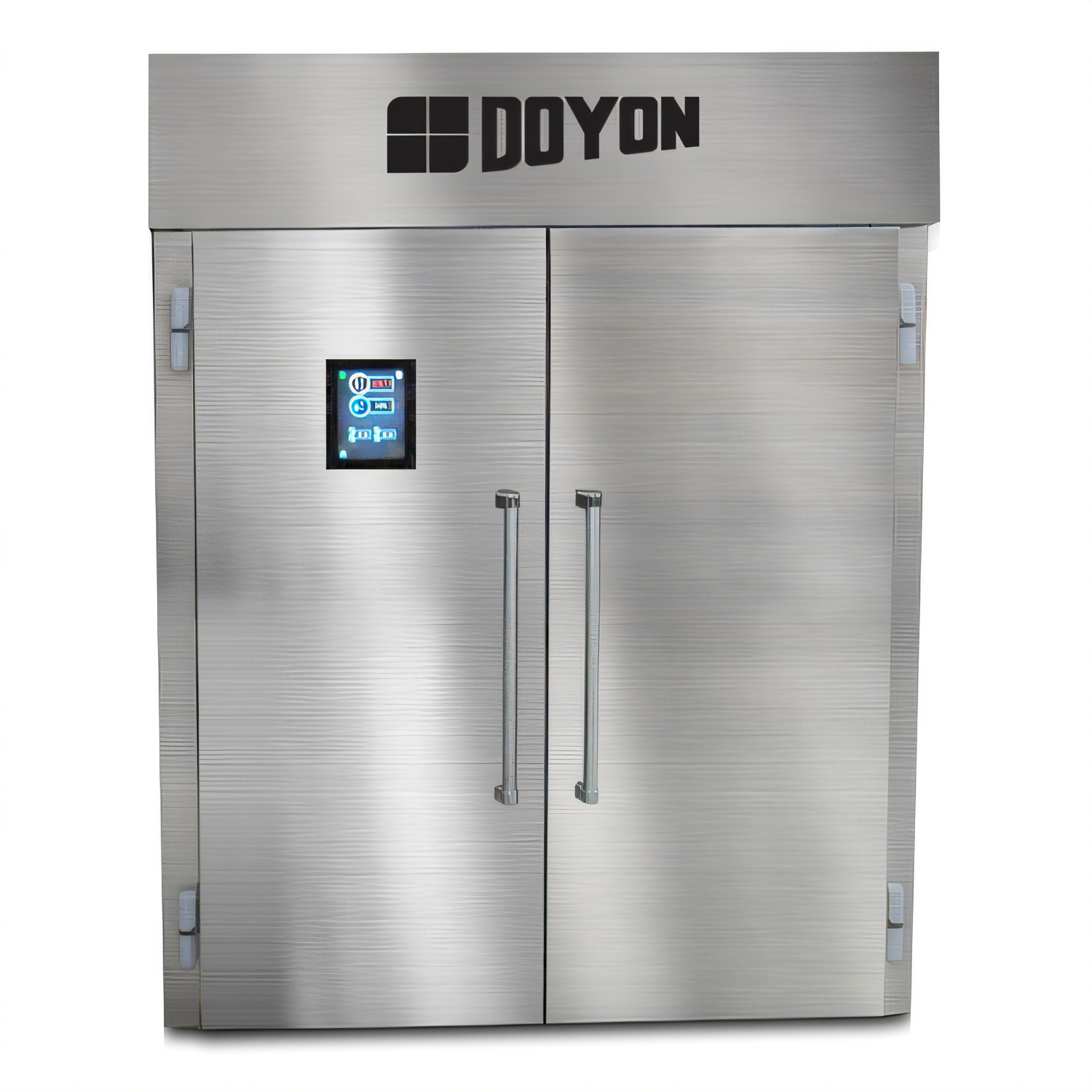

Doyon KDP33 Knock-Down Roll-In Proofer Cabinet
3-Section • Touchscreen Control • Made in USABuilt for high-volume artisan, retail and commissary bakeries, the Doyon KDP33 delivers perfectly-proofed dough on every rack. Modular knock-down panels fit through standard doorways, then lock together to form a rigid, fully-insulated stainless-steel cabinet that can be expanded as your business grows.
Key Features
- 7 inch full-color touchscreen with 99 programmable recipes.
- Even-Airflow heating system keeps temperature and humidity uniform top to bottom.
- Proofs from ambient up to 110 °F (43 °C) with relative humidity up to 95 %.
- Auto-fill humidity generator connects to a single ¼ inch cold-water line (15–25 psi) – no water pans required.

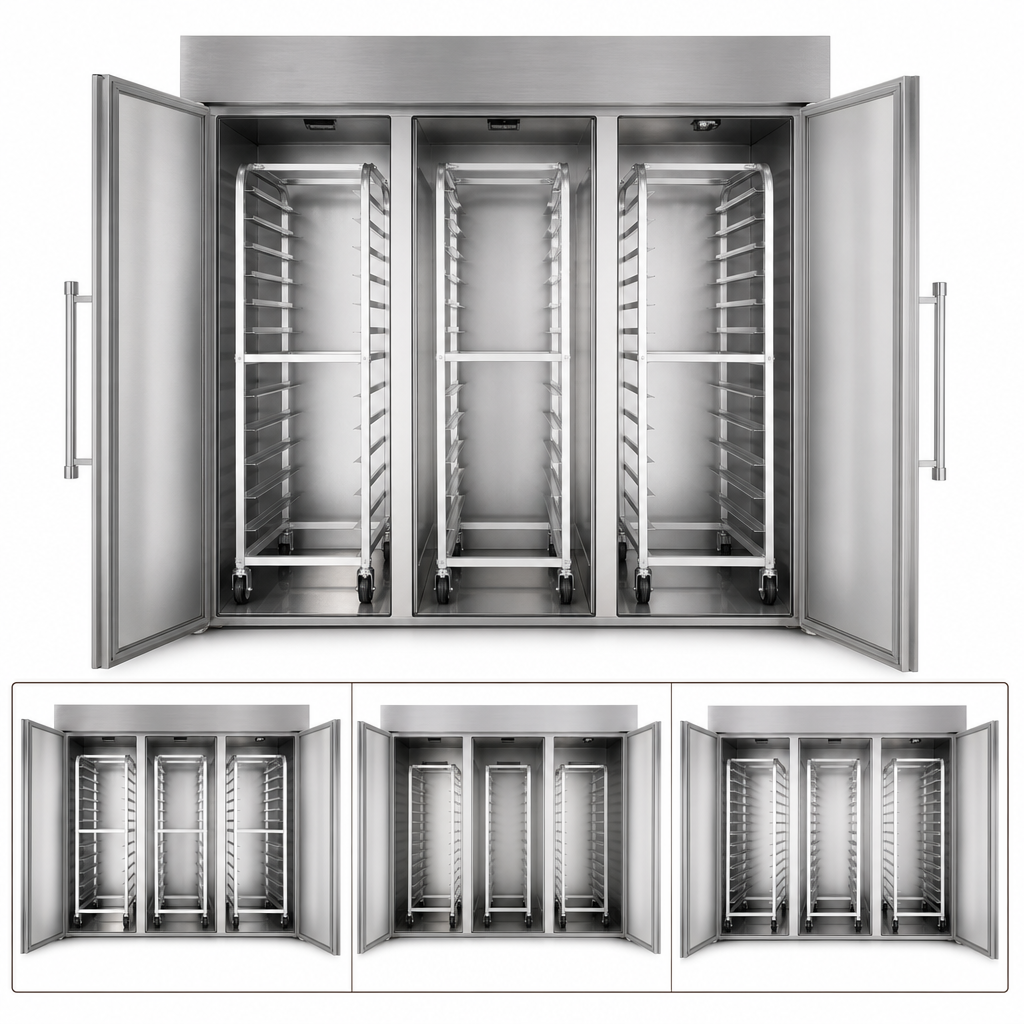

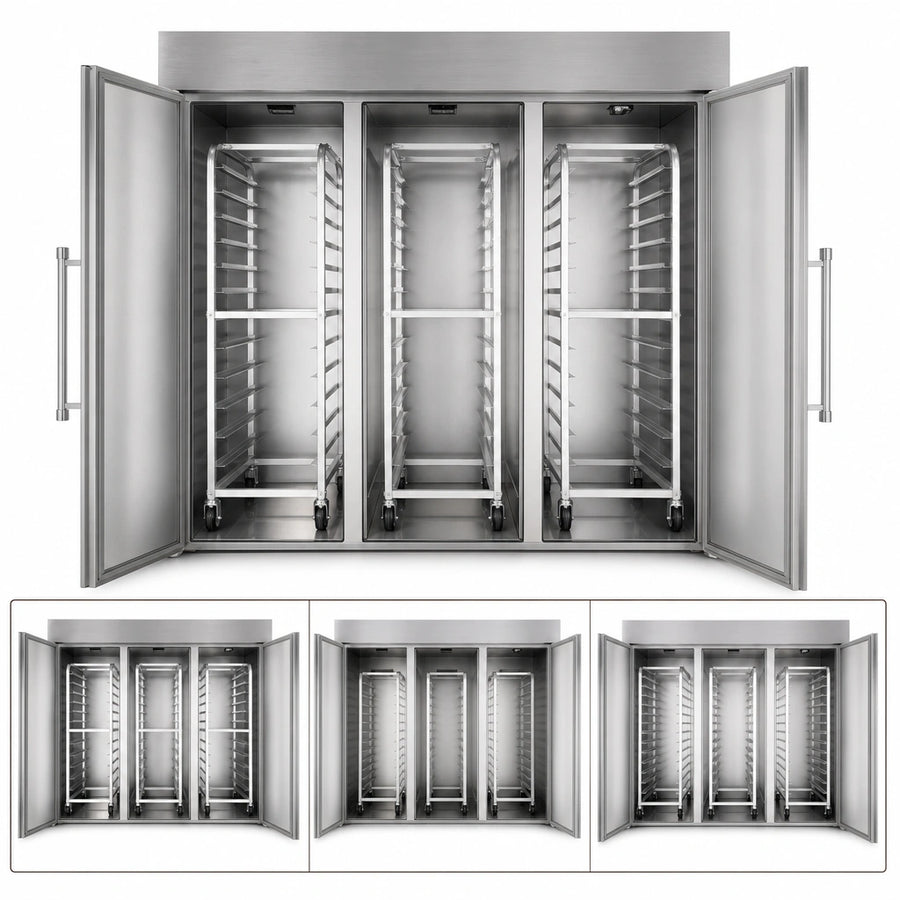

- Roll-in capacity:
- 3 double side-load racks, or
- 4 single end-load racks, or
- 6 single side-load racks
- All-stainless exterior & interior with high-density insulated panels for energy savings.
- Two full-height doors with magnetic gaskets and field-reversible hinges.
- Ships knocked-down for lower freight costs and easy site access; assembles under a 10 ft ceiling.
- cETLus & ETL-Sanitation certified; proudly manufactured in Menominee, Michigan.
At-a-Glance Specifications
| Model | KDP33 (three-section roll-in) |
|---|---|
| Rack Capacity* | 3 double side-load | 4 single end-load | 6 single side-load |
| Temperature Range | Room temp – 110 °F (43 °C) |
| Relative Humidity | Up to 95 % |
| Exterior Dimensions (W × D × H) | 107 in × 127 3⁄8 in × 101 in (2717 × 3235 × 2565 mm) |
| Electrical | 208/240 V 1-ph 72/63 A 15 kW • 208/240 V 3-ph 42/36 A 15 kW 60 Hz |
| Water Connection | ¼ in OD tube, cold, 15–25 psi (103–172 kPa) |
| Clearances | 4 in sides & back • 24 in top • 10 ft ceiling recommended |
| Construction | Stainless steel inside & out, high-density panel insulation |
| Shipping | Ships knock-down; fits through a standard 36 in doorway |
| Certifications | cETLus • ETL-Sanitation (ANSI/NSF-4) |
| Warranty | 2-year parts • 1-year labor (factory-authorized service) |
*Racks sold separately.
Popular Options & Accessories
- Pass-through configuration (suffix “PT” – single control panel on load side)
- Factory installation & start-up assistance
- Stainless steel floor with drain (check site slope requirements)
- In-line water filter #50-1530 (recommended to maintain warranty)
Important:
Unit must be installed on a level, non-combustible floor and connected to treated water that
meets Doyon quality standards. Improper installation or poor-quality water will void the warranty.
Bring consistency, capacity and reliability to your proofing process with the Doyon KDP33 – the expandable proofer that grows with your bakery.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) KDP31 Dough Proofers & Retarders
SKU: KDP31
$36,527.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon KDP31 knockdown proofer/retarder: roll-in stainless steel cabinet, digital touchscreen, auto-fill humidity, expandable, ETL‑Sanitation, Made in USA.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
94.19in
Width
107.0in
Depth
44.38in
Proofer Controls
digital controls
Sections
3 section
Pan Capacity
3 double pan racks
Interior Finish
stainless steel
Exterior Finish
all stainless steel exterior
Specifications
Knockdown Proofer Cabinet, roll-in, three-section, capacity (3) double side load (4) single end load racks or (6) single side load racks, (2) doors with (1) digital touchscreen control, single water line, auto fill humidity, insulated panels, stainless steel construction, expandable, shipped KD, cETLus, ETL-Sanitation, Made in USA
