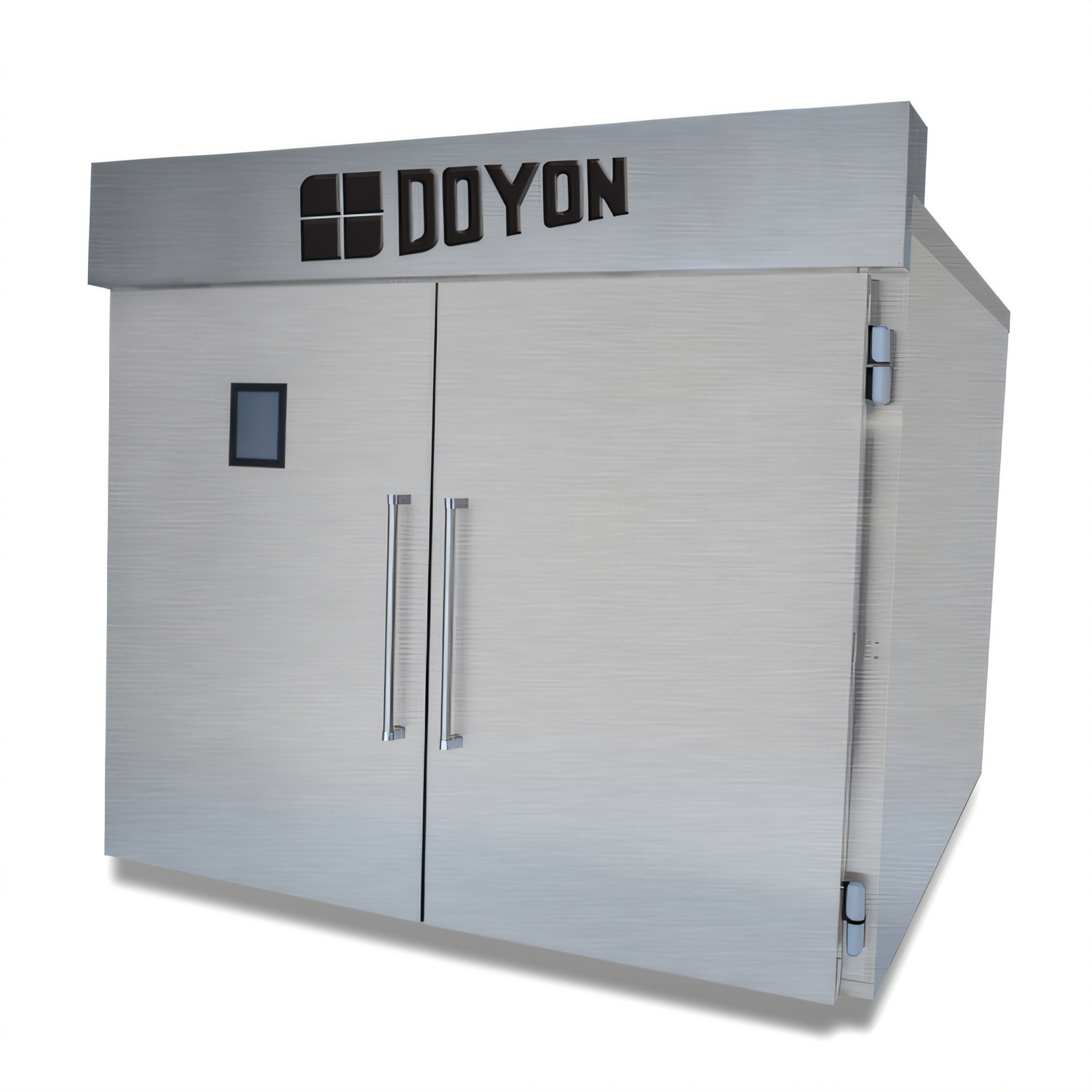

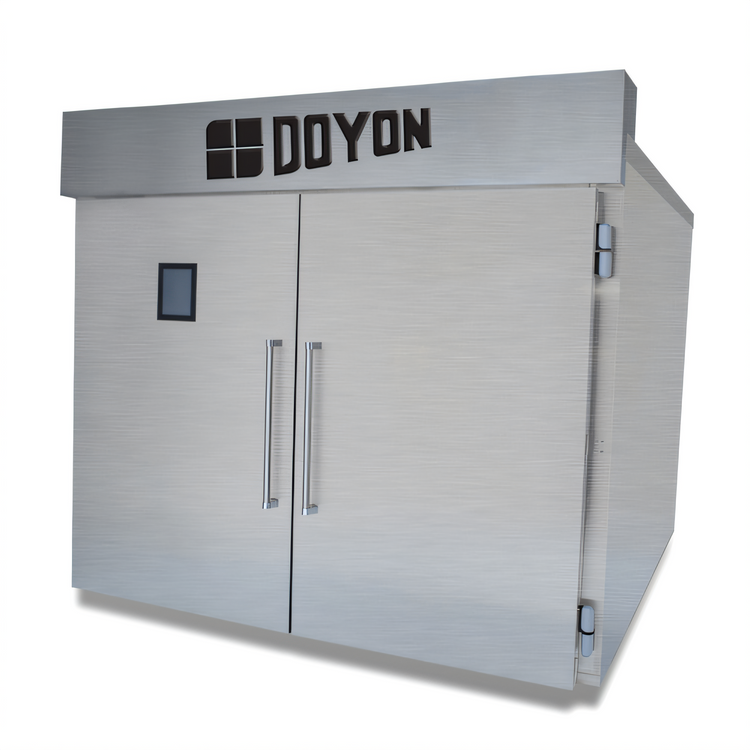

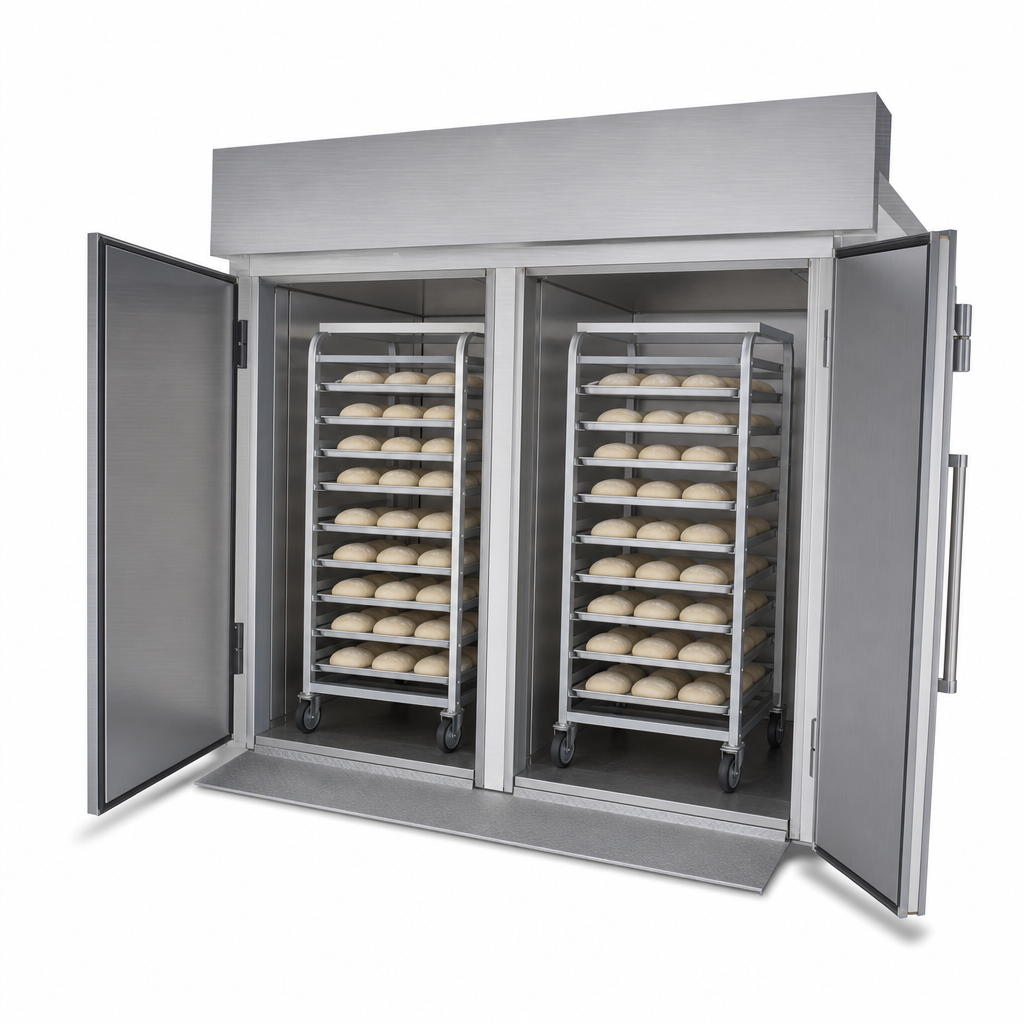

KDP Knock-Down Roll-In Proofer – Two-Section
6 double-side or 12 end-load rack capacity • Digital touchscreen control • Made in USAGive every batch the perfect rise with Doyon’s modular KDP two-section knock-down proofer. Designed for busy commissaries, retail bakeries and institutional kitchens, it combines high capacity, rock-solid stainless-steel construction and smart touchscreen control in a single, easy-to-ship package that assembles quickly on-site.

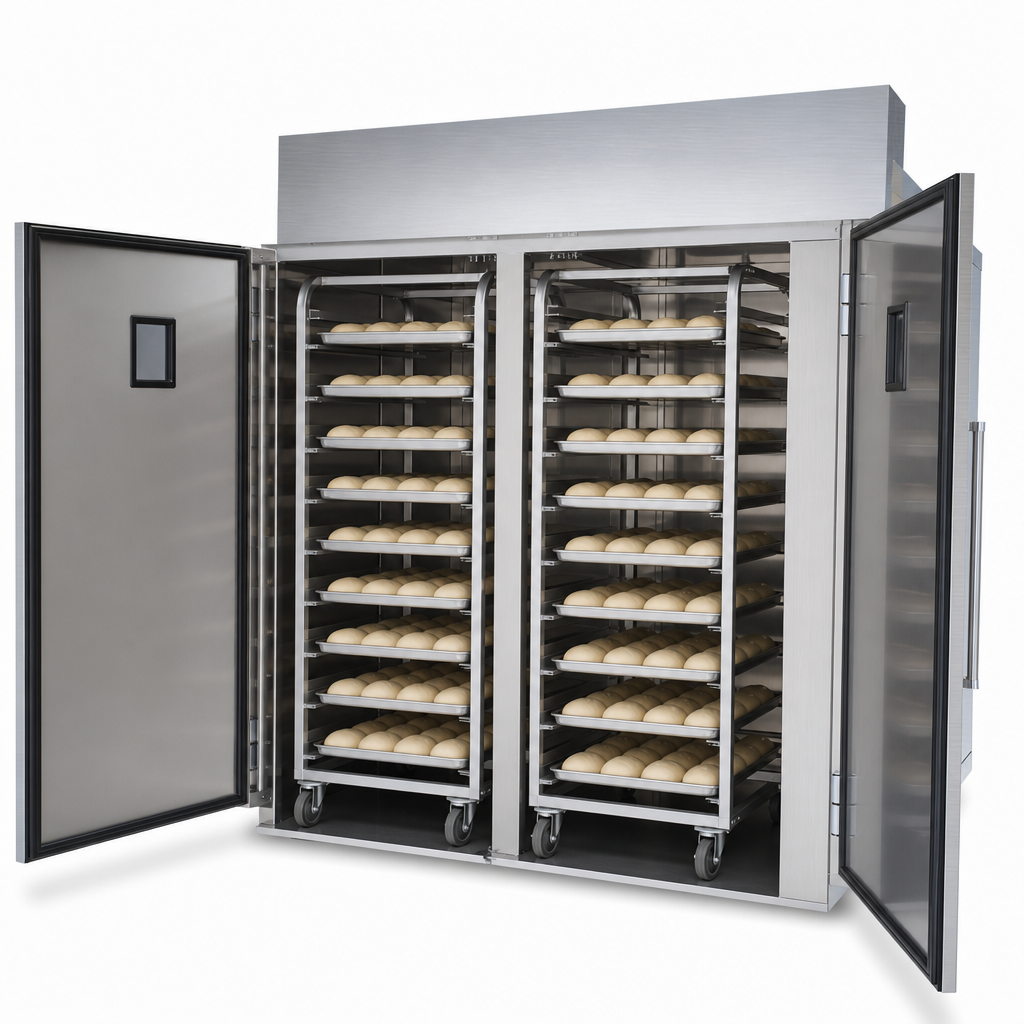

- Handles up to 6 double side-load or 12 single end / side-load racks* for true high-volume throughput.
- Digital 7" touchscreen with programmable recipes puts precise temperature, humidity and timer control at your fingertips.
- Even-Airflow™ system maintains room temperature to 110 °F (43 °C) and up to 95 % RH for uniform proofing from corner to corner.
- Auto-fill humidity—connect a single ¼" cold-water line (15-25 PSI) and forget about water pans.
- Fully insulated, all-stainless panels lock in heat, clean up fast and stand up to rigorous daily use.
- Ships knocked down for easier entry through tight doorways; expandable design lets you add sections later.
- cETLus & ETL-Sanitation listed for electrical & food safety compliance.
- 2-year parts / 1-year labor warranty backed by Doyon’s nationwide service network.
Technical Specifications
| Model | KDP – Two-Section Knock-Down Proofer |
|---|---|
| Rack Capacity | 6 double side-load 12 single end-load 12 single side-load* |
| Overall Dimensions (assembled) | 74 ½" W × 87 ⅜" D × 101" H (1892 × 2219 × 2565 mm) |
| Electrical |
208 V / 1 ph / 48 A / 10 kW 240 V / 1 ph / 42 A / 10 kW (60 Hz, single point connection) |
| Water Connection | ¼" OD cold-water tube, 15-25 PSI |
| Temperature Range | Room temp. to 110 °F (43 °C) |
| Relative Humidity | Up to 95 % |
| Certifications | cETLus, ETL-Sanitation |
| Construction | Stainless steel interior & exterior, insulated panels, two full-height doors |
| Shipping | Ships knocked-down on skid – 1,315 lb (596 kg) |
| Warranty | 2 years parts / 1 year labor (USA & Canada) |
Installation & Site Requirements
- Minimum clearances: 4" sides & back, 24" top; 10' ceiling height recommended.
- Unit must sit on a level, non-combustible floor; slope not to exceed ¾" in any direction.
- 1" clearance between proofer and adjacent oven ensures optimal operation.
- Quality feed-water is essential; Doyon filter #50-1530 recommended to protect warranty.
Important: Racks are not included and must be ordered separately. KDP series products are
custom-built to order and are non-returnable.
Need flexible financing? Ask about Middleby Equipment Financing to spread your investment into affordable monthly payments.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) KDP23 Dough Proofers & Retarders
SKU: KDP23
$56,531.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon KDP23 knockdown roll-in proofer/retarder — stainless, insulated, auto-fill humidity, digital touch control, expandable, cETLus, Made in USA.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
94.19in
Width
74.5in
Depth
124.38in
Pan Capacity
6 double pan racks
Sections
2 section
Proofer Controls
digital controls
Exterior Finish
all stainless steel exterior
Interior Finish
stainless steel
Specifications
Knockdown Proofer Cabinet, roll-in, two-section, capacity (6) double side load (12) single end load racks or (12) single side load racks, (2) doors with (1) digital touchscreen control, single water line, auto fill humidity, insulated panels, stainless steel construction, expandable, shipped KD, cETLus, ETL-Sanitation, Made in USA
