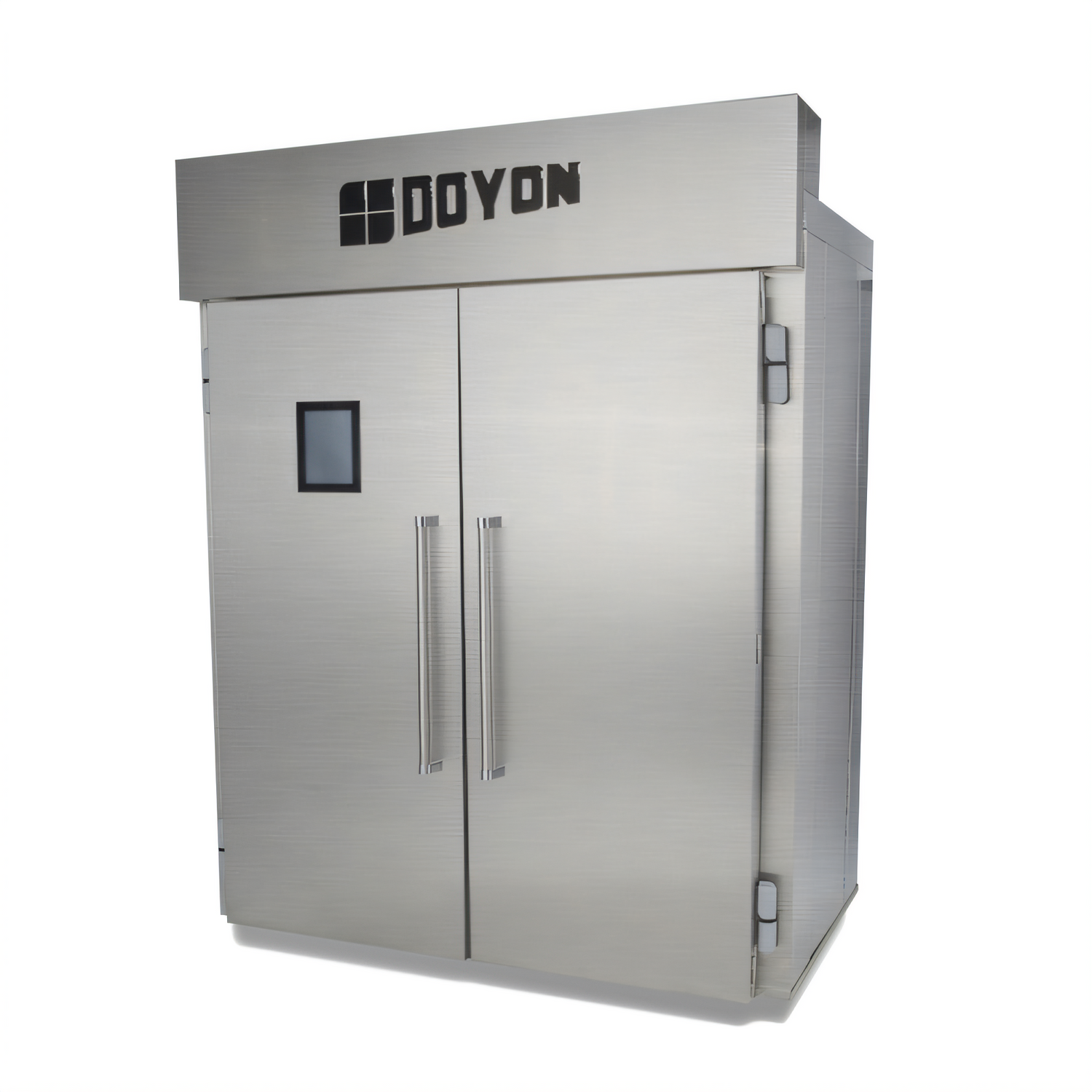

Doyon KDP22 Knock Down Roll-In Proofer Cabinet
Two-Section | Up to 4 Racks | Made in the USABuilt for busy bakeries that refuse to compromise, the Doyon KDP22 delivers perfectly controlled heat and humidity while fitting through a standard doorway during delivery. Assemble it where you need it, roll in your racks, touch a button and watch every batch proof consistently, cycle after cycle.
Why You’ll Love It
- Digital 7" touchscreen with programmable recipes – set it once, proof it perfectly every time.
- Even-Airflow™ heating system maintains up to 110 °F (43 °C) and 95 % RH for uniform results.
- Auto-fill humidity—single ¼" cold-water line, no water pans to fill or spill.

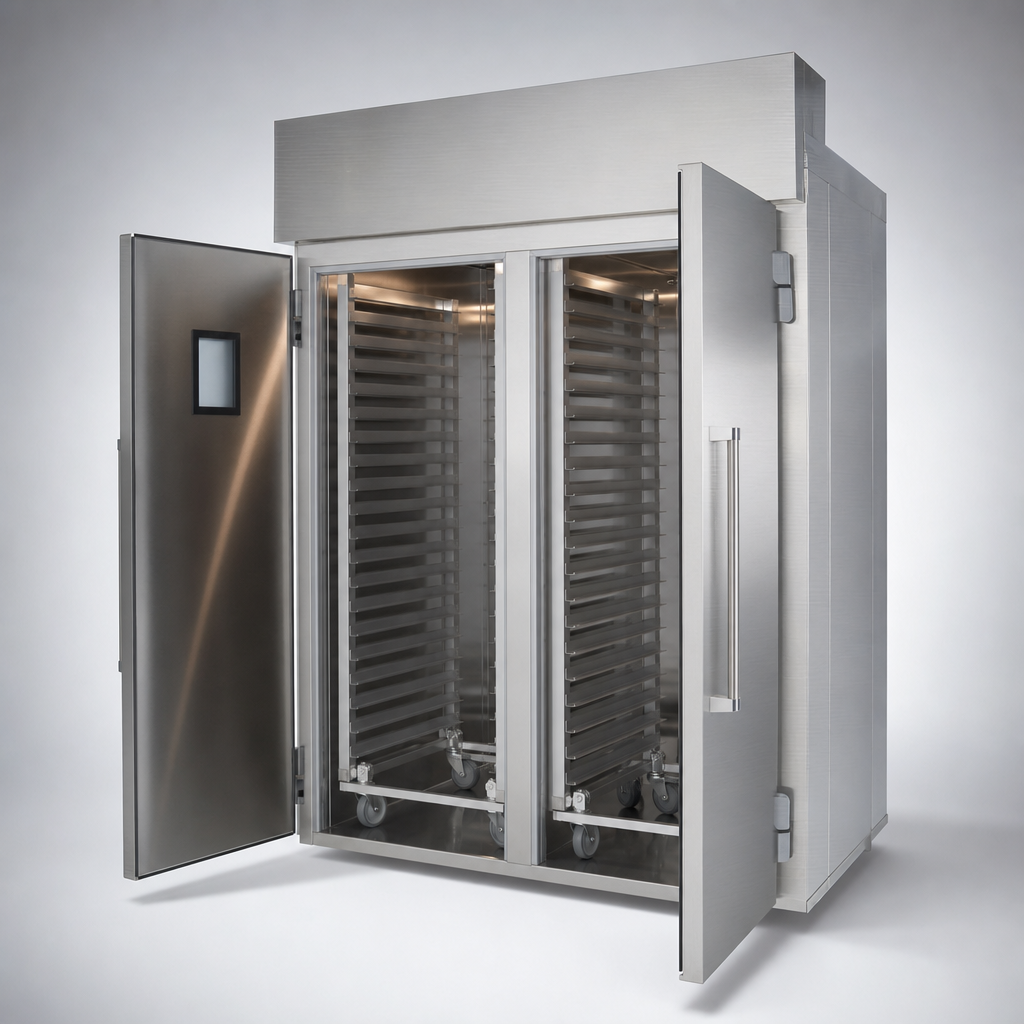

- Roll-in capacity:
- (2) double side-load racks, or
- (3) single end-load racks, or
- (4) single side-load racks

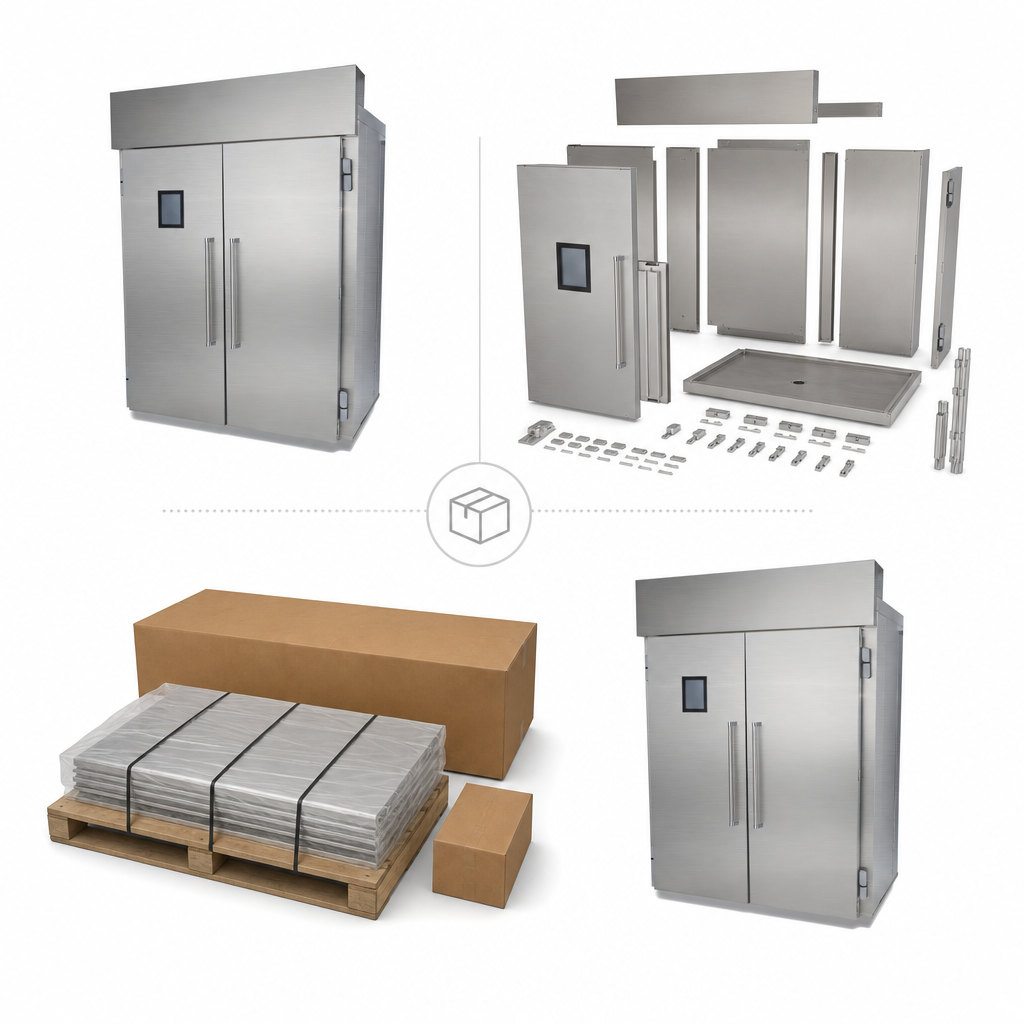

- Ships knocked-down for easy site access; expands in the future by adding extra sections.
- All stainless-steel interior & exterior with high-density insulated panels.
- cETLus & ETL Sanitation listed.
Technical Specifications
| Model | KDP22 (two-section knock-down proofer cabinet) |
|---|---|
| Rack Capacity Racks not included |
(2) double side-load • (3) single end-load • (4) single side-load |
| Operating Range | Room temp – 110 °F (43 °C) • up to 95 % relative humidity |
| Exterior Dimensions (assembled) | 74 ½" W × 87 ⅜" D × 101" H (1892 × 2218 × 2565 mm) |
| Electrical (select one) | 208 V / 1 ph / 48 A / 10 kW • 240 V / 1 ph / 42 A / 10 kW |
| Water Connection | ¼" OD tube, 15–25 PSI cold water (automatic fill) |
| Minimum Clearances | 4" sides & back • 24" top • 10' ceiling height |
| Construction | All stainless steel, high-density insulation, knock-down panels |
| Controls | Full-color capacitive touchscreen, 24-hour timer, built-in diagnostics |
| Certifications | cETLus, ETL-Sanitation |
| Warranty | 2 years parts • 1 year labor (USA & Canada) |
Site Requirements
- Level, non-combustible floor (≤ ⅛" slope per foot).
- Single cold-water line meeting quality standards (water filter strongly recommended – Doyon #50-1530).
- Dedicated electrical circuit per the spec table above.
Popular Options & Accessories
- Pass-through configuration (suffix “PT”).
- Factory installation & start-up service.
- Stainless-steel floor with drain.
Need easy monthly payments?
Ask about Middleby Equipment Financing and convert your purchase into predictable, fixed payments while preserving your cash flow.
Ask about Middleby Equipment Financing and convert your purchase into predictable, fixed payments while preserving your cash flow.
Racks, water filter, drain line and installation services are sold separately. Specifications are subject to change without notice.
Doyon Baking Equipment (Middleby)

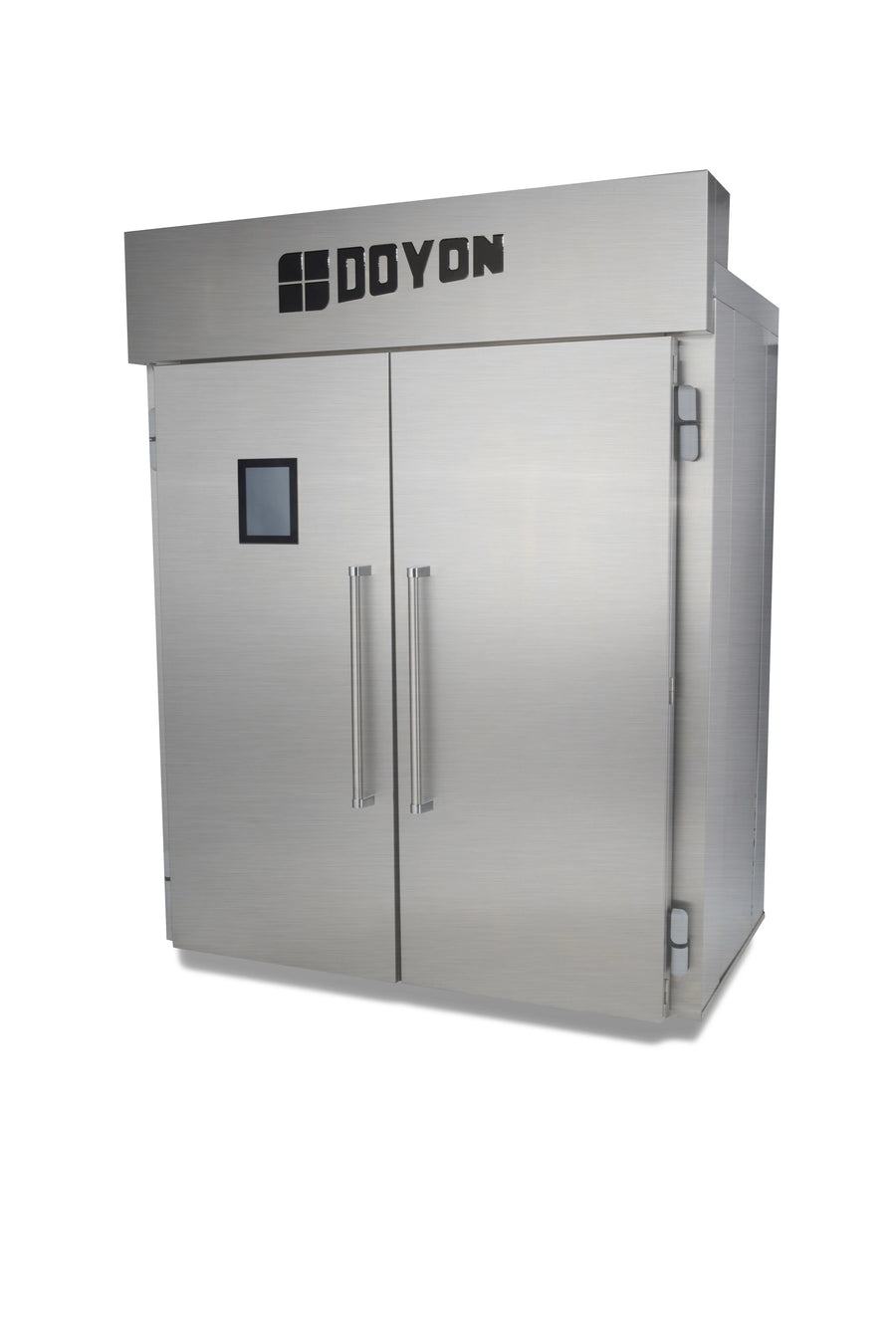

Doyon Baking Equipment (Middleby) KDP21 Dough Proofers & Retarders
SKU: KDP21
$24,921.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon KDP21 knockdown proofer: stainless, insulated roll-in cabinet with digital touchscreen, auto-humidity, expandable, ETL-sanitation, made in USA.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
94.19in
Width
74.5in
Depth
44.38in
Sections
2 section
Proofer Controls
digital controls
Interior Finish
stainless steel
Pan Capacity
2 double pan racks
Exterior Finish
all stainless steel exterior
Specifications
Knockdown Proofer Cabinet, roll-in, two-section, capacity (2) double side load (3) single end load racks or (4) single side load racks, (2) doors with (1) digital touchscreen control, single water line, auto fill humidity, insulated panels, stainless steel construction, expandable, shipped KD, cETLus, ETL-Sanitation, Made in USA
