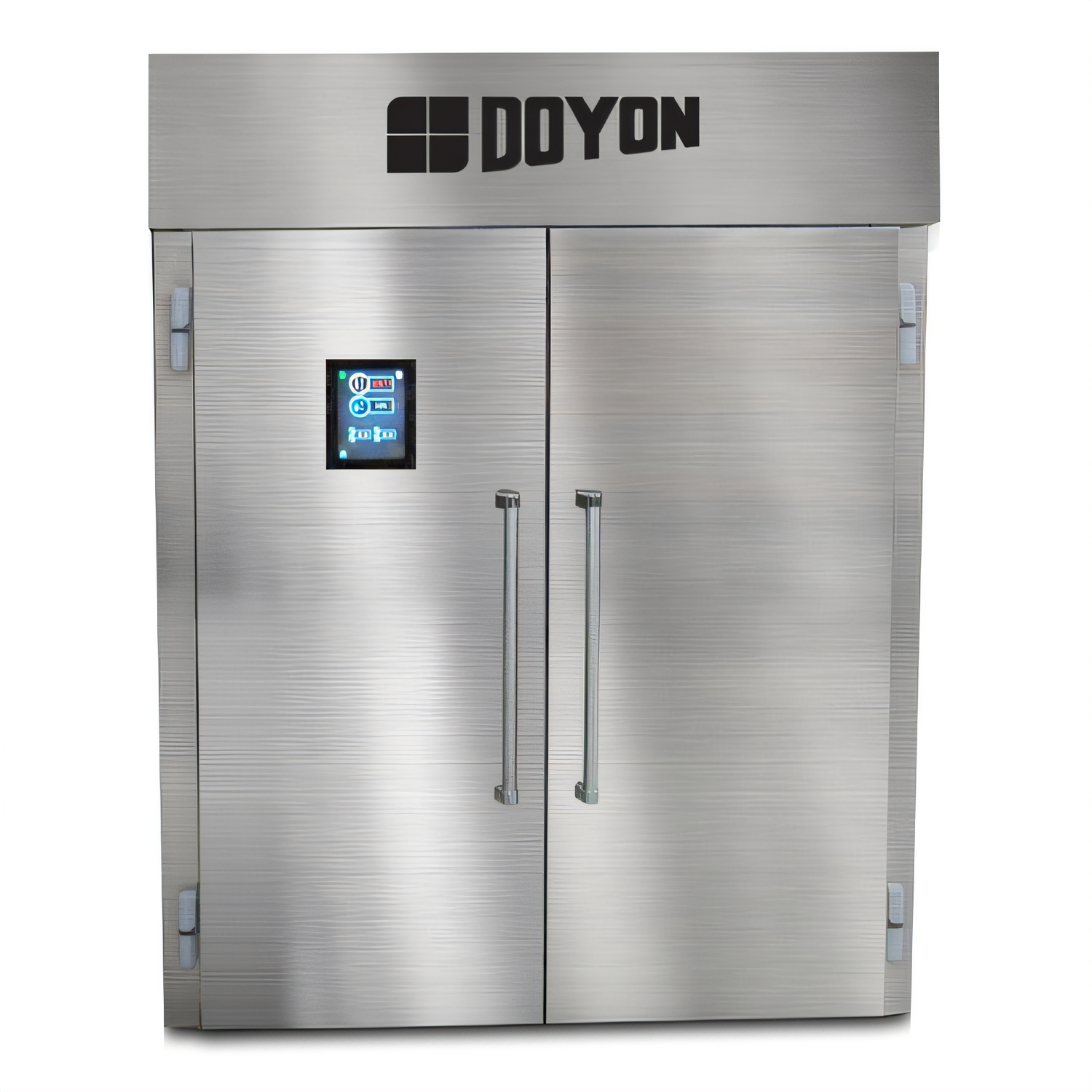

Doyon Knock-Down Roll-In Proofer Cabinet – One Section
Highest-capacity KDP Series model • Made in the USAGive every batch the perfect rise with Doyon’s expandable, one-section knock-down proofer. Designed to roll in up to 2 double-side load, 3 single-end load, or 4 single-side load racks, it pairs a precise touchscreen control with Doyon’s legendary even-airflow system to deliver consistent temperature, humidity and dough quality in any production environment.
Key advantages

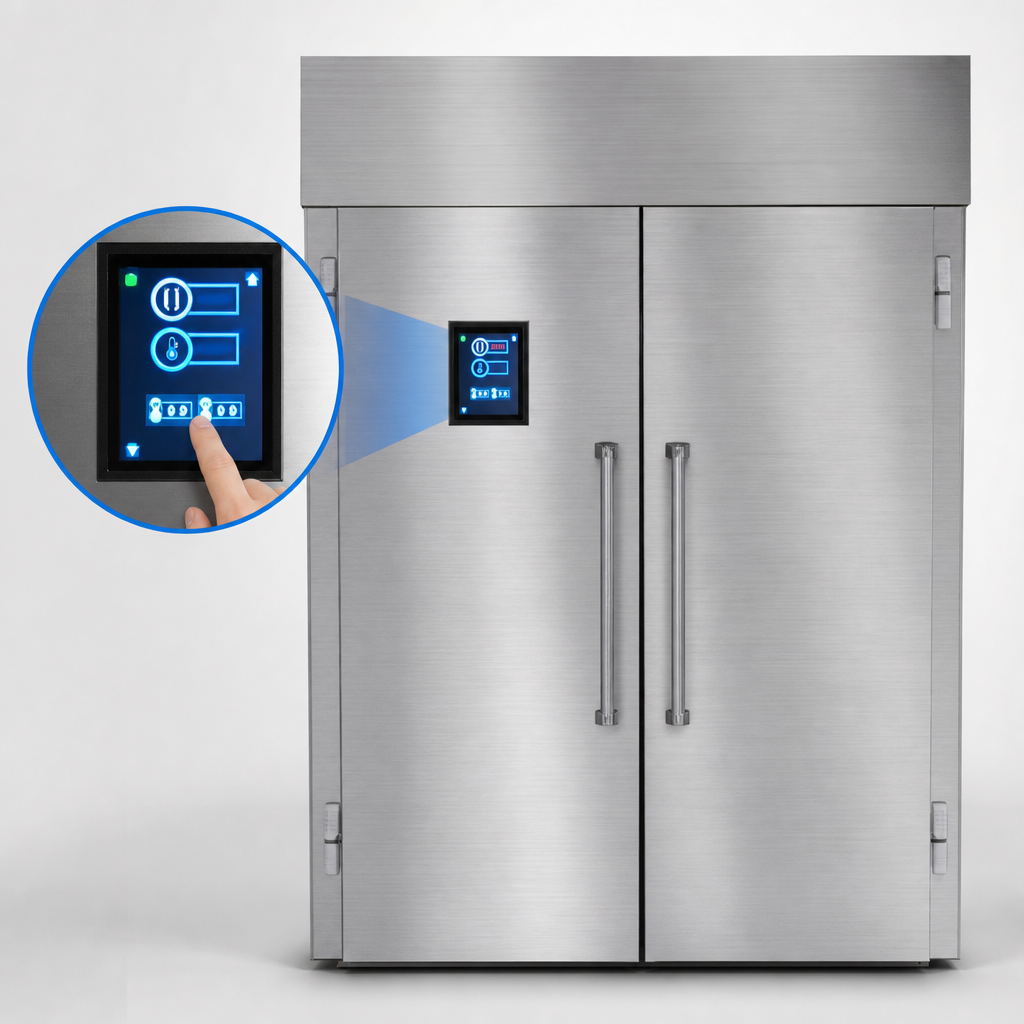

- Digital 4.3" touchscreen with programmable recipes & real-time temperature / RH read-out
- Proofs from room temp up to 110 °F (43 °C) with up to 95 % relative humidity
- Automatic water fill – no pans to mess with; only a single ¼" cold-water line required
- Stainless-steel interior & exterior, factory-insulated KD panels for quick on-site assembly
- Roll-in design handles the industry’s most common rack styles (racks sold separately)
- Shipped knock-down to slash freight class and navigate tight doorways
- Field-expandable – add sections as production grows
Engineered for precision

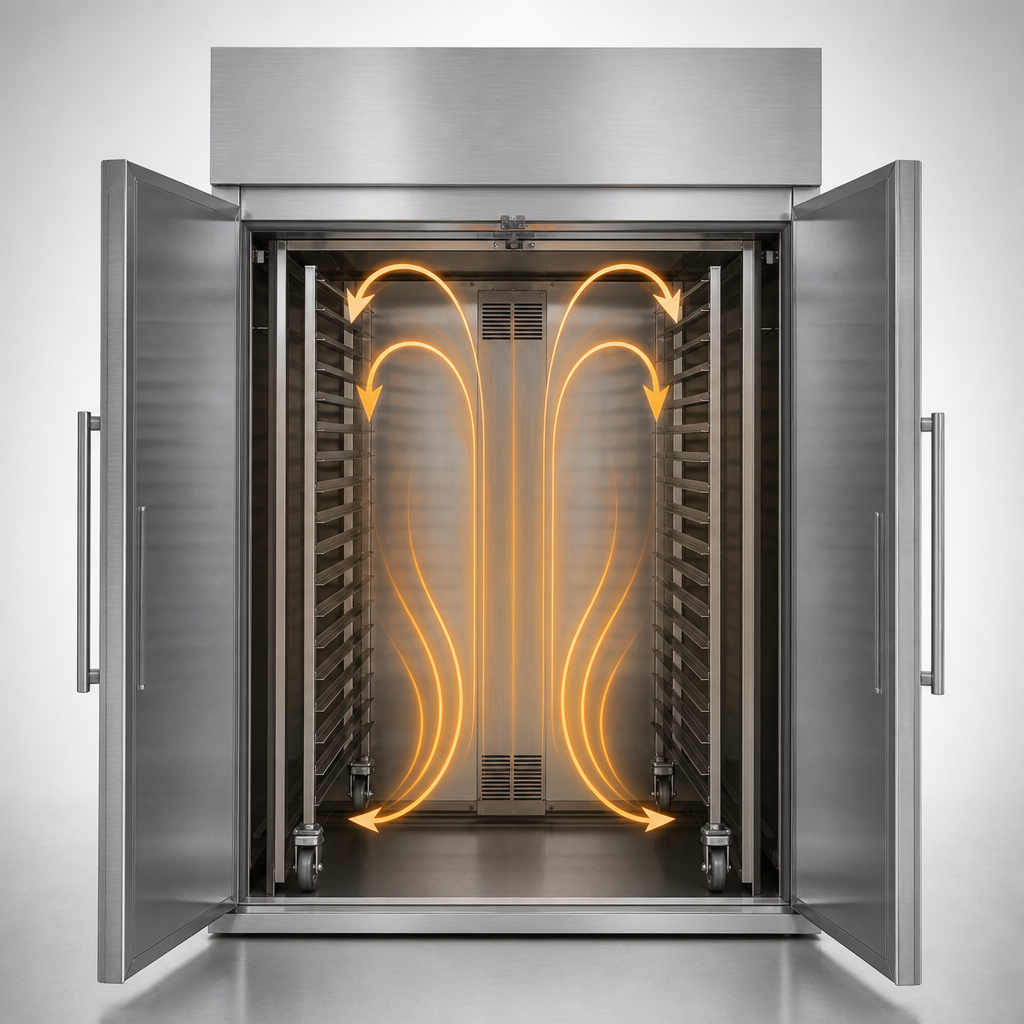

- Even-airflow heating system surrounds product with balanced heat & moisture for uniform proofing.
- Fully gasketed door with field-reversible hinge (specify left or right at order).
- High-density insulation locks heat in and operating costs down.
- Single water, single electrical connection keeps installation simple.
Rack capacities (one section)
- 2 × Double-side load racks
- 3 × Single-end load racks
- 4 × Single-side load racks
Specifications
| Exterior dimensions (crated) | 42" W × 127 3⁄8" D × 101" H (1066 × 3225 × 2565 mm) |
|---|---|
| Electrical | 208 V or 240 V, 1 Ph, 42-48 A, 10 kW, 60 Hz |
| Water connection | ¼" OD cold-water tube, 15-25 psi (103-172 kPa) |
| Operating range | Ambient – 110 °F (43 °C) | ≤ 95 % RH |
| Clearances | 4" sides & back, 24" top (combustible surfaces) |
| Certifications | cETLus, ETL-Sanitation (NSF) |
| Warranty | 2-year parts / 1-year labor, factory-authorized service network |
Need filtered water? Add Doyon cartridge #50-1530 to protect your investment and preserve warranty coverage.

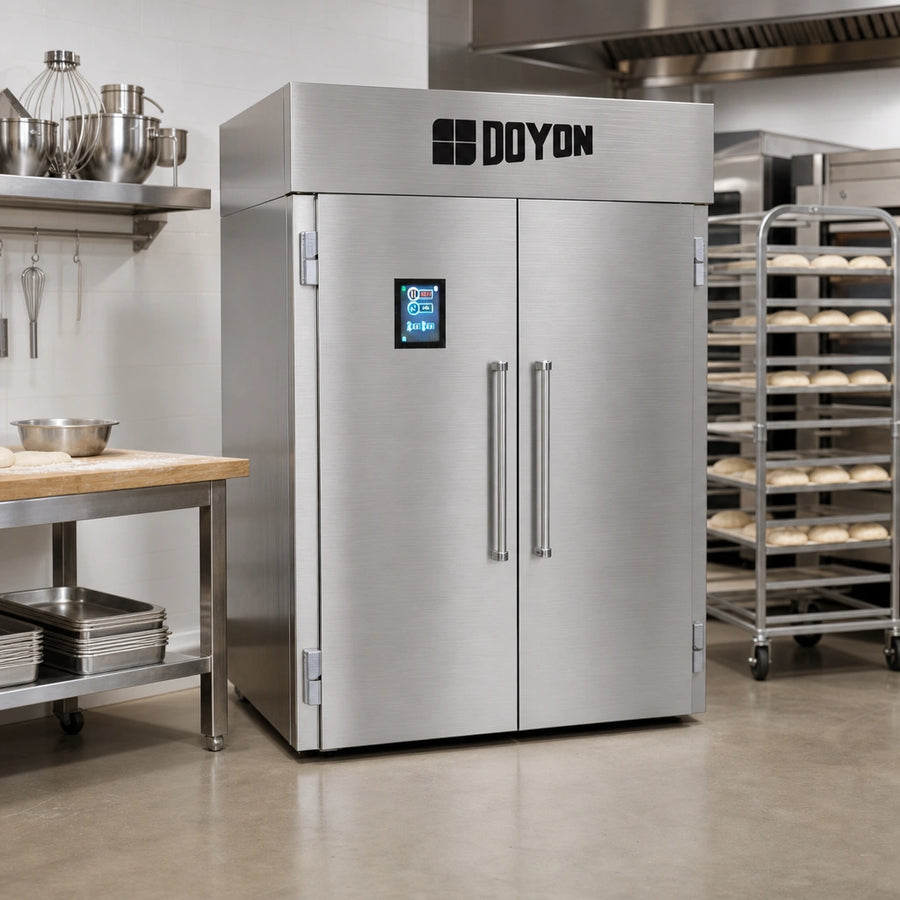

Perfect for
- Artisan & wholesale bakeries
- Supermarket bake-off programs
- Hotel & resort commissaries
- High-volume pizzerias and commissary kitchens
Installation note: Unit ships knock-down. 10 ft ceiling height, level non-combustible floor, and 1" clearance
between proofer and any oven are required for proper operation and service access.
Proudly manufactured in Menominee, Michigan, USA.
Doyon Baking Equipment (Middleby)
Doyon Baking Equipment (Middleby) KDP12 Dough Proofers & Retarders
SKU: KDP12
$29,814.00
/each
Free Shipping
Expected delivery date of ,
if ordered within hours and minutes
Not Shipping to
?
Doyon KDP12 knockdown dough proofer/retarder — stainless, insulated, digital touchscreen, auto-humidity, roll-in, expandable, cETLus, Made in USA.
Manufacturer
Doyon Baking Equipment (Middleby)
Certifications
cETLus, ETL-Sanitation, Made in USA
Height
94.19in
Width
42.0in
Depth
84.38in
Sections
1 section
Interior Finish
stainless steel
Proofer Controls
digital controls
Exterior Finish
all stainless steel exterior
Pan Capacity
2 double pan racks
Specifications
Knockdown Proofer Cabinet, roll-in, one-section, capacity (2) double side load (3) single end load racks or (4) single side load racks, (1) door with digital touchscreen control, single water line, auto fill humidity, insulated panels, stainless steel construction, expandable, shipped KD, cETLus, ETL-Sanitation, Made in USA
