Doyon Baking Equipment (Middleby) KDP11 Dough Proofers & Retarders
Doyon Baking Equipment (Middleby) KDP11 Dough Proofers & Retarders is backordered and will ship as soon as it is back in stock.
Documents
Related Searches
Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.
Doyon Baking Equipment (Middleby) KDP11 Dough Proofers & Retarders
Description

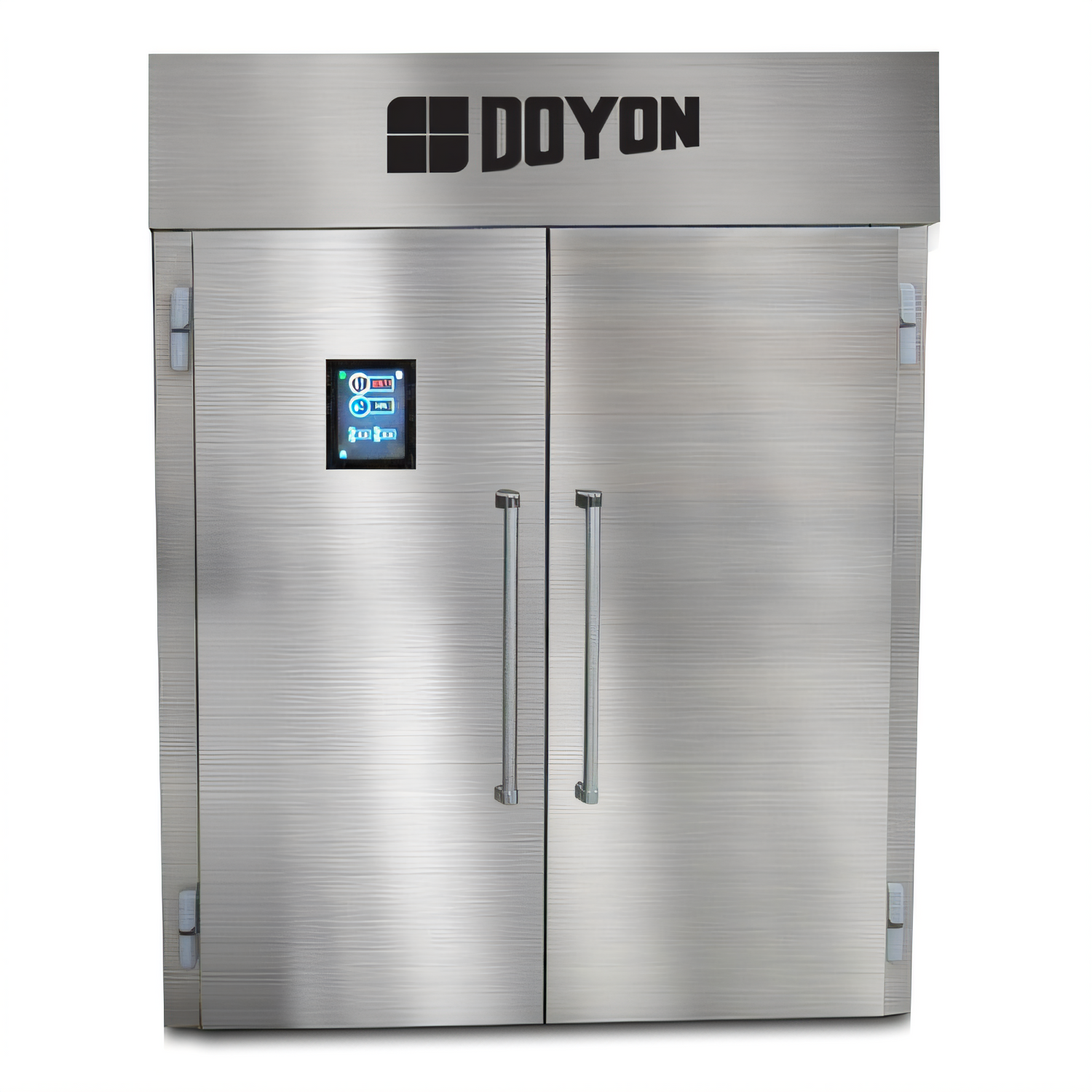

Knock-Down Roll-In Proofer Cabinet – One Section
Doyon Baking Equipment • Made in the USAGive every batch its best rise with the Doyon Knock-Down Proofer. Engineered for artisan and high-volume bakeries alike, this roll-in cabinet combines a precision touchscreen, automatic humidity control and rugged stainless-steel construction in a space-saving one-section footprint. It ships knocked-down for easy entrance through standard doorways and assembles quickly on site — so you can start proofing sooner and more profitably.
Why Bakers Choose Doyon

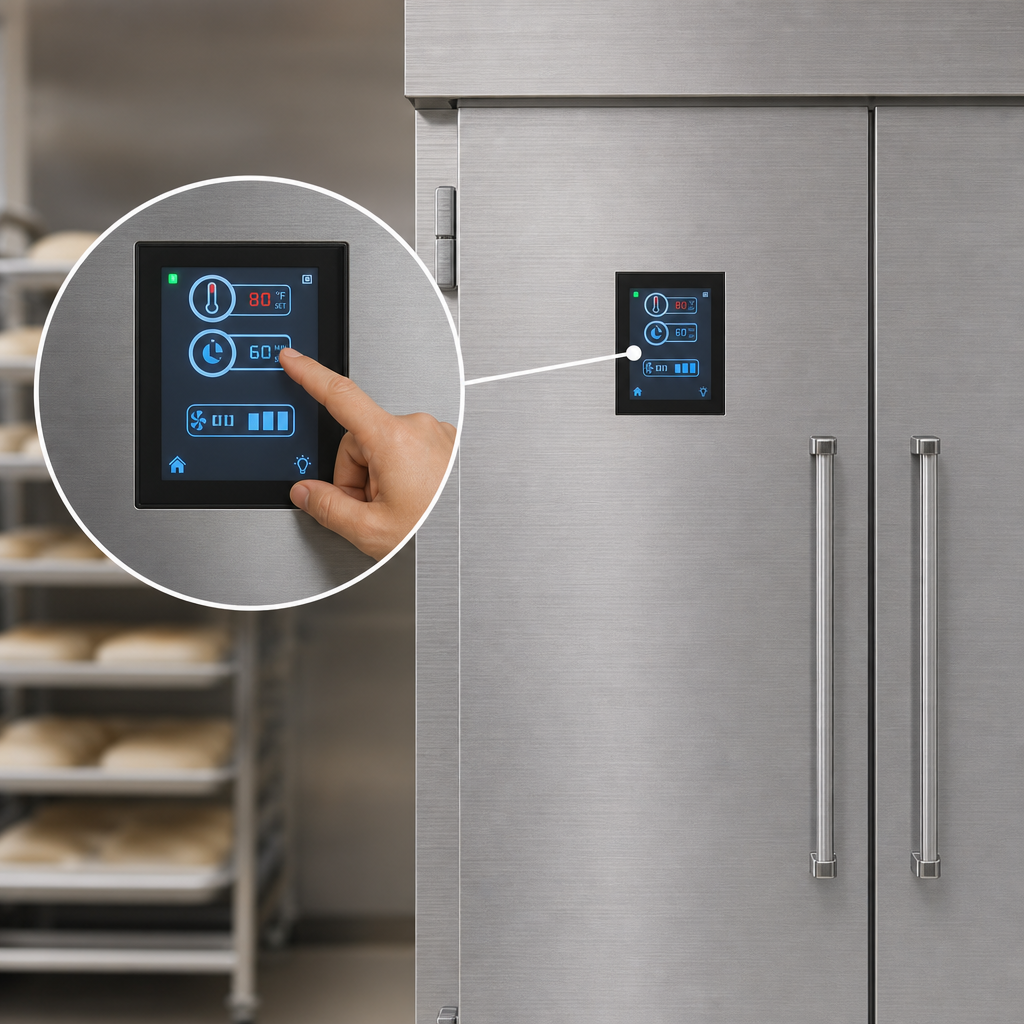

- Digital touchscreen with programmable recipes – set time, temperature & humidity at a tap.

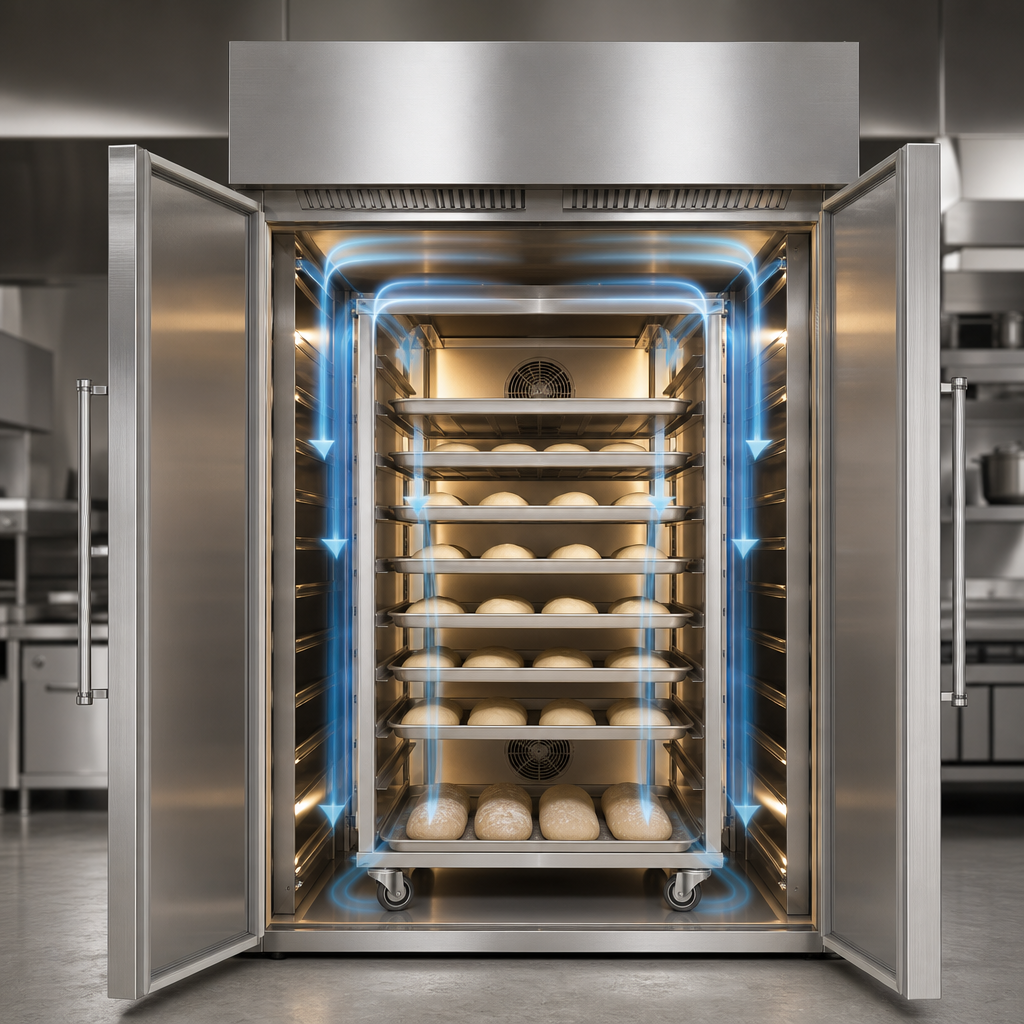

- Even-Air™ circulation maintains consistent heat and up to 95 % relative humidity throughout the cabinet.
- Auto-Fill humidifier connects to a single ¼" cold-water line – no water pans, no manual refills.
- Wide proofing range from room temperature up to 110 °F (43 °C) for virtually any dough style.
- Roll-in capacity holds (1) double side-load or single end-load rack or (2) single side-load racks (racks sold separately).
- Premium stainless-steel & insulated panels resist corrosion, retain heat and clean up fast.
- Expandable design lets you add sections as production grows.
- Certified cETLus & ETL-Sanitation for worry-free code compliance.
At-a-Glance Specs
| Model | One-Section Knock-Down Proofer (KDP11) |
|---|---|
| Rack Capacity | (1) double side-load / single end-load rack or (2) single side-load racks |
| Temperature Range | Room temp – 110 °F (43 °C) |
| Relative Humidity | Up to 95 % RH |
| Control | Full-color touchscreen, programmable |
| Water Connection | ¼" cold-water line, 15 – 25 PSI (auto fill) |
| Electrical | 208 V / 1-ph / 24 A / 5 kW | 240 V / 1-ph / 21 A / 5 kW |
| Exterior Dimensions | 42" W × 47 ⅜" D × 101" H (1066 × 1203 × 2565 mm) |
| Crated Weight | ≈ 860 lb (390 kg) |
| Certifications | cETLus, ETL-Sanitation, NSF |
| Warranty | 2 yr parts / 1 yr labor |
Installation Essentials
- Ships knocked-down; 10 ft (3 m) ceiling required for assembly.
- Maintain 4" side/back and 24" top clearance from combustibles.
- Unit must sit on a level, non-combustible, cleanable floor.
- Water filter (Doyon #50-1530) strongly recommended to protect humidifier.
Looking to spread out the cost? Ask us about flexible equipment financing through Middleby – fast approvals and potential Section 179 tax savings.
