Doyon Baking Equipment (Middleby) JAOP6 Jet-Air Convection Ovens
Description

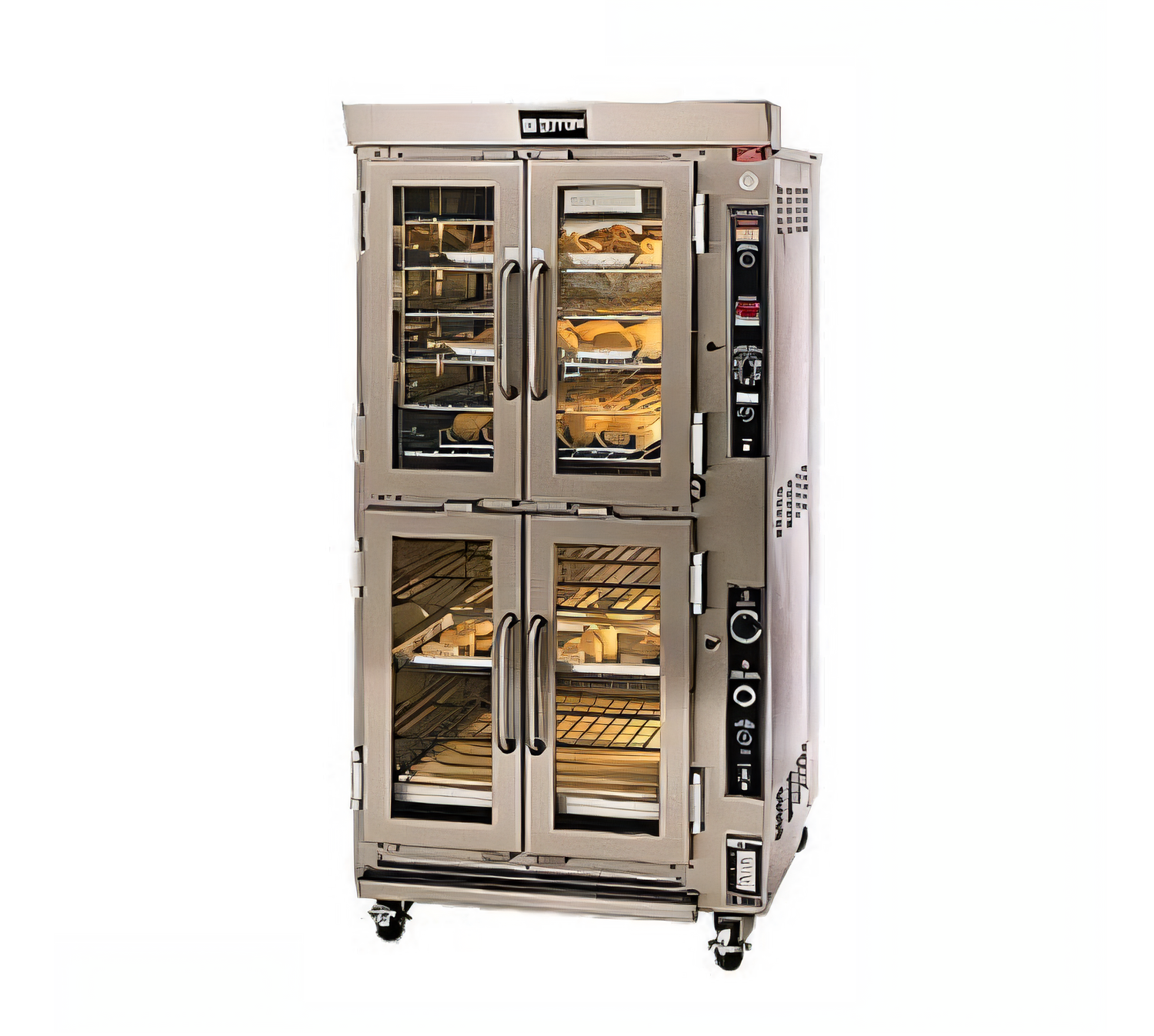

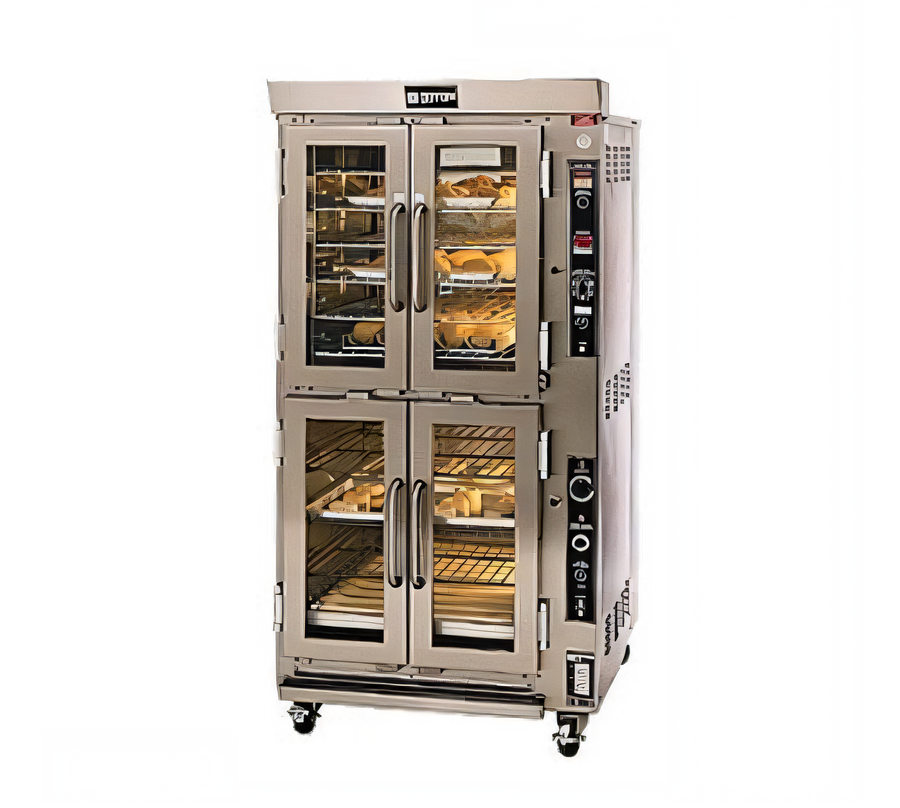

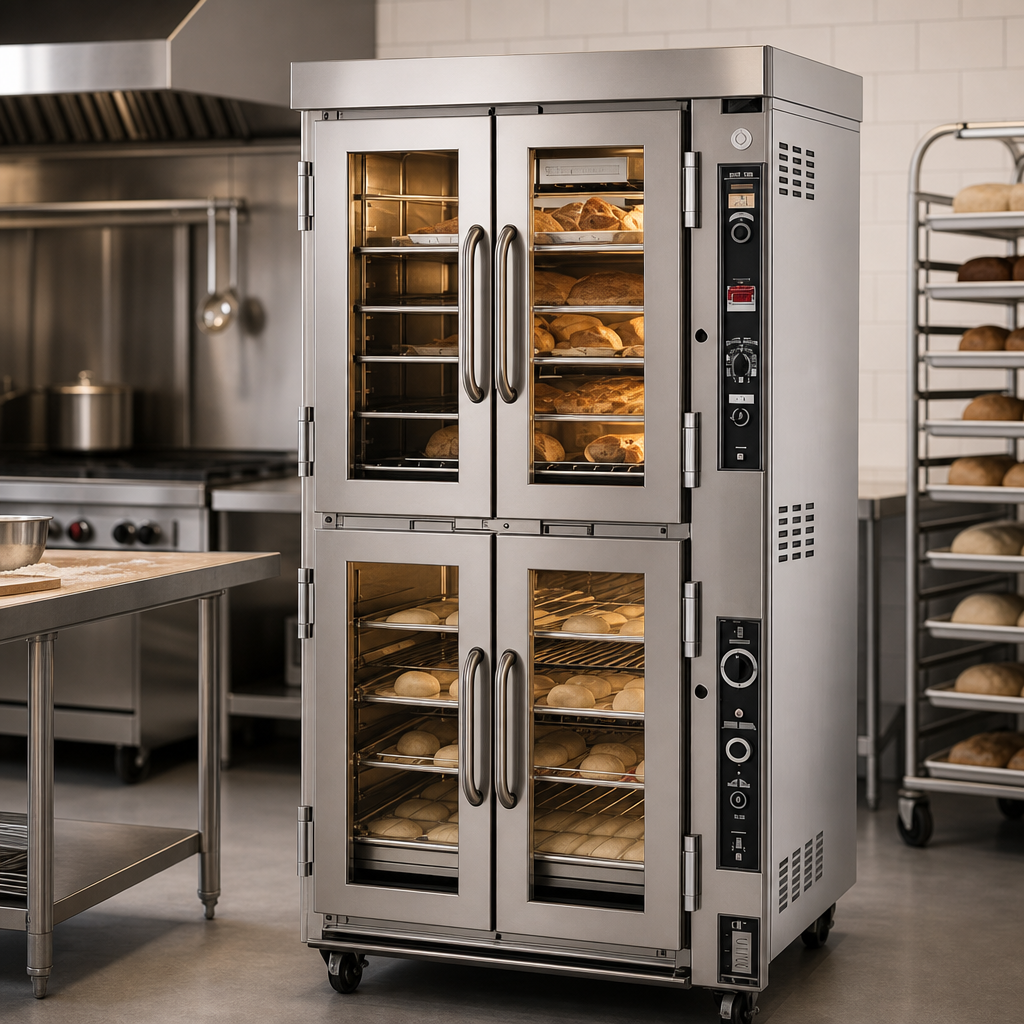

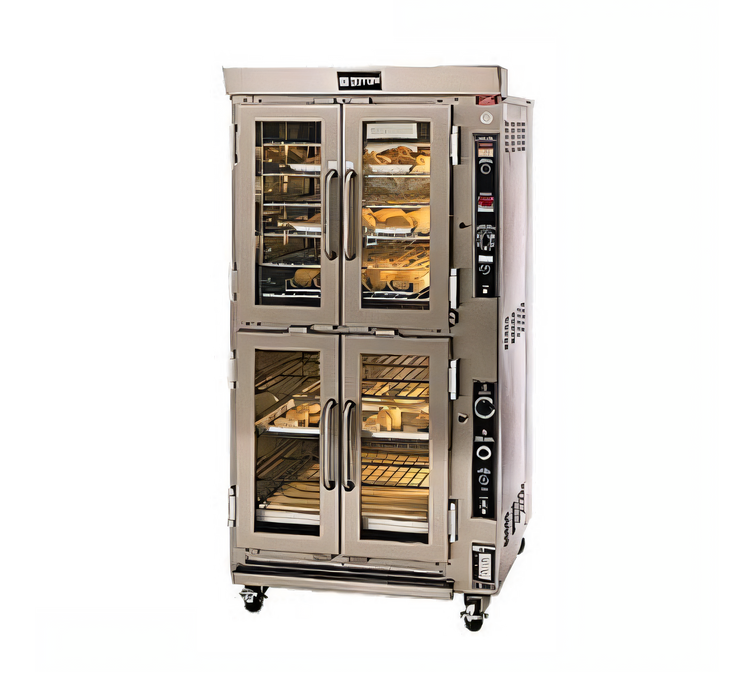

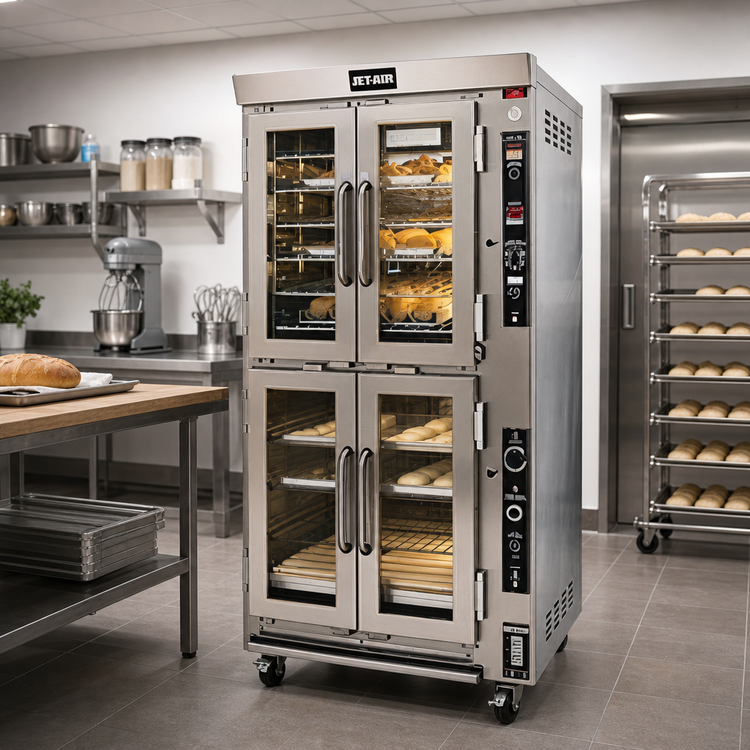

Jet-Air Electric Oven/Proofer Combination
Doyon Model JAOP6 – 6-Pan Oven / 18-Pan ProoferProof, bake and finish in one ultra-efficient footprint. The Doyon Jet-Air Electric Oven/Proofer leverages a patented reversing jet-air system, on-demand steam and 99 customizable recipes to deliver perfectly uniform results—batch after batch. Built, tested and certified in the USA, this all-stainless workhorse is ready for bakeries, cafés, convenience stores and commissaries that demand artisanal quality on a production schedule.
Why You’ll Love It

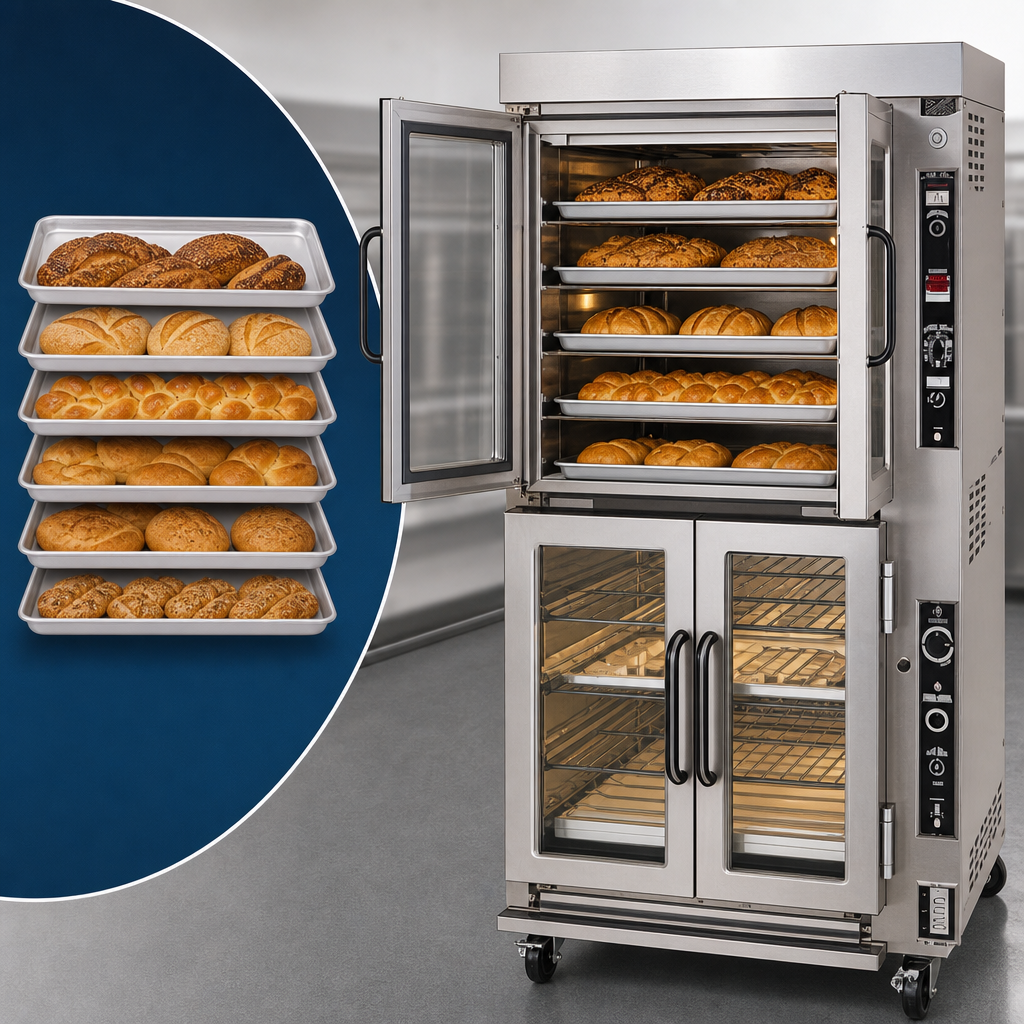

- 6 full-size (18" × 26") pan capacity oven with fast 15-minute preheat up to 500 °F (260 °C)
- Integrated 18-pan proofer (3" shelf spacing) with independent heat & humidity controls and auto water fill
- Jet-Air reversing fan system with variable speeds & programmable fan delays for even baking
- Shot or pulse steam injection—perfect crust without open-hearth costs
- Advanced controller stores 99 recipes / 8 baking stages; USB port for easy upload & backup
- Full-view, heat-reflective glass doors and bright interior lighting showcase product while retaining heat
- Magnetic latches & door-activated fan cut-off improve safety and save energy
- Mounted on 4 heavy-duty swivel casters (2 locking) for effortless cleaning & repositioning
- All-stainless interior & exterior—sanitary, durable and NSF listed
- cETLus, NSF certified; Made in the USA
Technical Specifications
| Oven Pan Capacity | 6 full-size sheet pans (18" × 26") |
|---|---|
| Proofer Pan Capacity | 18 full-size sheet pans |
| Temperature Range | Proof: ambient–120 °F (49 °C) • Bake: up to 500 °F (260 °C) |
| Controls | Digital – 99 recipes / 8 stages • Independent heat & humidity for proofer |
| Steam System | Shot or pulse steam (built-in boilerless injection) |
| Electrical | 208 V or 240 V, 1 Ø / 3 Ø, 13.8 kW, 59–64 A (hard-wired) |
| Water Connection | ¼" NPT, auto fill (filter PLF240 strongly recommended) |
| Exterior Dimensions | 36 ⅞" W × 48 ⅛" D × 73" H (938 × 1222 × 1854 mm) |
| Shipping Weight | ≈ 965 lb (438 kg) |
| Clearances | 1" sides/back • 12" top • 4" on non-combustible floor |
| Certifications | cETLus • NSF |
| Warranty | 2-Year Parts / 1-Year Labor Limited Warranty |
Popular Options & Accessories
- PLF240 water filtration kit (extends component life)
- High-temperature door gasket for 400 °F+ applications (HTG001)
- Humidified warmer/proofer module up to 180 °F (HW001)
- Perforated nickel-plated pizza decks (GRPIZ3)
Proper installation and water quality are required to maintain warranty coverage. See full warranty statement for terms and exclusions.
