Doyon Baking Equipment (Middleby)  |  Jet-Air  |  SKU: JAOP3

Doyon Baking Equipment (Middleby) JAOP3 Jet-Air Convection Ovens

$18,909.55
FREE SHIPPING AVAILABLE!
Expected delivery date of , to your door
if ordered within hours and minutes
Not Shipping to ?
More Delivery Options
Documents
Cutsheet Middleby financial flyer Terms & conditions Warranty sheet
Related Searches
Convection Ovens Ovens

Reach out via chat, email, or phone—we're here to help make sure it's the right fit for your kitchen. Contact us for more information.

Description

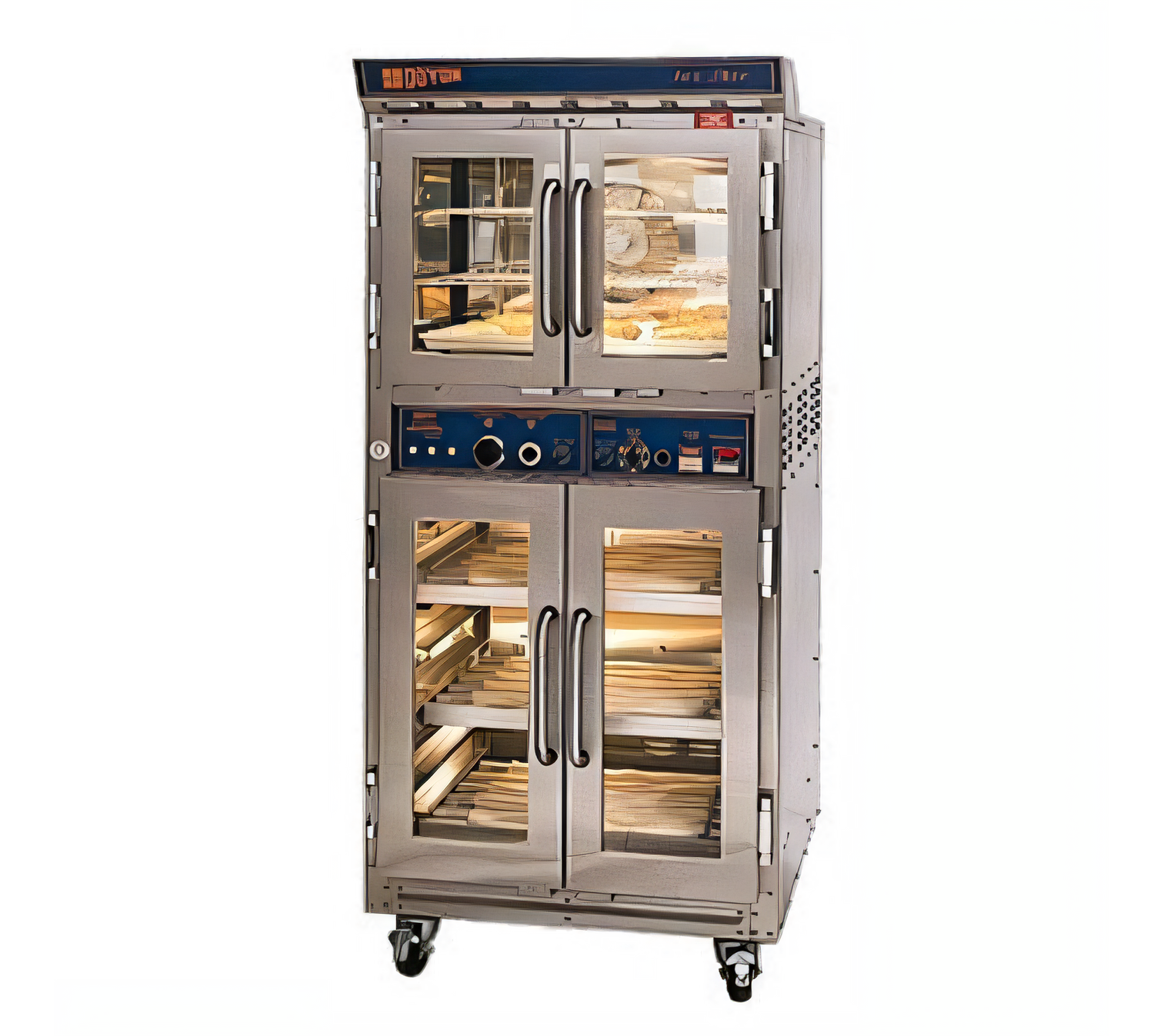

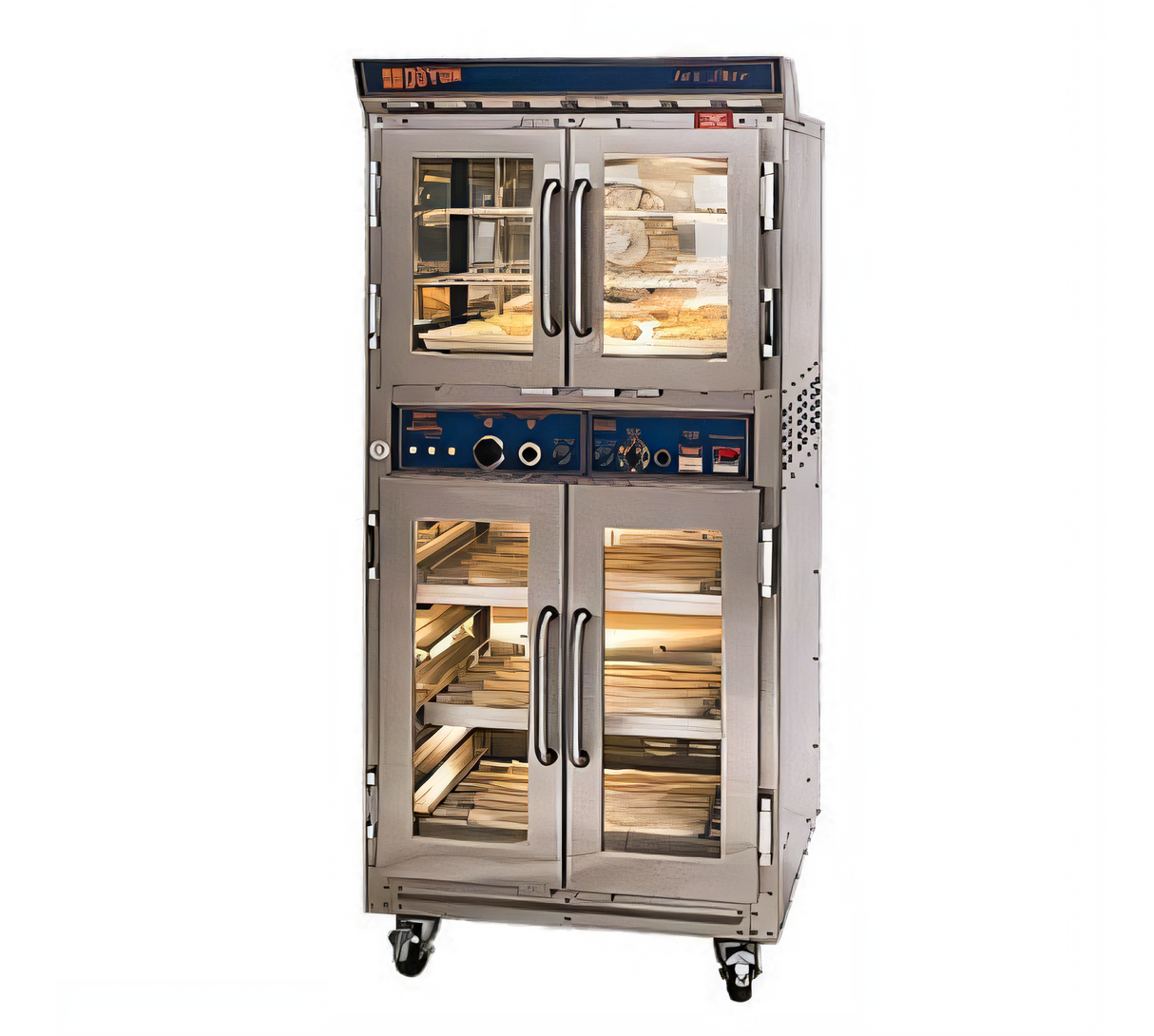

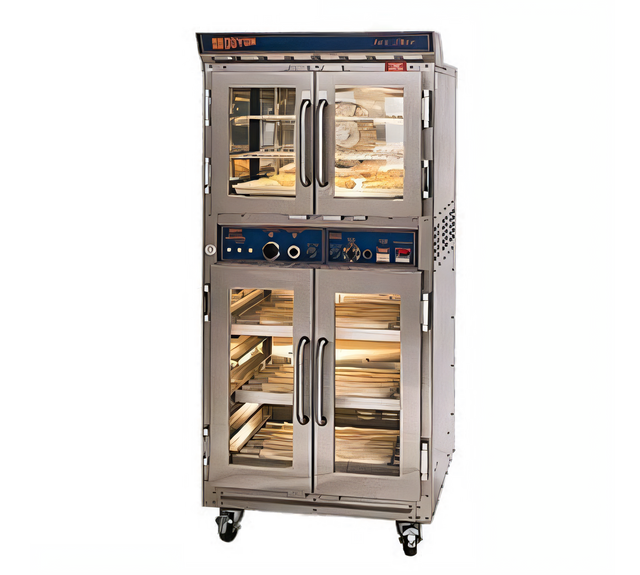

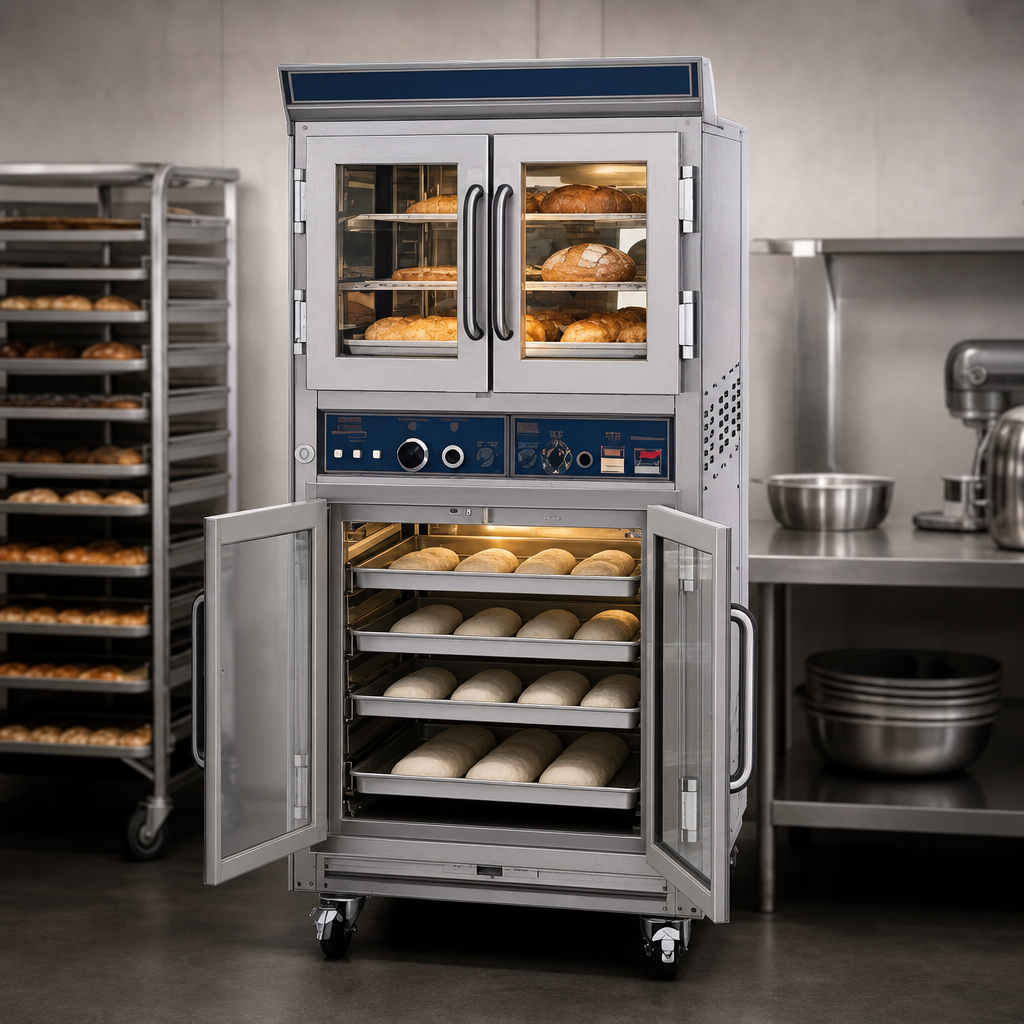

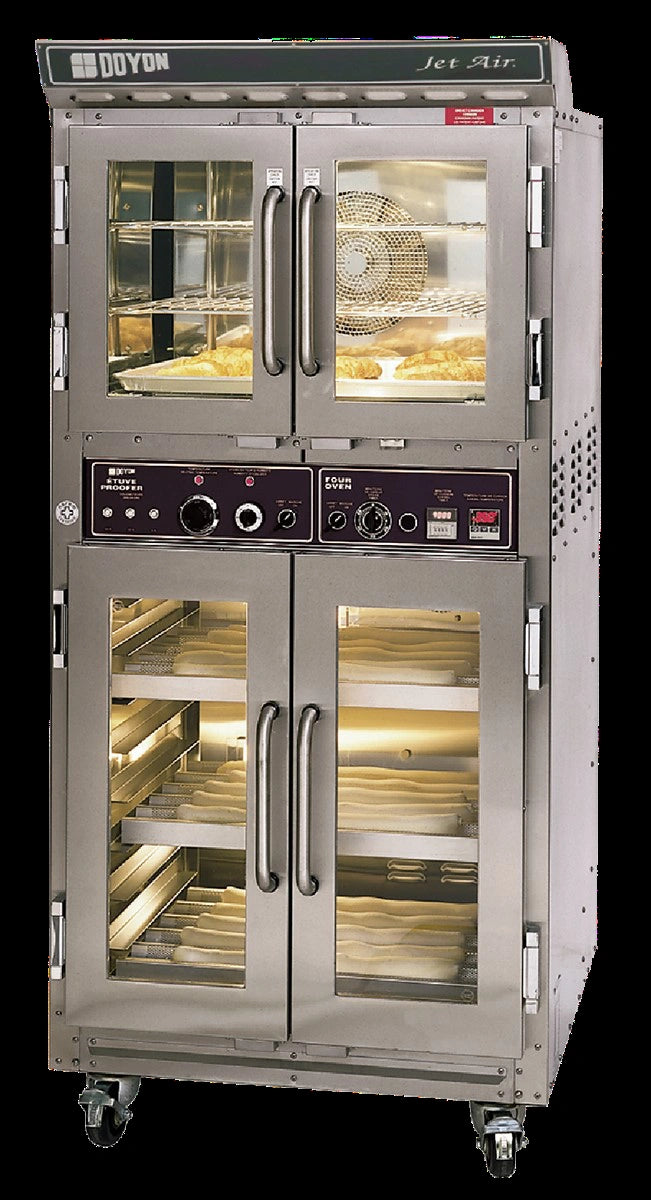

Doyon Jet Air JAOP3 Electric Oven / Proofer Combination

3-Pan Jet-Air Convection Oven • 9-Pan Auto-Fill Proofer • Steam Injection

Replace two separate pieces of equipment with one ultra-efficient footprint. The Doyon JAOP3 couples a powerful Jet Air reversing-fan convection oven with a fully-featured humidity-controlled proofer, letting you proof, bake and finish more product in less time, with perfect consistency batch after batch.

Key Benefits

  • Proven Jet Air reversing-fan system delivers even color and faster bake times.
  • Digital temperature control up to 500 °F (260 °C) with 15 min fast preheat.

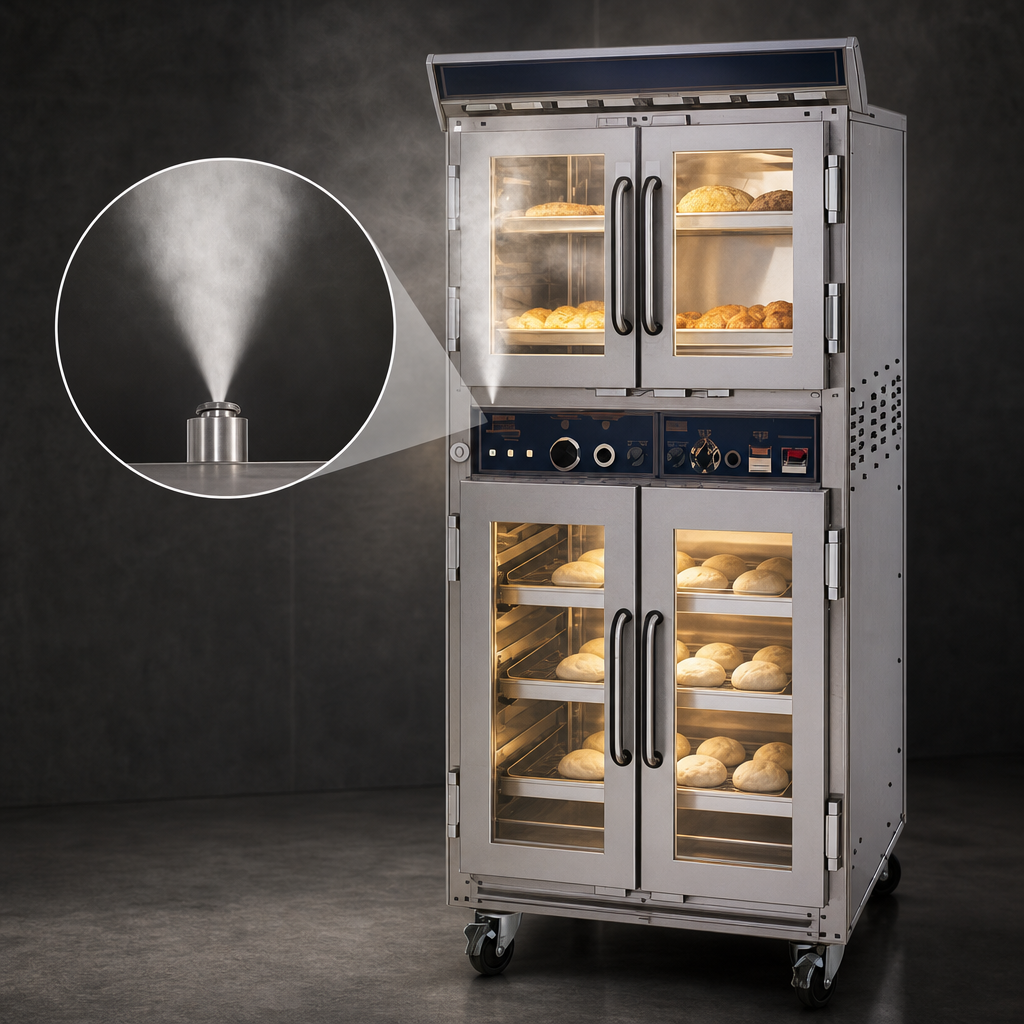

  • Shot steam-injection for artisan crusts at the touch of a button.
  • 9-pan proofer with separate heat & humidity dials and automatic water fill.
  • Full-view, heat-reflective glass doors keep heat inside while showcasing product.
  • Door-activated fan cut-off protects operators from hot air blast.
  • All-stainless interior & exterior, fully insulated and brightly lit.
  • Factory-installed swivel casters (2 locking) for effortless mobility.

Built for Real-World Production

  • Handles (3) full-size sheet pans (18 × 26 in / 457 × 660 mm) in the oven.
  • Proofer holds (9) sheet pans on 3 in (76 mm) centers.
  • Stainless magnetic latches stand up to constant use.
  • Only 32 ½ in wide—fits through a standard 36 in doorway.
  • One-year labor & two-year parts warranty backed by Middleby service network.

Specifications

Model JAOP3 (Jet Air Oven/Proofer)
Oven Pan Capacity 3 × 18″ × 26″ sheet pans
Proofer Pan Capacity 9 × 18″ × 26″ sheet pans
Temperature Range Oven: ambient to 500 °F (260 °C)  |  Proofer: ambient to 180 °F (82 °C)
Exterior Dimensions (W × D × H) 32 ½″ × 37″ × 71″ (826 × 940 × 1805 mm)
Interior Dimensions – Oven 27 ½″ W × 20″ D × 17 ½″ H (699 × 508 × 445 mm)
Interior Dimensions – Proofer 26″ W × 22 ½″ D × 28 ¾″ H (660 × 572 × 730 mm)
Electrical 120/208 V 1 ph 52 A | 3 ph 36 A or 120/240 V 1 ph 48 A | 3 ph 32 A, 11.5 kW, 60 Hz (3/4 wires)
Water Connection ¼″ NPT – auto fill for steam & proofer humidity
Clearances 1″ sides & back · 12″ top · 4″ on non-combustible floor
Crated Weight 750 lb (341 kg)
Listings cETLus, NSF

Recommended Options & Accessories

  • PLF240 in-line water filter for optimal steam performance.
  • High-temperature door gasket (HTG001) for frequent 400 °F+ baking.
  • Humidified warmer/proofer module (HW001).
  • Perforated nickel-plated pizza decks (GRPIZ3).

Specifications and availability are subject to change without notice. Always consult your local codes before installation.

Features & Specs

Manufacturer

Doyon Baking Equipment (Middleby)

Brand_name

Jet-Air

Certifications

NSF, cETLus

Height

71.0in

Width

32.5in

Depth

37.0in

Shipping Weight

750.0lbs

Interior Finish

stainless steel interior

Oven Capacity

3 pan oven capacity

Deck Qty

1 deck

Oven Control

digital controls

Oven Size

full/standard size

Proofer Capacity

9 pan proofer capacity

Specifications

Jet Air Oven/Proofer Combination, Electric, (3)18"x26" pans, steam injection, reversing fan system, digital temperature controller and timer, over (9) pan proofer with auto water fill, glass doors, stainless steel interior & exterior, casters, cETLus, NSF
