Doyon Baking Equipment (Middleby) JAOP12SL Jet-Air Convection Ovens
Description

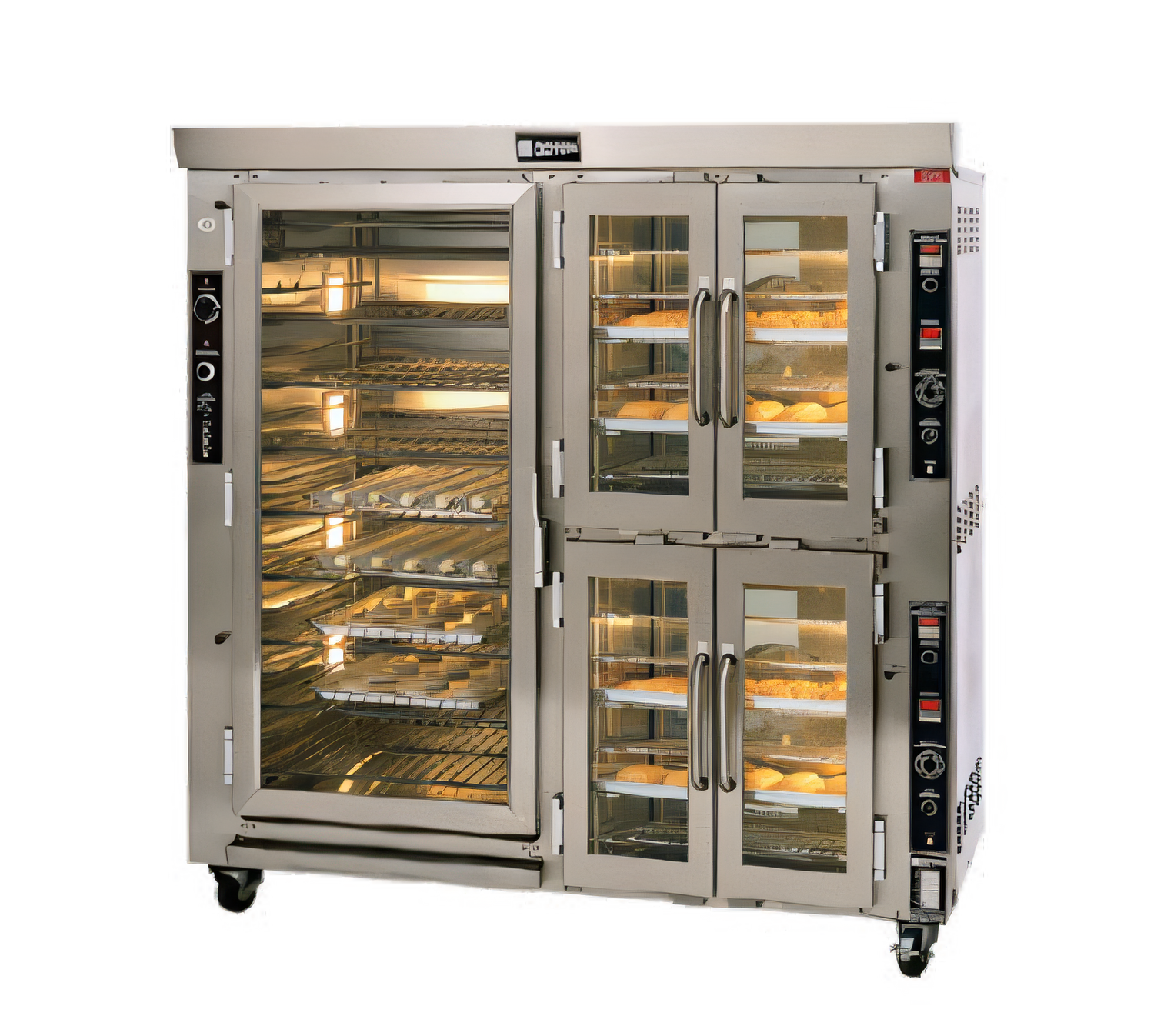

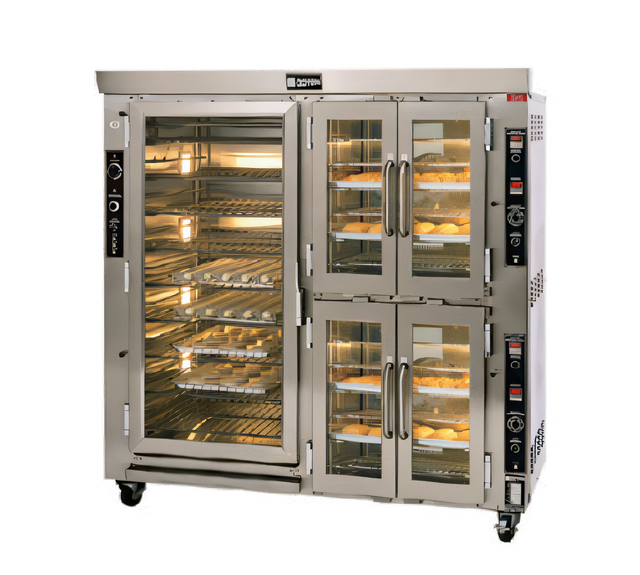

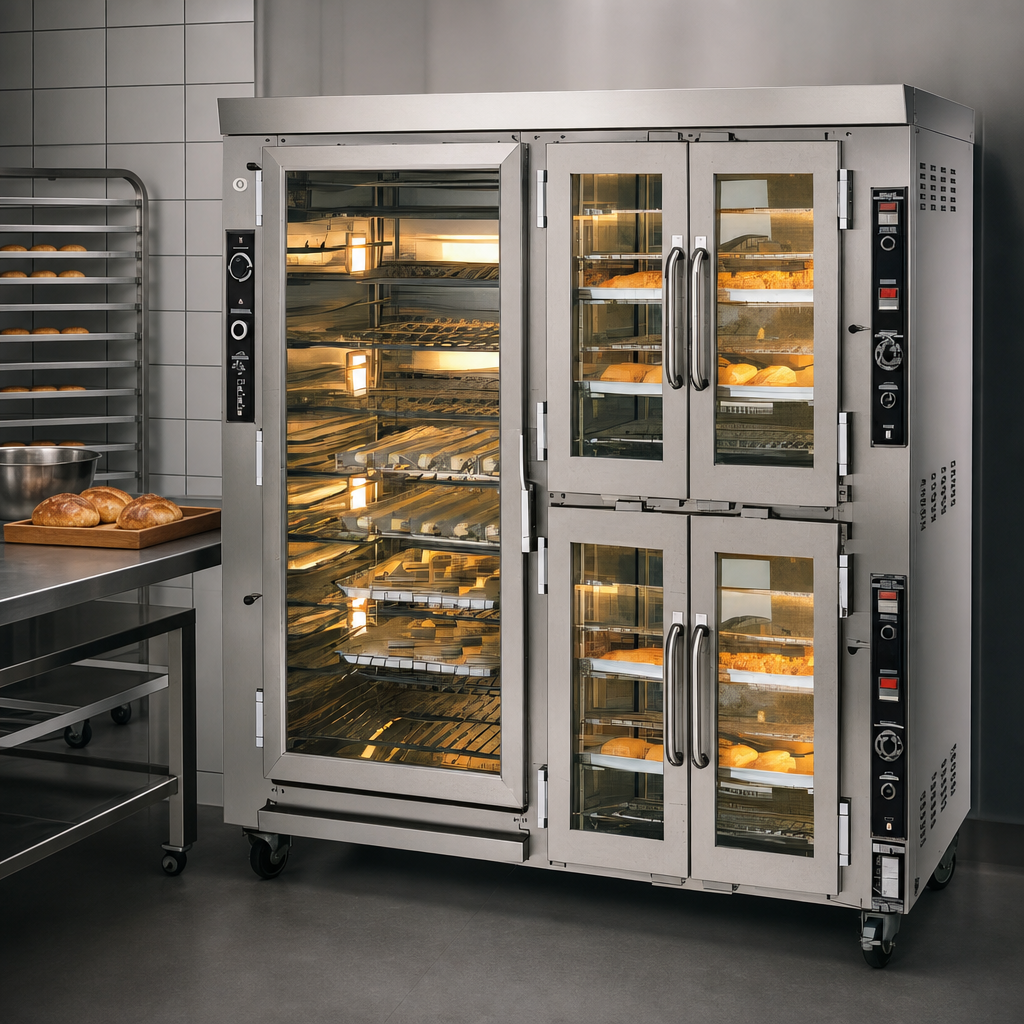

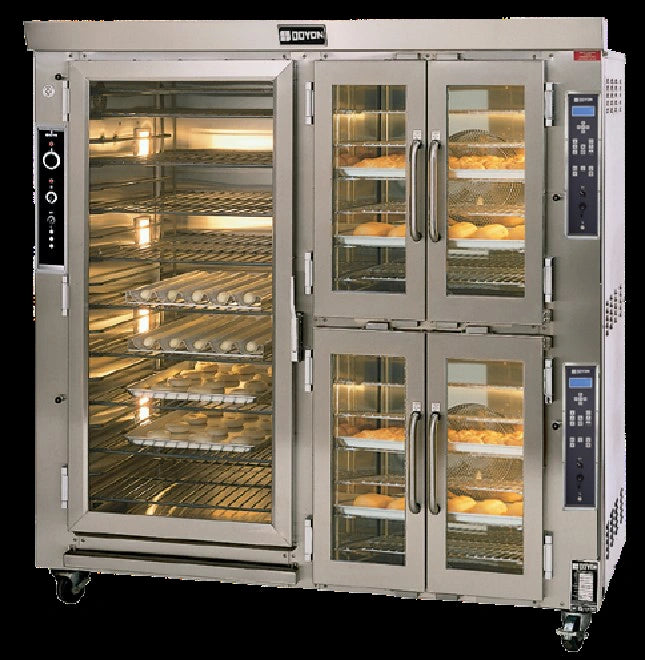

Doyon Jet Air JAOP12SL Oven-Proofer Combination
Electric • 12-Pan Jet Air Convection Oven + 18-Pan ProoferBake, steam, and proof in one space-saving footprint. The Doyon Jet Air JAOP12SL pairs a high-performance reversing-fan convection oven with a humidity-controlled proofer, giving artisan bakeries, supermarkets, and commissaries the throughput of two pieces of equipment in a single, mobile station.
Why You’ll Love It

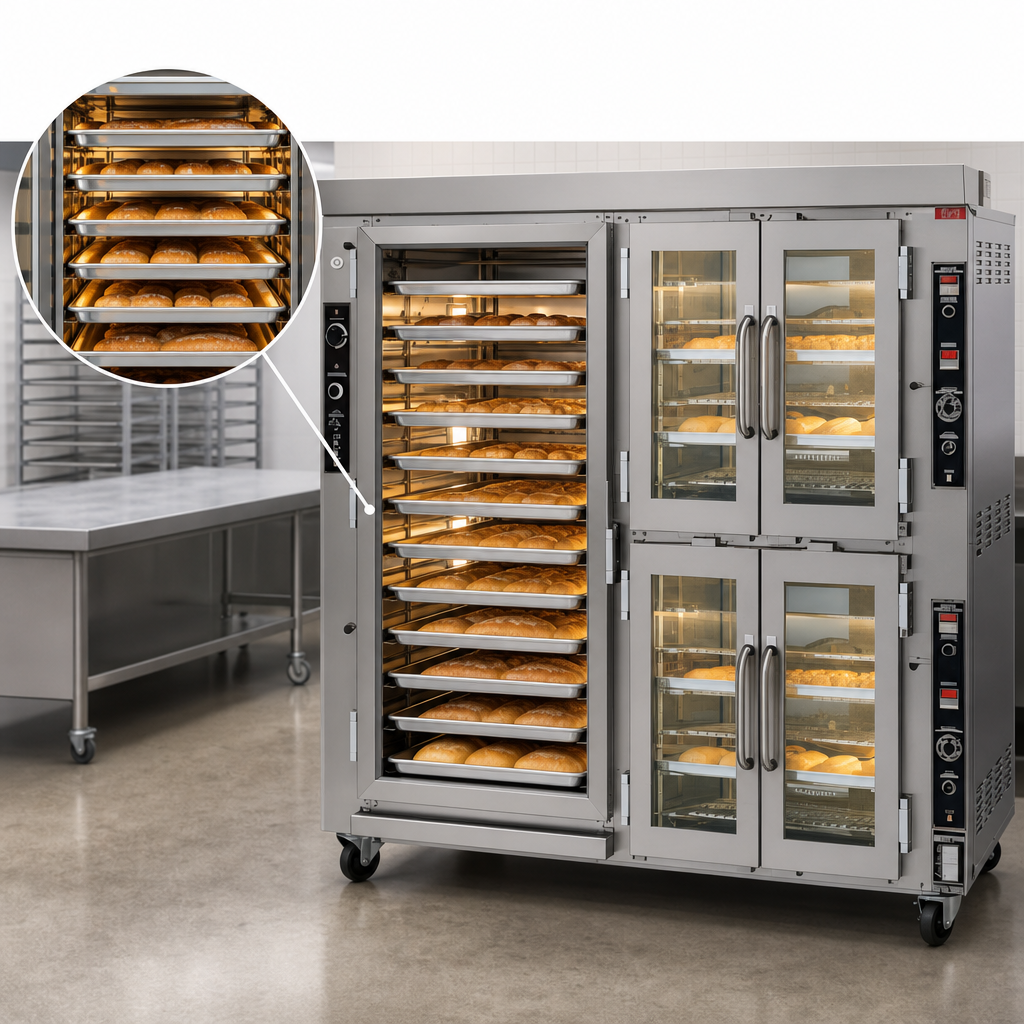

- High-volume output – 12 full-size 18" × 26" pans in the oven, 18 pans in the proofer.
- Jet Air reversing fan with variable speeds and automatic fan delay for even color and faster bake times.
- Steam on demand – shot or pulse injection ideal for breads, pastries, and crusty artisan loaves.
-
Advanced programmable controls
- 99 recipes / 8 baking stages
- Digital temperature to 500 °F (260 °C) – preheats in 15 minutes
- USB port for easy recipe transfer
- Independent proofer with separate heat & humidity controls and auto-fill water connection.
- Full-view thermal glass doors, bright interior lighting, and stainless steel inside & out for years of trouble-free service.
- Mounted on four swivel casters (two locking) for effortless cleaning and relocation.
- cETLus & NSF listed – built to the latest sanitation and safety standards.
Technical Specifications
| Model | JAOP12SL (Electric) |
|---|---|
| Oven Capacity | 12 full-size sheet pans (18" × 26") – side loading |
| Proofer Capacity | 18 full-size sheet pans |
| Shelf Spacing | Oven 3½" • Proofer 3" |
| Temperature Range | Ambient to 500 °F (260 °C) |
| Steam System | Shot & pulse injection, manual fill backup |
| Controls | Touchpad, 99 programs, 8 stages, USB port |
| Electrical | 208 V or 240 V / 1- or 3-phase / 24.6 kW | 208 V 1 ph 117 A • 208 V 3 ph 73 A 240 V 1 ph 104 A • 240 V 3 ph 65 A • 60 Hz |
| Water Connection | ¼" NPT (auto fill for proofer & steam) |
| Overall Dimensions (W × D × H) | 71 ¾" × 37 ⅝" × 73" (1822 × 956 × 1854 mm) |
| Crated Weight | 1,500 lb (681 kg) |
| Clearances | 1" sides & back • 4" on non-combustible floor • 12" top |
| Warranty | Two-year parts • One-year labor (factory authorized service) |
| Standard Accessories | 4 locking racks (oven) • 4 swivel casters (2 locking) |
| Recommended Options | PLF240 water filter • HTG001 high-temp gasket (over 400 °F applications) |
| Certifications | cETLus • NSF |
Specifications are based on information available at the time of publication and are subject to change without notice.
